SPECIFICATIONS

Brand Name: rctosky

For Vehicle Type: Airplanes

Four-wheel Drive Attributes: Assemblage

High-concerned chemical: None

Is Batteries Included: No

Is Electric: No Battery

Is it battery/power supply: N

Is it charger/adapter: N

Material: EVA

Origin: Mainland China

Quantity: 1 pcs

RC Parts & Accs: Motors

Recommend Age: 14+y

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Tools

Upgrade Parts/Accessories: Frame

Use: Vehicles & Remote Control Toys

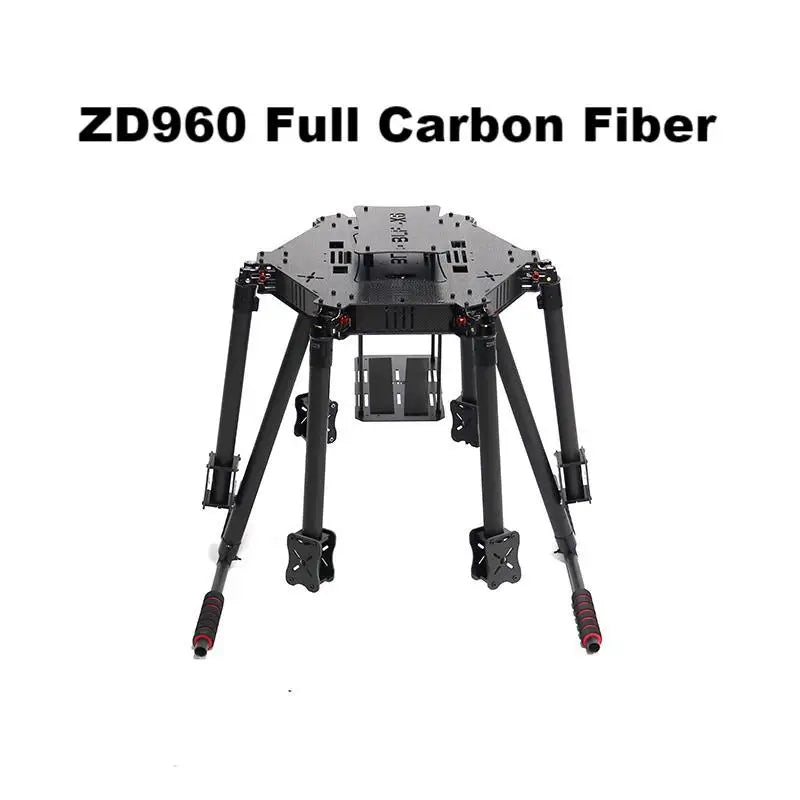

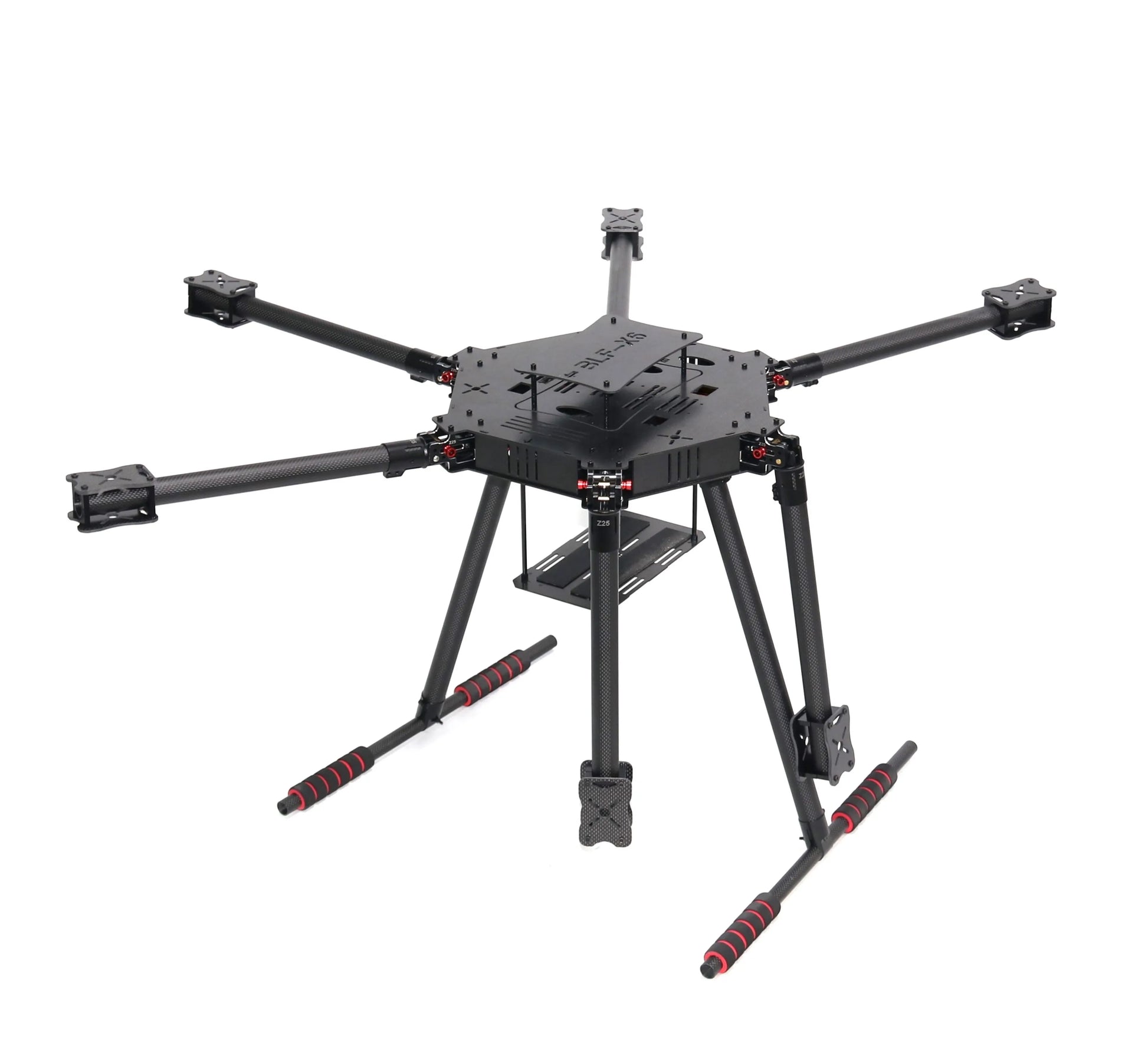

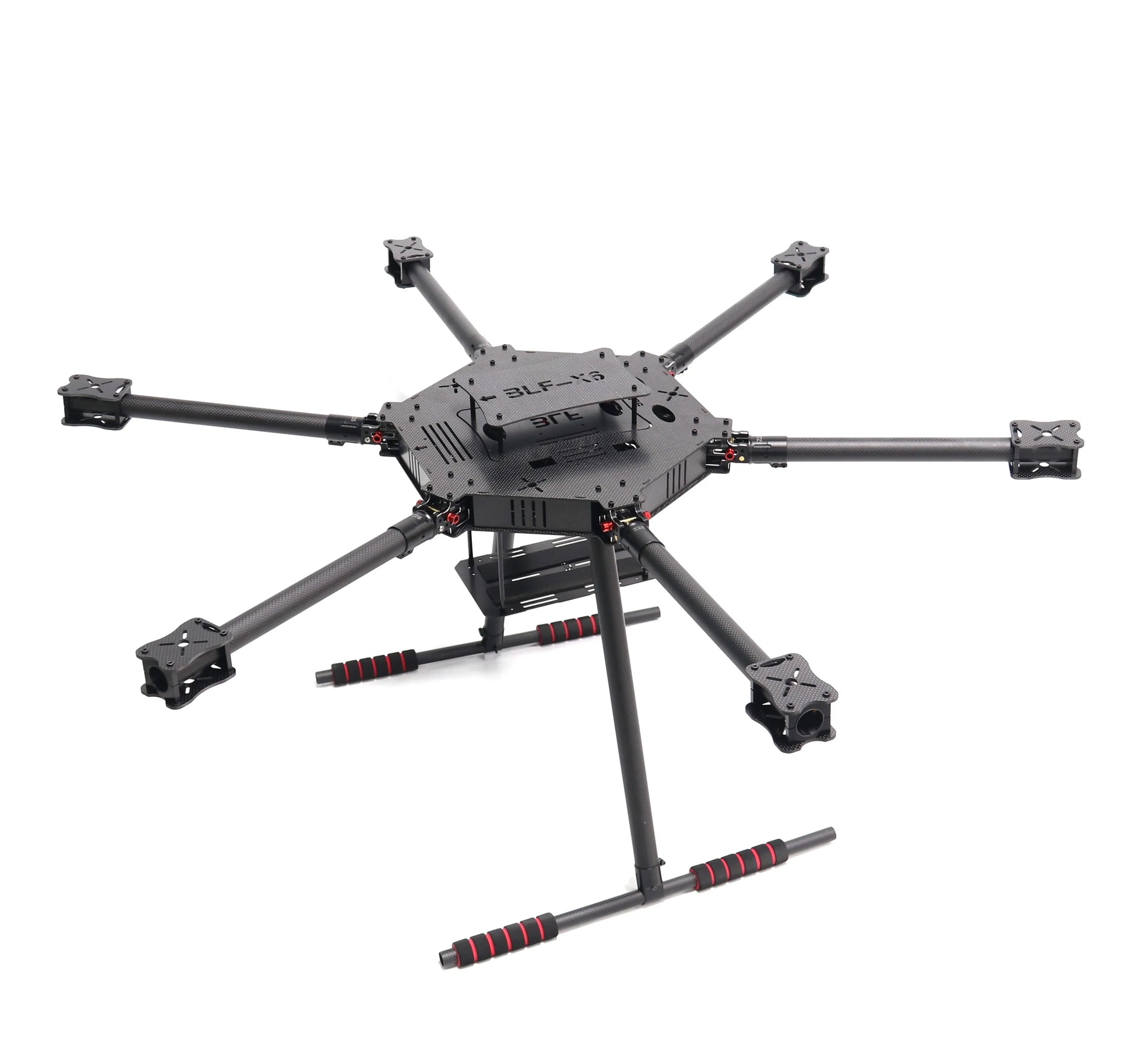

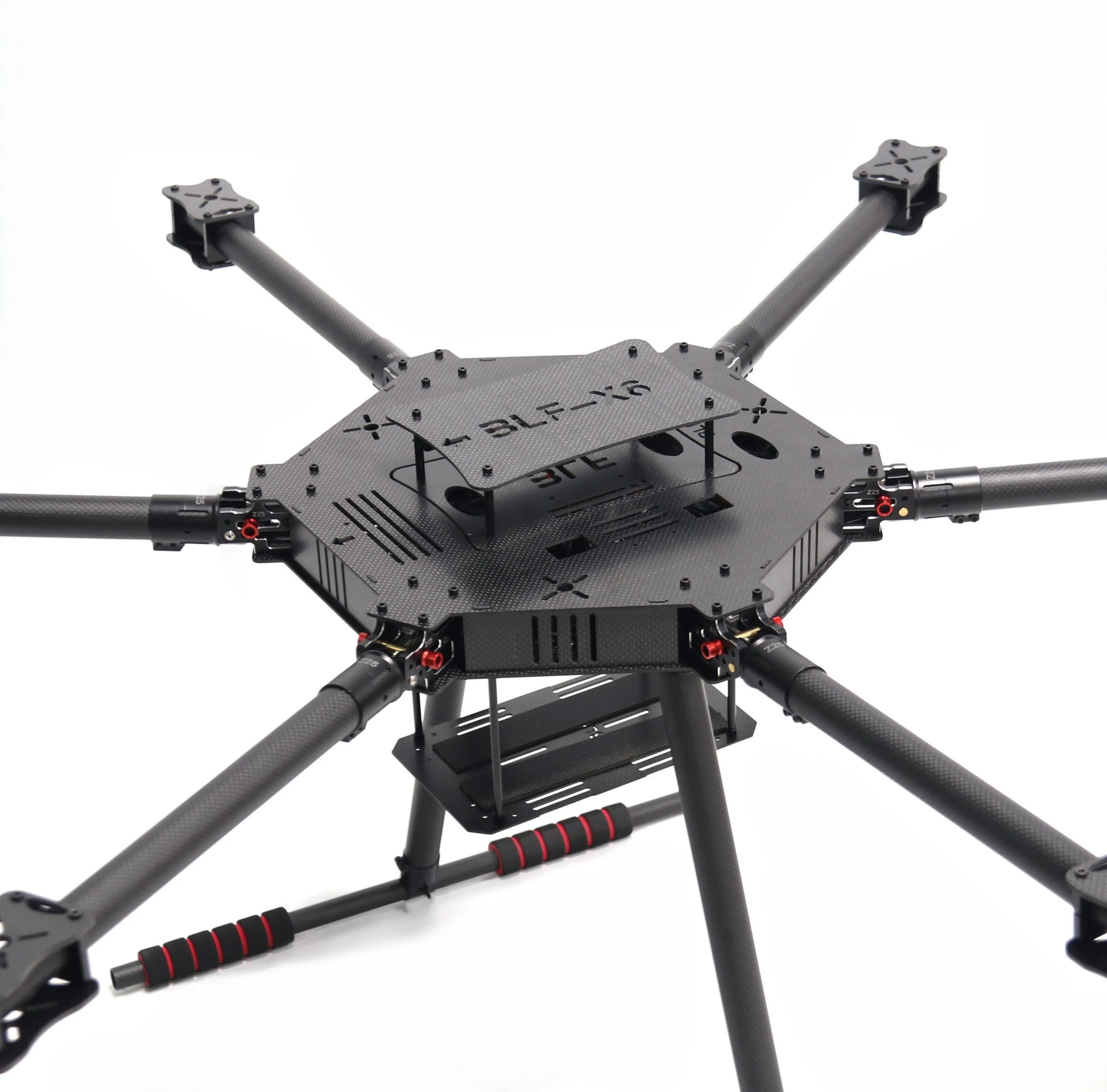

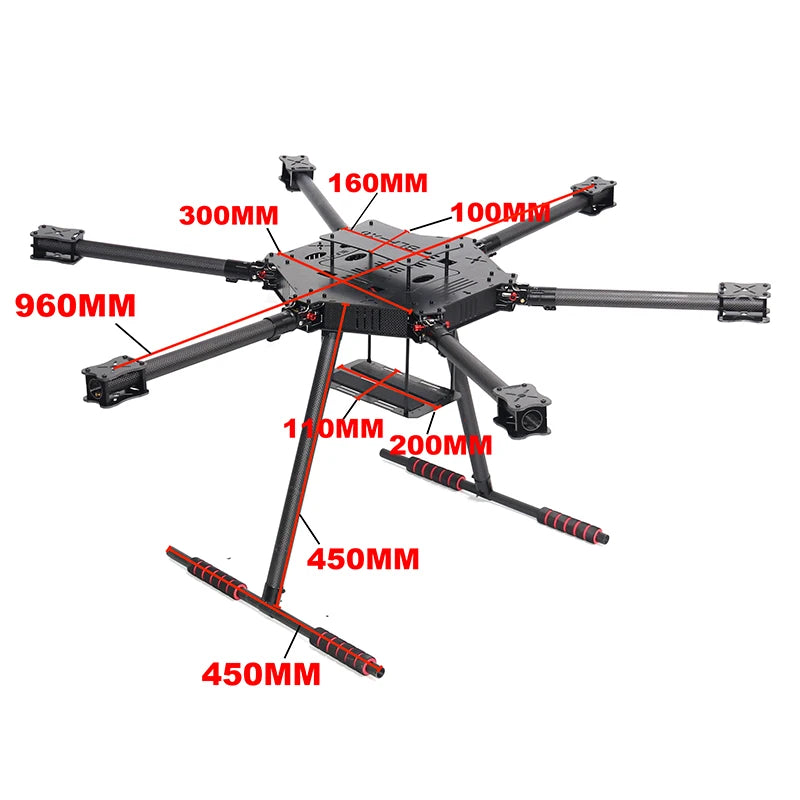

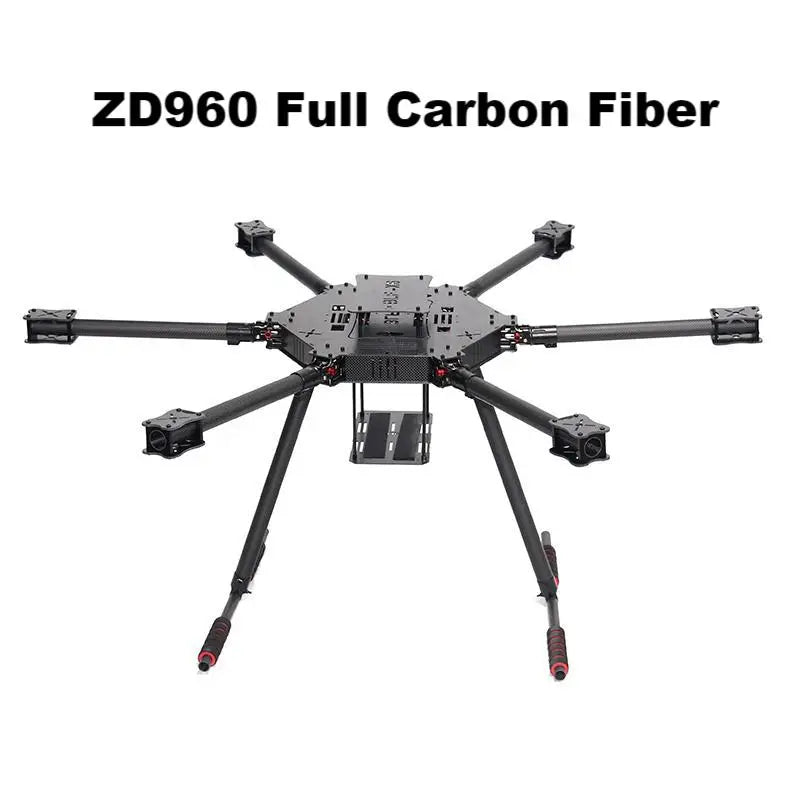

ZD960 Six-Axis Drone Rack - Professional Flight Platform

Discover our expertly designed 960 Six-Axis Drone Rack, tailored for professional drone enthusiasts and commercial use! Made from premium carbon fiber, this rack weighs around 1600g, offering a perfect blend of lightweight construction and sturdy durability. It’s compatible with mainstream open-source flight controllers like Pixhawk and supports battery capacities from 6500mAh to 22000mAh, ensuring long-lasting flight performance.

Key Specifications:

Rack Type: Six-axis rack

Weight: Approximately 1600g

Supported Battery: 6500mAh to 22000mAh

Supported Flight Control: Pixhawk and other open-source systems

Arm Diameter: 25mm

Tripod Diameter: 25 turns, 1mm

Center Plate Thickness: 2.0mm

Center Plate Length: Approximately 320mm

Arm Warp: 5 degrees

Recommended ESC: 40-50A

Recommended Motor: 4114-5210

Recommended Propellers: 17-18 inches

The spacious center plate facilitates easy mounting of cameras, payloads, and more, making it ideal for aerial photography, mapping, or logistics. Whether you're a DIY enthusiast or a professional, this rack ensures reliable performance and flexibility. Order now to elevate your flight experience! For custom solutions, feel free to reach out.

Note: This frame kit is not include any assembly tools.
Need you to buy 2.5mm, 2.0mm hex wrench or screwdriver, and also a 5.5mm sleeve.
Recommend the buyers purchase a complete set of screwdriver tool.

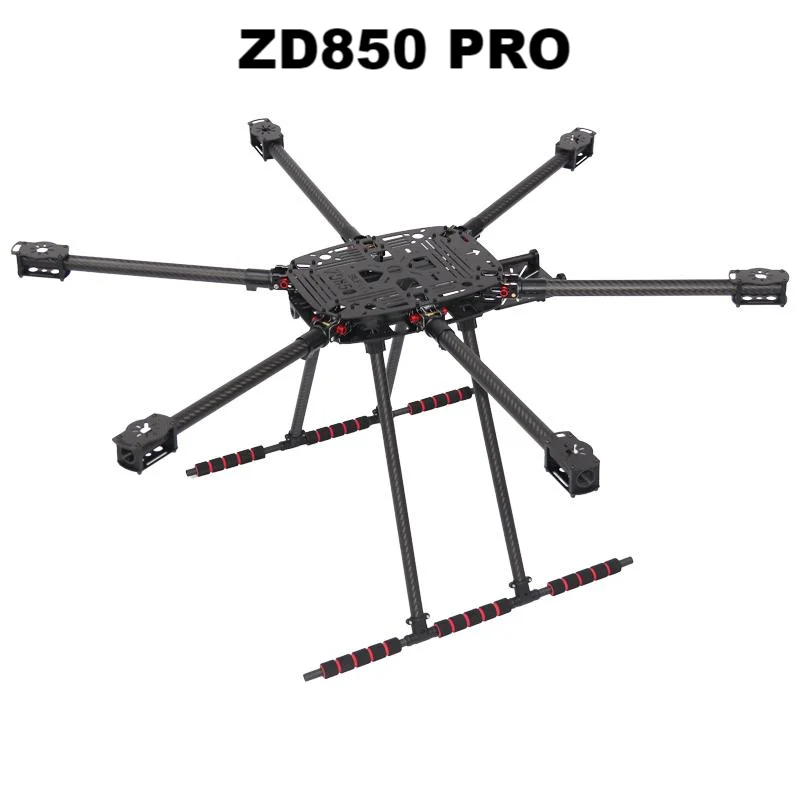

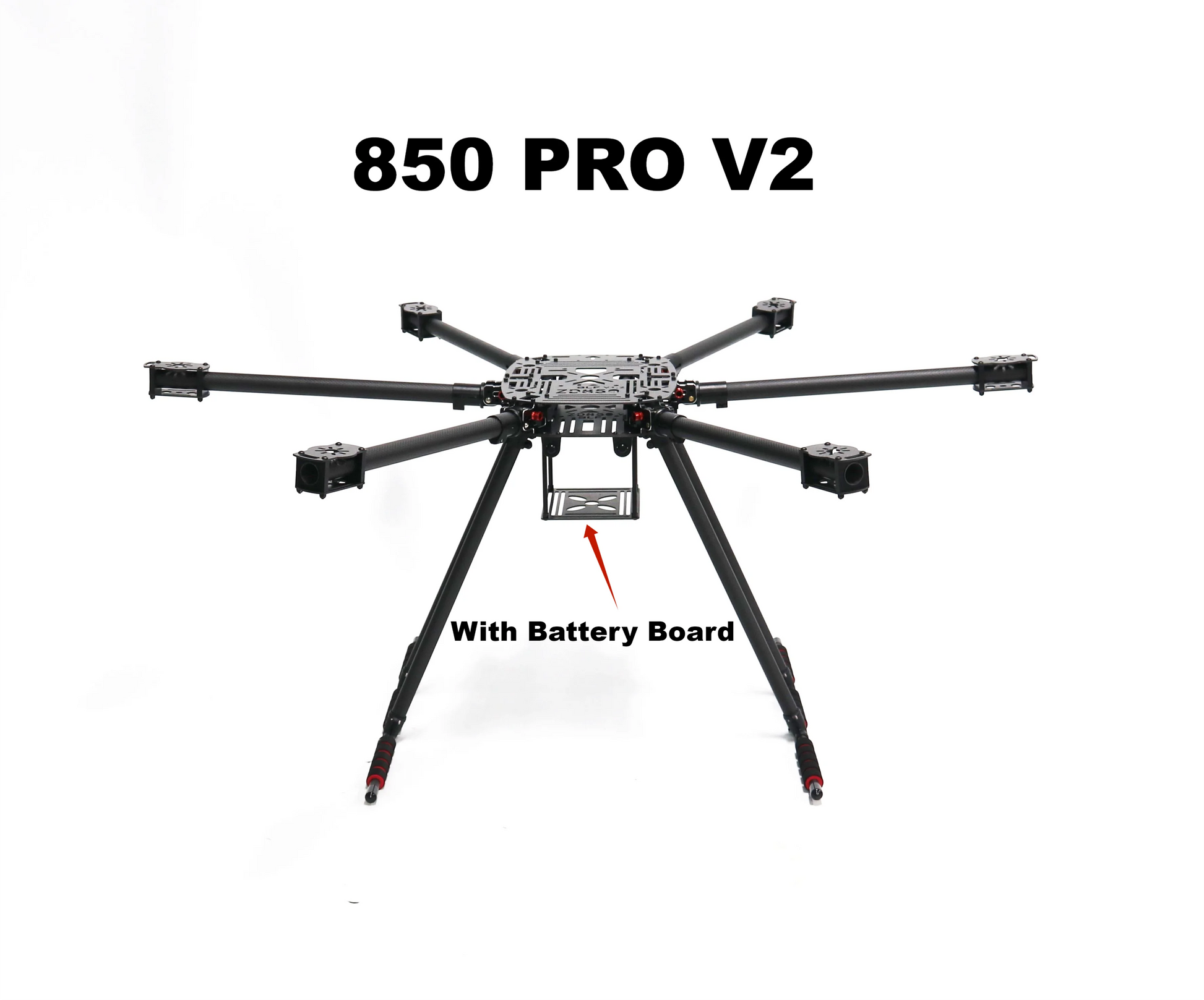

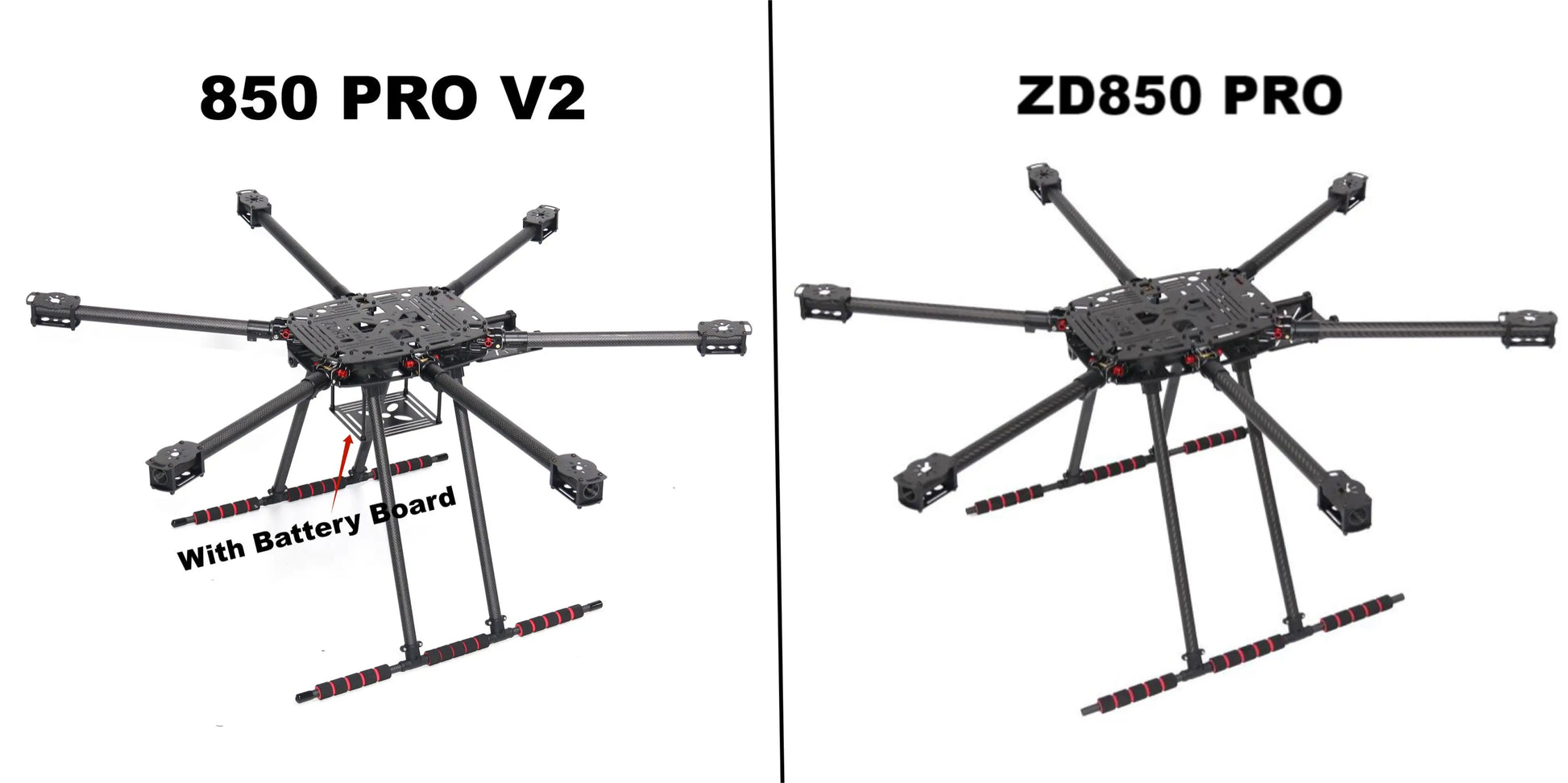

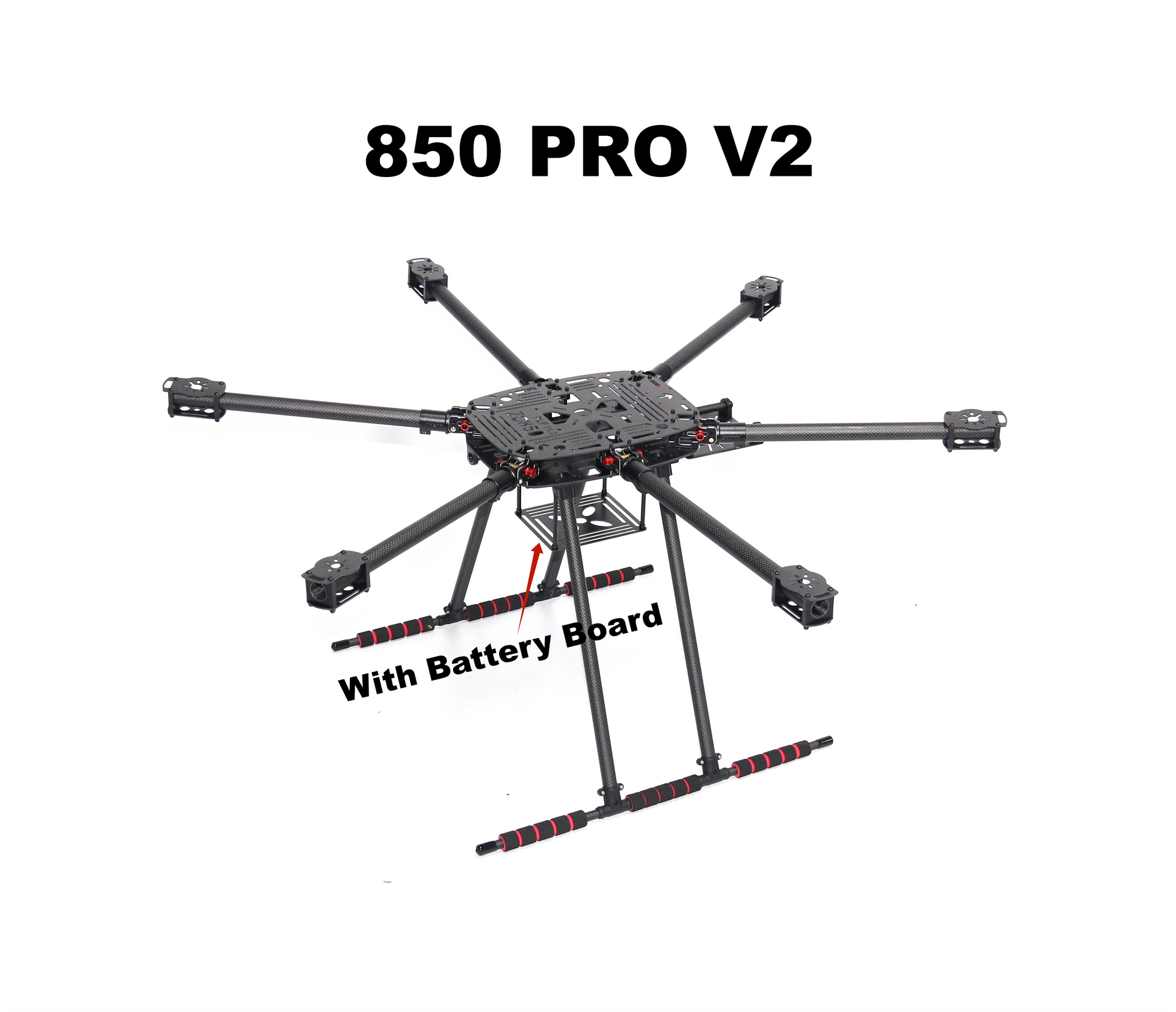

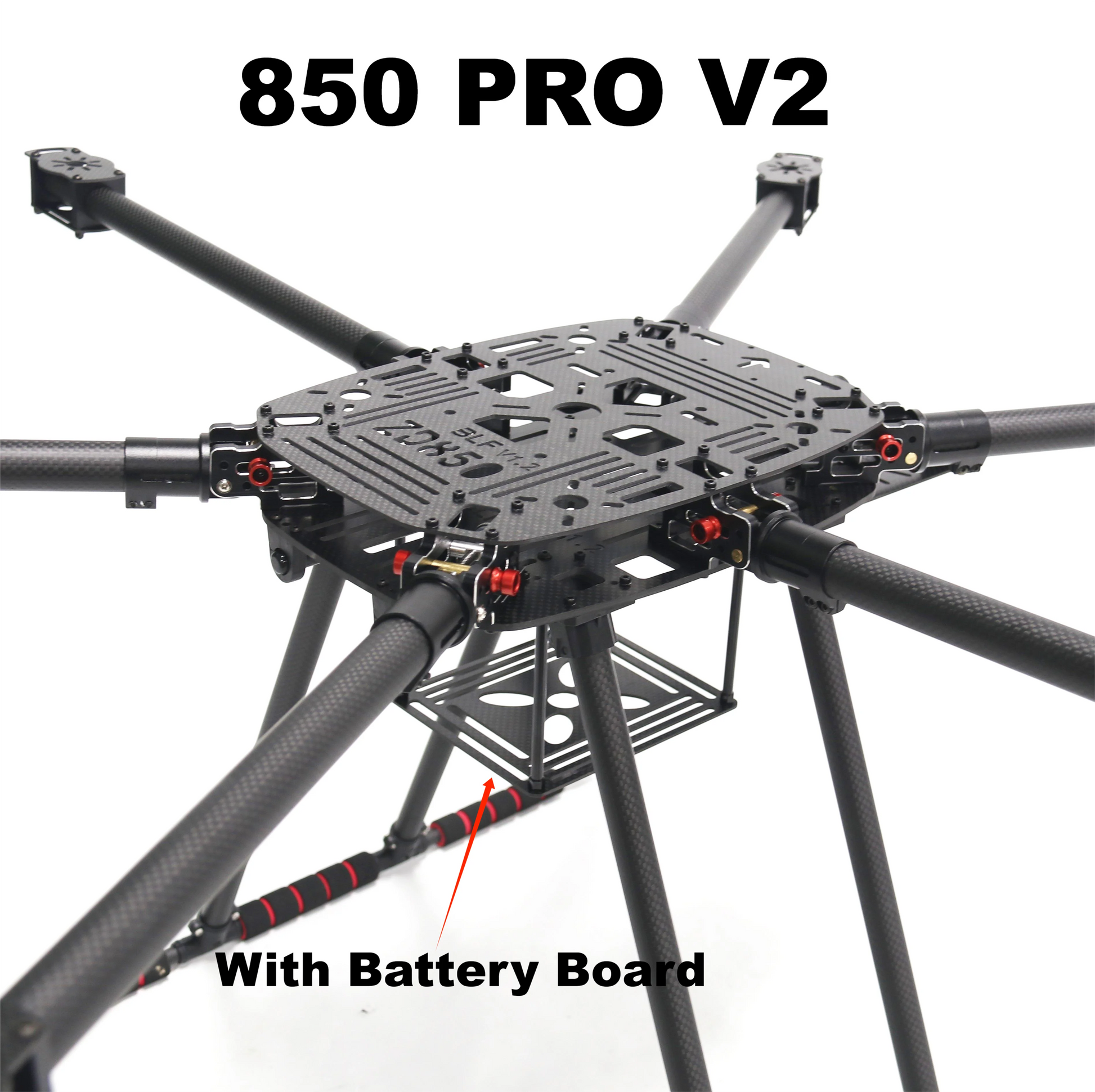

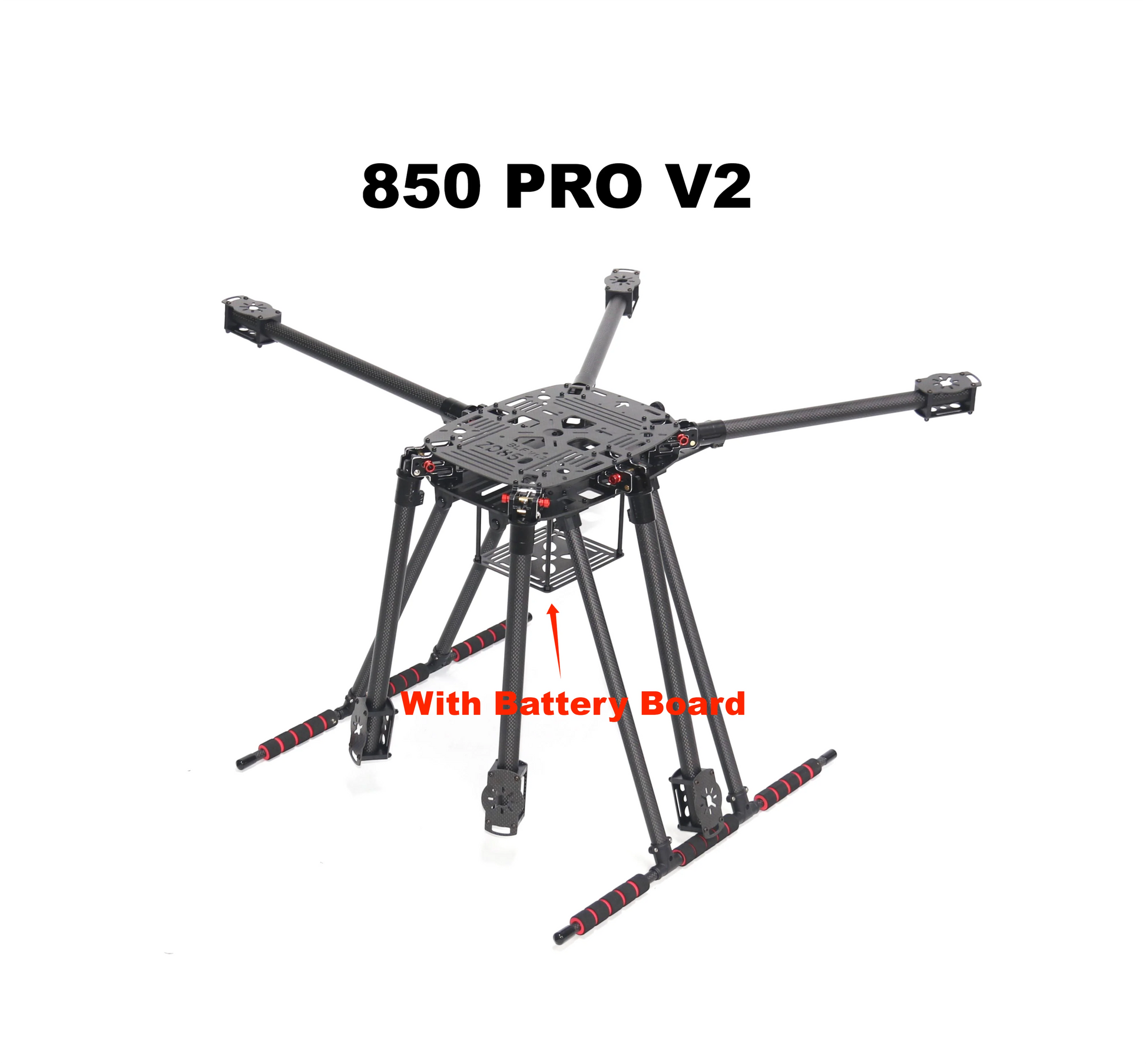

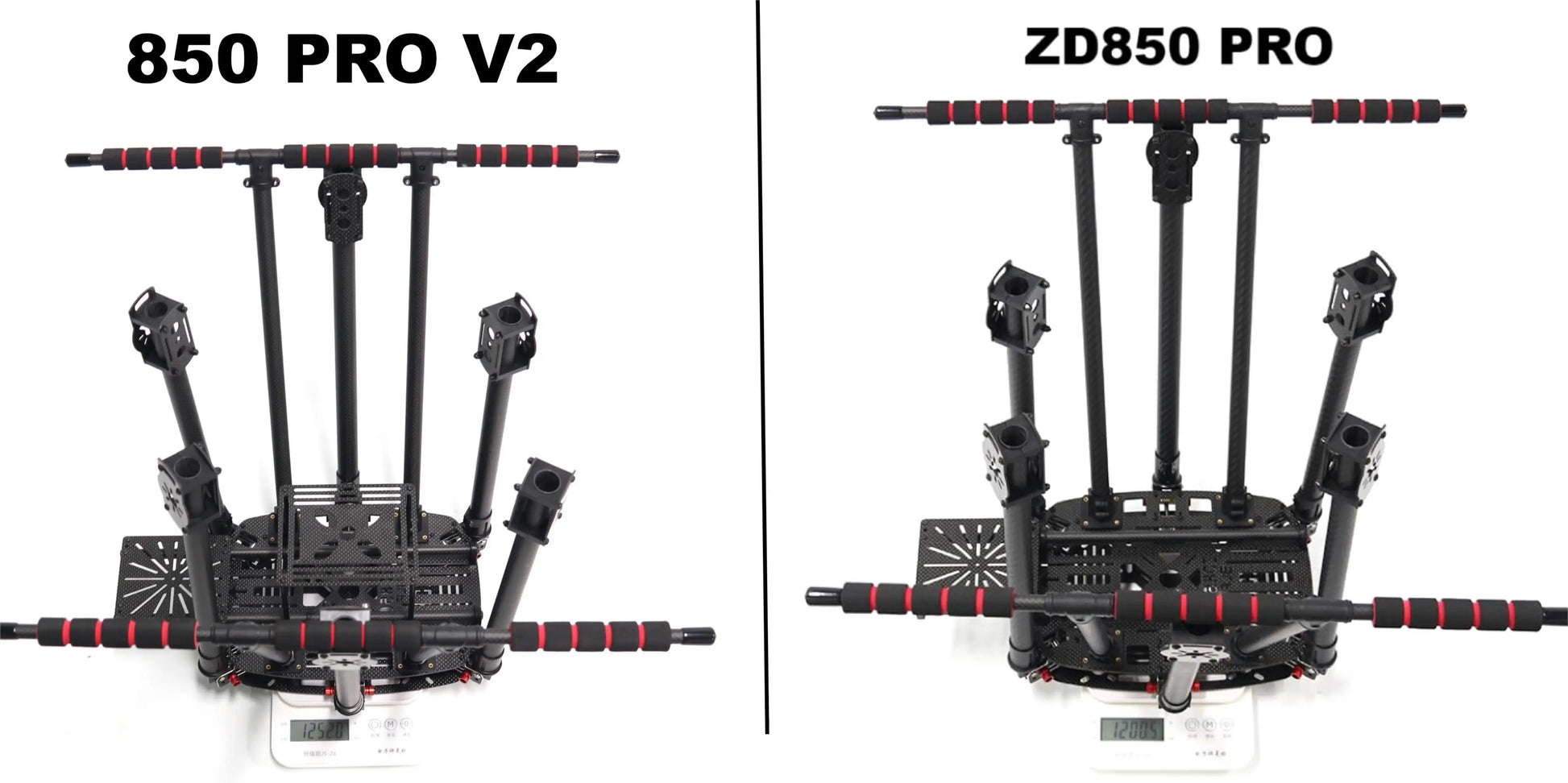

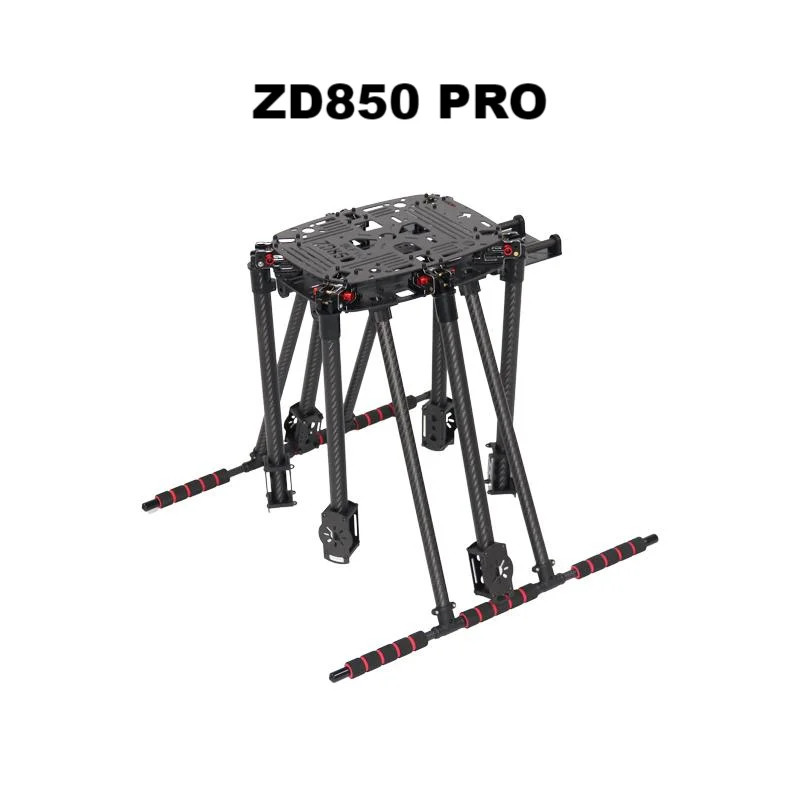

Z850 Full Carbon Fiber ZD 850 Frame Kit with Unflodable Landing Gear Foldable Arm for FPV DIY Aircraft Hexacopter

Not assembled, please notice that, and just the frame, no other spare parts included.

Product description:

Arm with upturned 5 ° force to play to the extreme, larger diameter 20mm carbon tube.

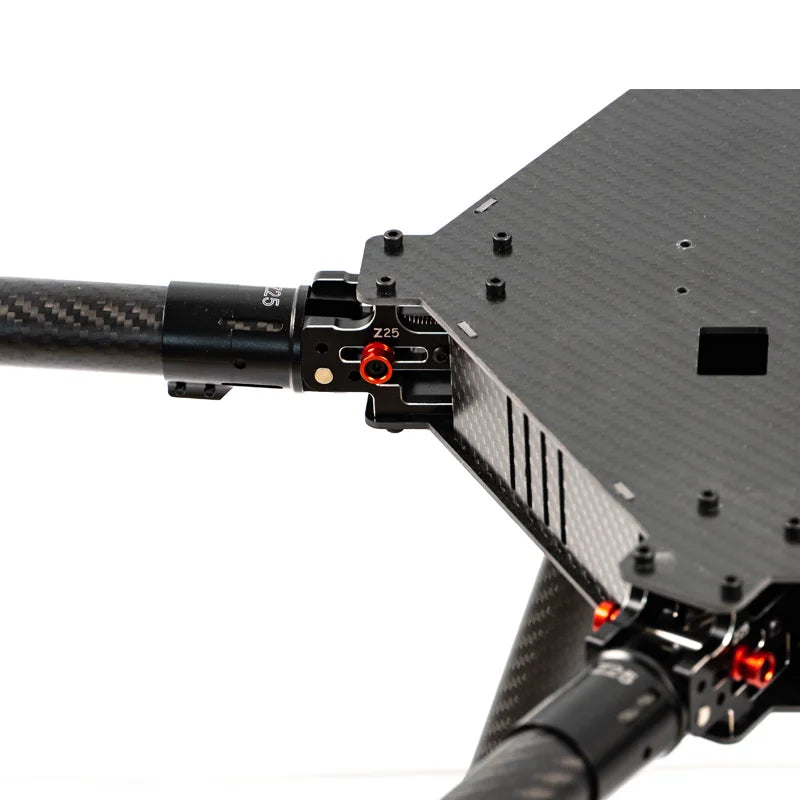

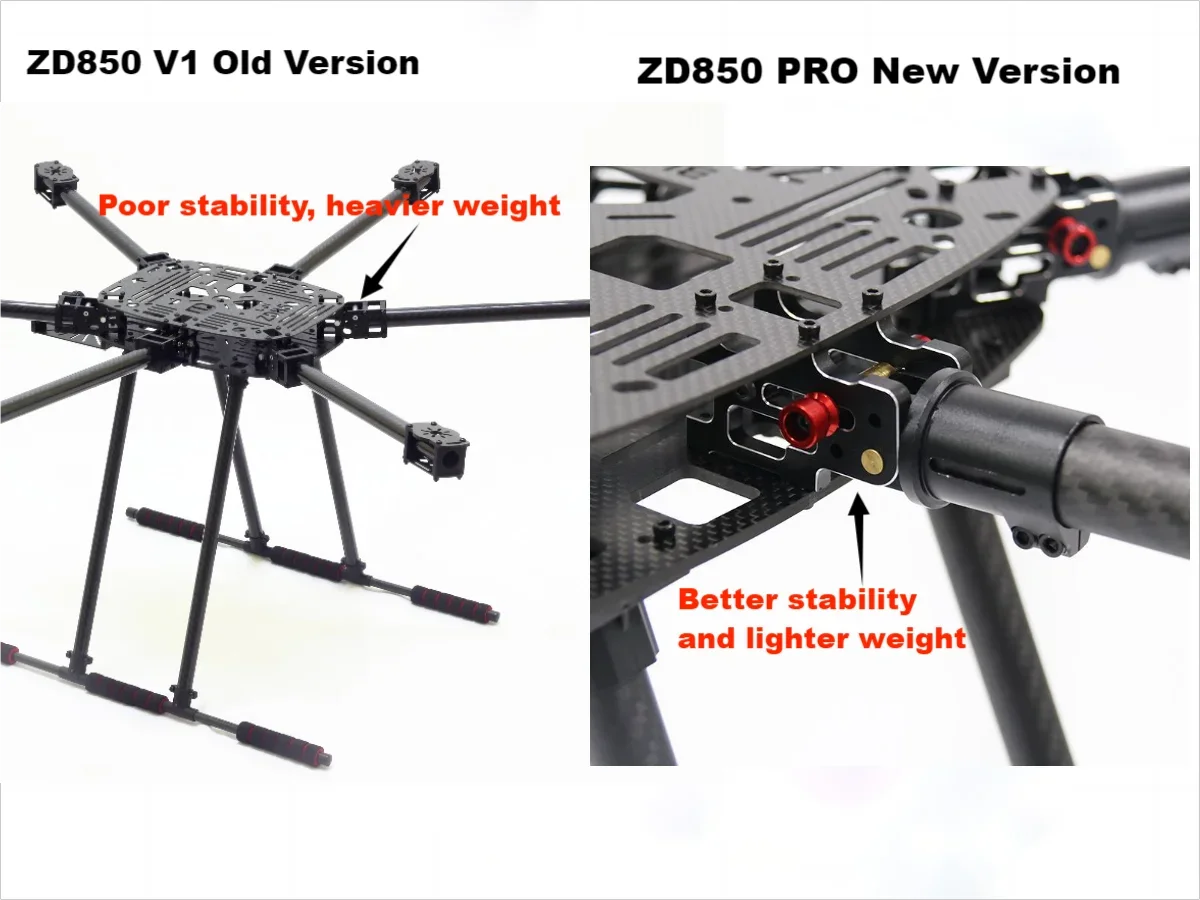

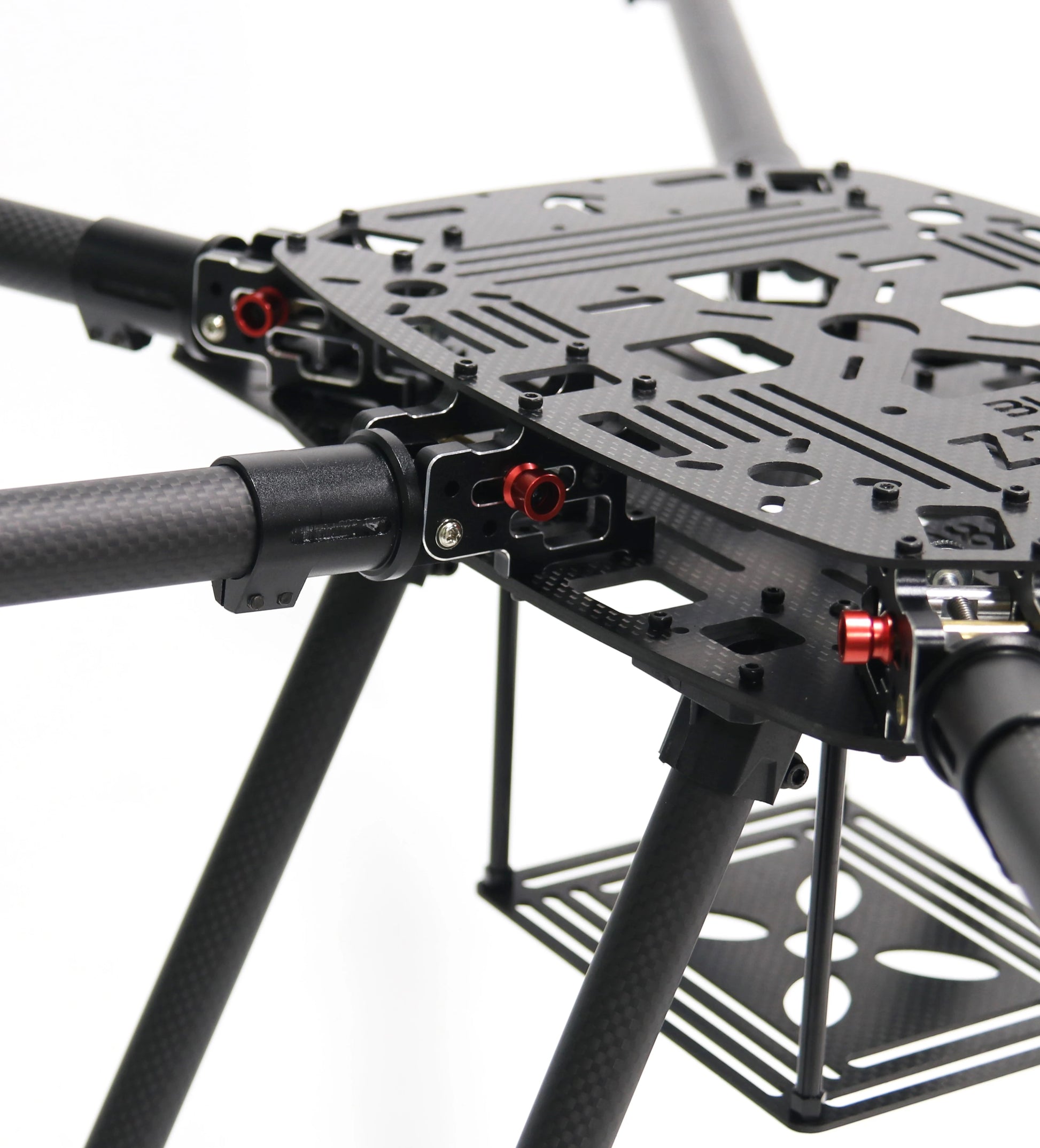

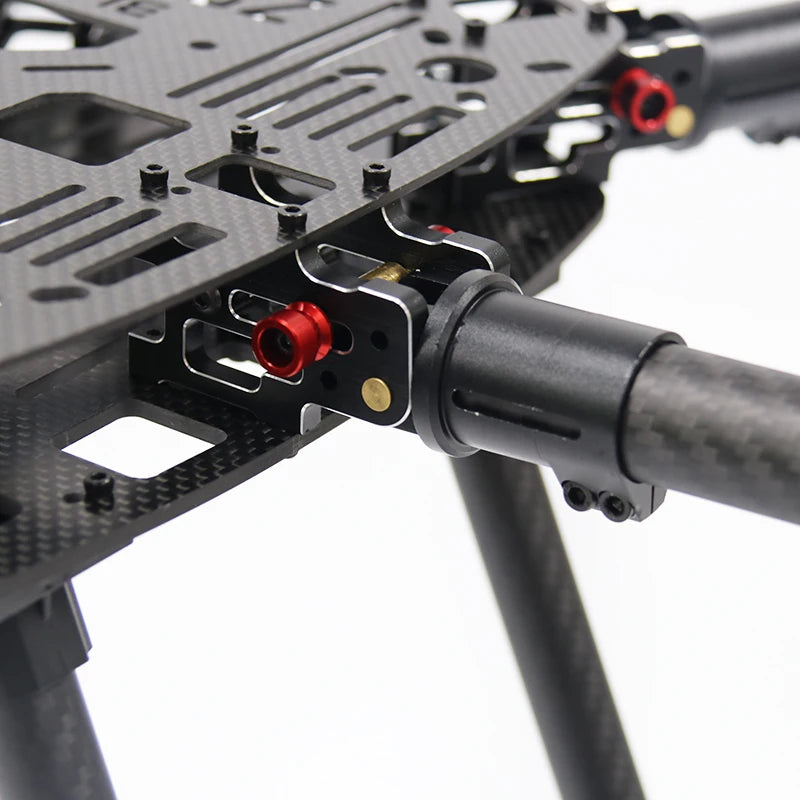

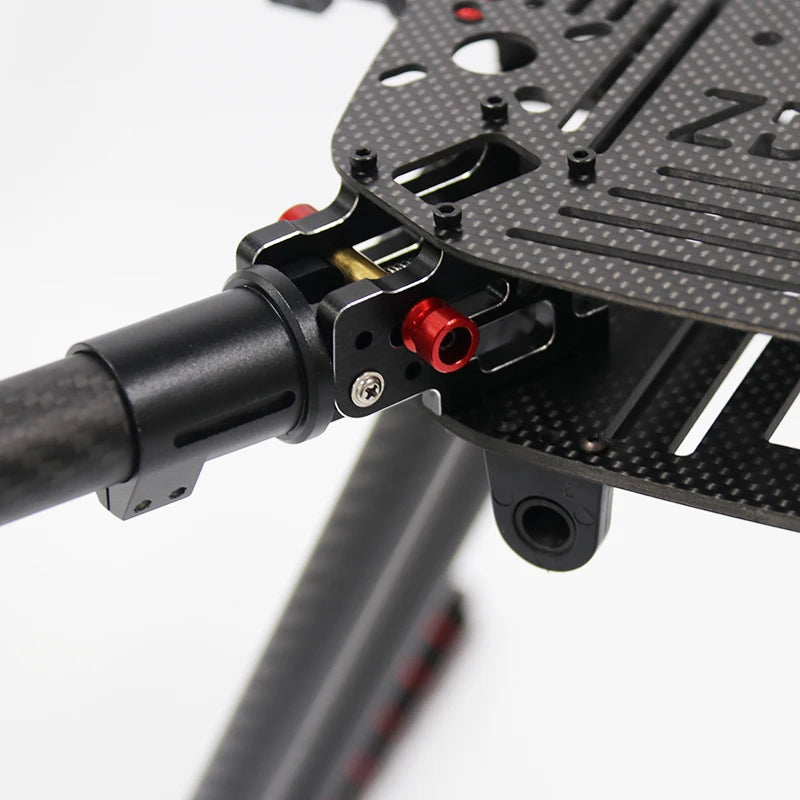

Aluminum Folding, Nylon Clamp (Tightened Clamp) 8 hole motor mount, compatible with more motors.

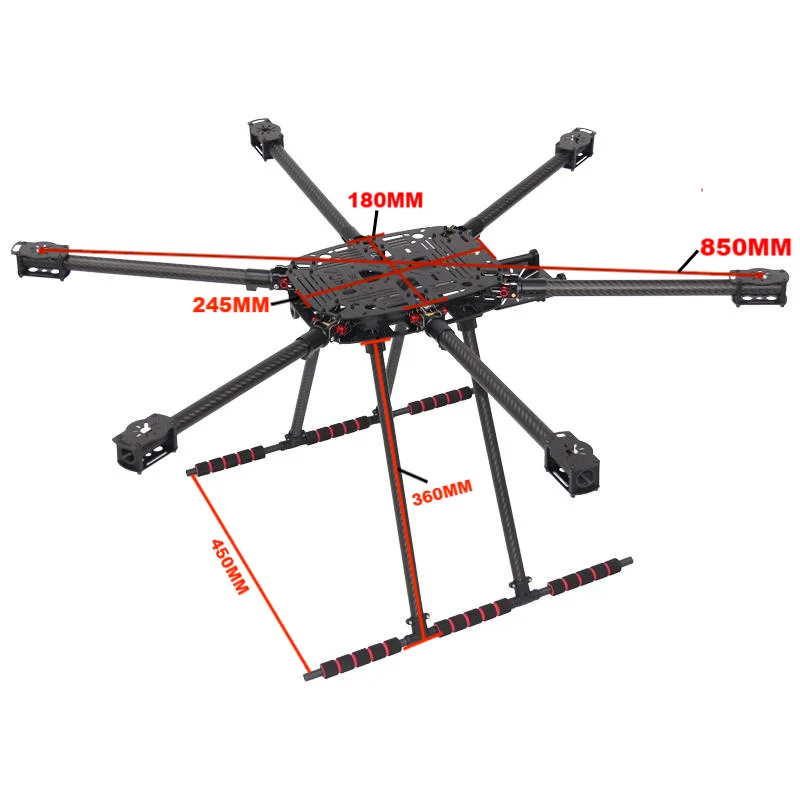

Motor Block Diagonal wheelbase of about 850mm, maximum support 16-inch paddle.
Center plate size 245mm * 180mm more space, the middle plate height of about 35mm.
Hook head with 10 * 330mm long carbon tube, can be free to stretch the length you want, with the porous bit PTZ board.
Tripod with a diameter of 16mm carbon tube, height 350mm, tripod crossbar 500mm, more stable grounding area.
Tripod with double-tube carbon fiber as support, bear the force of more than 50kg.

parameter:
20mm carbon tube arm
16mm + 10mm carbon tube tripod
3.0 mm botton center plate
1.5mm upper center plate
Aluminum alloy folding pieces
Nylon mixed carbon pipe clamp
Plastic tripod connection (force 50kg)
The net weight of frame kit is about 1210g

Recommended items(not included):
4114-380kv motor
6s 22.2v 25cLithium battery
1555/1547 15 inch cw ccw props
