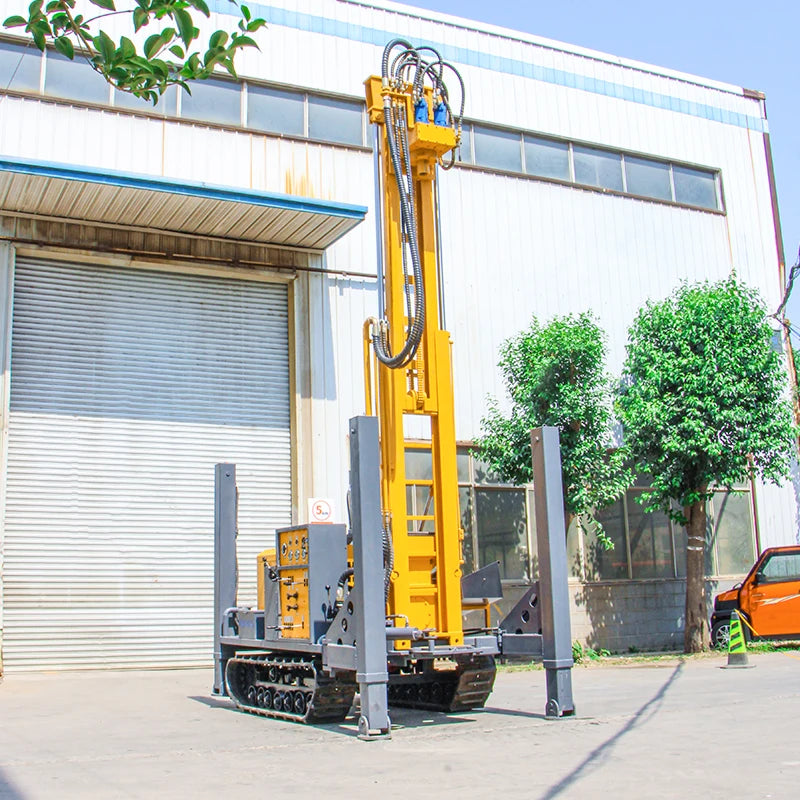

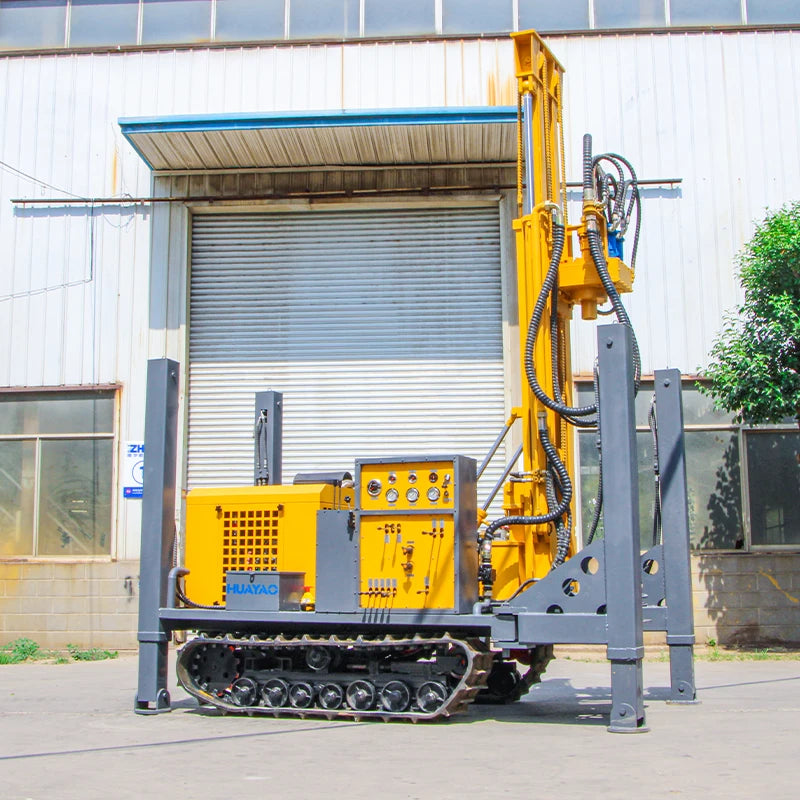

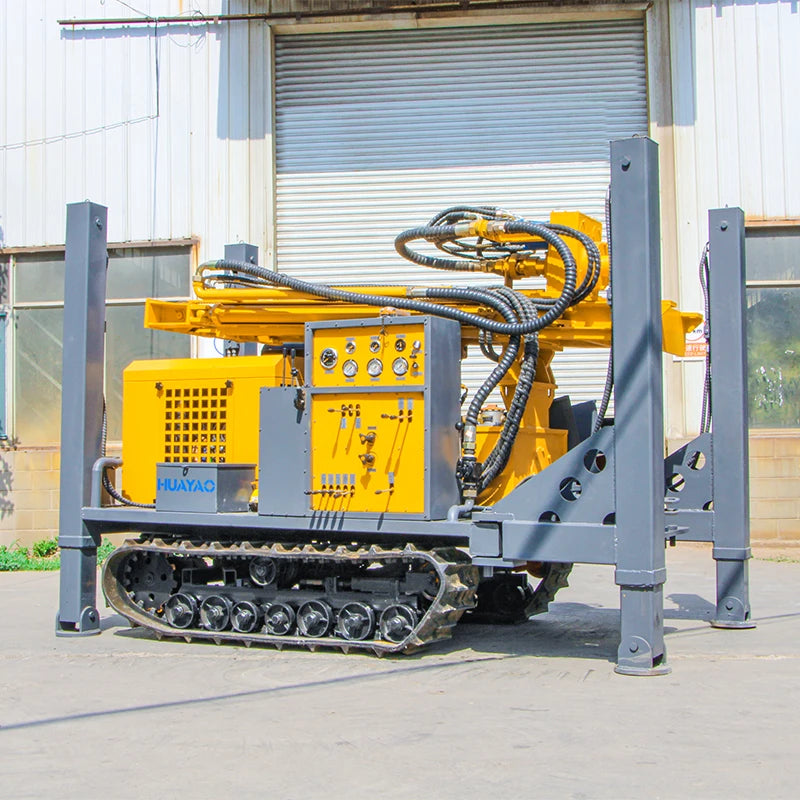

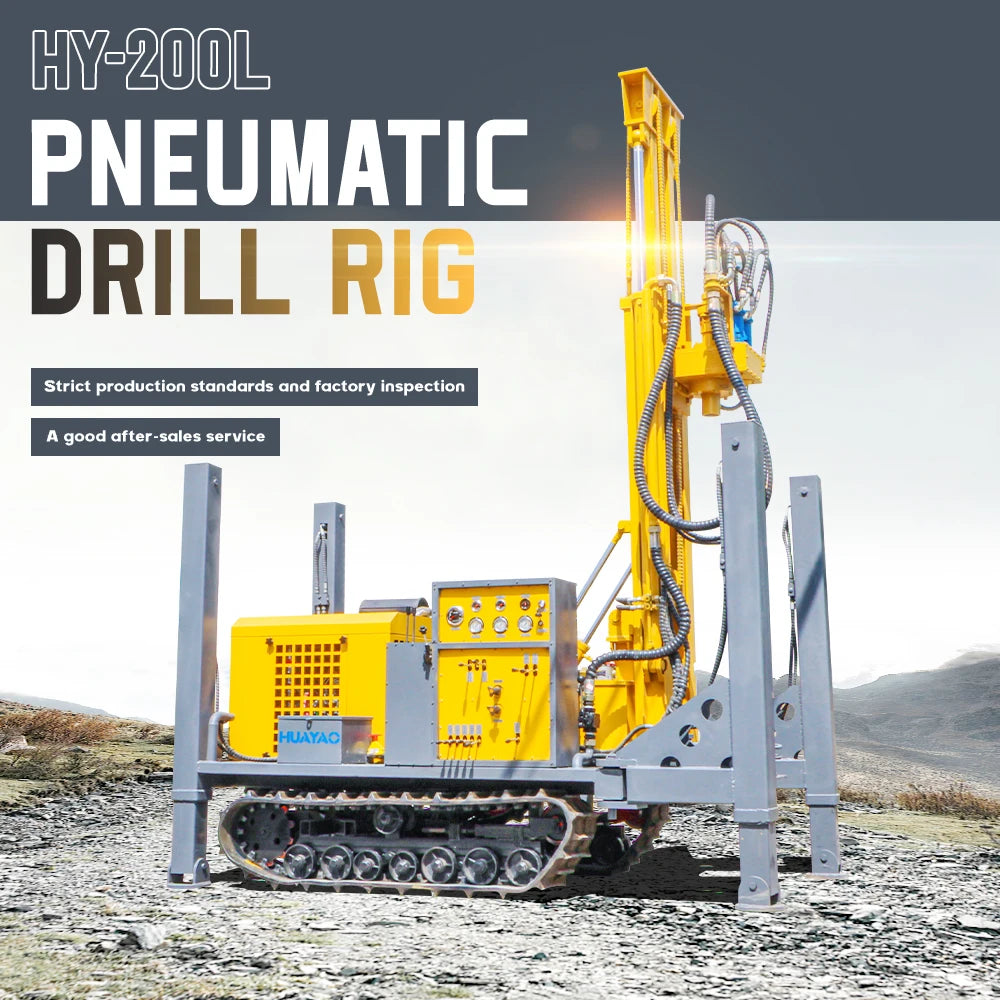

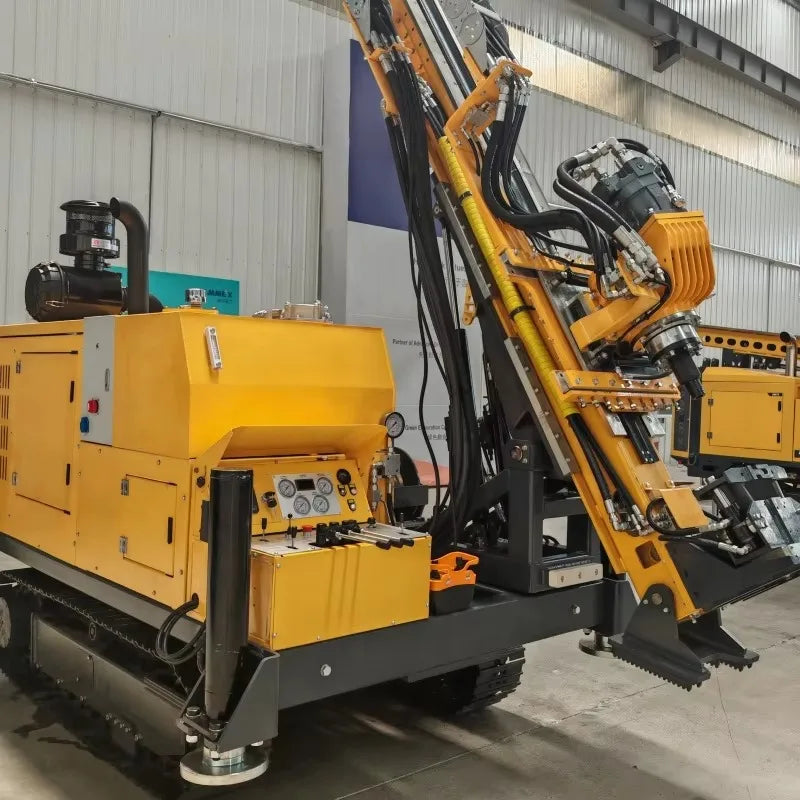

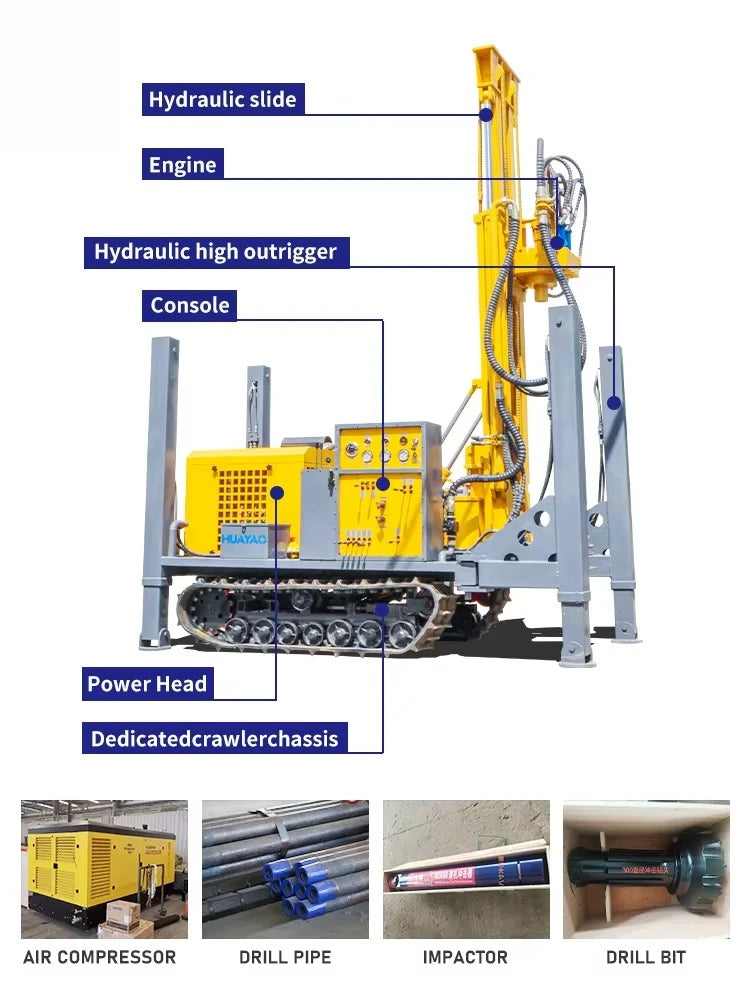

Pneumatic Crawler Water Well Drill Rig — Model HYQ-200
Built for geotechnical investigations, water well drilling, and mining applications, the HYQ-200 is a fully hydraulic pneumatic crawler drill rig capable of reaching depths up to 200 meters. Its compact crawler design, powerful 65KW engine, and 15-ton lift force make it a reliable choice for hard rock layers, agricultural irrigation wells, and geothermal projects.
Note: Listed price is a reference/deposit price. Final pricing depends on your specific requirements and destination port. Contact us for a formal quotation.
Key Features
- Drilling depth up to 200 meters
- Drilling diameter: 130–254mm
- 65KW engine power with 15T lift force

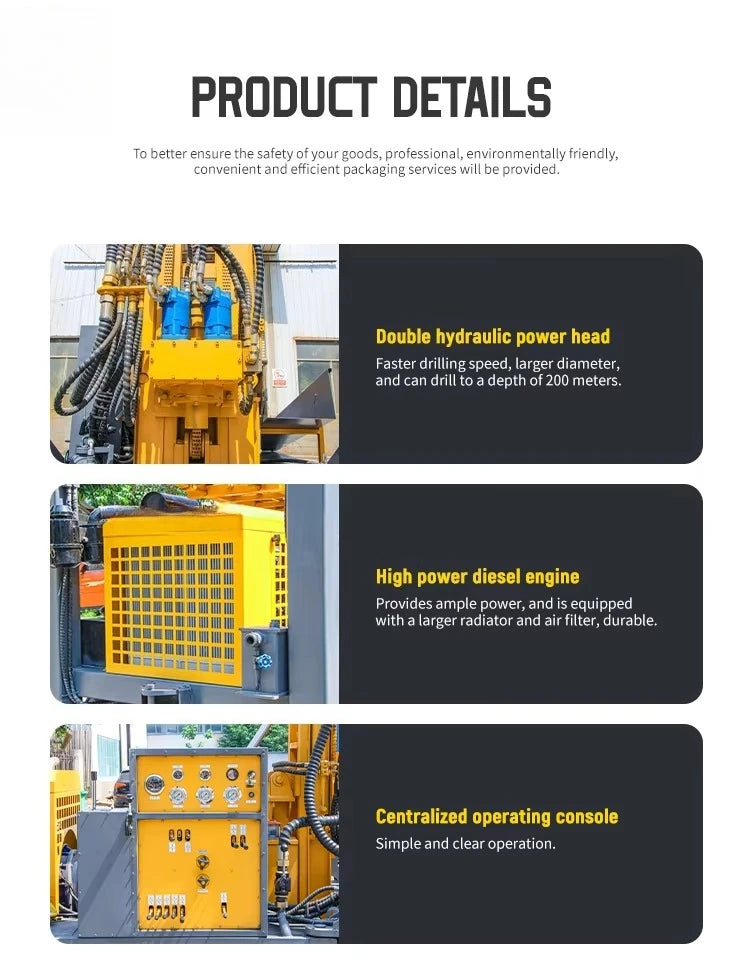

- Double hydraulic motor rotor propulsion with down-the-hole hammer or mud drilling

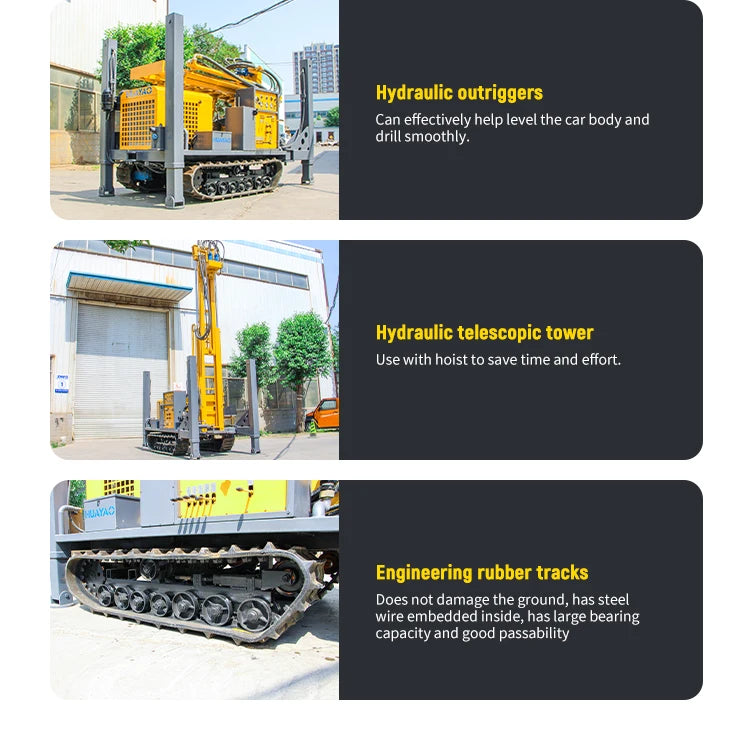

- Crawler track design — road-friendly, easy to maneuver on site
- CE & ISO9001 certified
- 1-year warranty; 100% tested before delivery

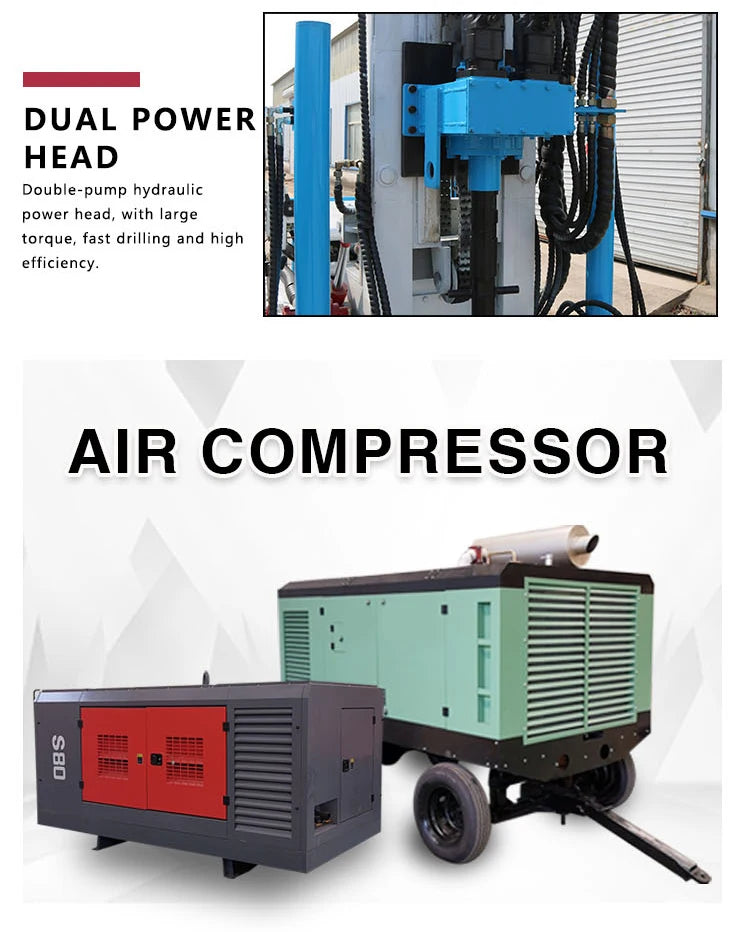

- Requires air compressor (sold separately — contact us for recommendations based on your depth and diameter needs)
Specifications
- Model: HYQ-200
- Overall Weight: 4,500 kg
- Dimensions: 3,500 x 1,700 x 2,250 mm
- Drilling Diameter: Ø130–Ø254mm
- Drilling Depth: 200m
- Drill Rod Diameter: Ø76mm / Ø89mm
- Max Drilling Length Per Pass: 2m
- Working Air Pressure: 1.45–2.5 MPa
- Air Consumption: 17–31 m³
- Engine Power: 65KW
- Lift Force: 15T
- Rotary Speed: 42–60 rpm/min
- Rotary Torque: 4,100–4,500 N·m
- Certification: CE, ISO9001
