SPECIFICATIONS

After Warranty Service: Online support

After-sales Service Provided: Online support

Applicable Components: 0402, 0603, 0805, 1206, diode,triode, BGA SOT, etc

MAX circuit board area: 600*455mm

MIN/MAX: 0201/40*40mm

Number of feeders: 64

Number of feeding traies: 6

Tape feeder: 8, 12, 16, 24mm and vibration suction

Warranty: 1 Year

Weight (KG): 500

brand name: YX

core components: Motor

machinery test report: Provided

model number: SMT660

place of origin: Zhejiang, China

video outgoing-inspection: Provided

warranty: 1 Year

Product Description

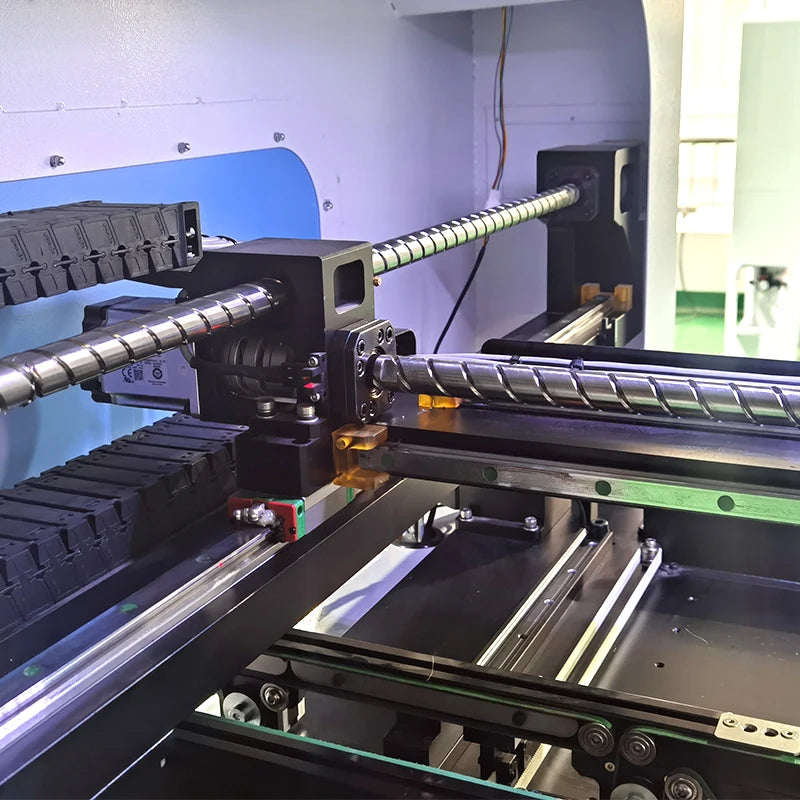

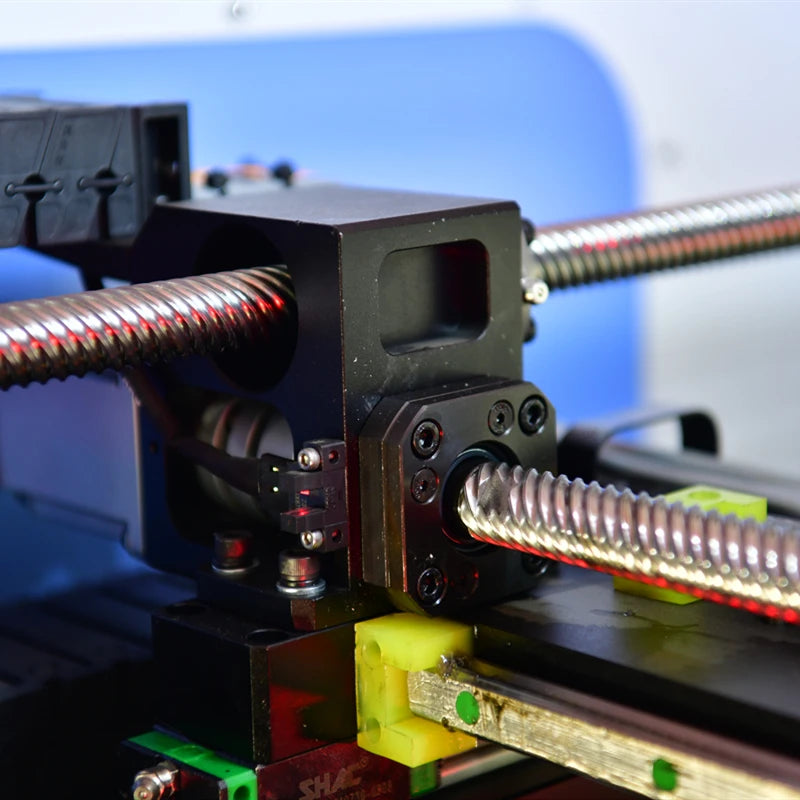

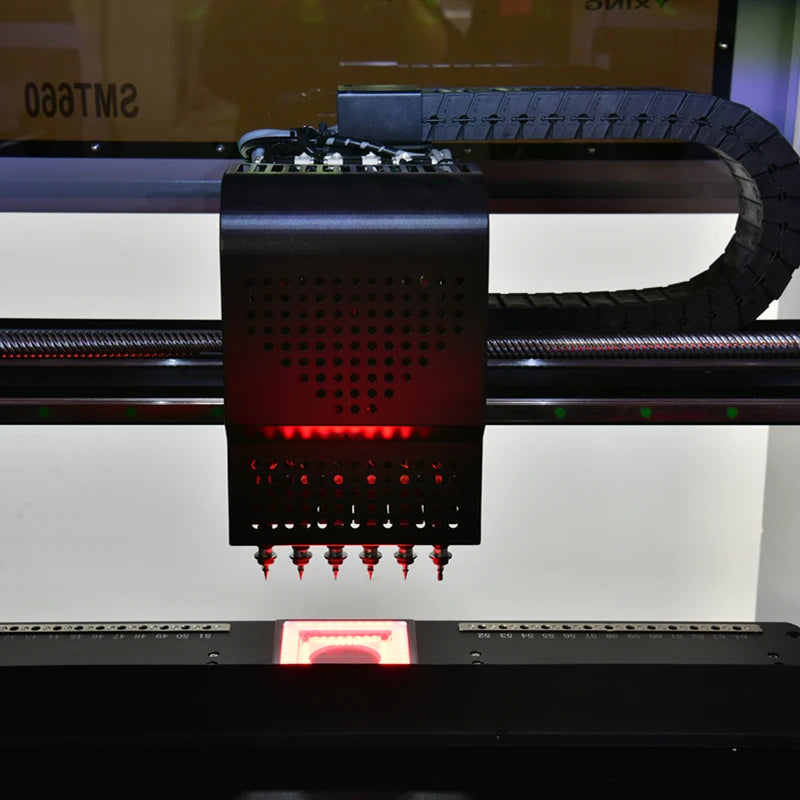

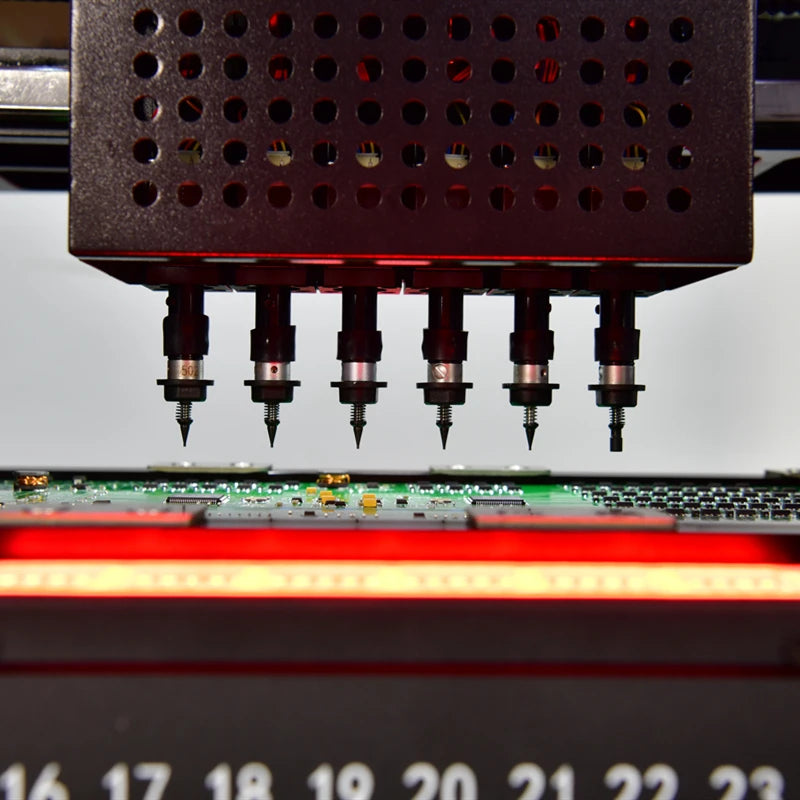

Intrduction The machine SMT660 with 6 heads+8 camera+Conveyor+64 feeders+Import servo motor+Straight guide rail+Grinding Miller. Feature 1.Import servo motor. 2.Straight guide rail. 3.Grinding Miller. 4.6 Heads+8 cameras+64 feeders. Part List 1.Pick and place machine:1 Set 2.IC fixed support:4 Set(four M5*8,four M5*16) 3.Brand nozzle:16 Pcs(502*4，503*4，504*4，505*3，506*1) 4.Calibration suction nozzle:4 Pcs 5.Power wire:1 Pcs 6.Fixed foot:4 Pcs(Diameter 20mm) 7.The keyboard and mouse:1 Set 8.Nozzle calibration inkpad:1 Box 9.Lubricant:1 Pcs 10.Chassis key:1 Pcs 11.PC:1 Set 12.17 inch liquid crystal display:1 Set The mahicne software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox. The mahicne machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands).

Items	Content

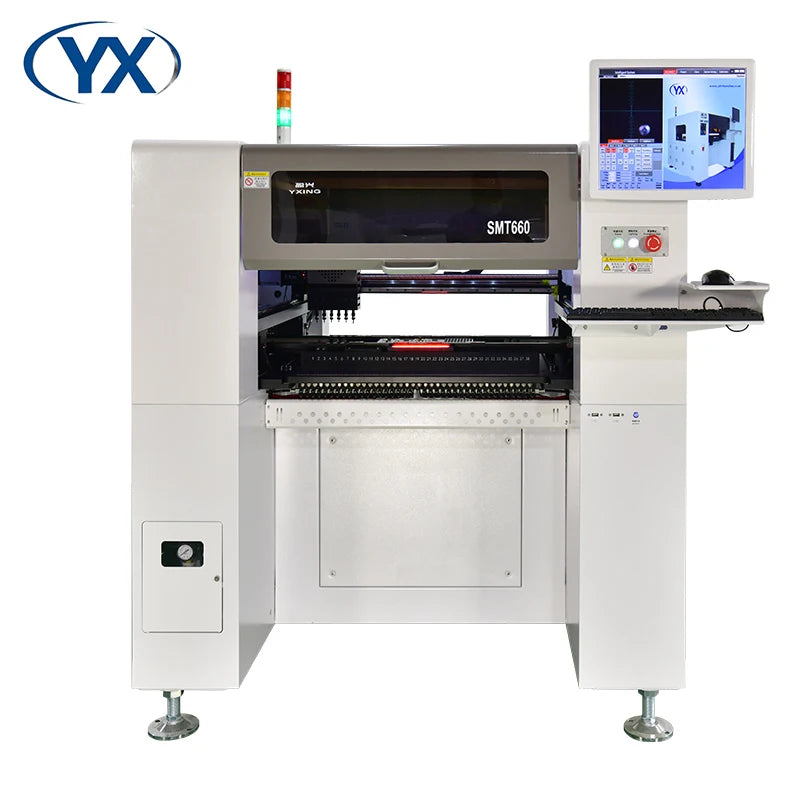

Model	SMT660
Number of feeders	64
Number of head	6
Number of camera	8
Number of IC Tray	6
Place Height(Option)	20 mm
Average power	500W
Positioning precision	0.01mm
The buffer range of suction nozzle	4.5mm
Power supply	220V, 50/60Hz
Compressed air	0.5-0.6Mpa
Drive motor	Import servo motor
Vacuum source of suction nozzle	high-speed on-off vacuum generator with vacuum breaker
Maximum circuit board area	600×455mm
Maximum travel scope in Z axis	20mm
Tape feeder	8, 12, 16, 24mm and vibration suction (mounting pipe chip)
Maximum mounting speed	12000 Pcs/h
Average mounting speed of actual mounting resistance	9600Pcs/h

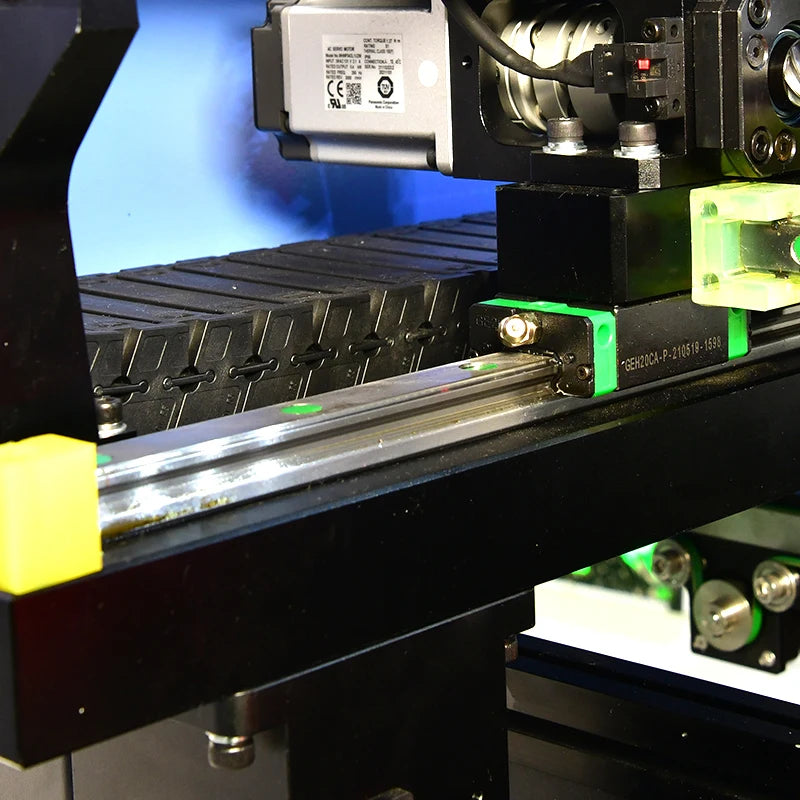

XYZ drive guide rail	Taiwan high-precision reloading linear guide rail
Motion drive system	Import high-speed DSP drive
Operating system	full-automatic chip mounter operating system independently
		developed by Yingxing based on Windows
		operating systemand it supports windows xp
		win7 operating system
Element angle	0-360°, synchronous rotation during movement
X/Y operation mode	intelligent curve of the linear acceleration and deceleration linkage
MARK point positioning	full-automatic (the MARK point can be adjust at will)
Intelligent alarm	automatic correction, automatic filling, feeding shortage alarm
Plate entering mode	automatic connection from left to right in single sections,
		automatic PCB transfer positioning. /plunger positioning,
		manual plate feeding.
Visual display	17-inch industrial control display, 4:3, resolution: 1280 x1024
Number of recognition cameras	One Mark recognition camera, four quick-recognition cameras
		and one precise-recognition camera
Adaptive mounting scope	Adaptive to 0201, 0402, 0603, 0805, 1206, diode, audion, SOT, QFP
		within 40*40mm and the pin distance ≥0.3mm
		(0.5mm center distance) and BGA
Product weight	500KG
Dimension	1450*1370*1550mm
