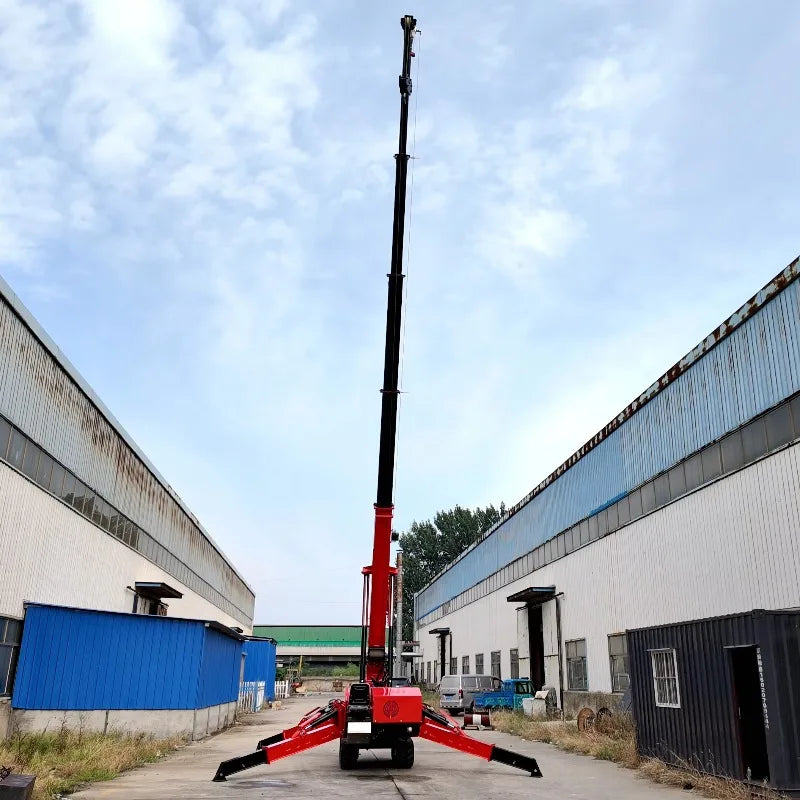

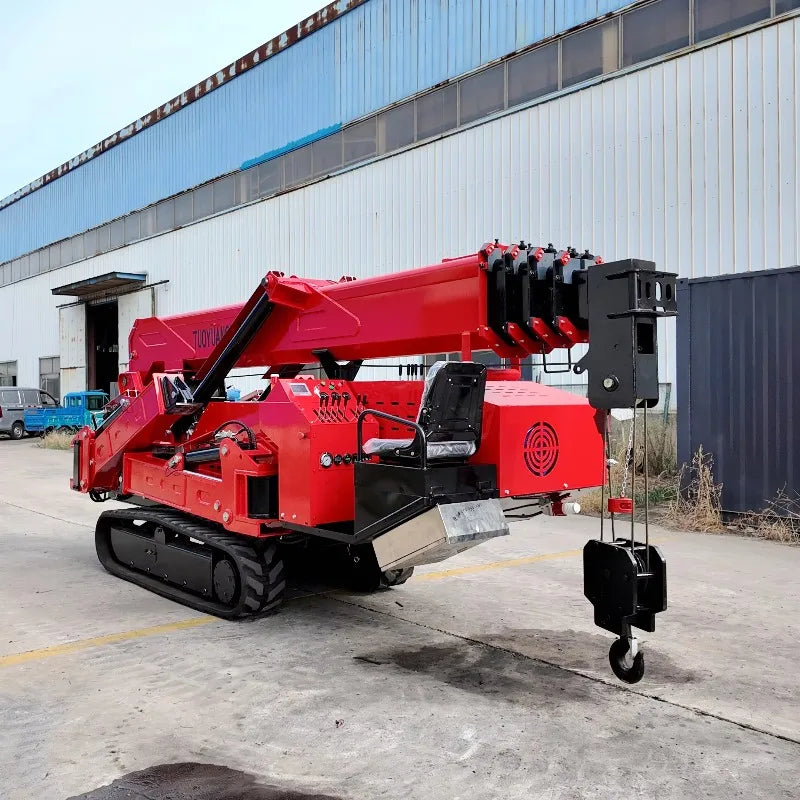

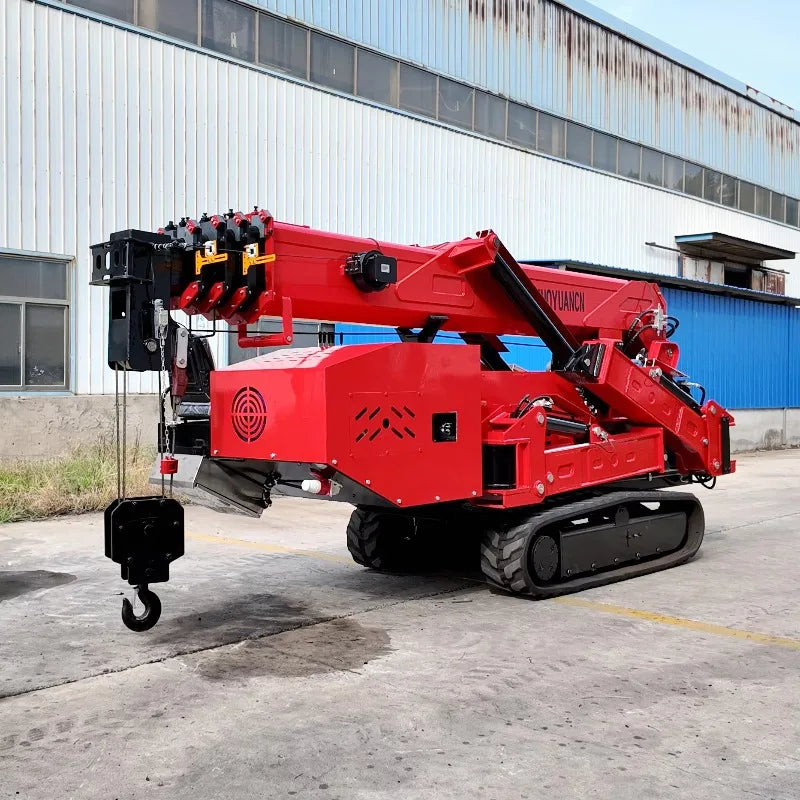

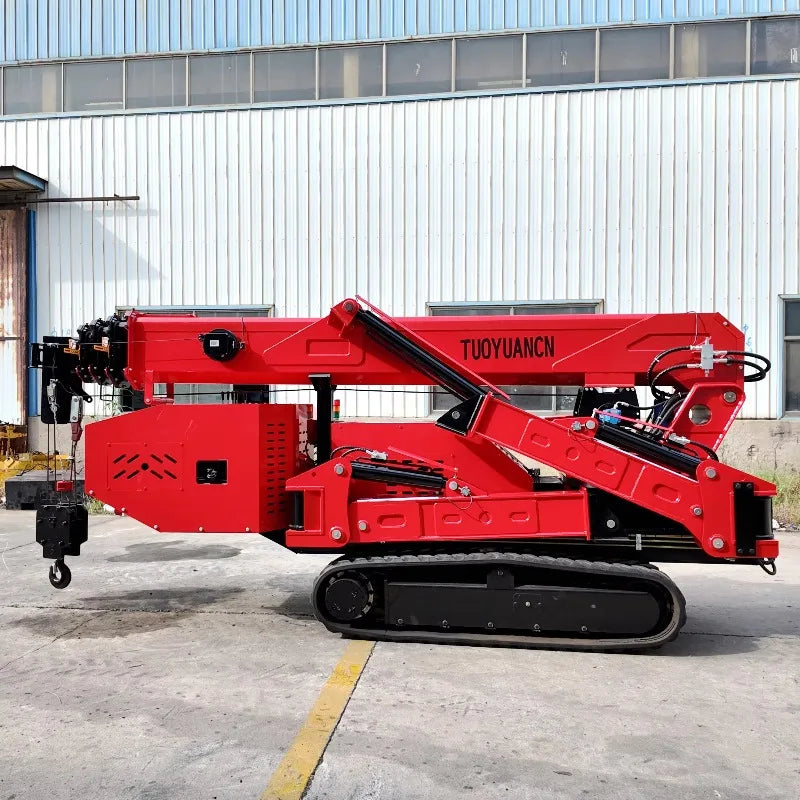

Small Spider Crane Mobile Spider Crane 2 Ton Battery Powered Mini Construction Lifting Machine with Safety Cage for Sale
Small Spider Crane Mobile Spider Crane 2 Ton Battery Powered Mini Construction Lifting Machine with Safety Cage for Sale
SPECIFICATIONS
Brand Name: NONE,YG
Certification: CE
Charge Status: No
Condition: New
Electric Machine: 15kW, Three-phase AC asynchronous motor, 380v
Engine: Diesel, Yunnei 490 supercharged (58kW)
Engine Brand: Yunnei
High-concerned chemical: None
Keyword: Mini spider crane,Hydraulic spider crane,Spider crane
Machinery Test Report: Provided
Max. Lifting Height: 16 m
Maximum Working Radius: 16 m
Operating Radius: 16.5 meters
Origin: Mainland China
Place of Origin: Henan, China
Power Type: Diesel
Self-weight: 7.7 tons
Size: Length 5m, Width 1.6m, Height 2.2m
Span: 10 m
Sweep: 4.5 meters, 5 sections, full extension 18 meters
Track: Length 2.6m, Width 350 mm
Turntable: 900mm inner toothed turntable
UNIQUE SELLING POINT: Remote monitoring system
Video outgoing-inspection: Provided
Warranty: 1 Year
Weight (KG): 7700
Winch: 8 tons
Wire Rope: 11mm, 80 meters
1. Prices are for reference only. Exact costs depend on your needs and destination port. Contact us now for more product details and a quote.
2. We ship by ocean freight!!!
3. Any questions or interest, please feel free to contact us for a free quote.
Name: Lolita
Email: 3596532178@qq.com
Wechat/Line/Mobile/Whatsapp: +86 15037187716

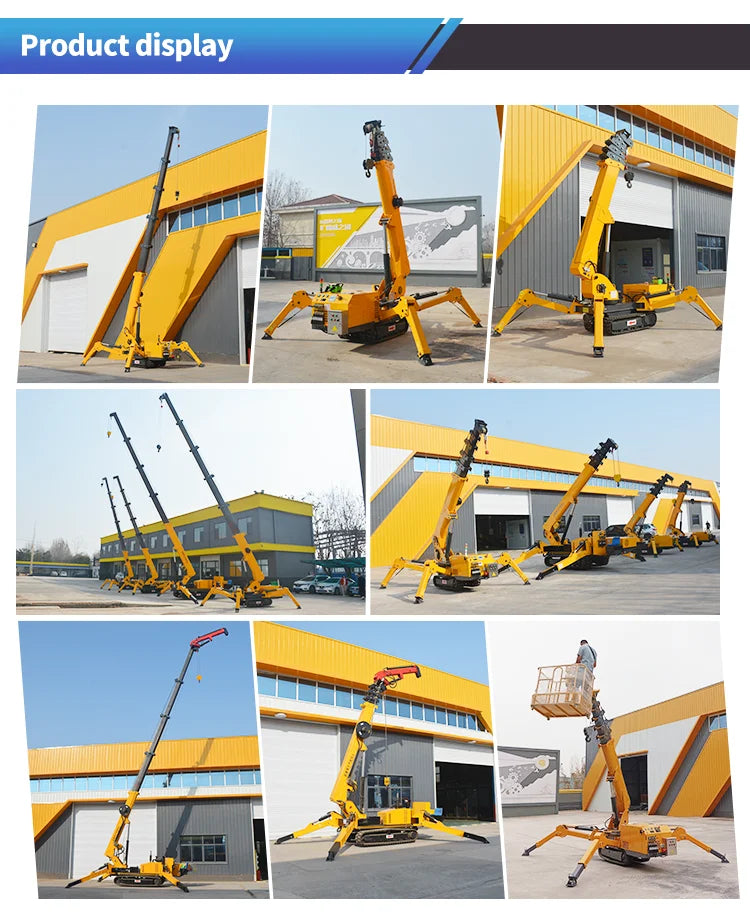

Spider Crane 1.5/2/3/4/5t Electric Spider Crane Crawler Type Spider Crane

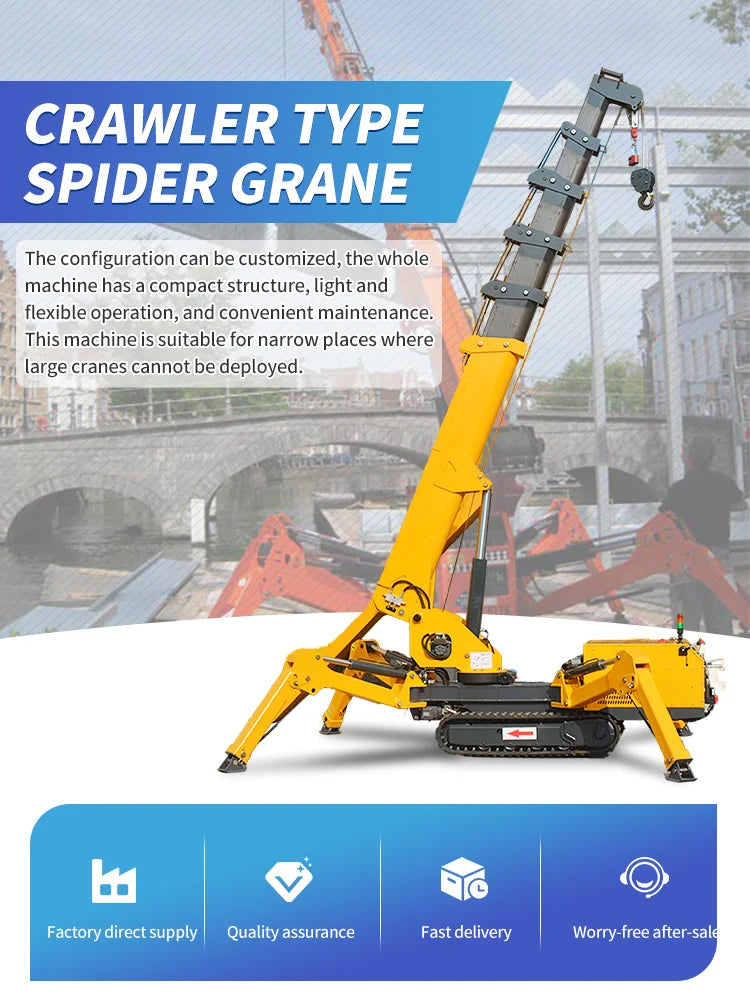

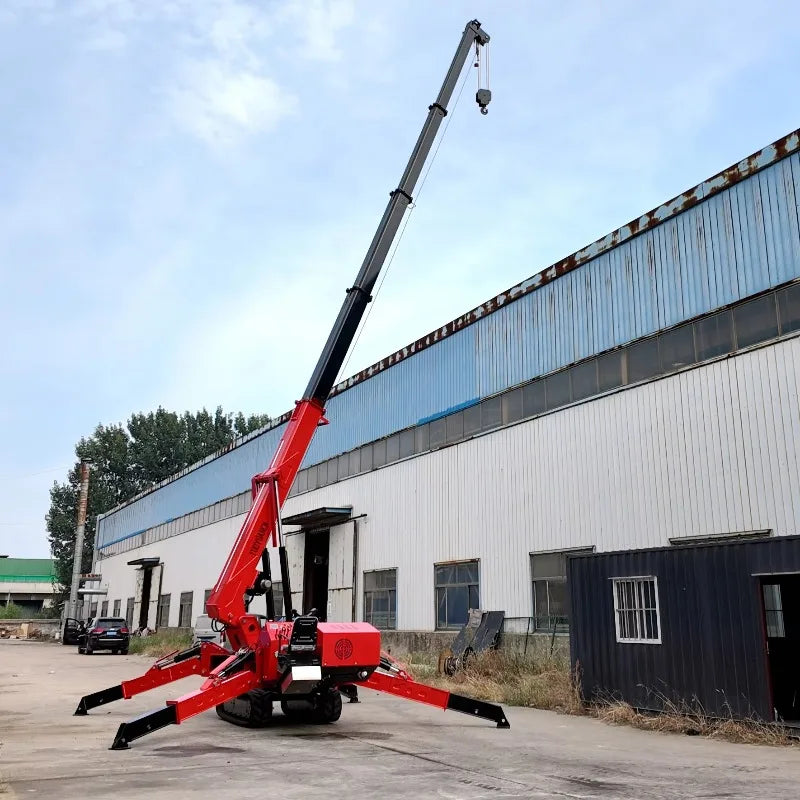

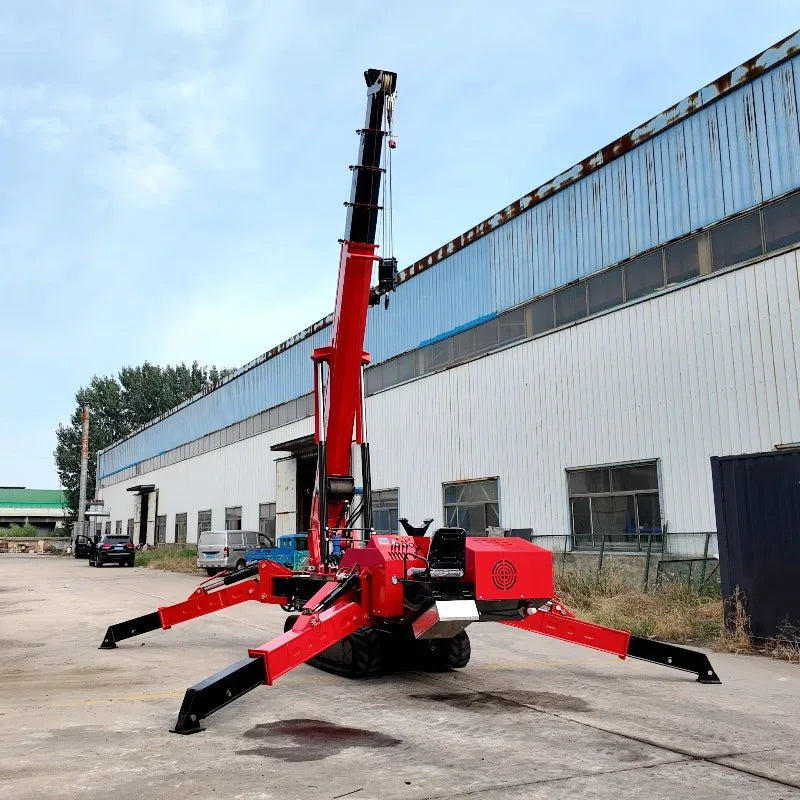

The spider crane (also known as mini spider crane) is a small lifting equipment designed for narrow spaces and complex terrains, named for its spider-like flexibility. As a high-quality spider crane for sale, it features a multi-wheel chassis that enables flexible movement on tight sites and irregular grounds, with a small turning radius and excellent passability.
This spider crawler crane has a rated lifting capacity of 0.5-10 tons, equipped with a hydraulic telescopic arm that reaches a lifting height of 8-25 meters. It is widely used in interior decoration, bridge maintenance, factory equipment installation, narrow tunnel construction and other scenarios, especially suitable for working environments where large cranes cannot enter.

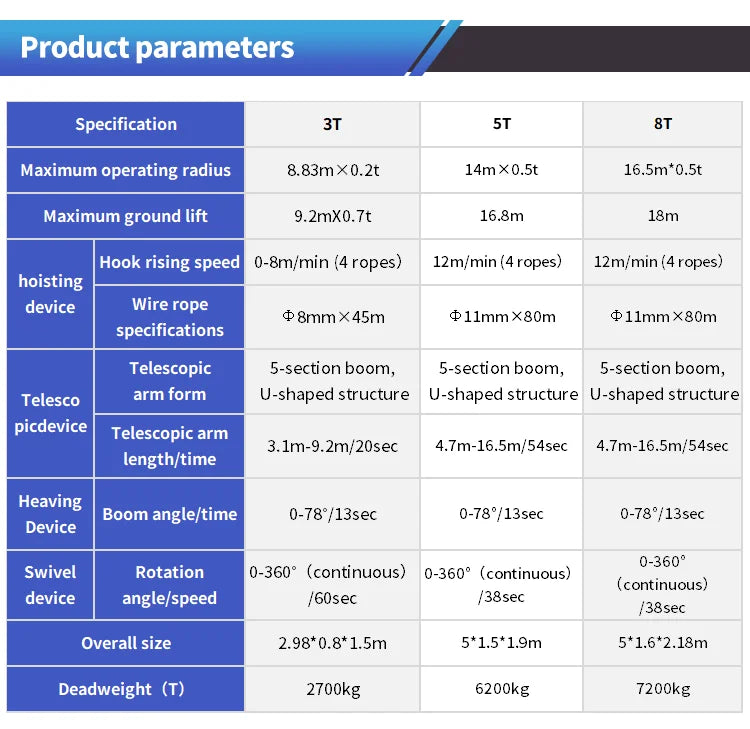

Spider Crane Specification
|
Model |
YG-30 |
YG-50 |
YG-80 |
|
Specification |
3t |
5t |
8t |
|
Maximum working radius |
8.83mx0.15t |
14mx0.5t |
16.5m |
|
Maximum above-ground head |
9.9mx0.7t |
16.8m |
18m |
|
Wire Rope Specifications |
0-8m/min (4 ropes) |
12m/min (4 ropes) |
12m/min (4 ropes) |
|
Boom form |
Φ8mm×45m |
Φ11mm×80m |
Φ11mm×80m |
|
Boom length/time |
3.1m-9.2m/20sec |
12.3m/54sec |
12.3m/54sec |
|
Boom Angle/TimeRotation angle/speed |
0-78°/13sec |
0-78°/13sec |
0-78°/13sec |
|
Slew Angle/Speed |
0-360°continuous/60sec |
0-360°continuous/38sec |
0-360°continuous/38sec |
|
Way of walking |
Hydraulic motor drives |
Hydraulic motor drives |
Hydraulic motor drives |
|
Walking Speed |
0-2.5km/h |
0-2.5km/h |
0-2.5km/h |
|
Gradeability |
25°(36%) |
25°(36%) |
25°(36%) |
|
L*W*H(mm) |
2950*980*1560 |
5000*1500*1900 |
5000*1600*2180 |
|
Total weight(kg) |
2700 |
6200 |
7200 |

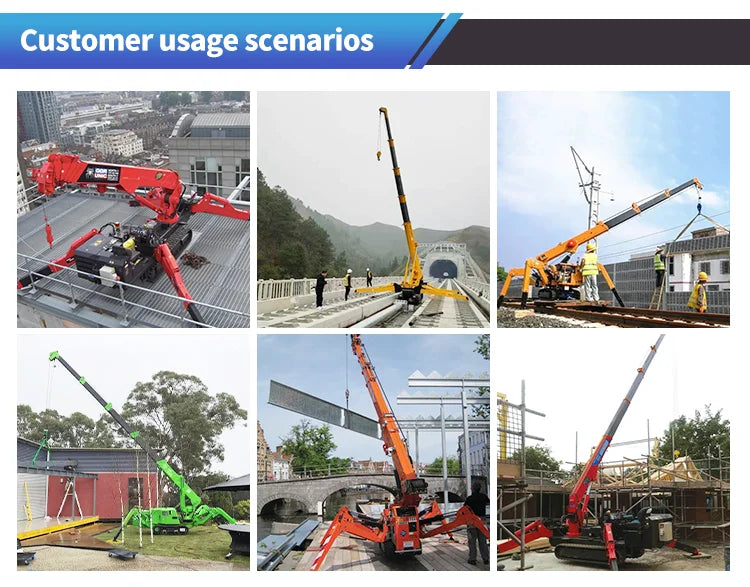

Electric Spider Crane Application
1. Interior Decoration: Install large furniture, suspend ceilings, splice stone for villas and office buildings – the spider crane fits narrow indoor spaces.
2. Municipal Bridges: Replace bridge bearings, inspect piers, transport paving materials. The towable spider crane works in narrow areas without affecting traffic.
3. Factories & Workshops: Install production line equipment, move heavy machinery, build shelves. The spider crane with boom operates precisely without damaging surrounding facilities.
4. Underground & Tunnels: Construct underground garages, lay tunnel pipelines, renovate old communities. The spider crane crawler boom adapts to irregular ground.
5. Emergency Rescue: Clear ruins and transport relief supplies. The foldable spider crane quickly accesses areas unreachable by large equipment.
