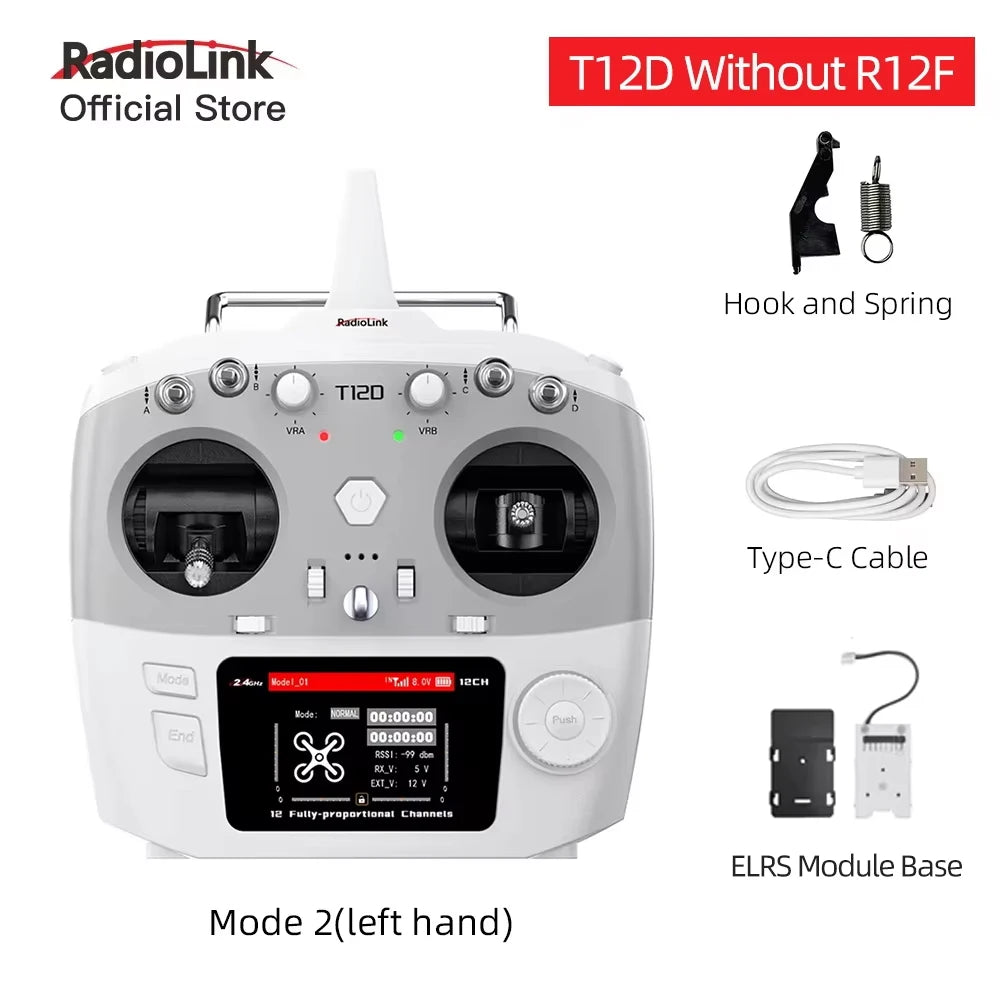

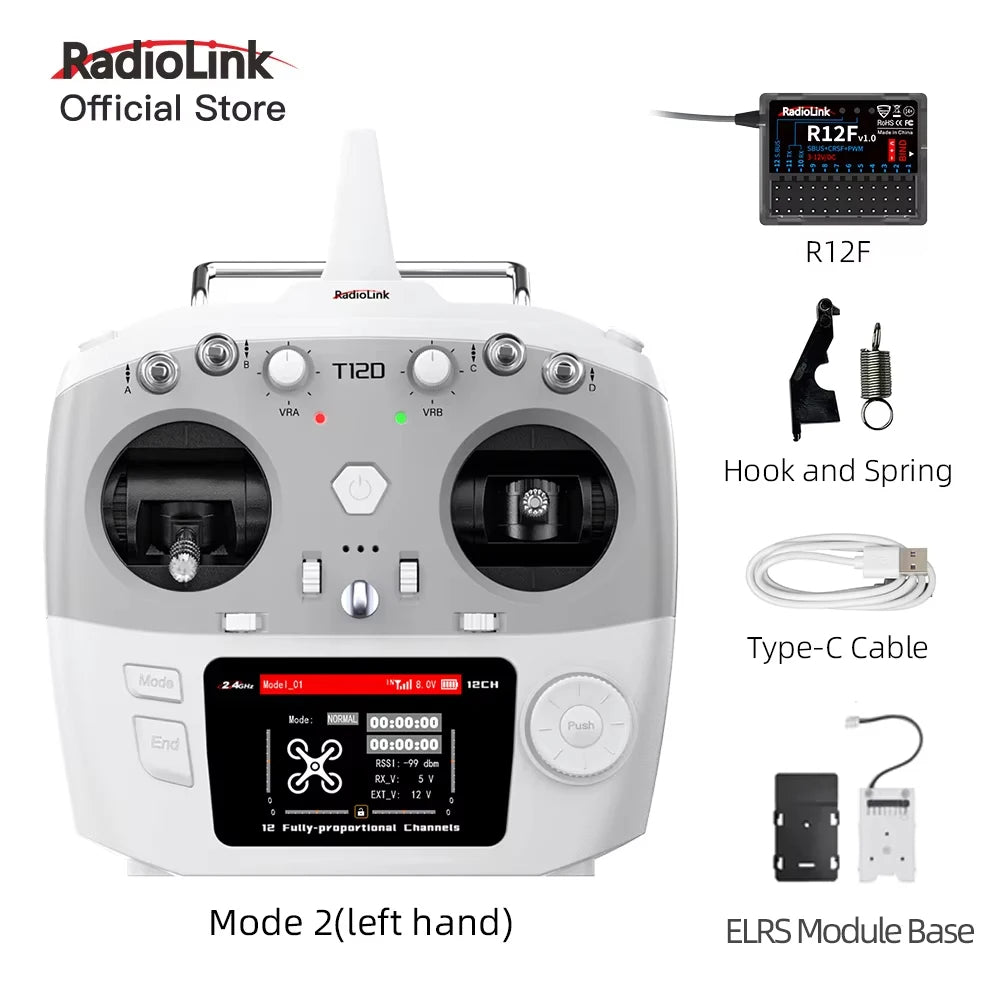

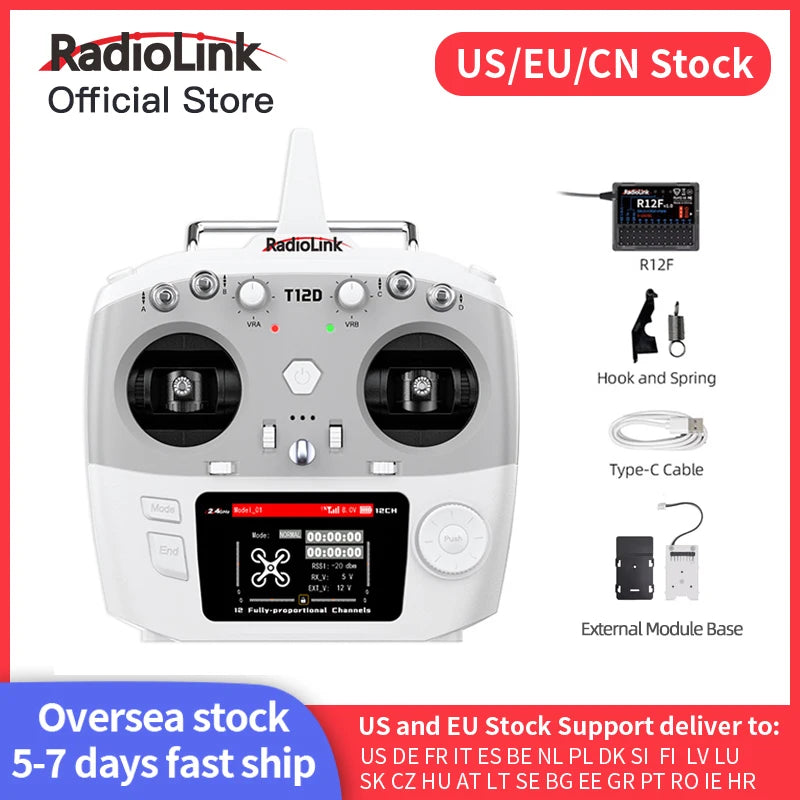

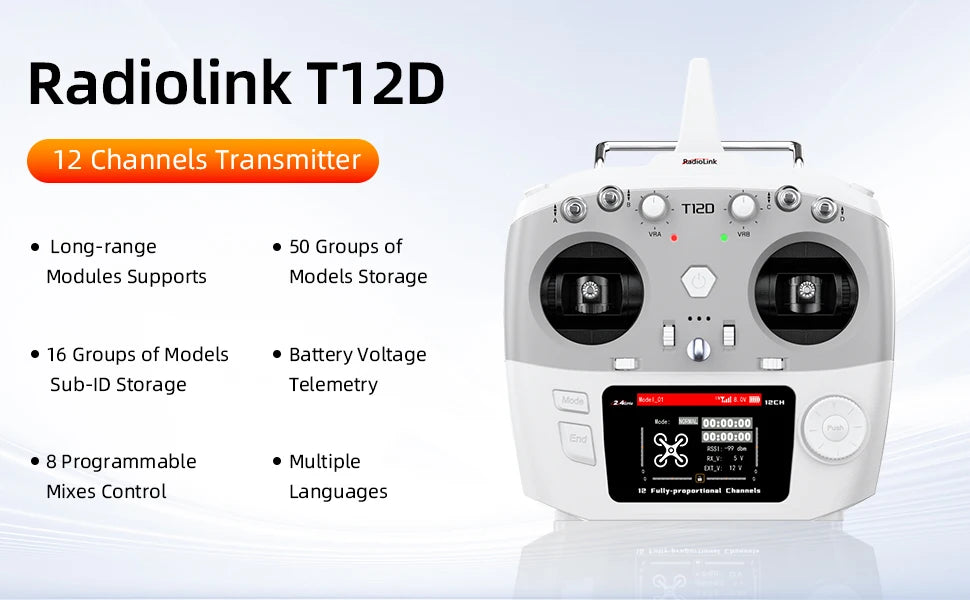

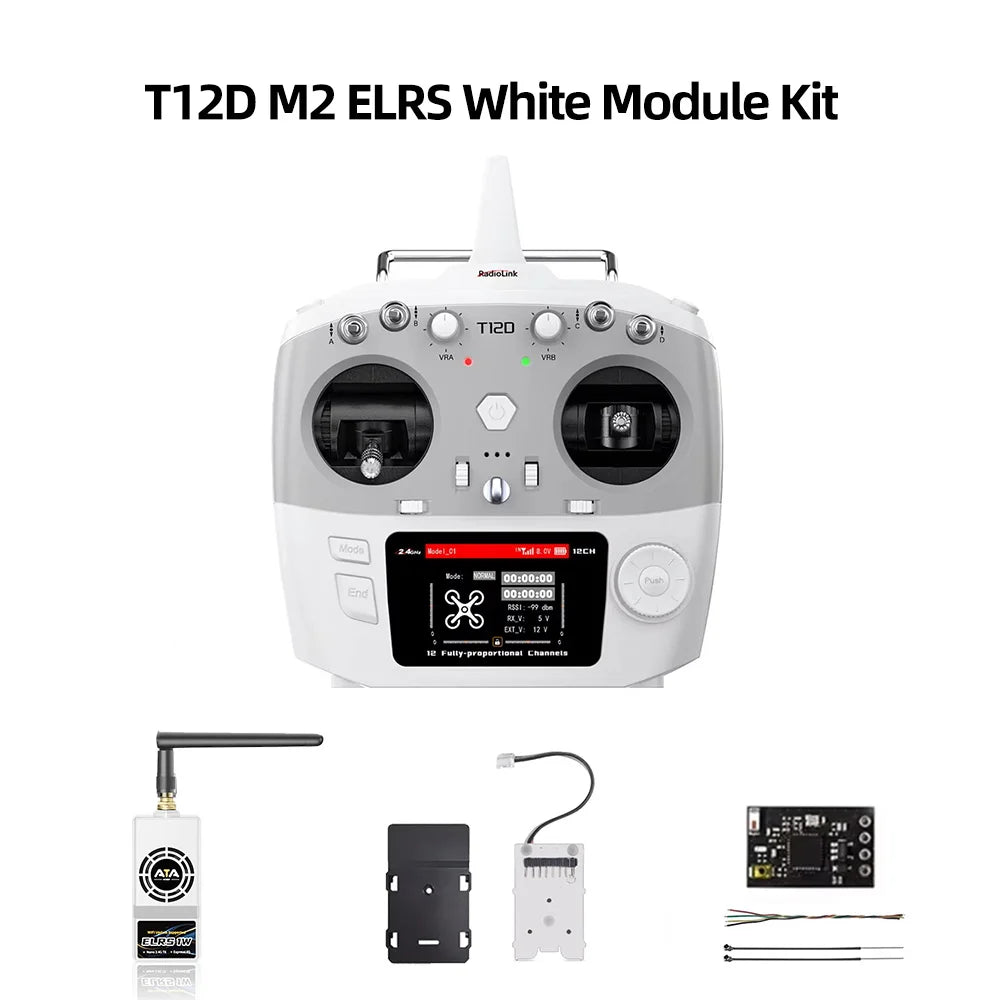

Radiolink T12D — 12-Channel 2.4GHz RC Transmitter with R12F Receiver

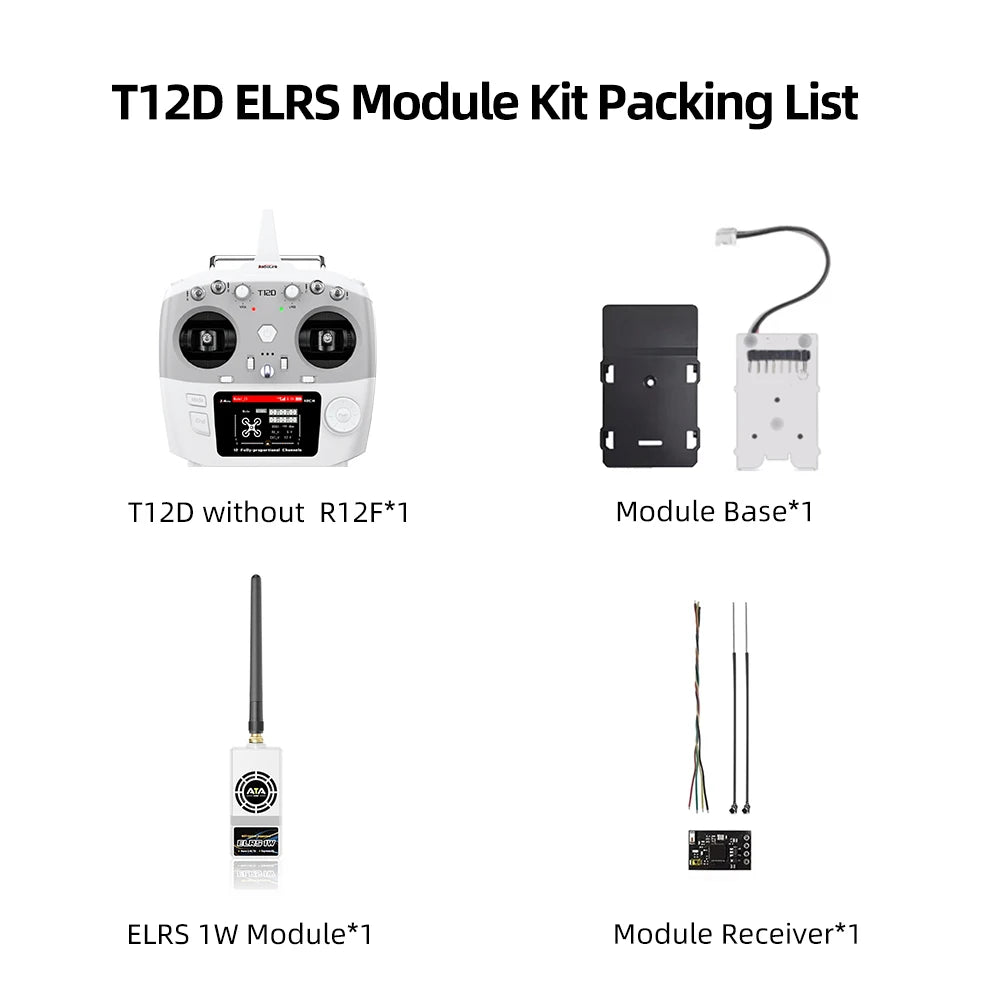

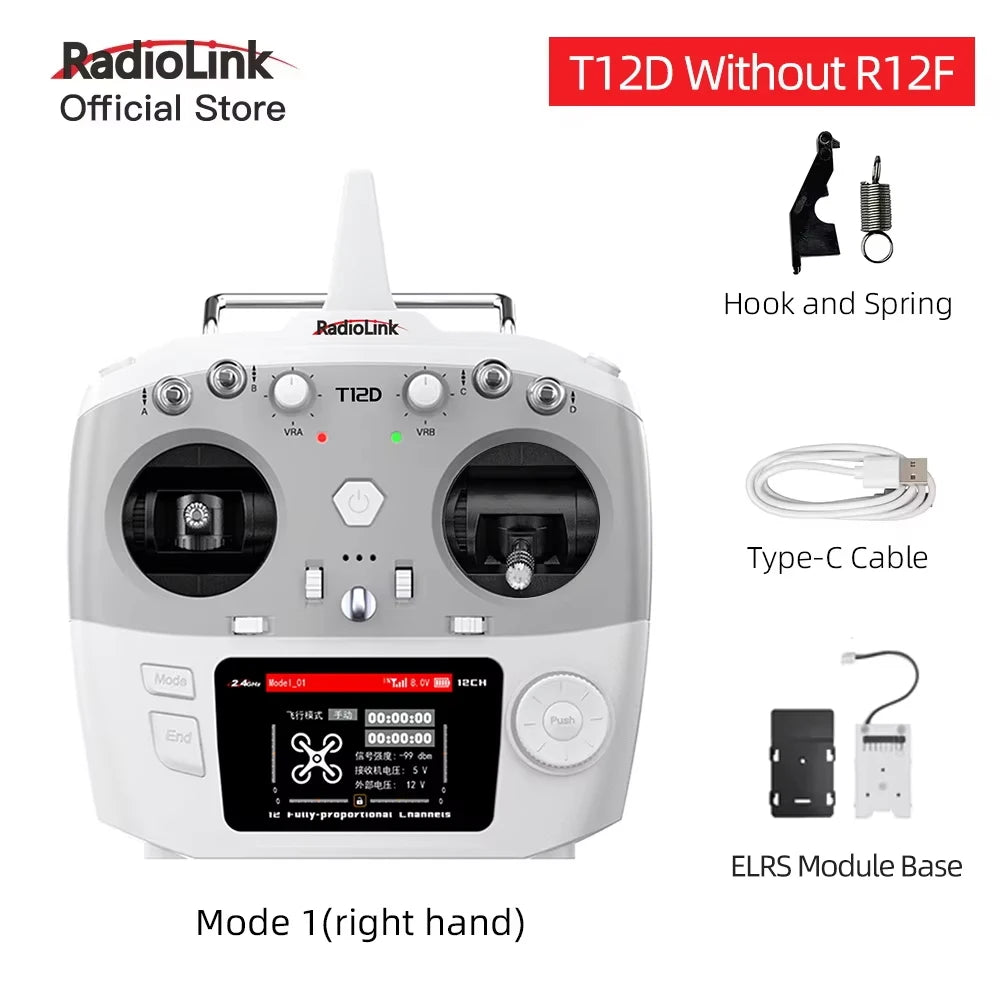

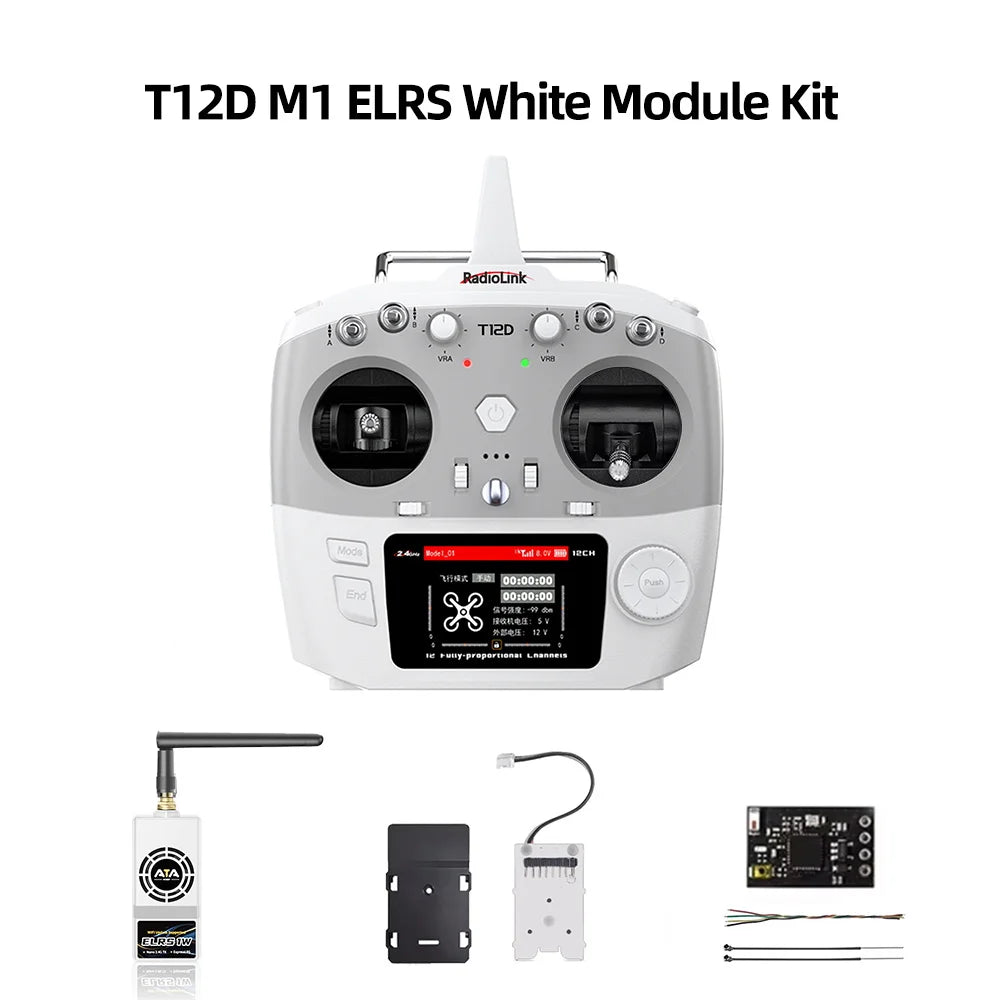

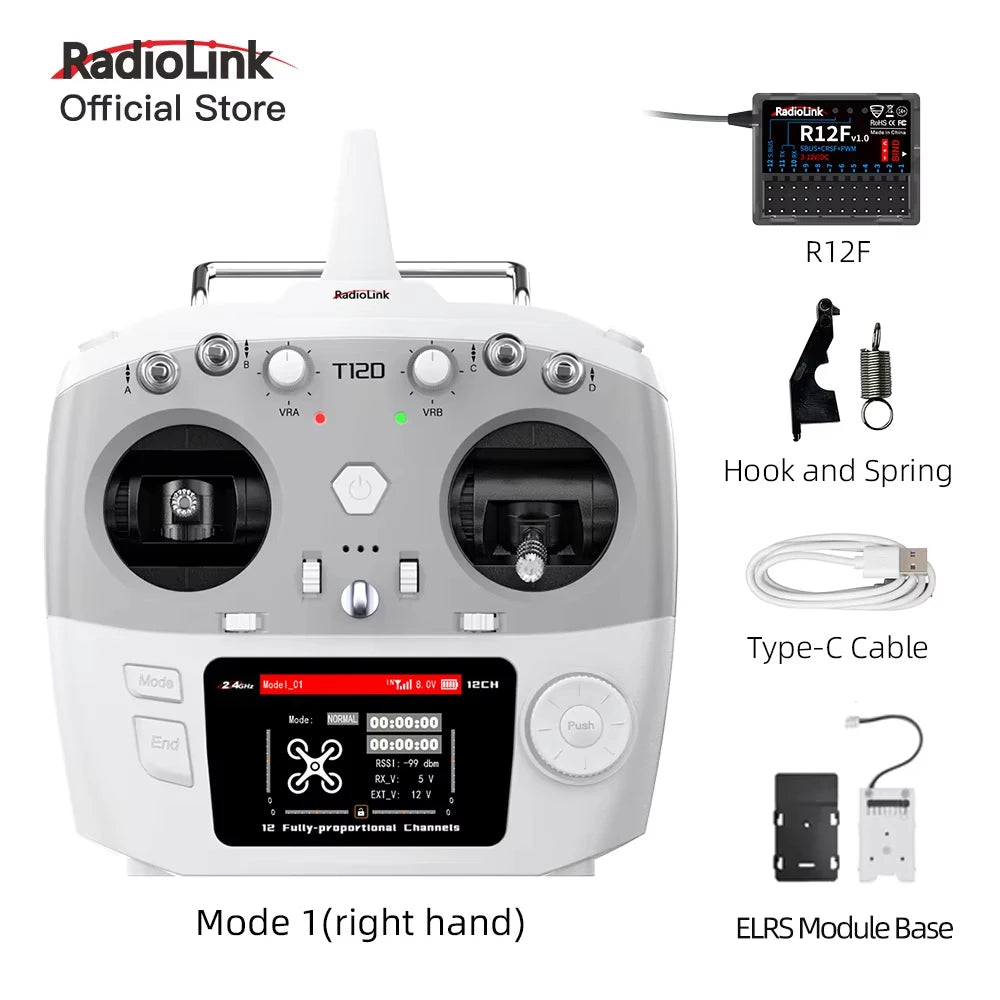

The Radiolink T12D is a professional 12-channel 2.4GHz RC transmitter running freeRTOS + LVGL GUI, designed for drones, fixed-wing aircraft, gliders, multicopters, cars, boats, and robots. Available in Mode 1 and Mode 2, with or without the R12F receiver and ELRS external module. Supports ELRS, TBS Crossfire, and other mainstream long-range modules. Ships from China, US, or Germany.

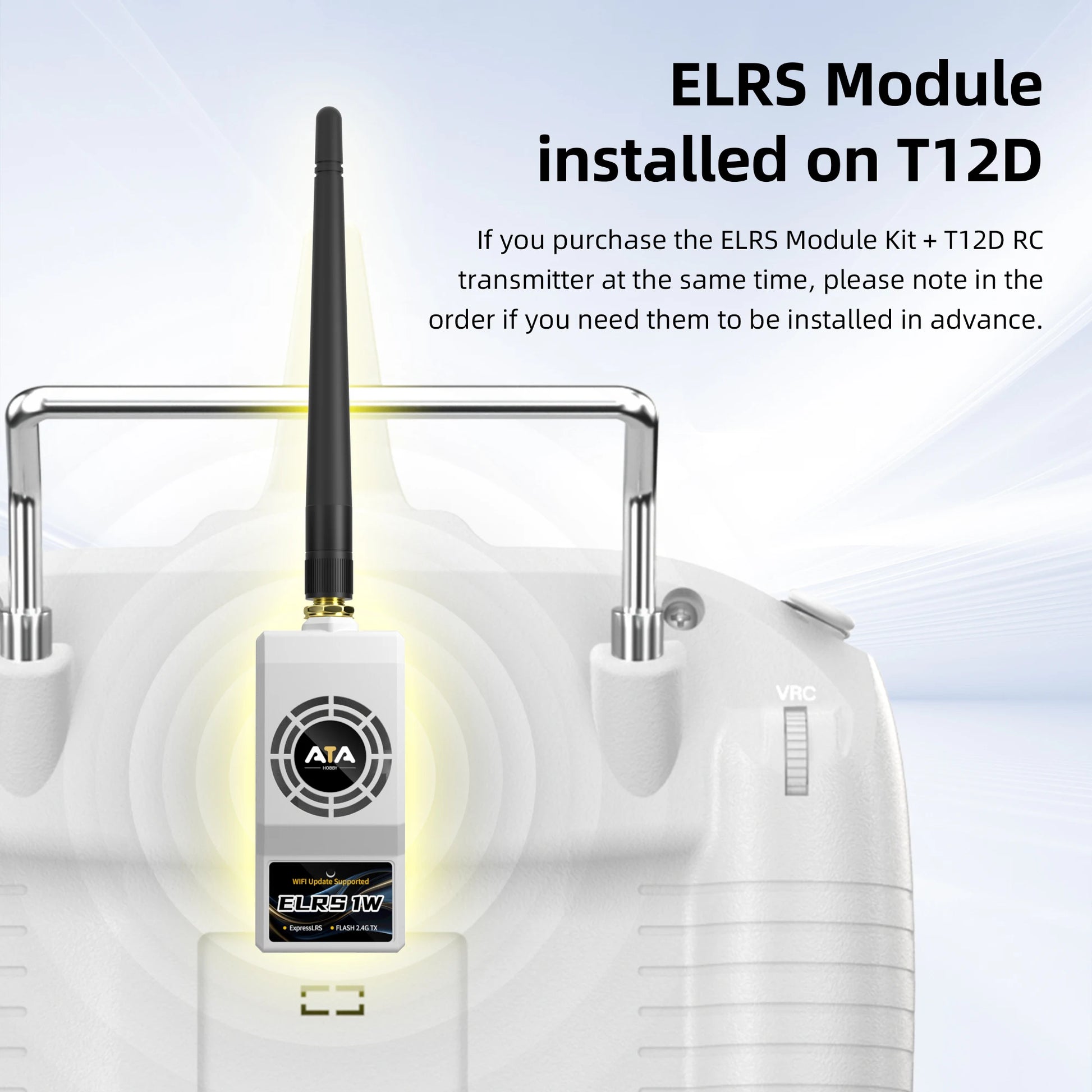

Note: Mode 2 Left sets shipped from US/DE do not include the ELRS Module Base.

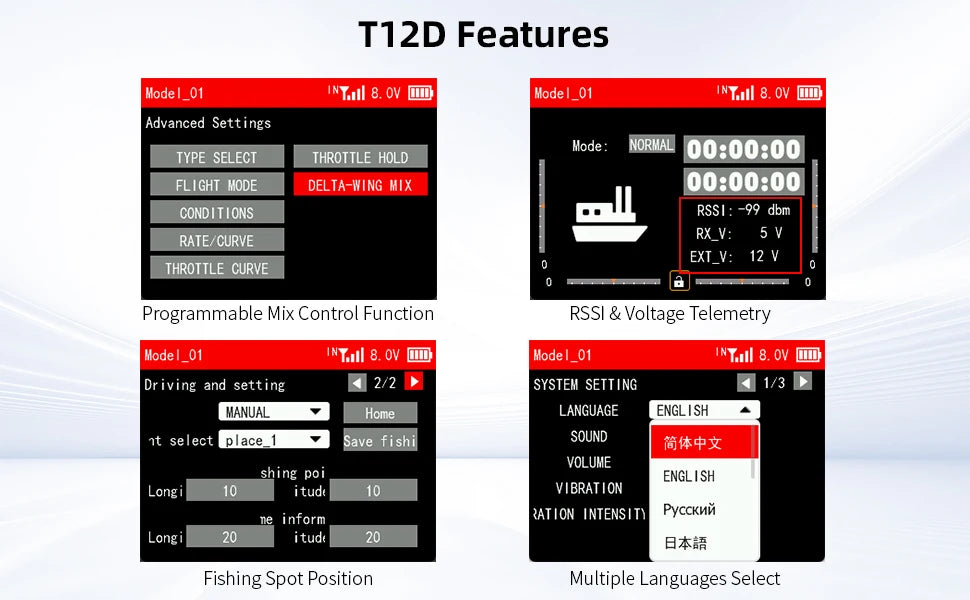

Key Features
- 12 channels with rich user-defined functions
- 2.4GHz FHSS — 67-channel pseudo-random frequency hopping

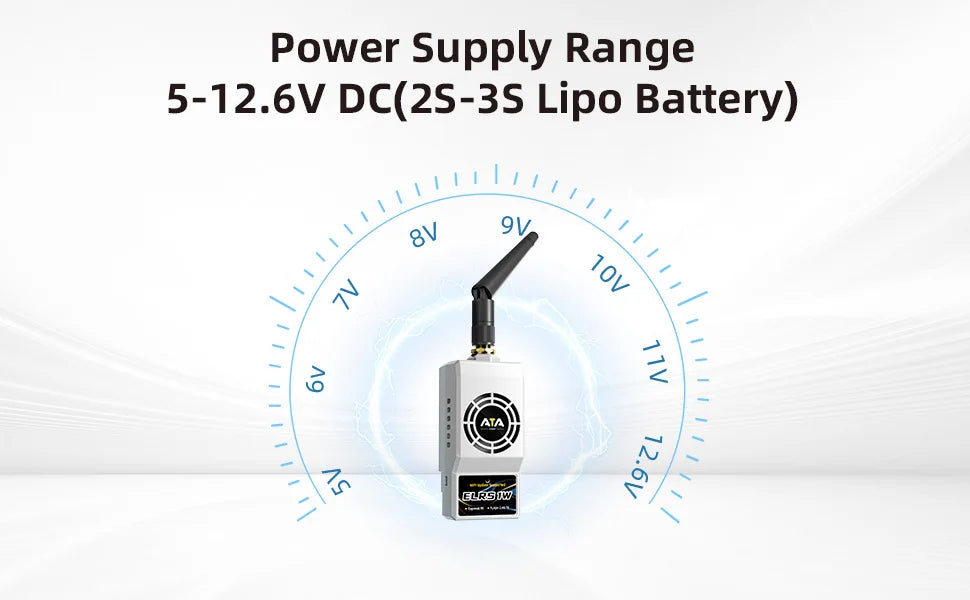

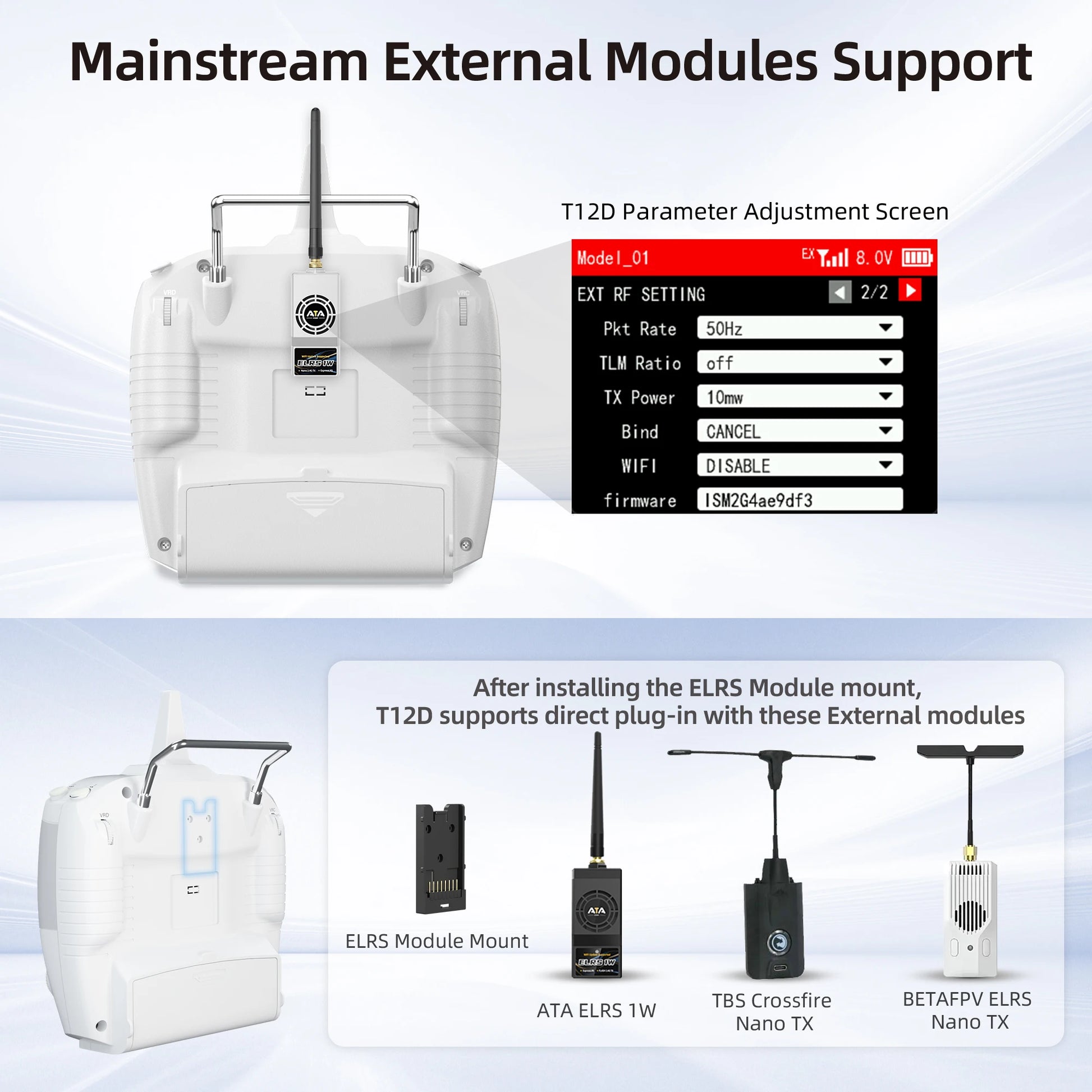

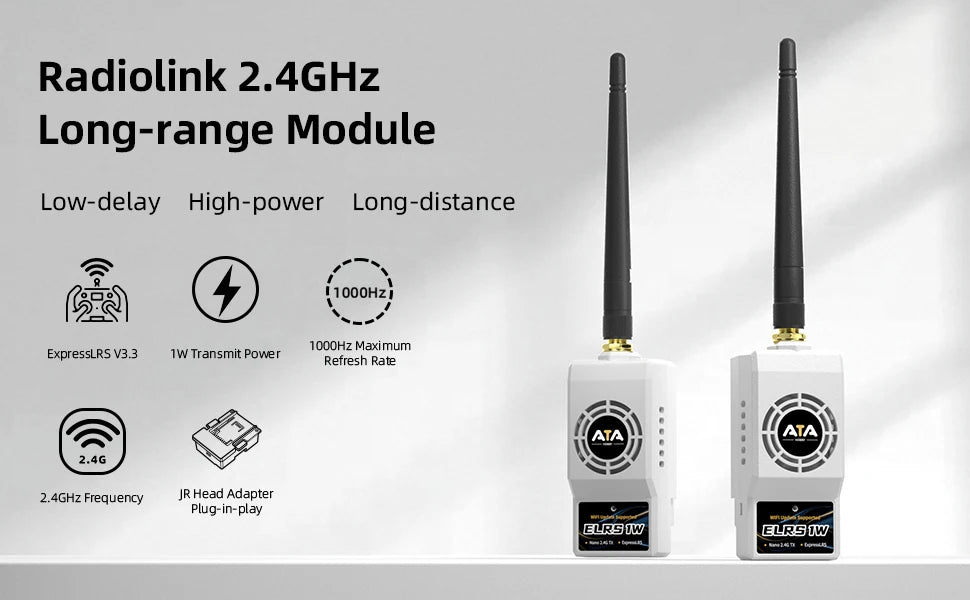

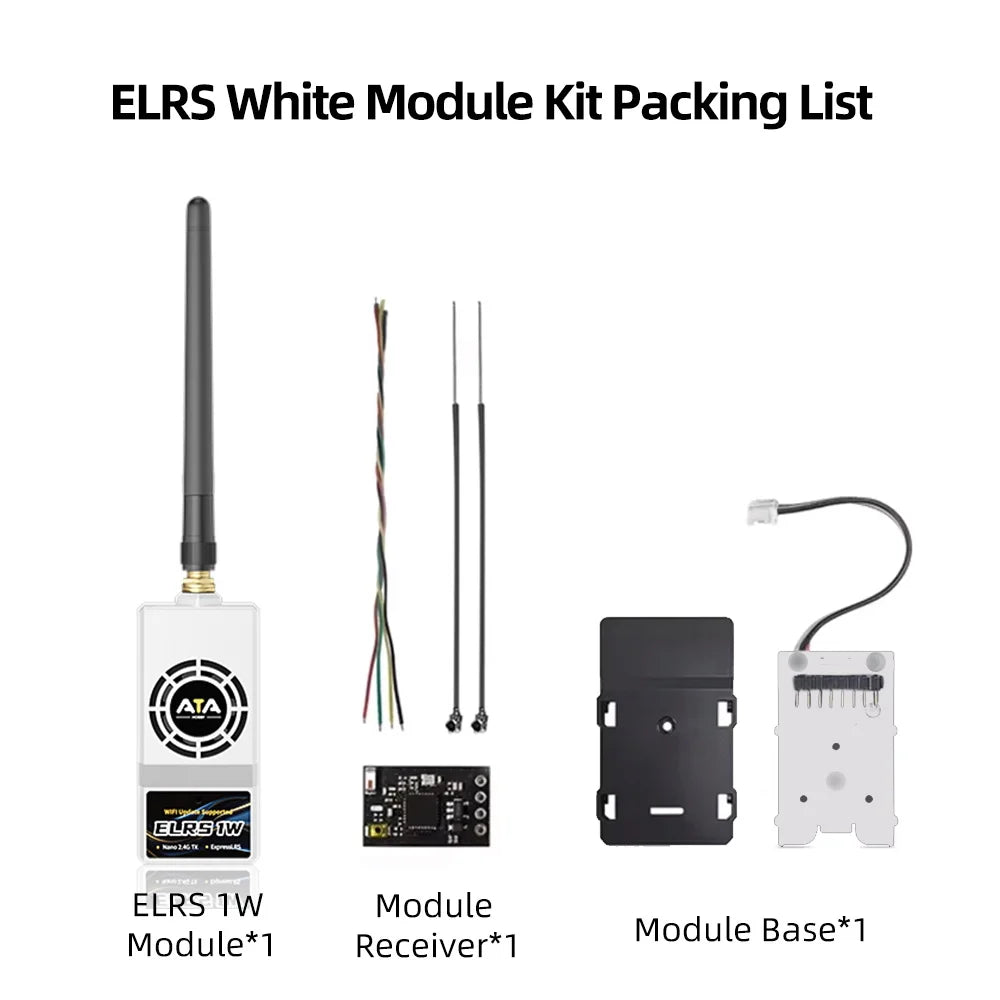

- Supports ELRS, TBS Crossfire, and other long-range external modules

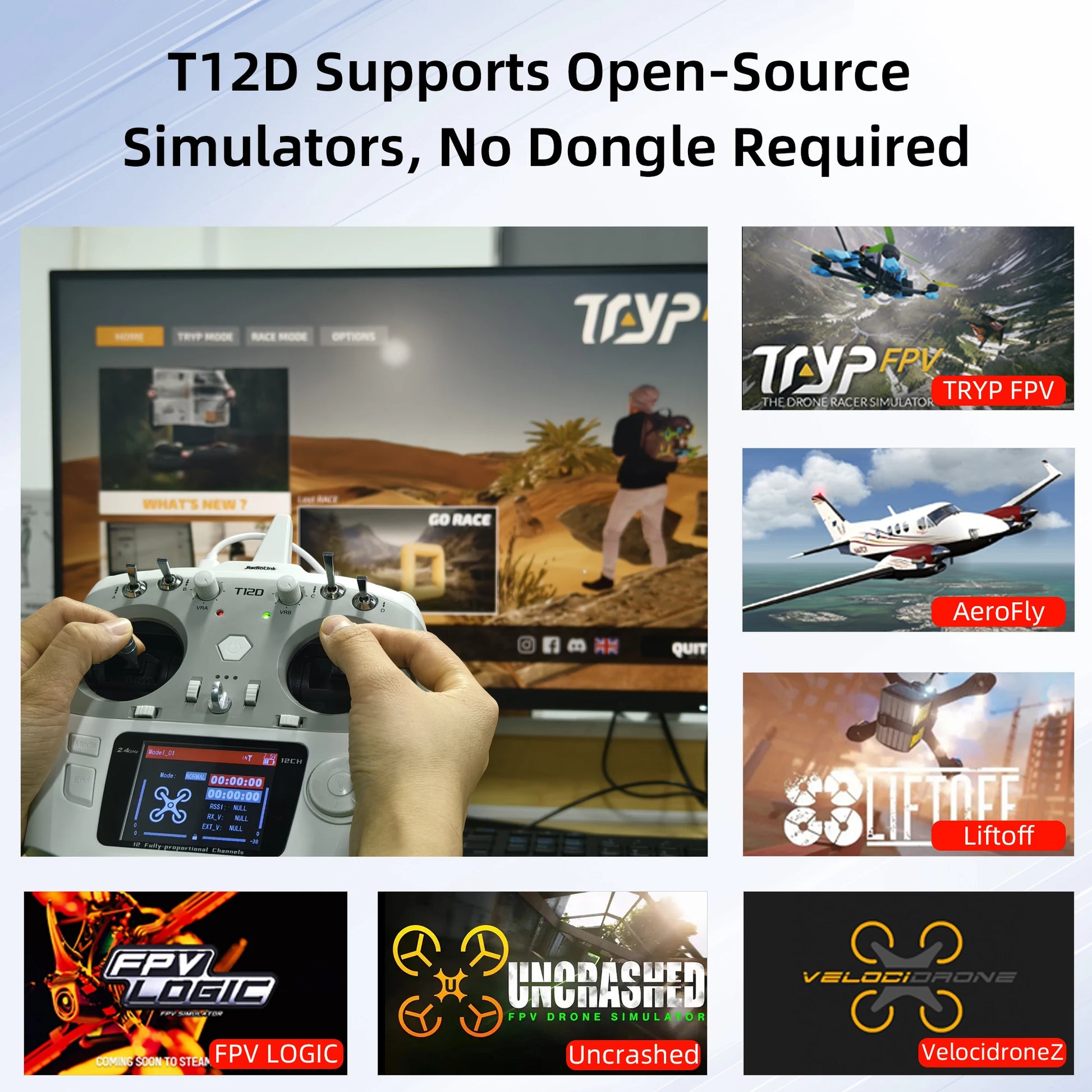

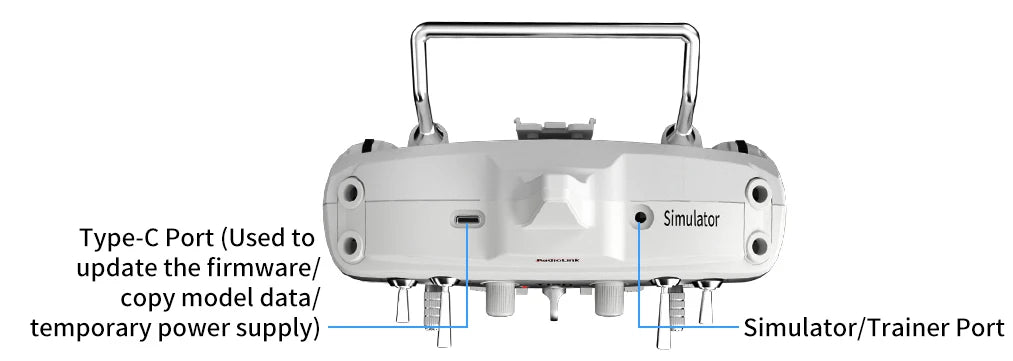

- Built-in simulator support — connect via Type-C (no dongle needed); compatible with TRYP FPV, AeroFly, Liftoff, Velocidrone, and more
- 2.8-inch 16-color display, 320x240 pixels

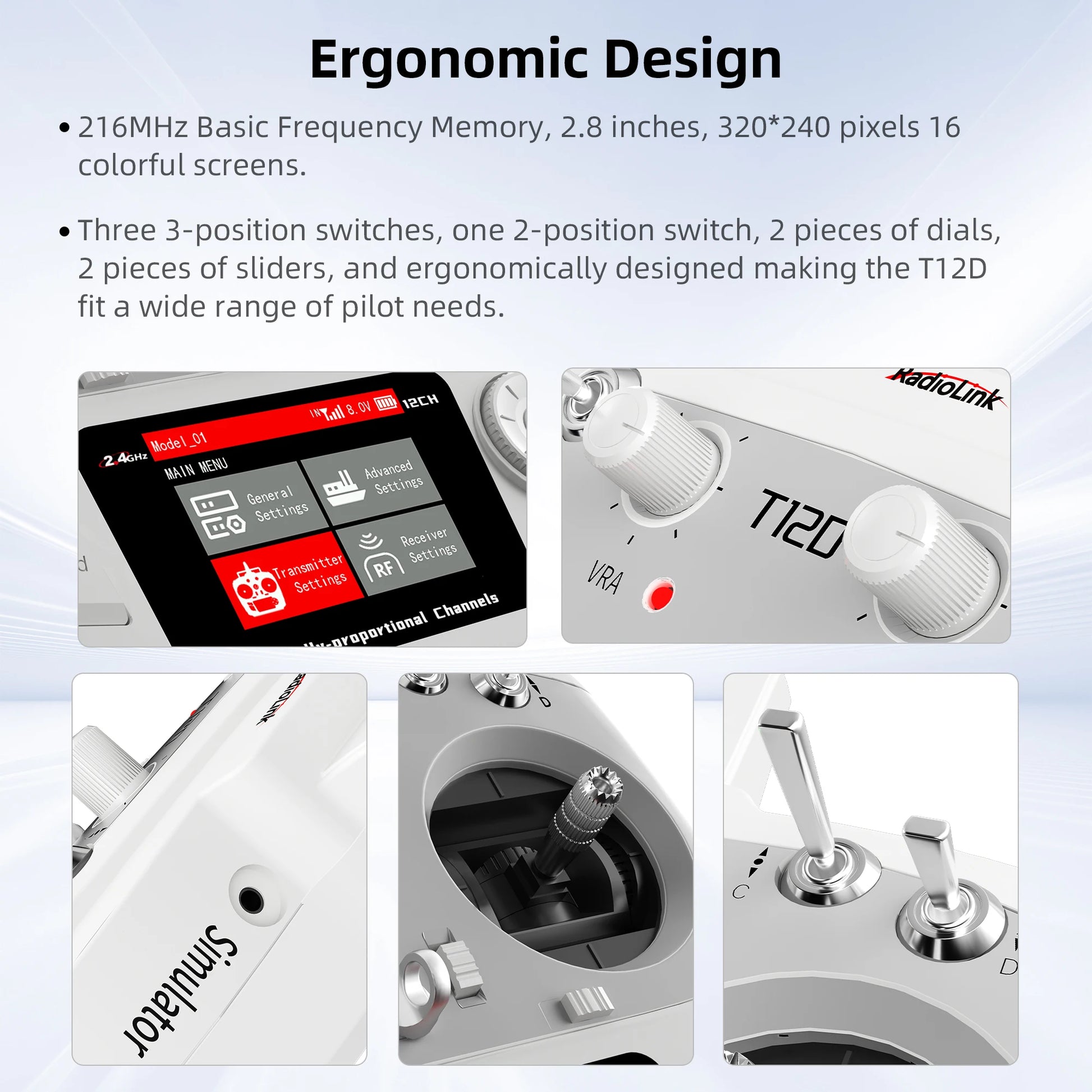

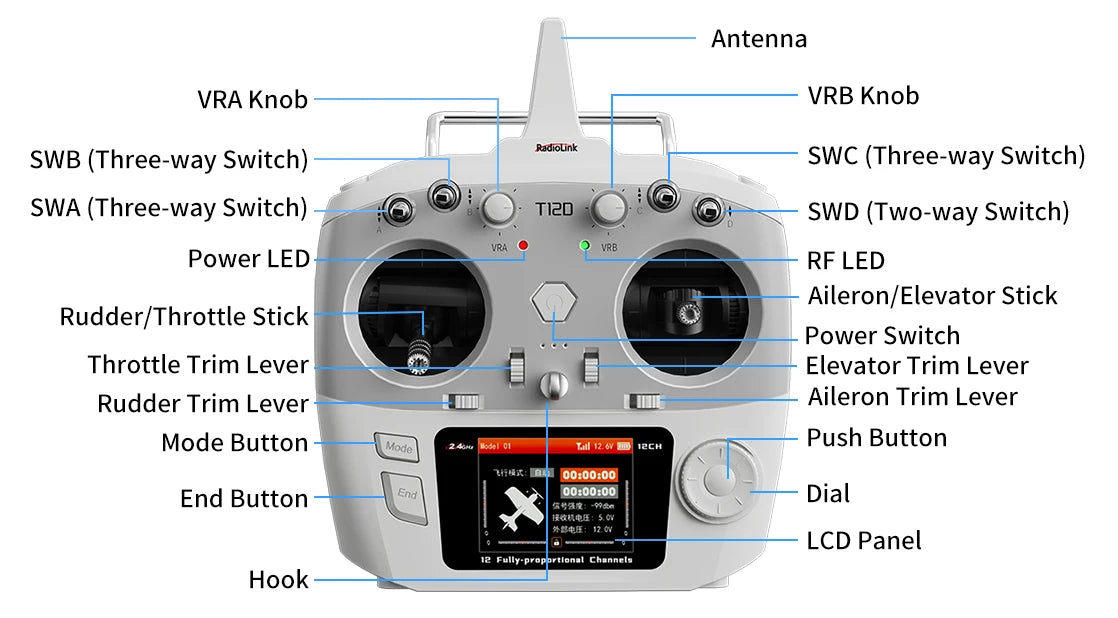

- Ergonomic design: 3-way switches, 1 two-way switch, 2 dials, 2 sliders

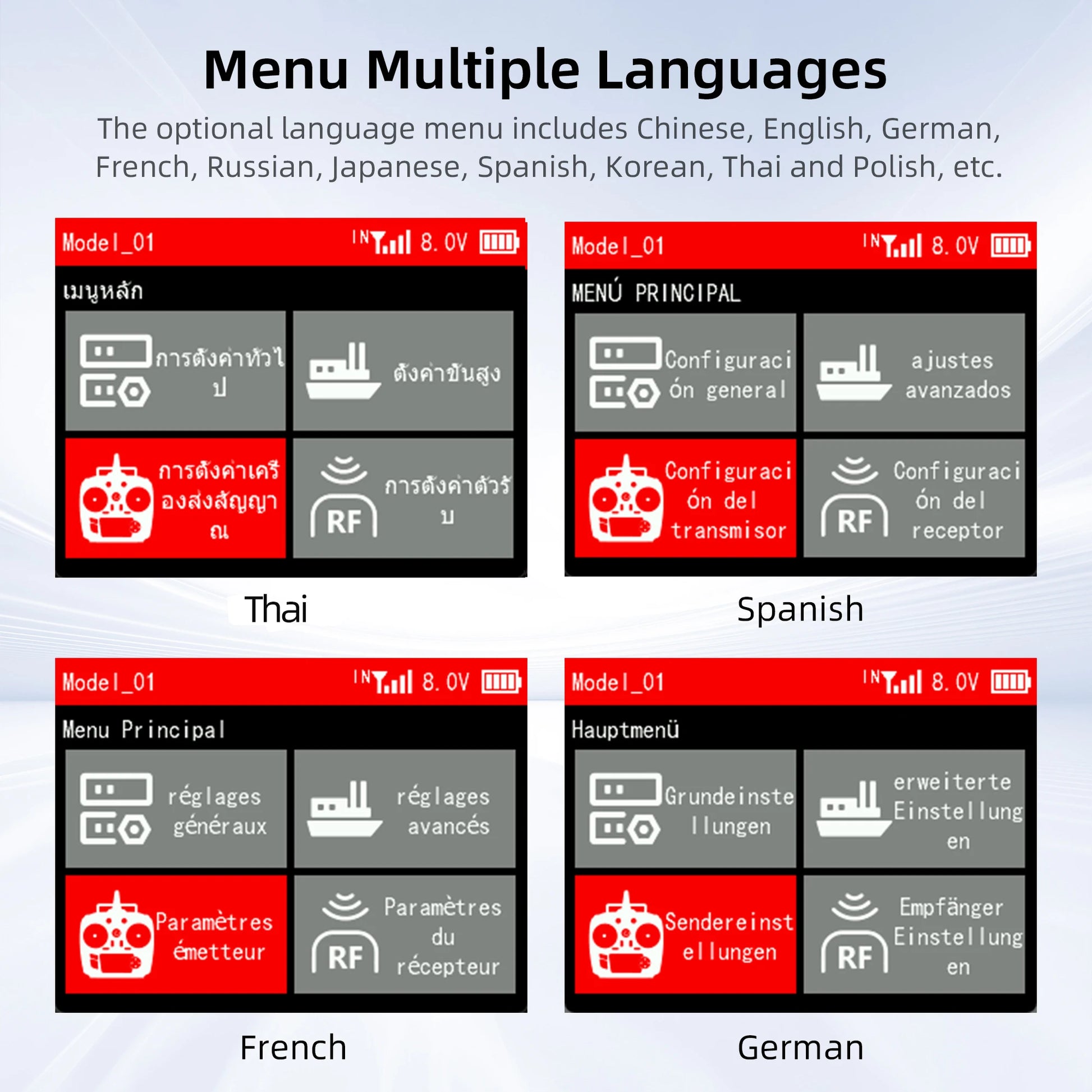

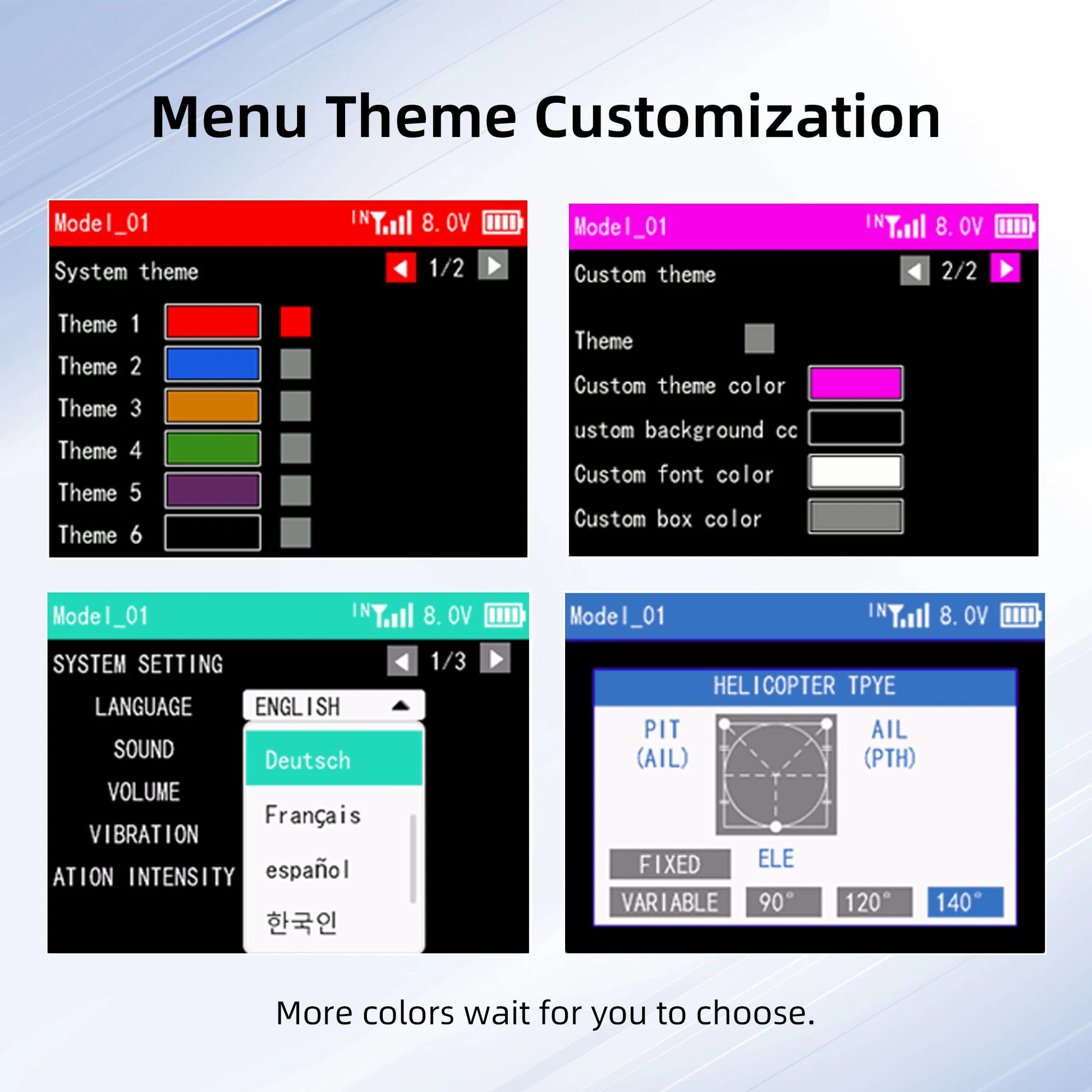

- Multi-language UI: English, Chinese, German, French, Russian, Japanese, Spanish, Korean, Thai, Polish, and more

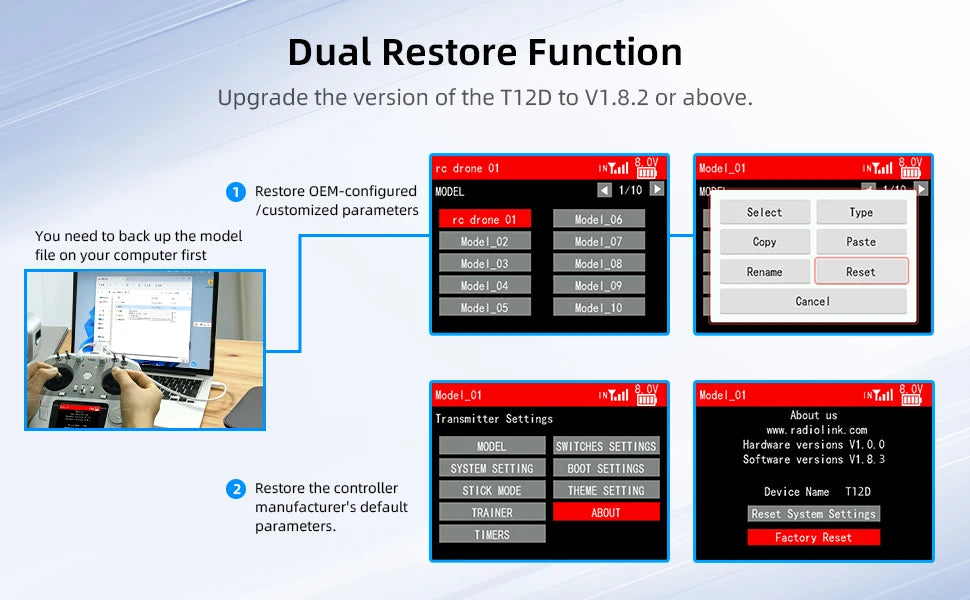

- Dual restore function — one-click factory or custom parameter reset

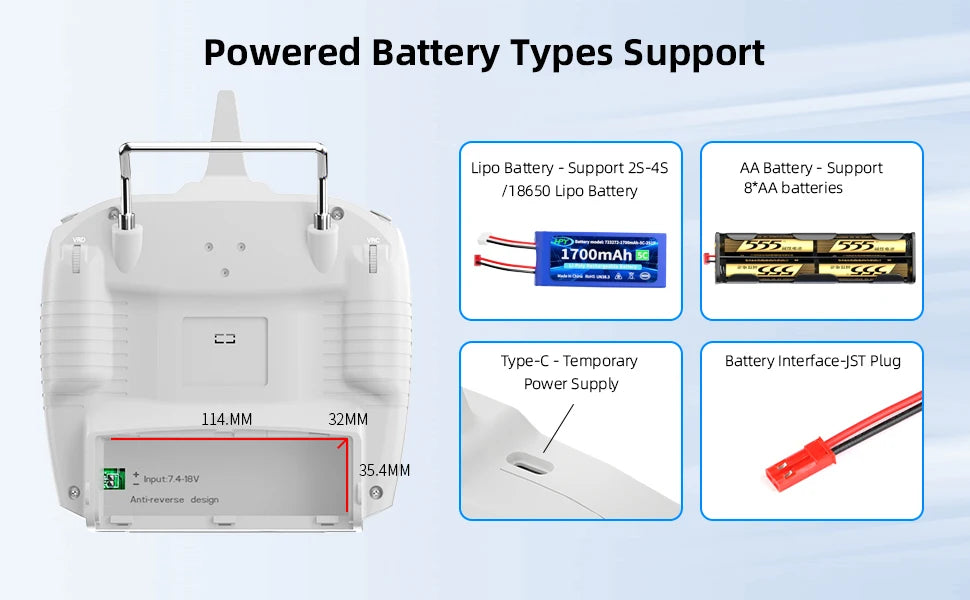

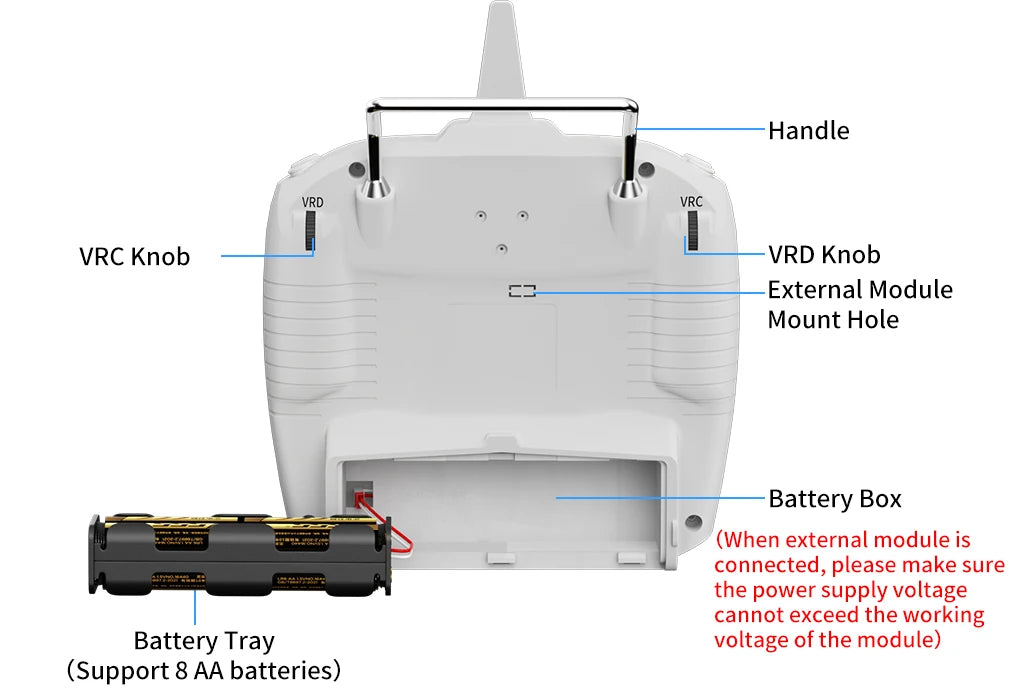

- Universal battery support: 8x AA, 2S–4S LiPo, 18650, or USB-C power bank
- Voltage protection system — reverse polarity protection

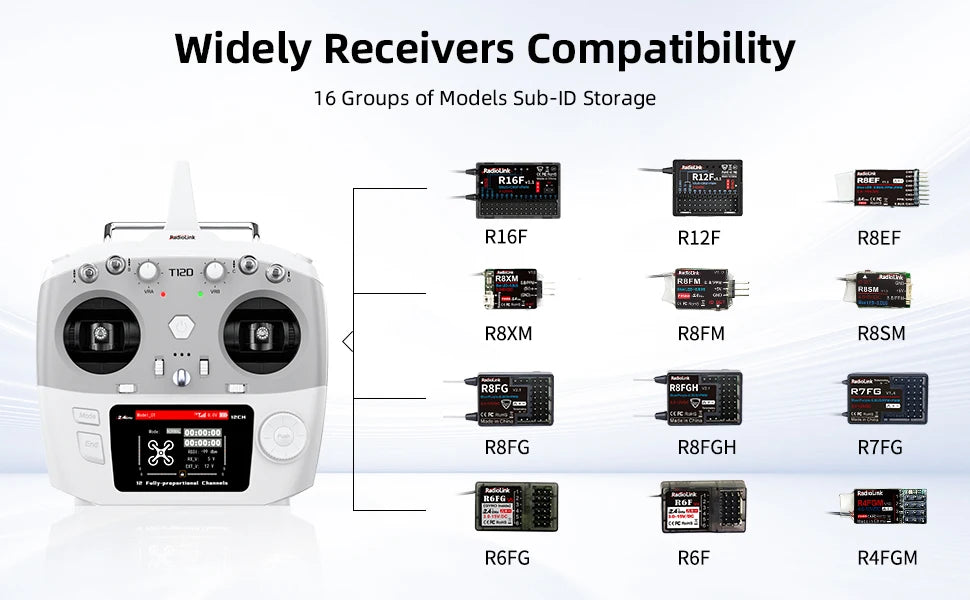

- Wide receiver compatibility: R16F, R12F, R8EF, R8FM, R8SM, R8XM, and more
R12F Receiver Specs
- Channels: 12
- Control Range: Up to 4,000m (open area)
- Signal Output: SBUS + CRSF + PWM
- Frequency: 2.4GHz ISM band
- Operating Voltage: 3–12V
- Weight: 11.8g
- Antenna Length: 205mm
- OTA Firmware Update: Via Type-C cable
Transmitter Specs
- Channels: 12
- Frequency: 2.4GHz ISM (2400–2483.5MHz)
- Modulation: GFSK / FHSS
- Transmission Power: <100mW (20dBm)
- Operating Voltage: 7.4–18.0V
- Operating Current: 100mA @ 8.4V
- Display: 2.8-inch, 320x240, 16-color
- OS: freeRTOS + LVGL GUI
- Dimensions: 174.3 x 206.9 x 106.9mm
- Weight: 536g
