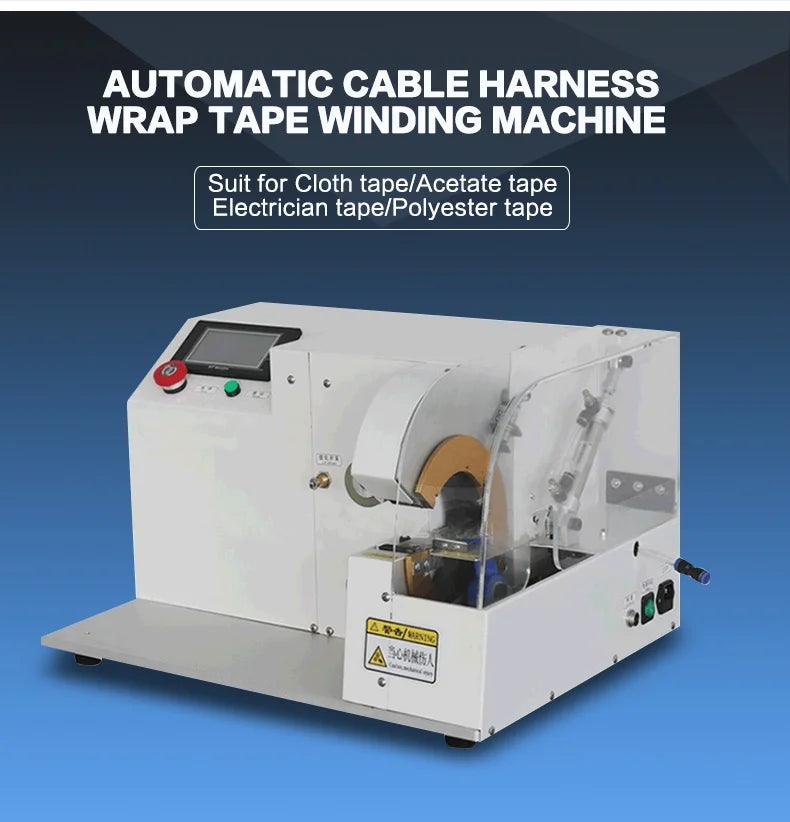

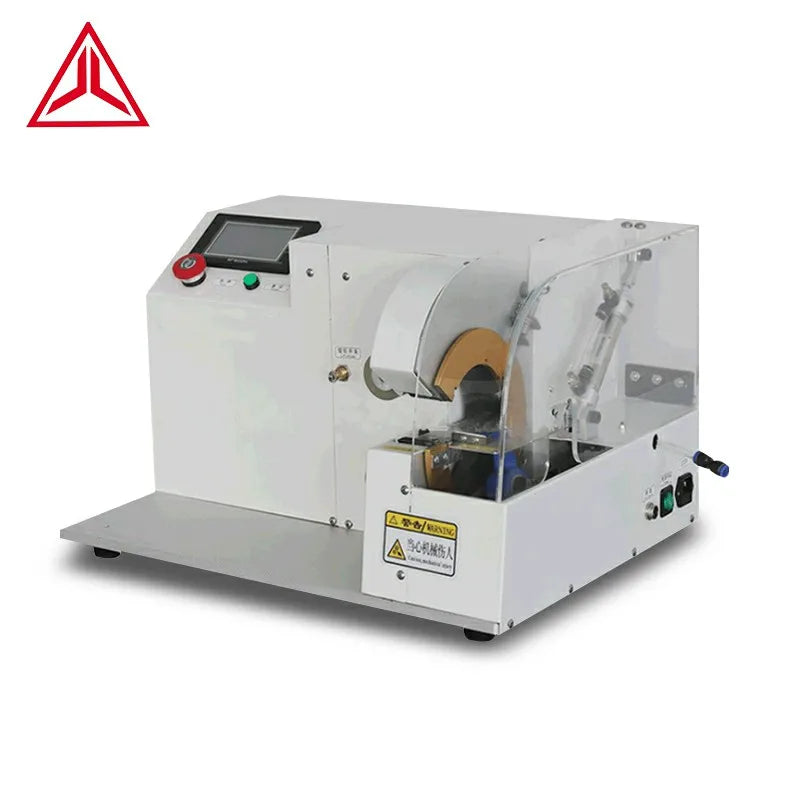

PVC Wire Cable Harness Armature Adhesive Tape Wrapping Machine Automatic Tape Winding Machine
PVC Wire Cable Harness Armature Adhesive Tape Wrapping Machine Automatic Tape Winding Machine
SPECIFICATIONS
Colour: white

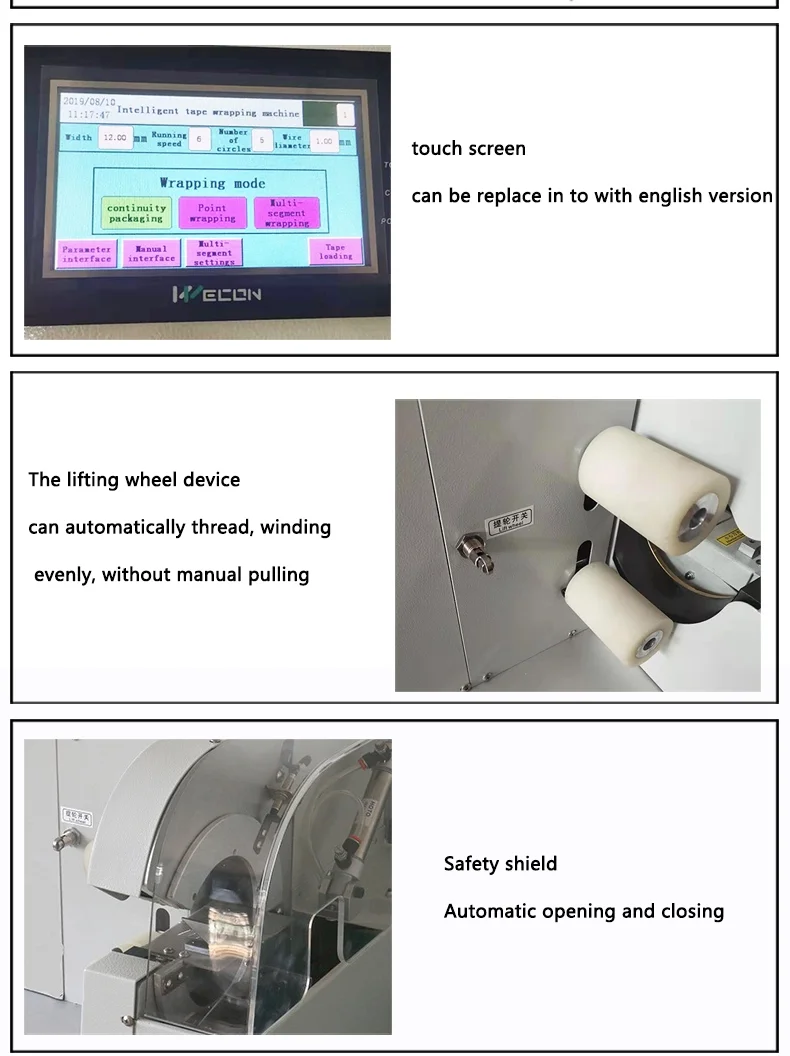

Display method: Chinese or English interface display
Function: Wire Cable Tape Winding
Name: Automatic Wire Cable Tape Winding Machine
Power supply: AC220/250V/50/60HZ
Power(W): 550

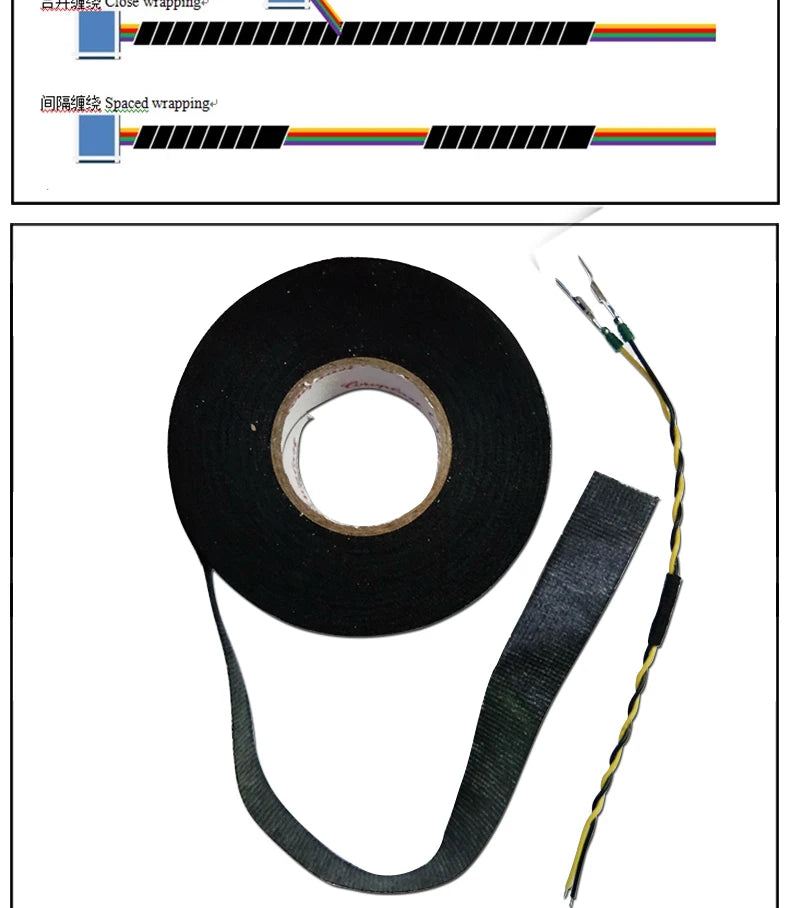

Suitable for tape: Flannelette, acetic acid cloth, electrical tape and so on
Tape width: 5-25mm(Other sizes are customizable)
Warranty: 1 Year
Weight (KG): 60
Winding length: Any require length
Winding speed: Max 12R/S
brand name: JULIAUTO
model number: JL-09
place of origin: Guangdong, China
usage: Wire Cable Tape Winding Machine
Description:
For the wire and complex forming, provides automated placement and winding.
It not only can guarantee the high quality of the wiring harness, but also good value.
especially applicable for thick wiring harnesses. Small, quick, reliable, cost-effective and thus absolutely economical, the perfect machine for efficient and cost-effective production.
Feature:
High precision,Economical & user-friendly
Extremely low maintenance
easy operation
| Product Name | Automatic cable harness wrap tape winding machine |
| Applicable to maximum wire diameter | Max Φ30mm |
| Tape outside diameter | Max Φ100mm |
| Tape roll inner diameter | Φ32mm or Φ38mm (Please advise other sizesin advance) |
| Tape width | 5-25mm(Other sizes are customizable) |
| Main engine rate of revolution | 4500RPM |
| Dimension | 550*500*350mm |
| Weight | 60KG |
| Display method | Chinese or English interface display |
| Power supply | AC220/250V/50/60HZ |
| Winding length | Any require length |
| Suitable for tape | Flannelette, acetic acid cloth, electrical tape |
| Winding speed | Max 12R/S |
Packaging details: standard wooden box and white foam.
Port:Shenzhen or negotiation.
We Provide
1. On-time delivery and the shortest delivery time.
2. OEM and customized service.
3. User manuals will go with relative machines.
