Chip prepare secction is reduced into qualified chips by the drum chipper,then the chips are transported to the chip biin ,and then feed to the knife-ring flaker by which the chips are turned to flakes,then the flake stored in wet flake bin.
MELAMINE LAMINATION PARTICLE BOARD PRODUCCTION LINE
Regular price
$1,000,005.99
Sale price
$1,000,005.99
Regular price
$0.99
Unit price
MELAMINE LAMINATION PARTICLE BOARD PRODUCCTION LINE
Product description
Shipping & Return
SPECIFICATIONS
After-sales Service Provided: Engineers available to service machinery overseas
CONTROL SYSTEM: PLC/full automatic
Condition: New
brand name: XIANGYING
capacity: 30000 to 100000 cbm one year
core components: Bearing,Motor,Pump,Gear,PLC,Gearbox,Pressure Vessel,Engine
dimension(l*w*h): 120*50*8
hot press cylinder diamter/no.: 320mm/6pcs
hot press structure thickness: 40mm/50mm/60mm
key selling points: Easy To Operate
need area: 2000 square meter
need labor: no more than 15 person one shift
place of origin: Shandong, China
power (kw): 1500
type: Other
usage: Particle Board Production
video outgoing-inspection: Provided
voltage: 220V
warranty: 1 year
weight (kg): 600
Product Description
Chip prepare section
Particle board drying section
The flakes discharged from the wet flake bin are conveyed to the rotary dryer, qualifed core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing,and transported to surface flake bin.

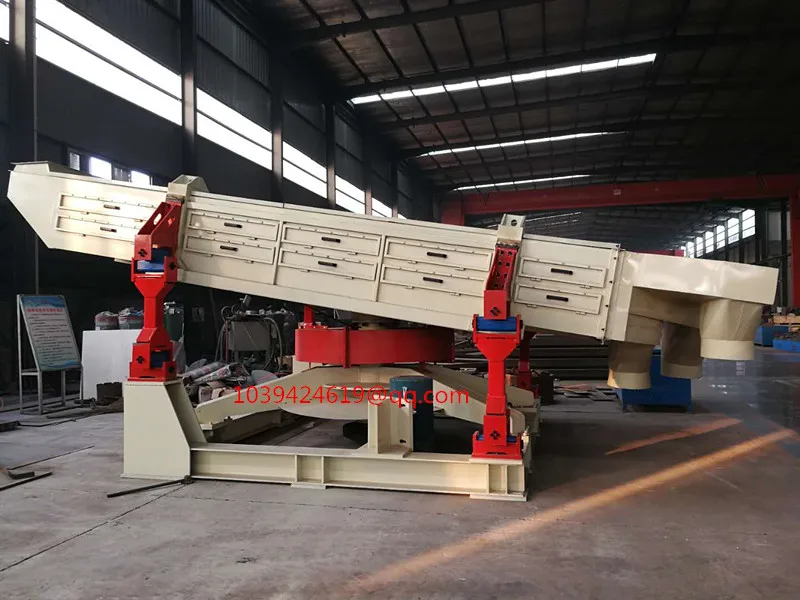

Particle board SIFTING SECITON
Sifting section, uniform sifting the surface and core chips.

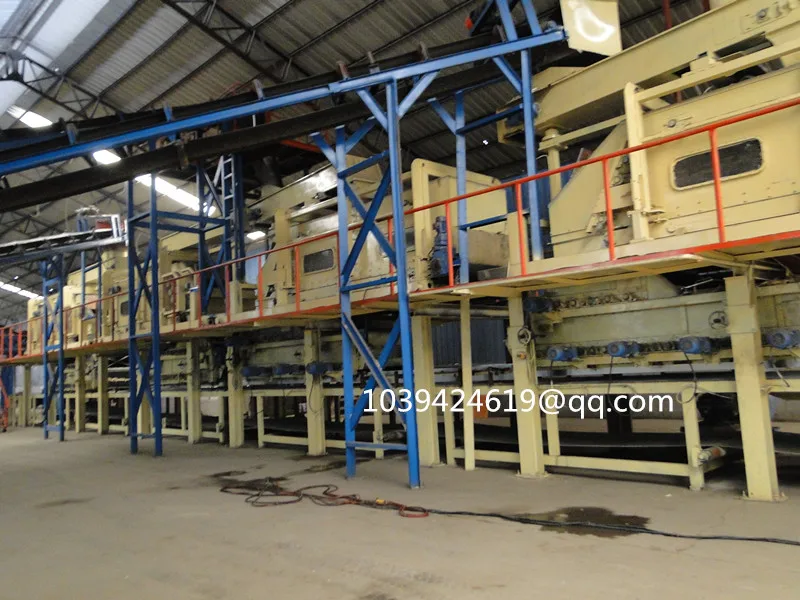

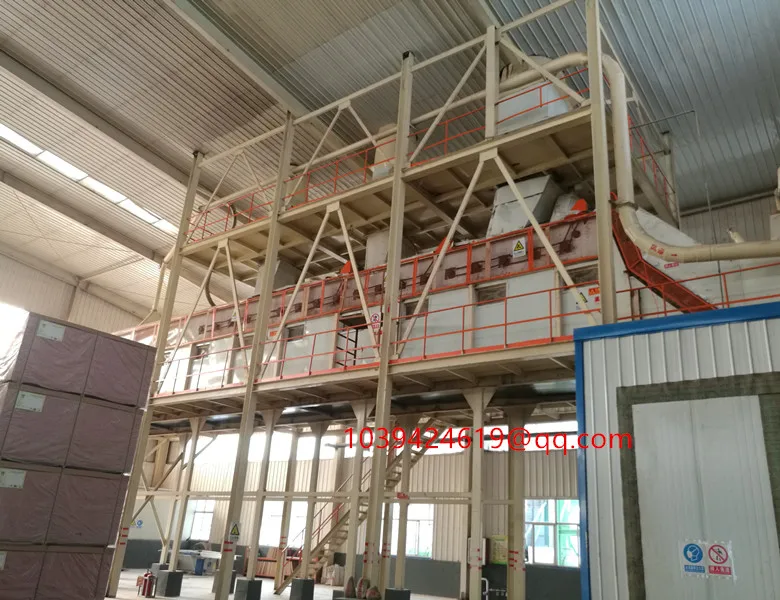

Particle board Forming SECTION
The surface and core flakes are sent into classi-forming machine,and forming on the mat conveor uniformly.After process of metal remover,pre-press,lengthwise saw,cross saw,accelerate conveyor,scaling conveyor,storing coveyor and loading conveyor,mats are transported to carrier and then to hot pressing, rough boards after pressing are pushed to unloader via pallet.
SOSB PRE-PRESS MACHINE
New type pre-press machine,pressure more uniform, save glue and save time,more big capacity.

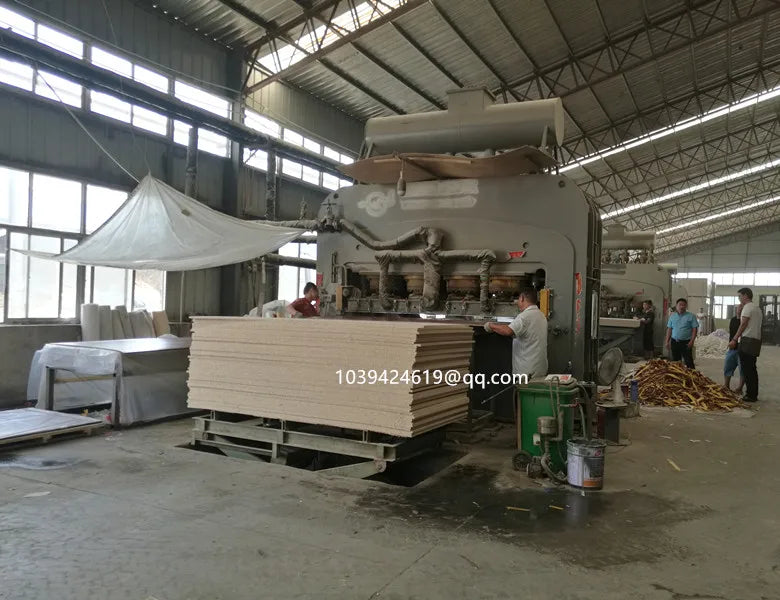

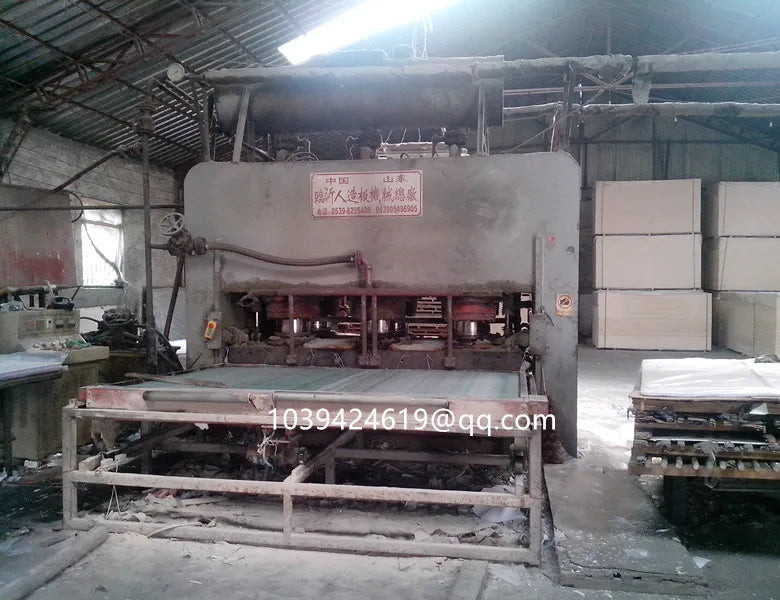

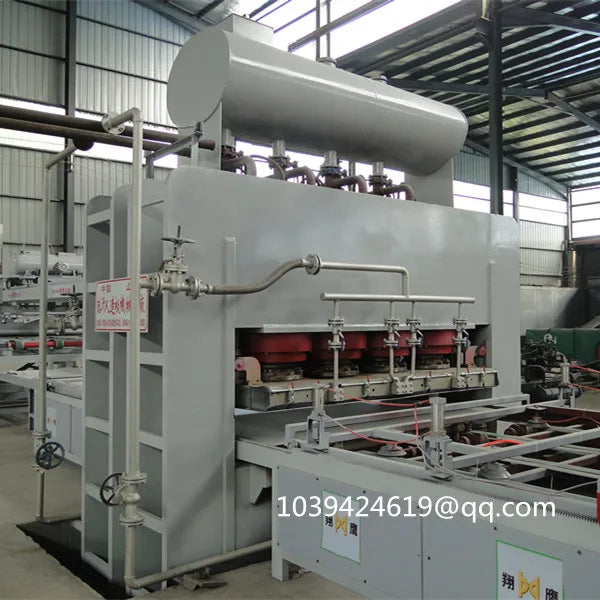

Hot press machine
10-32 layer hot press machine , can choose depends on your capacity requirement.
Cooling and sizing section
The rough board is conveyed to star-cooler for cooling,then the rough board goes through side trimming saw and become a qualified particle-board ,stacked on the hydraulic lift.
Details Images
FULL AUTOMATIC PLC CONTROL SYSTEM
Recommend Products
OSB PRODUCTION LINE
MDF PRODUCITON LINE
Packing&Shipping
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Company Introduction
Our main products are Partice board production line, Plywood production line,H/MDF production line ,all kinds of Lamination press(Mold door hot press, block board hot press)etx,based on our good quality as well as perfect services,our business scope expands extensively both at China and more than 20 countries such as Vietnam,Malaysia,India ,Pakistan,Bangladesh,Russia,Turkey and so on.And the machinery are well praised by our clients.Xiangying continuously create unlimited value for more users!
Our Services & Strength
ONE YEAR FREE SURVICE
