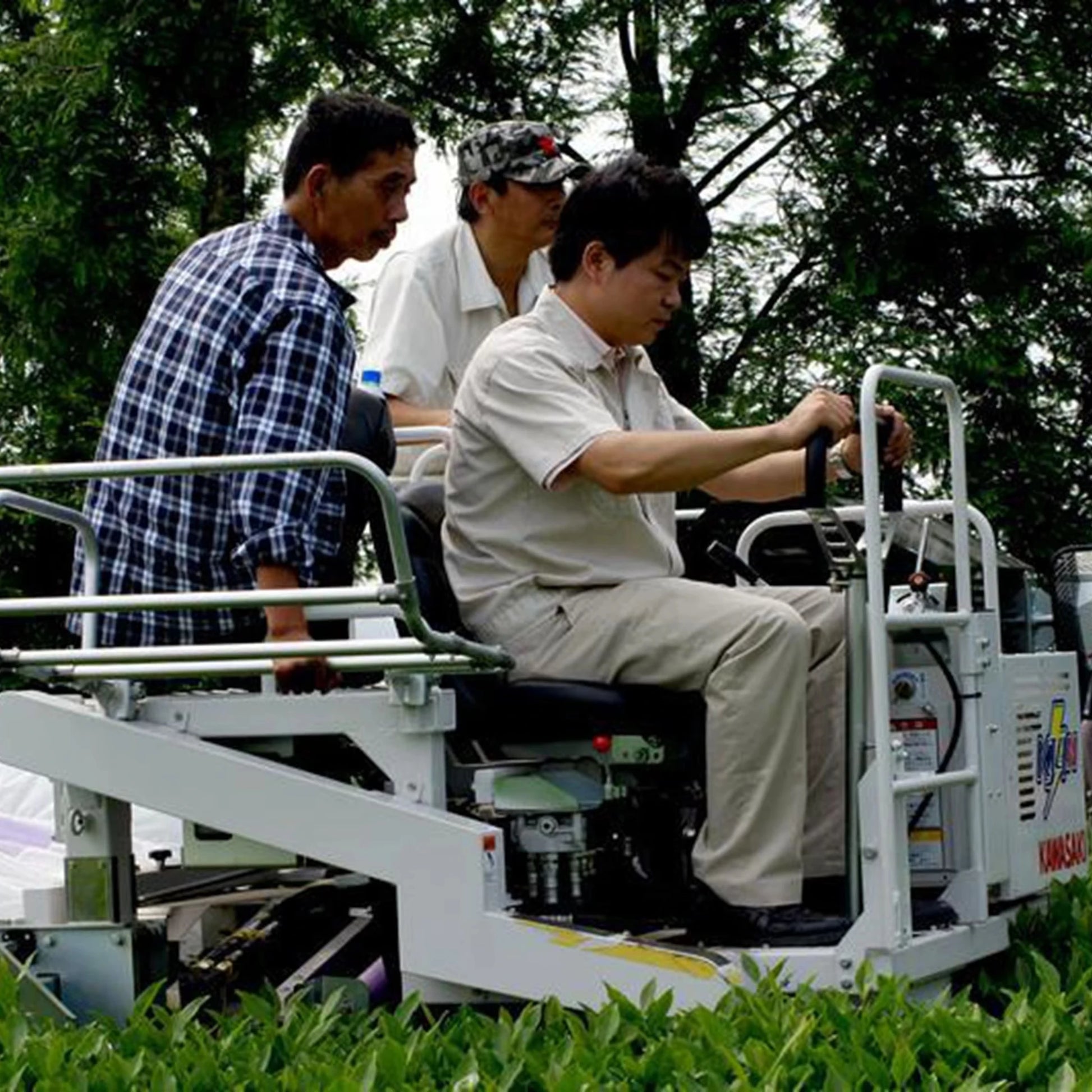

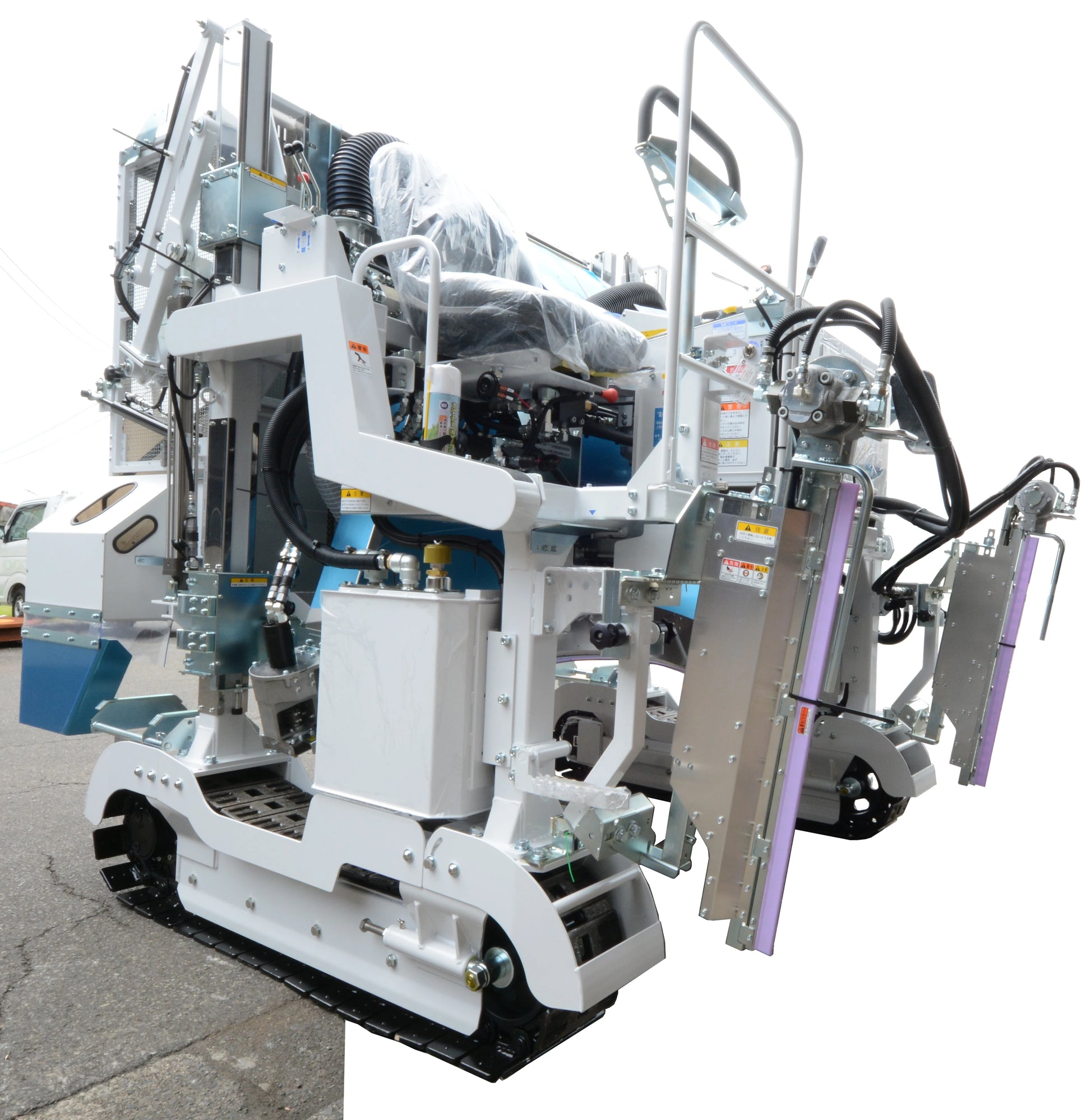

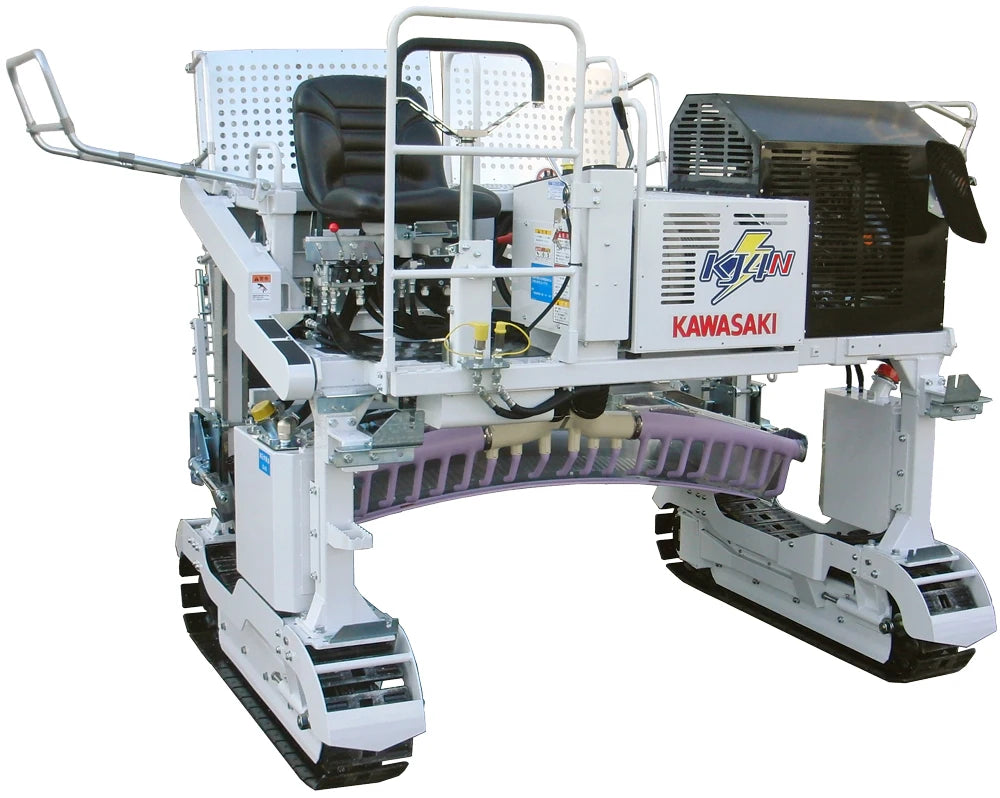

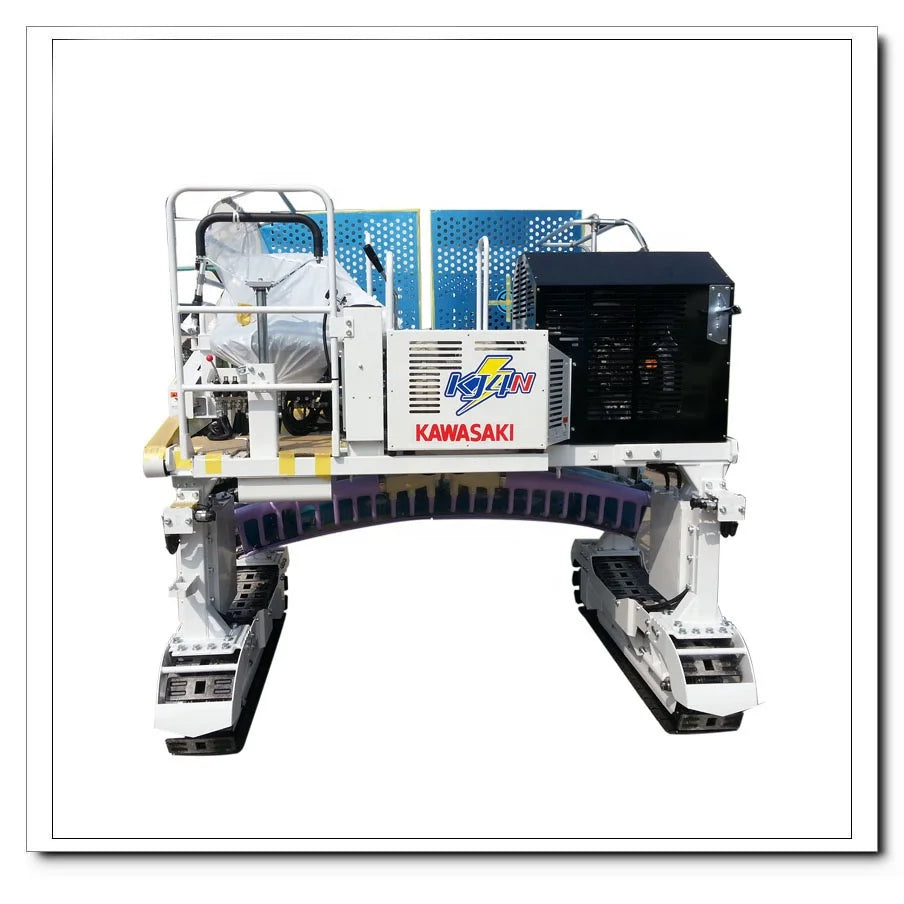

Kawasaki KJ4N Combine Tea Plucking and Pruning Machines
Kawasaki KJ4N Combine Tea Plucking and Pruning Machines
SPECIFICATIONS
Displacement: 1115
Driven Type: Other
Effectively cutting height: 530-890mm
Leaves closing capacity: 20KG*12 bag
Operational efficiency: 10a/hour
Output: 16.4kw/2800min(22.3ps/2800rpm)
Rail spacing: 700*1750*1800
Safe ascent angle: <15 degrees
application: Tea leaf,vegetable
brand name: kawasaki
core components: Gear,Bearing,Engine,Pressure Vessel
dimension(l*w*h): 3170*3180*1890(working)
engine: Yamaha three-cylinder gasoline engine
key selling points: High-tech,Fully automatic,Save labor
machine type: Tea harvester
machinery test report: Provided
number of rows: 6
place of origin: Japan
row distance(mm): 1550 - 1800 mm
tractor power(hp): 21.9 - 22 HP
type: Combine Harvester
usage: Tea Harvester
video outgoing-inspection: Provided
warranty: 1 Year
weight: 1370
working width(mm): 1800
Standrad Configuration And Main Technical Parameters:
Β
Gasonline engine configuration:Yangma 3TNV76Β 16.4KWΒ 2800min.
Fuel tank capacity:24L
Body dimensions:2970*3200*1930mm.
Weight:1370kg(Fuel Free)
Safe Climbing Angle:below 12 degrees
Running Speed:0--4.5km/h.

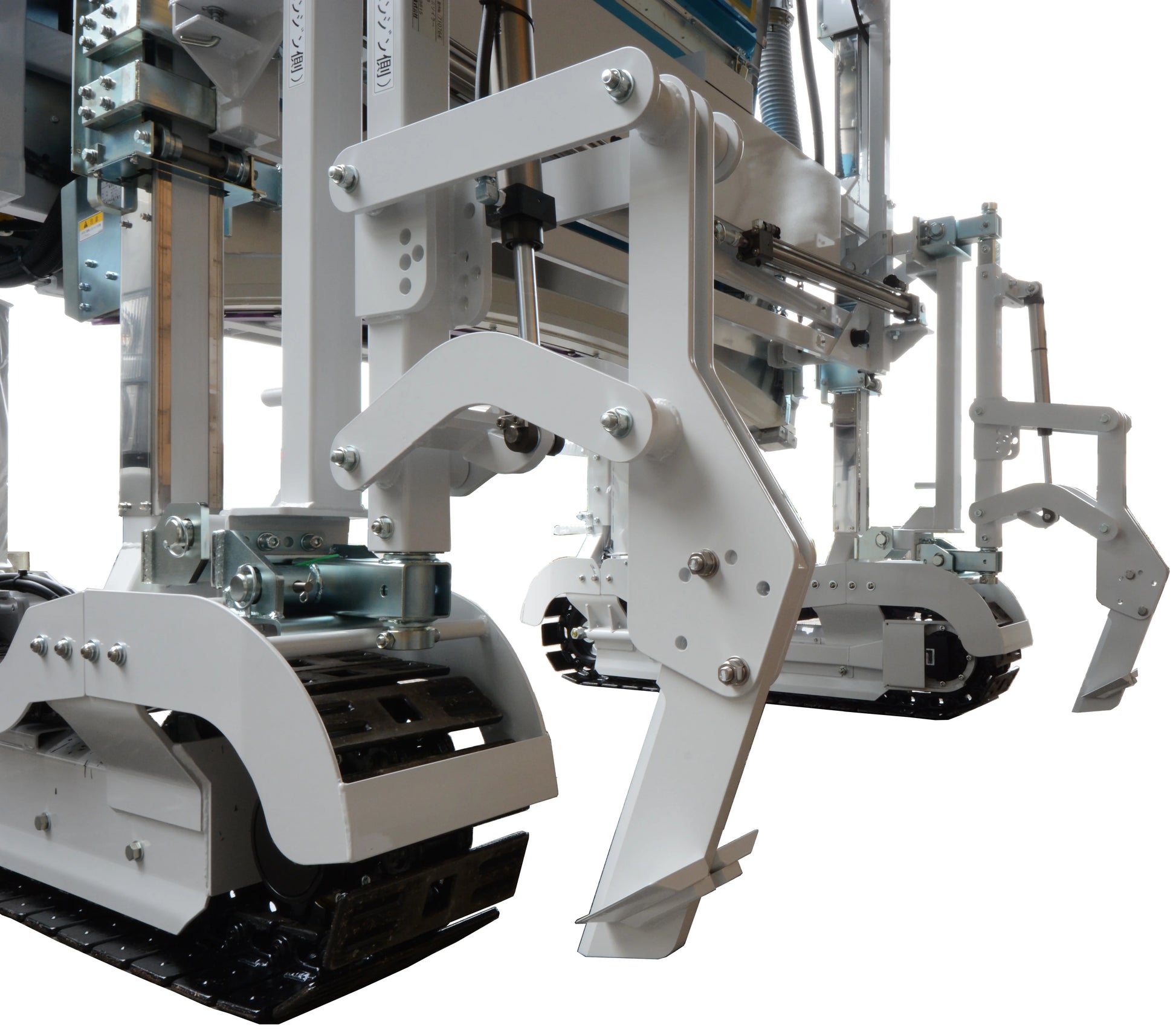

Driving Form:Crawler-type,Blade operation :reciprocating
Effective Cutting Width:1500--1800mm, Operation Height:530mm--990mm.
Operation Ability:10a/h(changes with the situation of tea garden)

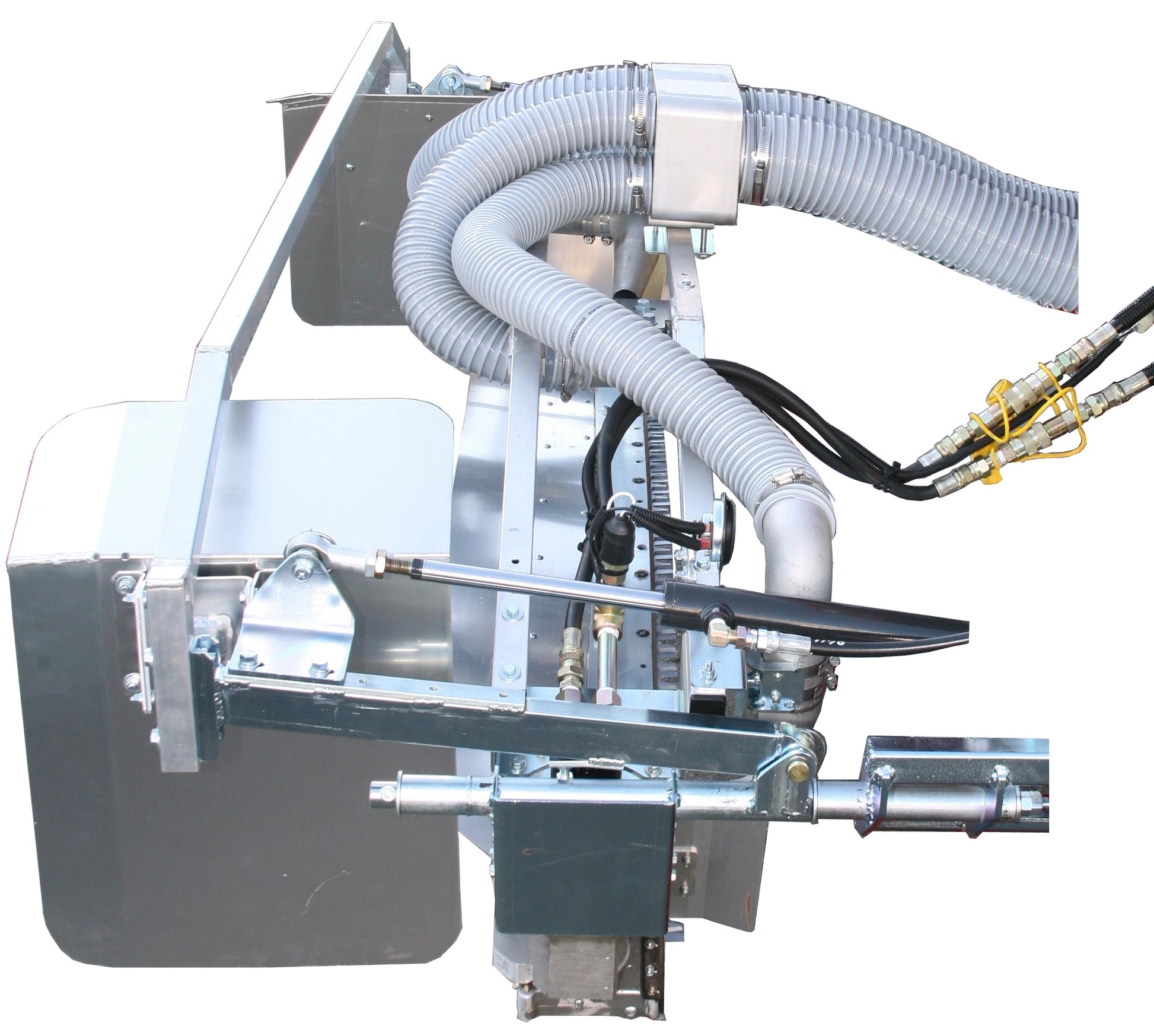

Fresh Tea Leafs Reception: air supply and pressure delivery.
