SPECIFICATIONS

After-sale Service: Online Technical Support

Application: Shop,Bar,Restaurant,Toilet,Hotel,Office Building,Hospital,container home,booth,Park,Farmhouse,Other,Bathroom

Brand Name: OEM

Design Style: Custom

Feature: Folding

Material: Steel,Steel, iron, galvanized or customized,Steel, iron, galvanized or customized

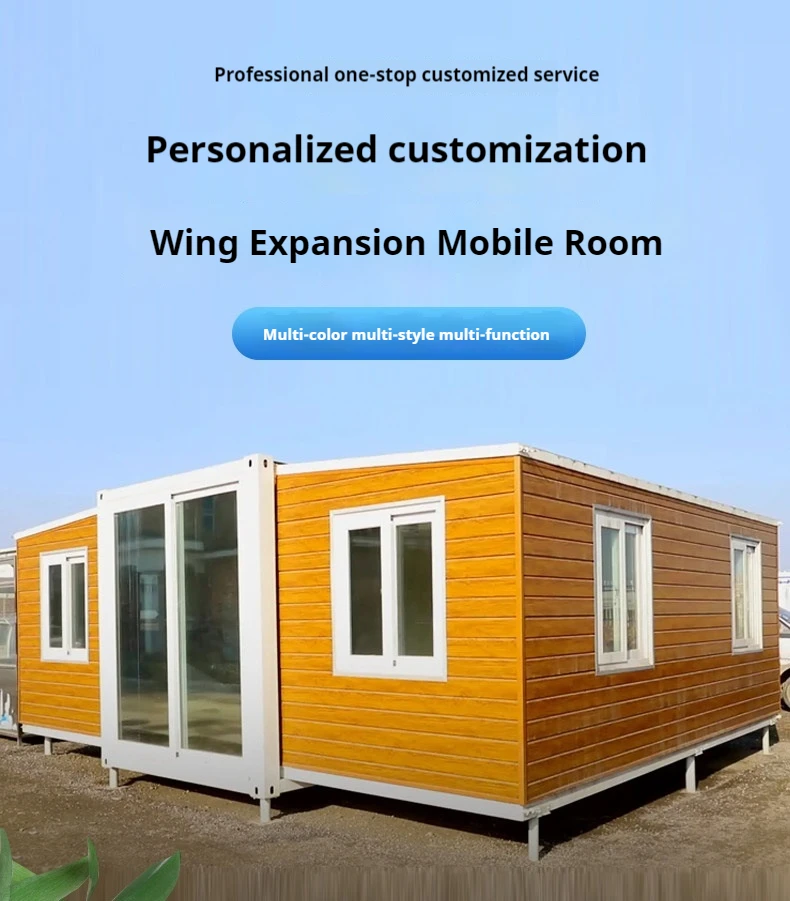

Name: Folding House

Place of Origin: Henan, China

Product Type: Expandable Container

Shape: other,Rectangle

Size(Finish): 5.8*2.12*2.16M/Custom

Size(Fold): 5.8*2.12*0.34M/Custom

Thickness: Standard,Custom

Type: Container Home

Use: Custom

Warranty: 1 Year

Weight: 500KG/Custom

No	Item	Data
1	Name	Folding House
2	Size(Finsh)	5.8*2.12*2.16M/Custom
3	Weight	500KG/Custom
4	Roof load bearing	≧50KG/m²
5	Floor load bearing	≧150KG/m²
6	Load-bearing walkway	≧200KG/m²
7	Wall side pressure	≧80KG/m²
8	Fire protection level	A level
9	Coefficient of wall deformation	≦300kg/m²
10	Seismic resistance grade	Magnitude 10 seismic resistance
11	Wind resistance grade	Level 10 wind resistance

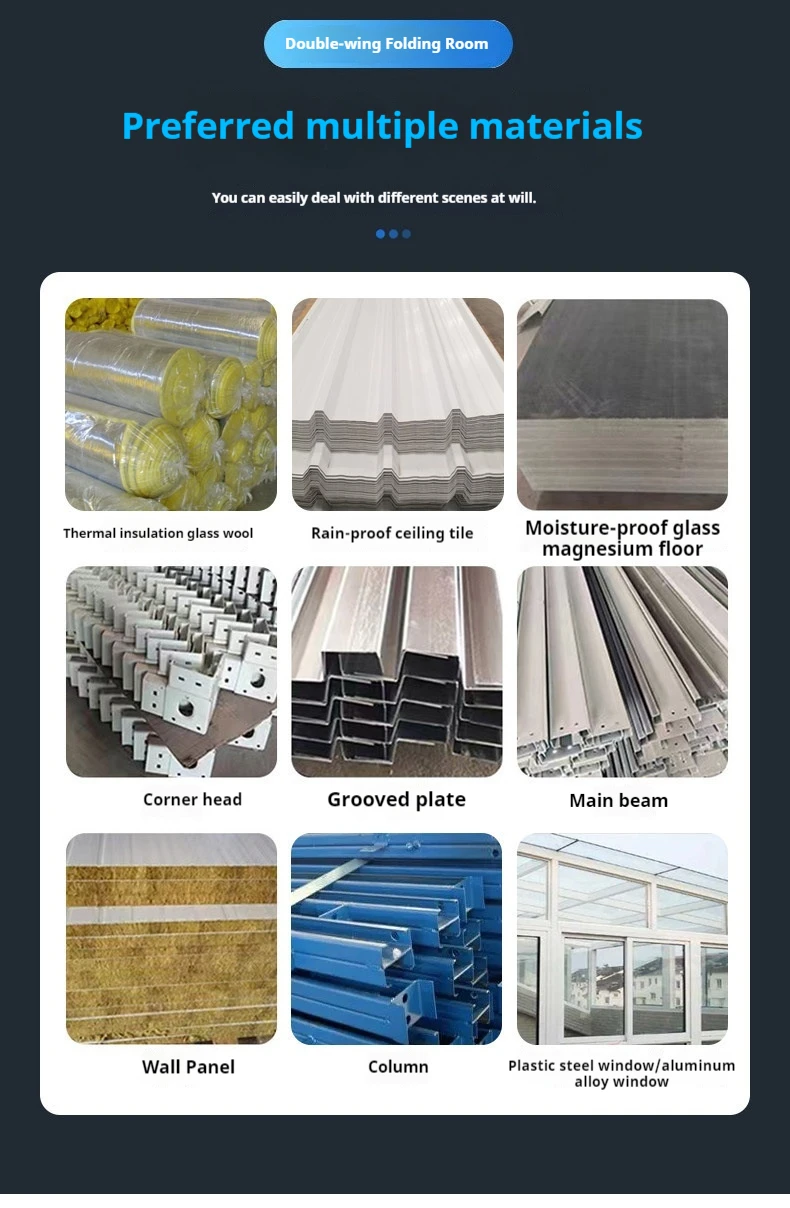

Folding house configuration parameters

Serial number	Product name	Detailed description	Size specification	Number	Unit
一	Foldable house	Standard container	External size：5.8*2.12*2.16M/Custom Folding size：5.8*2.12*0.34M/Custom Weight：500kg 40-foot high cabinet：12 set	1	Set
1	Frame	Top girder	Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm	2	Group
				Bottom girder	Galvanized square pipe 40mm*60mm	2	Piece
						Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm	2	Group
				Top beam	Galvanized square pipe 50mm*50mm*1.5mm	3	Piece
				Top sub-beam	Galvanized square pipe 30mm*50mm*1.5mm	3	Piece
				Upper side of front and rear main beam	Galvanized square pipe 60mm*60mm*1.5mm	2	Piece
				Lower side of front and rear main beam	Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5mm	2	Group
				Sidewall frame	Special shaped steel galvanized concave convex pipe 63mm*80mm*1.5	2	Group
				Bottom crossbeam	Galvanized square steel pipe 40mm*40mm*1.5mm	14	Piece
				Column	Galvanized steel pipe 120mm*55mm*2.2mm	4	Piece
				Side wall column	Galvanized steel pipe with U-shaped groove 150mm*62mm*1.5mm	2	Group
				Top hanger	Steel plate（180mm*100mm*15mm）	4	Piece
				Bottom hanger	210mm*100mm*15mm Steel plate	4	Piece
				304 stainless steel hinge	High-strength galvanized hinge85mm*115mm*3mm（Shaft column304stainless steel）	36	Piece
				Integral frame protective coating	Cabaret high gloss enamel	1	Set
2	Top of container	External roof	1040 color steel tile（0.45mm）	6	Piece
				Internal ceiling	831 ceiling tile（0.28mm）	7	Piece
				Insulation glass wool	Bulk density 60kg/m³*14.5square	14.5	㎡
3	Floor	MGO floor	50mm Thickness	5	Piece
4	Wallboard（custom）	Heat insulation rock wool color steel composite sandwich panel (side wall)	0.28mm color steel plate / 50mm / 65kg / m3 rock wool	8	Piece
				Heat insulation rock wool color steel composite sandwich panel (Front and rear walls)	0.28mm color steel plate / 50mm / 65kg / m³ rock wool	6	Piece
5	Window	aluminum alloy anti-theft integrated window sliding series(push-pull Series)	970mm*1215mm(With screen window)	2	Piece
6	Door	container special steel anti-theft door	970mm*1970mm	1	Piece
7	Electrical system	circuit protector			1	Piece
				Standard socket			2	Piece
				Single tube LED light 60W			1	Piece
				Special socket for air conditioner			1	Piece
				Light switch			1	Piece

The company has reached long-term strategic cooperation with many well-known steel groups such as Baosteel, Anyang Steel, Jiyuan Steel, Hesteel Group, etc., ensuring a stable supply of steel materials. At the same time, it has formed a close cooperation with state-owned enterprises and central enterprises such as China Railway Group, China Construction Group, PowerChina, and MCC, which has provided a solid foundation for the company's international business.

The company's services cover steel processing, resource integration, procurement bidding, new materials, logistics, market information consulting and services, serving more than 30,000 customers worldwide, with an annual transaction peak of over a million tons. It has accumulated strong advantages and capabilities in advanced technology, equipment, and management, and can contribute to the green and low-carbon transformation and upgrading of the steel industry in overseas steel enterprises, especially in the countries along the "Belt and Road" initiative, and help promote local economic development.

Q1. How long can make delivery? A: For stock products,will make shipments in 3-7 days after receiving deposit or receiving T/T; for products need new production for common materials,usually make shipments in 20-40 days; for products need new products for special and rare materials,usually need 30-50 days to make shipment. Q2. Can you provide the samples? A:Samples can be provided with samples' charge and courier fee by the buyer's side. Q3. What's your payment terms? A: Down payments 30%TT and balance 70% TT or L/C. Q4. How do you ship the goods and how long does it take to arrive? A: The steel products always delivery by sea, container or bulk according to customers’ request, the shipping time is different to different destination, which we could check the approx. time for you if you need. Q5. Can you accept customize? A: Yes. It can be customized as per the customers' request. Q6. How to ensure the quality? A:Mill Test Certificate is supplied with shipment.
