YG ZZ3T-K5 Mini Spider Crane — 3-Ton, 11m Reach, 360° Rotation, Dual Power

YG ZZ3T-K5 Mini Spider Crane — 3-Ton Capacity, 11m Working Radius

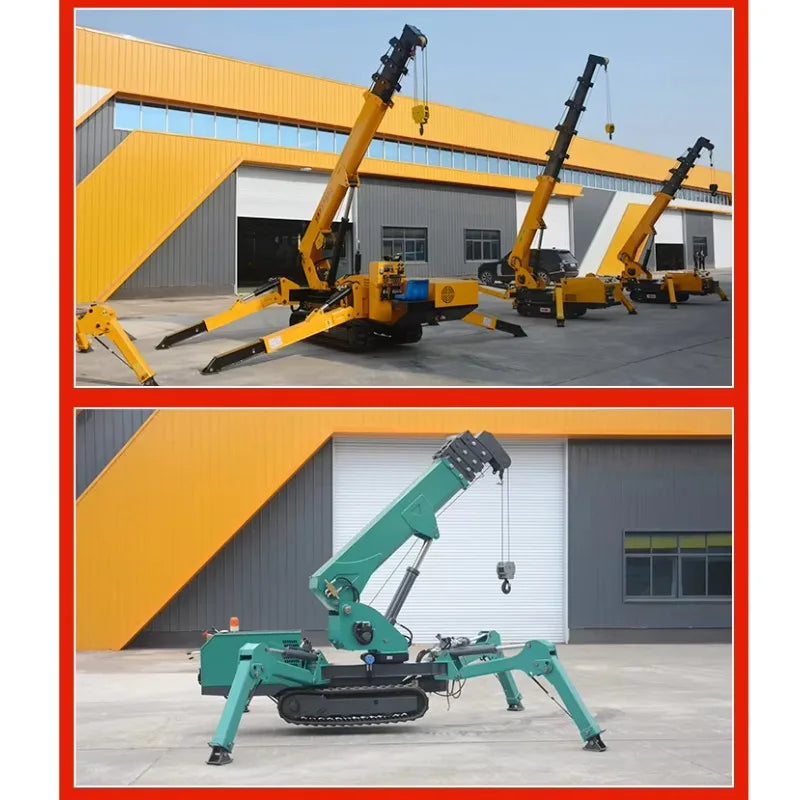

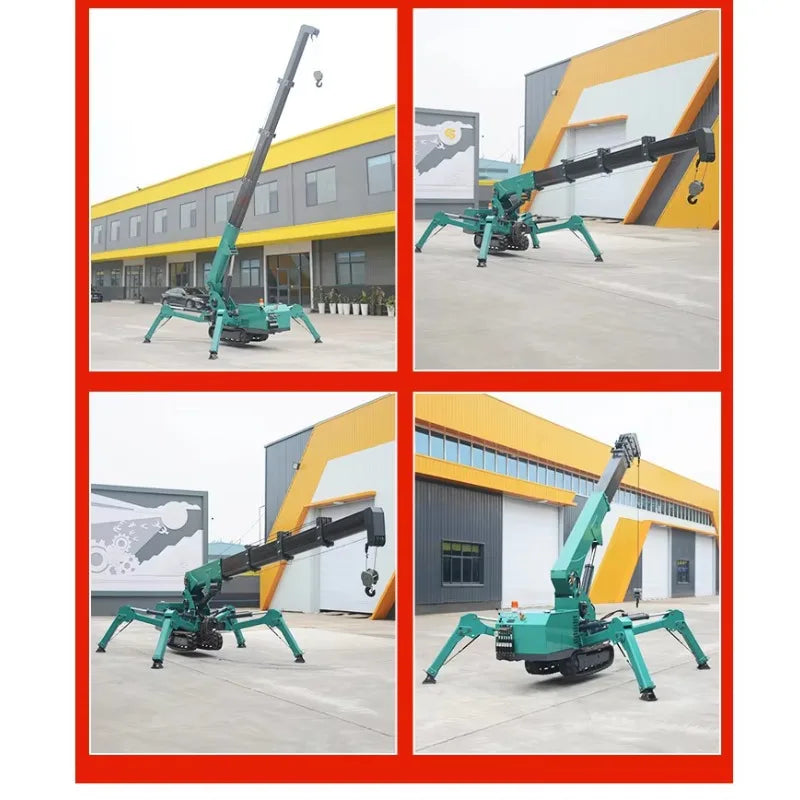

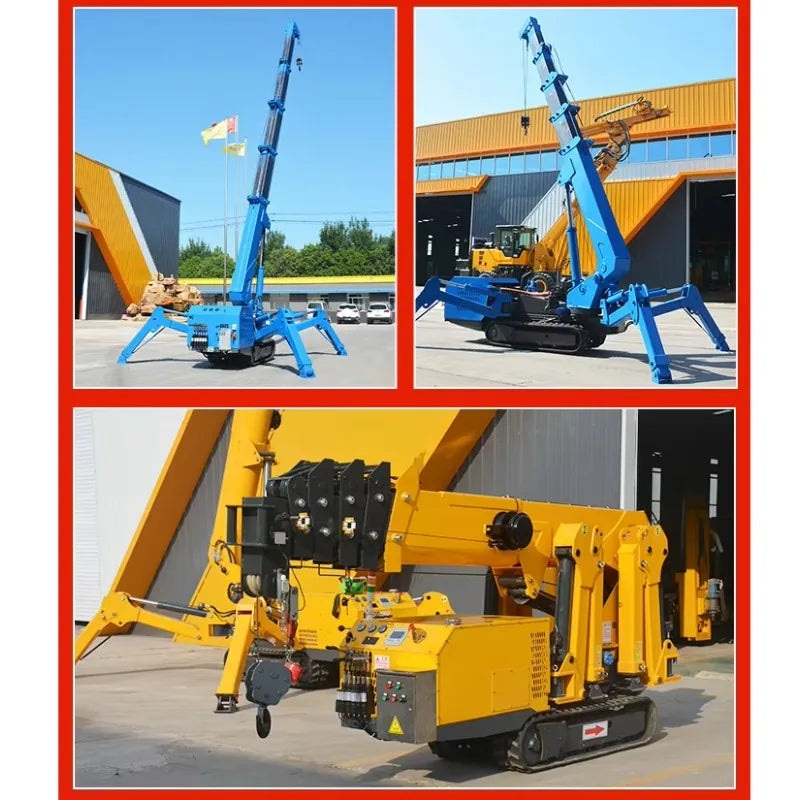

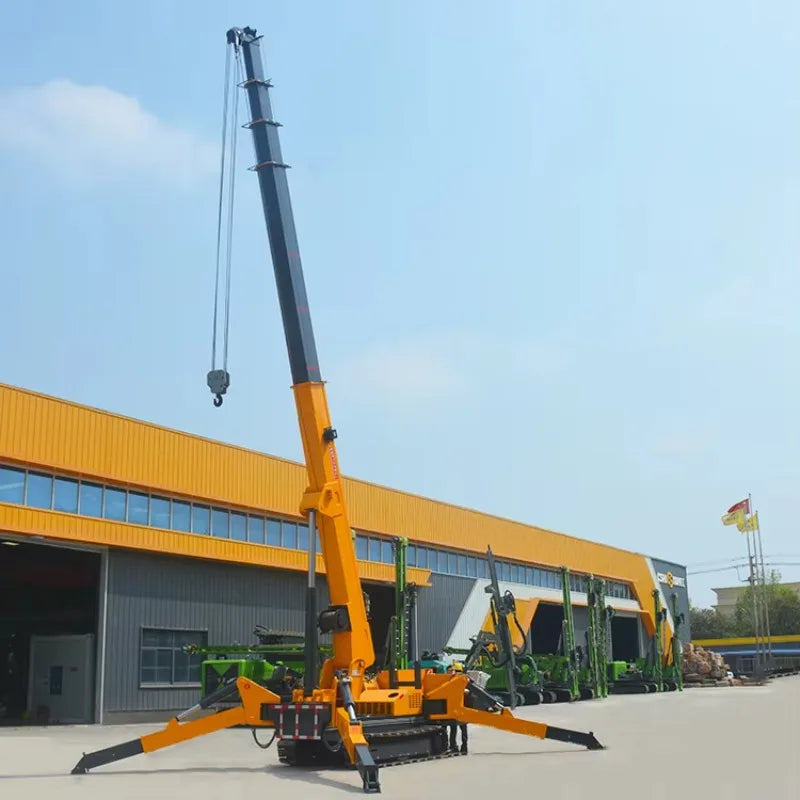

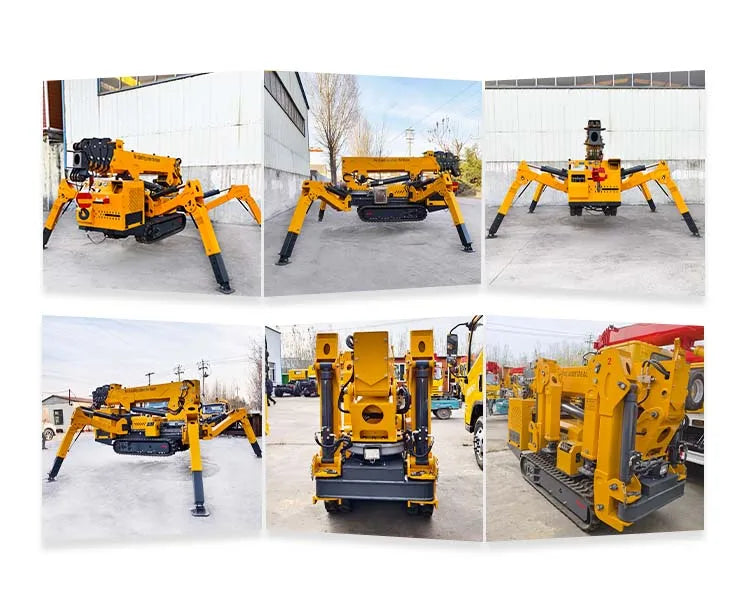

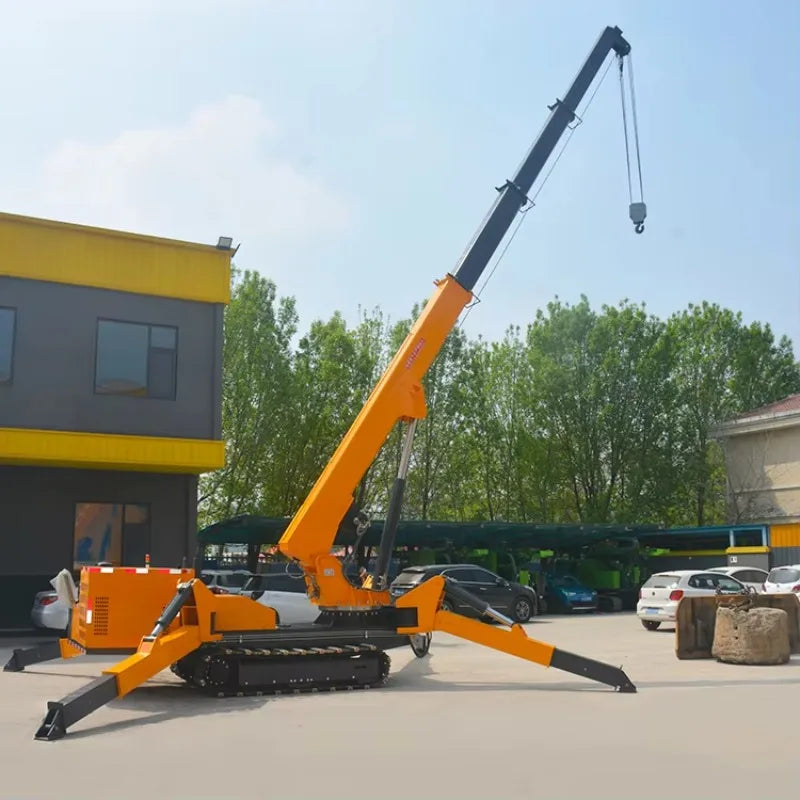

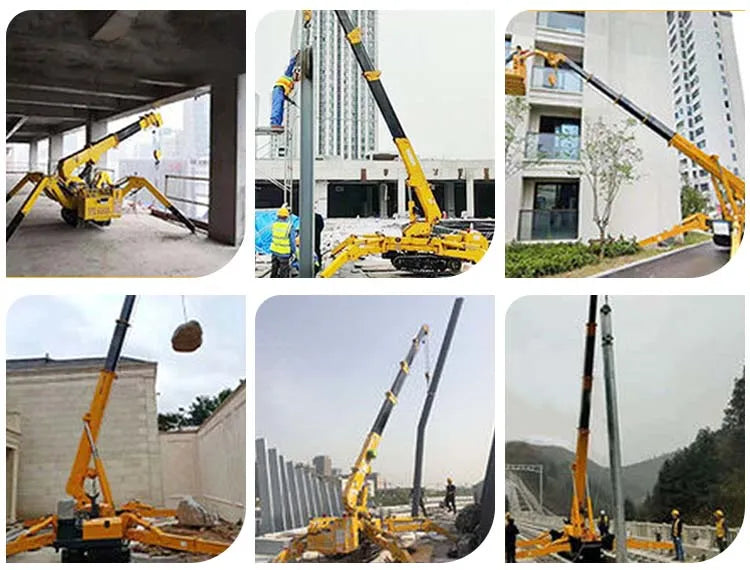

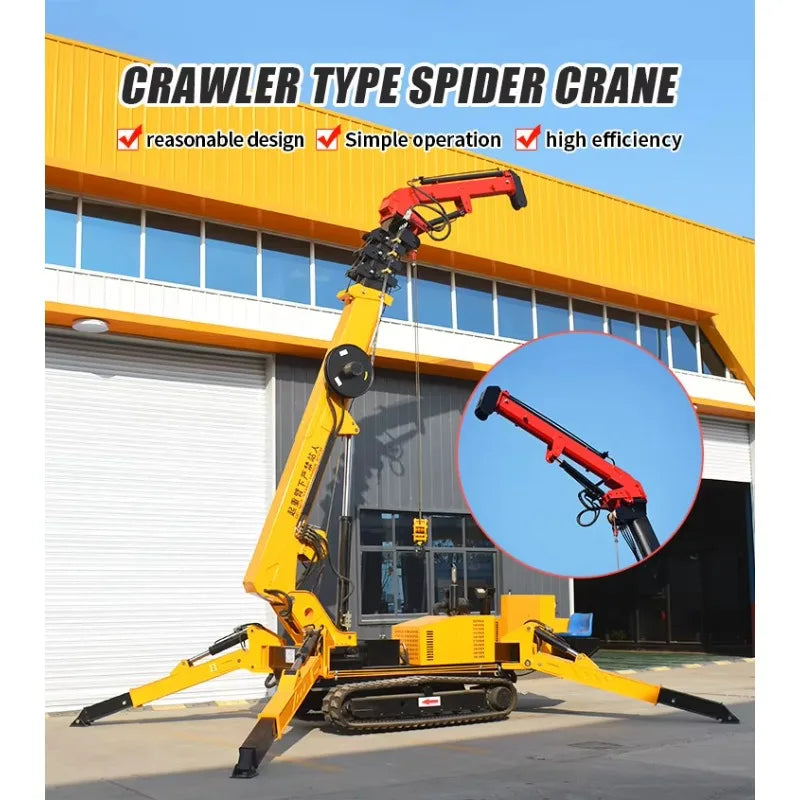

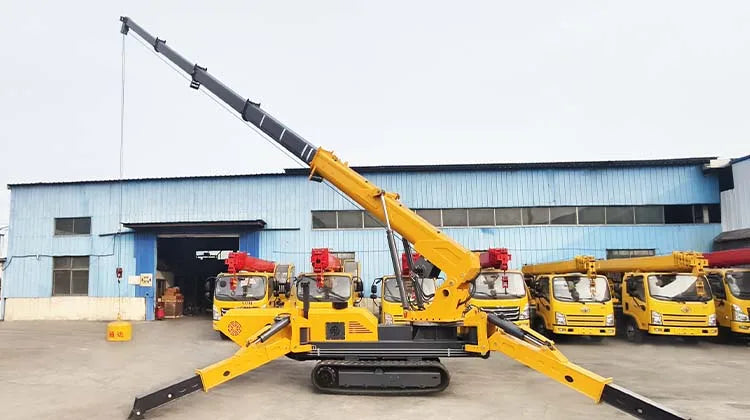

A compact and capable mini spider crane (model ZZ3T-K5) by YG with a 3-ton lifting capacity and 11m maximum working radius. Features a 5/6-section manganese steel U-shape boom, 360° continuous rotation, hydraulic crawler travel system, and dual power (Youpu diesel engine + 380V electric motor). CE certified with a 1-year warranty. Machinery test report and video inspection provided. Ideal for construction, logistics, maintenance, and confined-space lifting.

Note: Listed price is a reference/deposit price. Final pricing depends on configuration and destination. Contact us for a formal quote before ordering.

Key Features

• 3-ton lifting capacity; 11m maximum working radius
• 11.5m maximum lifting height
• 360° continuous rotation (60 seconds/revolution)

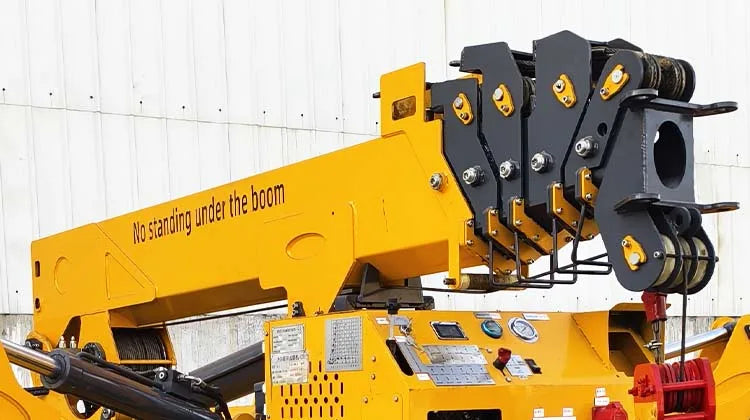

• 5/6-section manganese steel U-shape boom (3.1–10m, extends in 20 seconds)
• Dual power: Youpu 2V80 12kW diesel + 380V electric motor

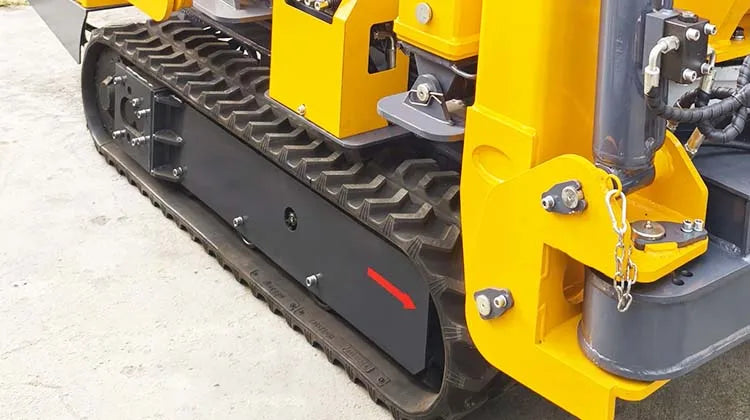

• Hydraulic crawler travel — two-speed, 0–2.5km/h, 20° climbing ability
• Hydraulic outriggers — max extended reach 5,100 x 3,850mm
• CE certified; 1-year warranty
• Machinery test report and video inspection provided

Specifications

• Model: ZZ3T-K5
• Capacity: 3 tons
• Max Working Radius: 11m + 0.3t
• Max Lifting Height: 11.5m
• Boom: 5/6-section U-shape, 3.1–10m (extends in 20 sec)
• Boom Angle: 0–80° (13 seconds)
• Rotation: 360° continuous (60 sec/rev)
• Hook Speed: 0–8m/min (4 ropes)
• Wire Rope: Ø12mm x 40m
• Engine: Youpu 2V80, 12kW, diesel (electric start)
• Motor: 380V electric (dual power)
• Fuel Tank: 8L diesel; battery 12V 45AH
• Travel Speed: 0–2.5km/h; climbing 20° (36%)

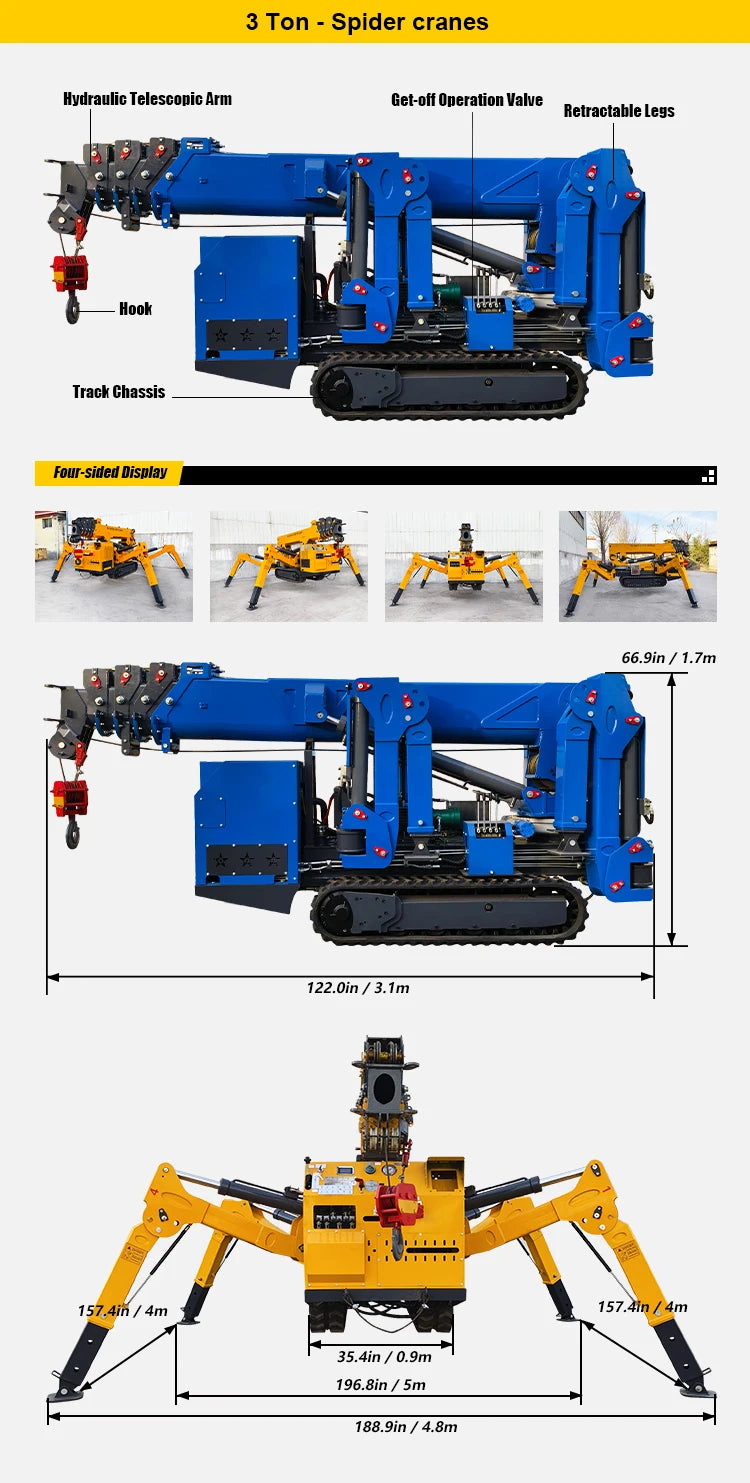

• Dimensions: 3,100/3,600 x 980 x 1,700mm
• Machine Weight: 2.8T
• Certification: CE
• Warranty: 1 year
• Origin: China
