Mini Crawler Spider Crane — 1.2T to 10T, 6.3m Lift Height, 360° Slewing, CE

Mini Crawler Spider Crane — 1.2T to 10T, Honda Engine, CE Certified

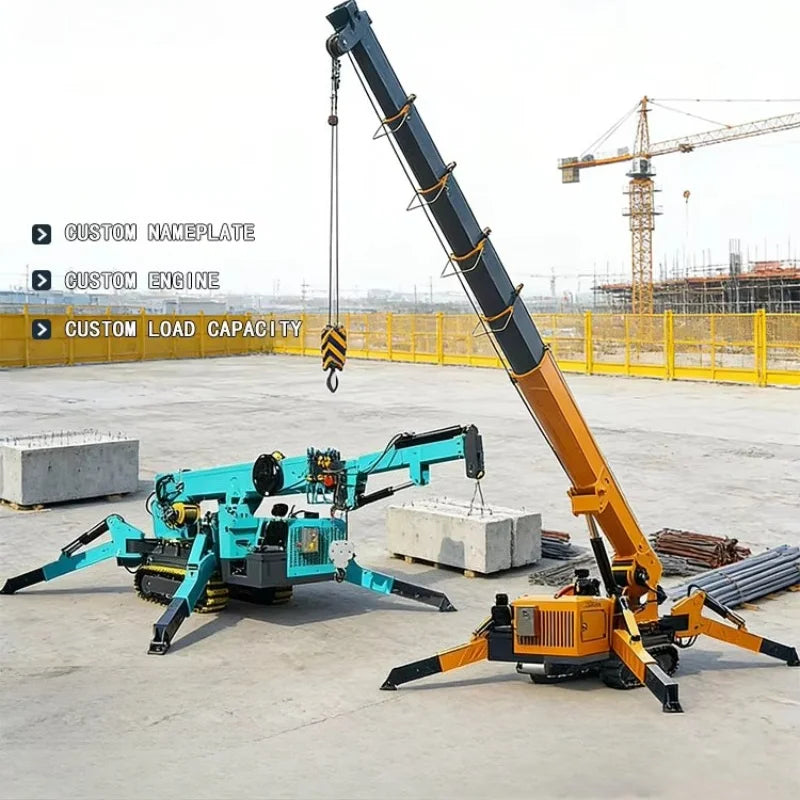

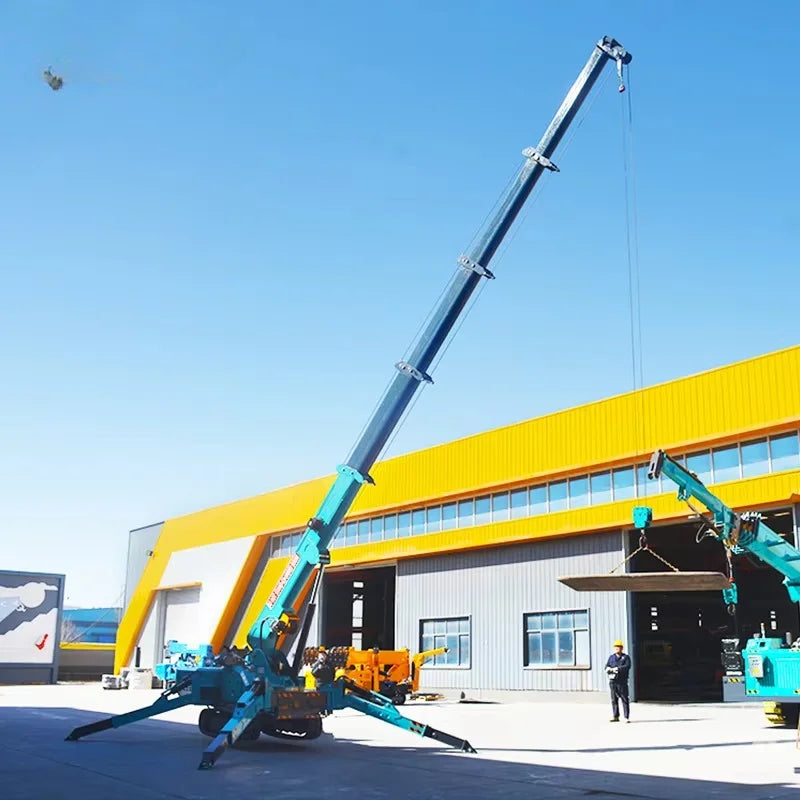

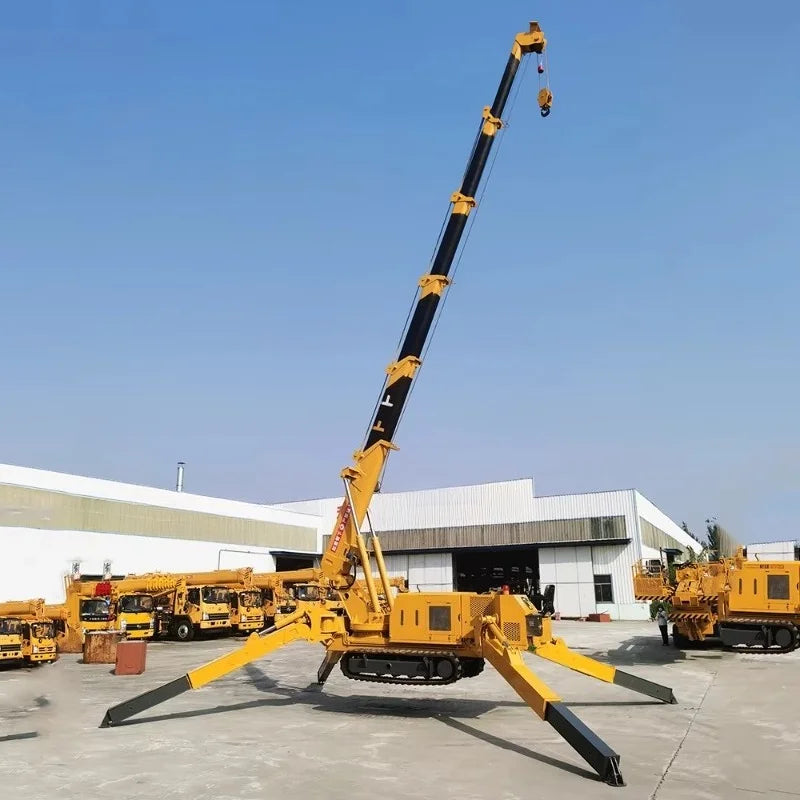

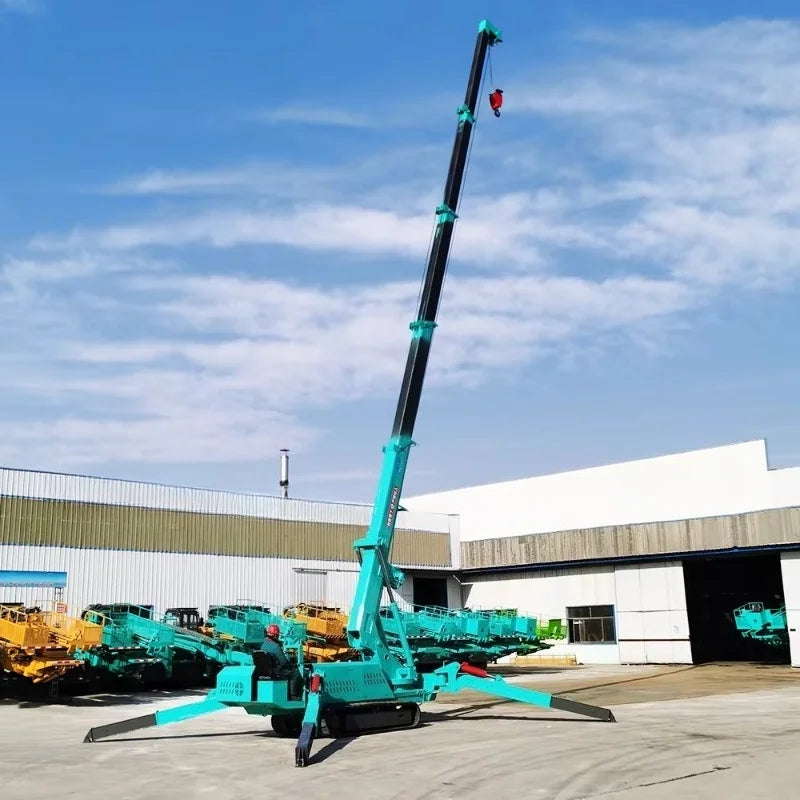

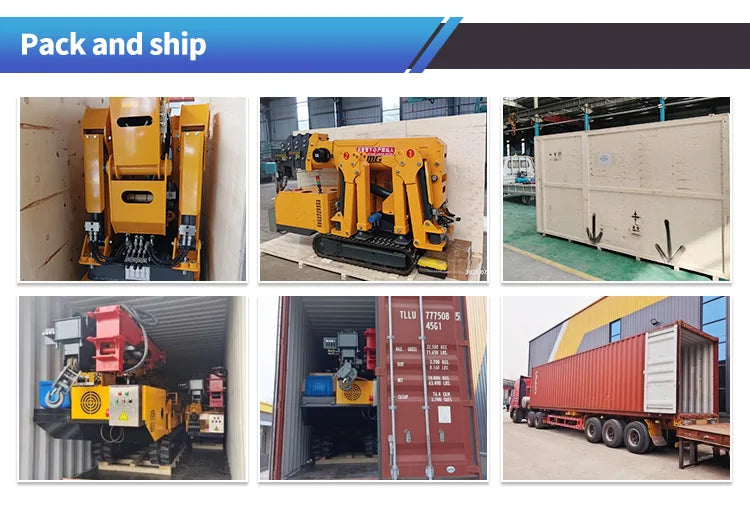

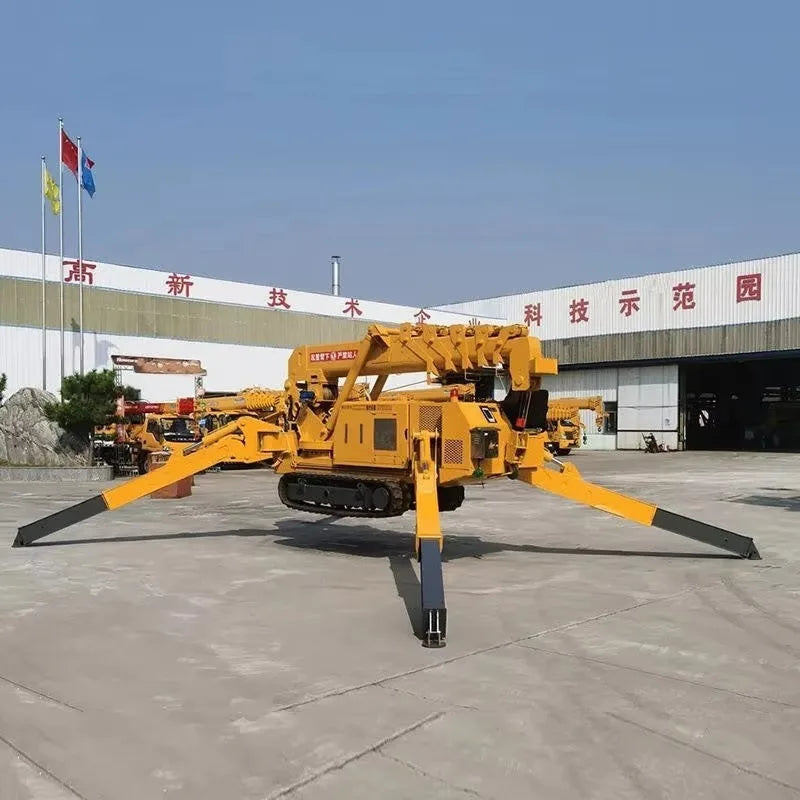

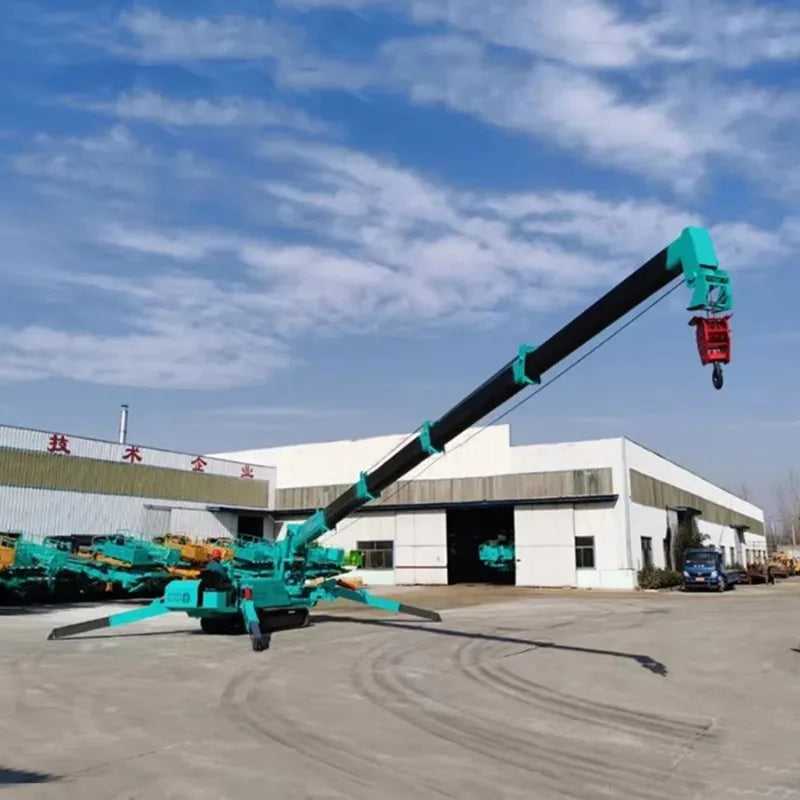

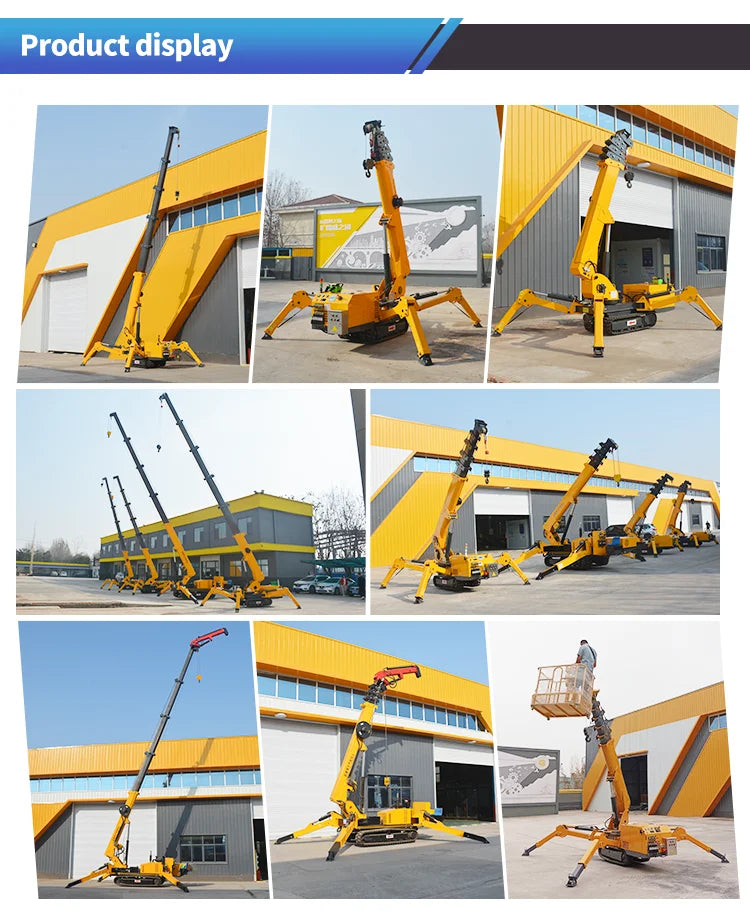

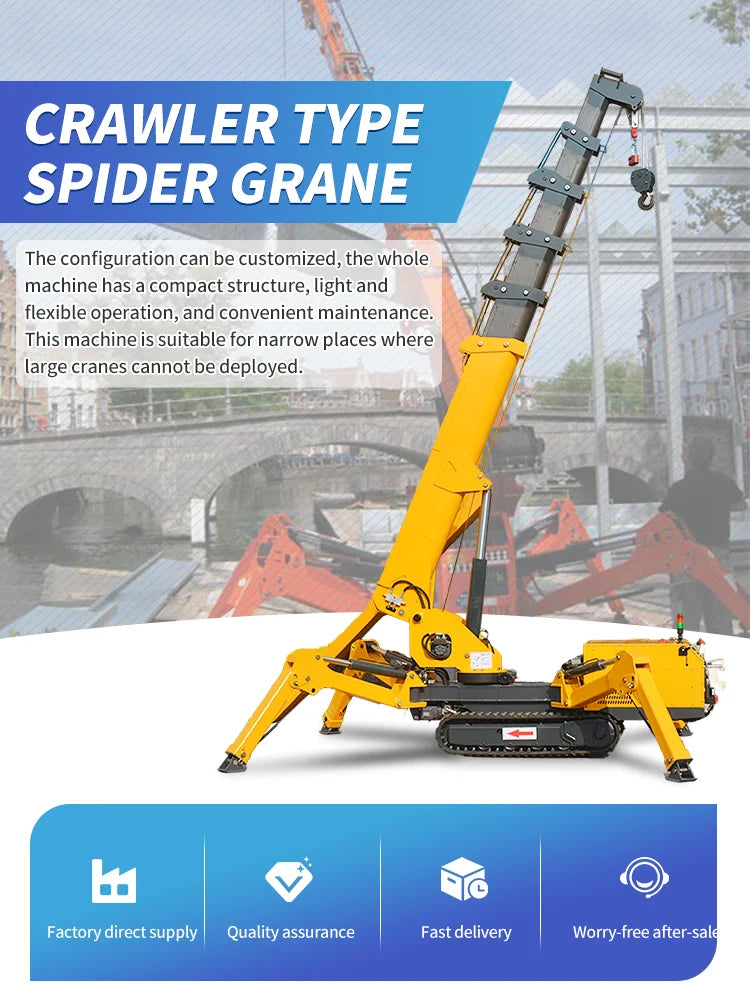

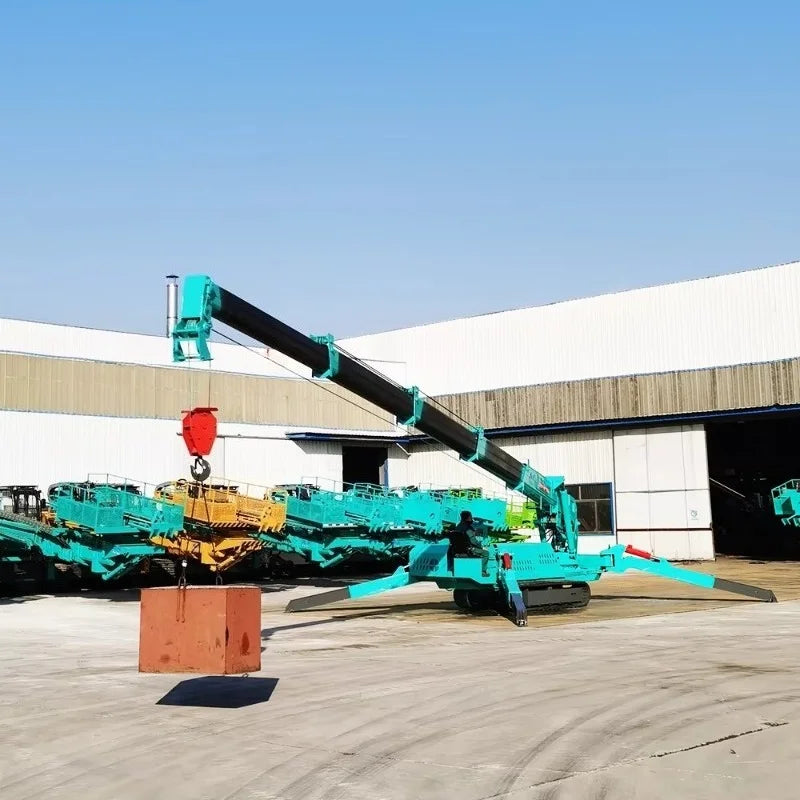

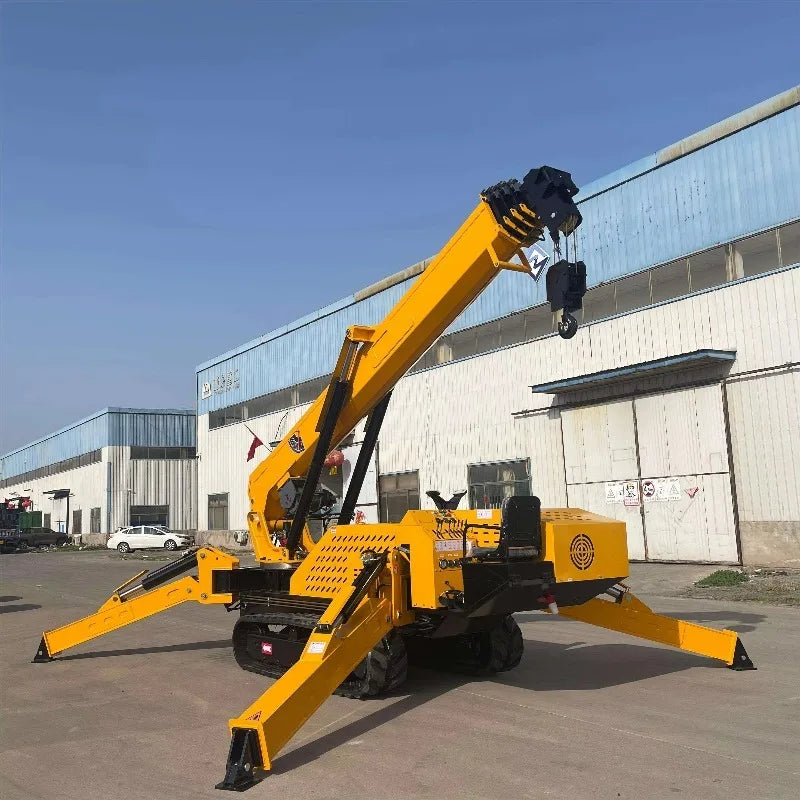

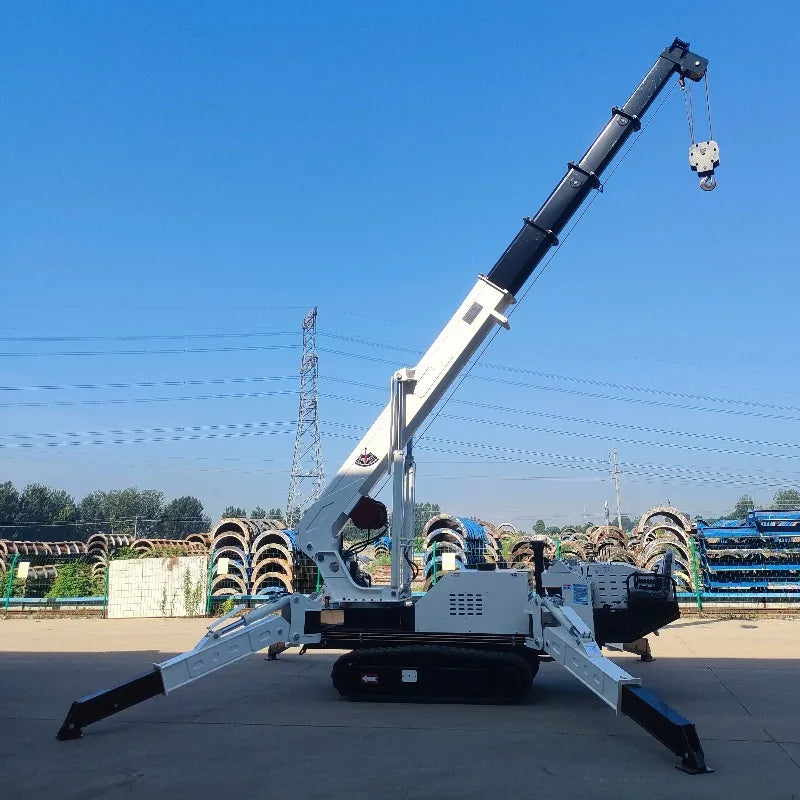

A compact self-propelled mini spider crane available in 1.2T, 3T, 5T, 8T, and 10T rated load configurations. Features a 4-section telescopic boom (2.5–6.3m), 360° continuous hydraulic slewing, and a crawler drive system for stable operation on uneven terrain. Powered by a Honda engine (AC380V electric option available). CE certified with a 1-year warranty. Pendant and remote control options available. Ships by sea.

Note: Listed price is a reference/deposit price. Final pricing depends on configuration and destination. Contact us for a formal quote before ordering.

Key Features

• 1.2T rated load (3T, 5T, 8T, 10T also available)
• 6.3m maximum lift height; 5.35m maximum operating radius
• 4-section telescopic boom — 2.5–6.3m in 20 seconds
• 360° continuous hydraulic slewing (60 sec/rotation)
• 0–78° luffing angle (13 sec)
• Crawler drive — 0–2.5km/h, 25° gradeability
• Honda engine (AC380V electric option available)
• Pendant + remote control (customizable)
• CE certified; 1-year warranty

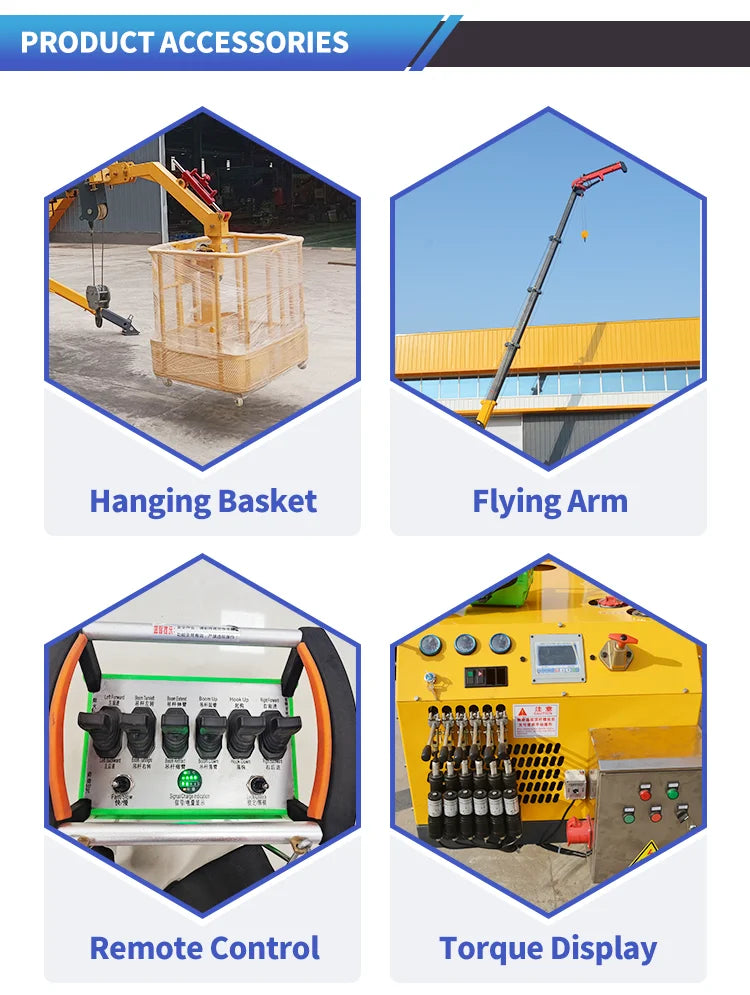

• Optional: torque controller, hanging basket, hydraulic fly jib

Specifications (1.2T Model)

• Rated Load: 1.2T
• Max Lift Height: 6.3m
• Max Operating Radius: 5.35m
• Boom: 4-section, 2.5–6.3m (20 sec)
• Slewing: 360° continuous (60 sec/rotation)
• Luffing: 0–78° (13 sec)
• Hook Speed: 0–8m/min (4 ropes)
• Wire Rope: Φ8mm × 45m
• Engine: Honda (gasoline, 4L tank)
• Power: 18.2kW / AC380V
• Walking Speed: 0–2.5km/h
• Gradeability: 25° (36%)
• Noise: ≤81.5dBA @ 1m
• Dead Weight: 1.3T
• Dimensions (L×W×H): 2.5 x 0.65 x 1.5m
• Certification: CE
• Warranty: 1 year
• Origin: Henan, China
