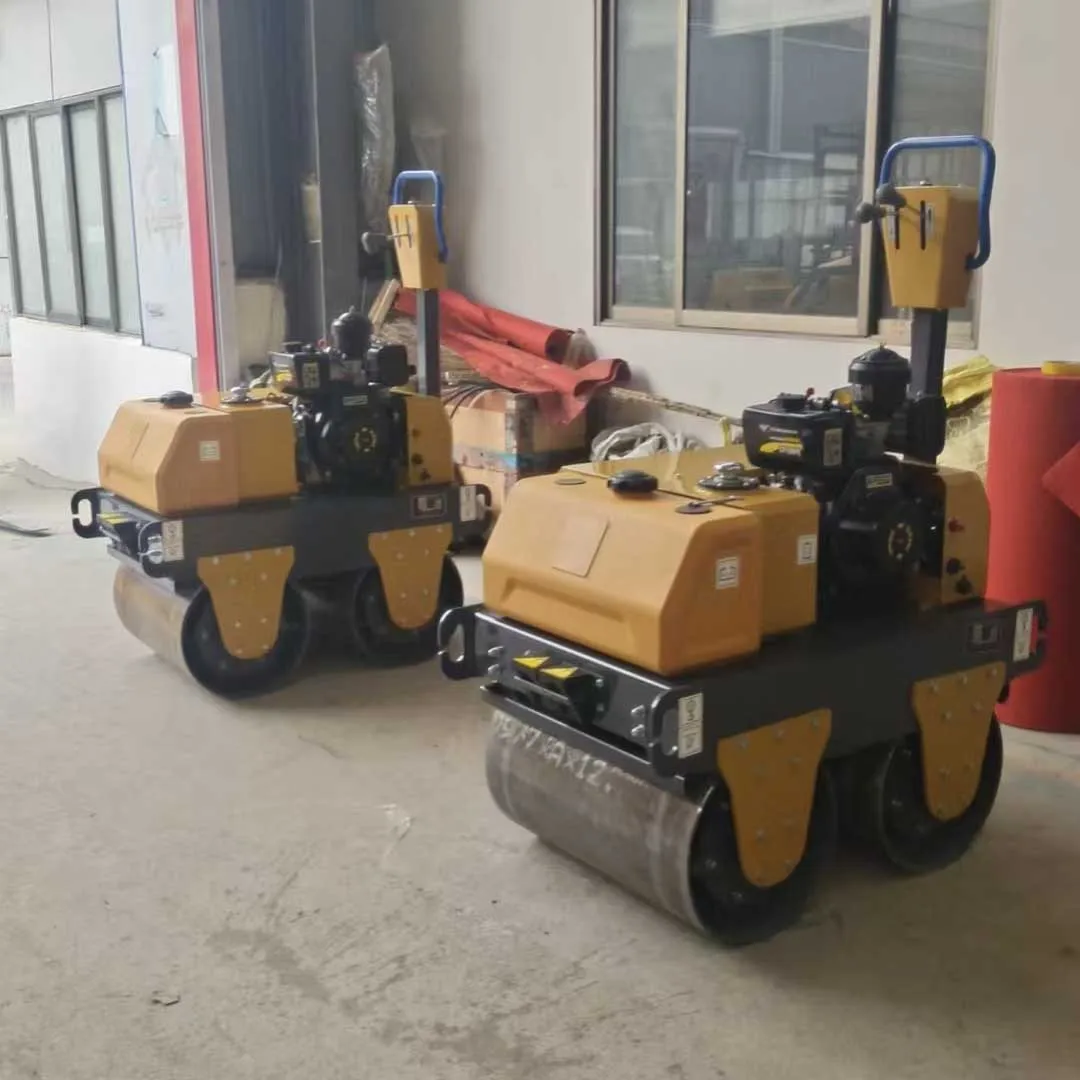

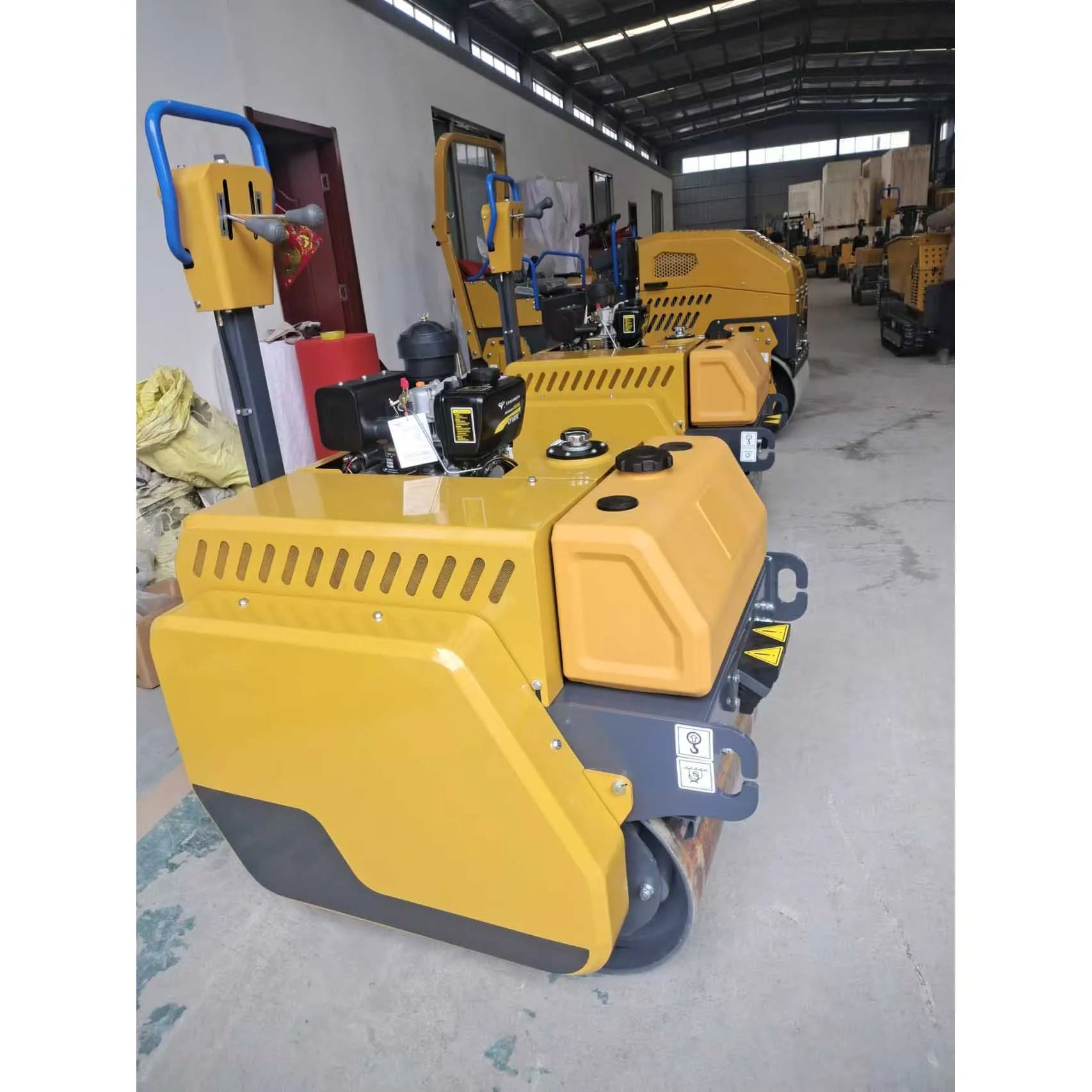

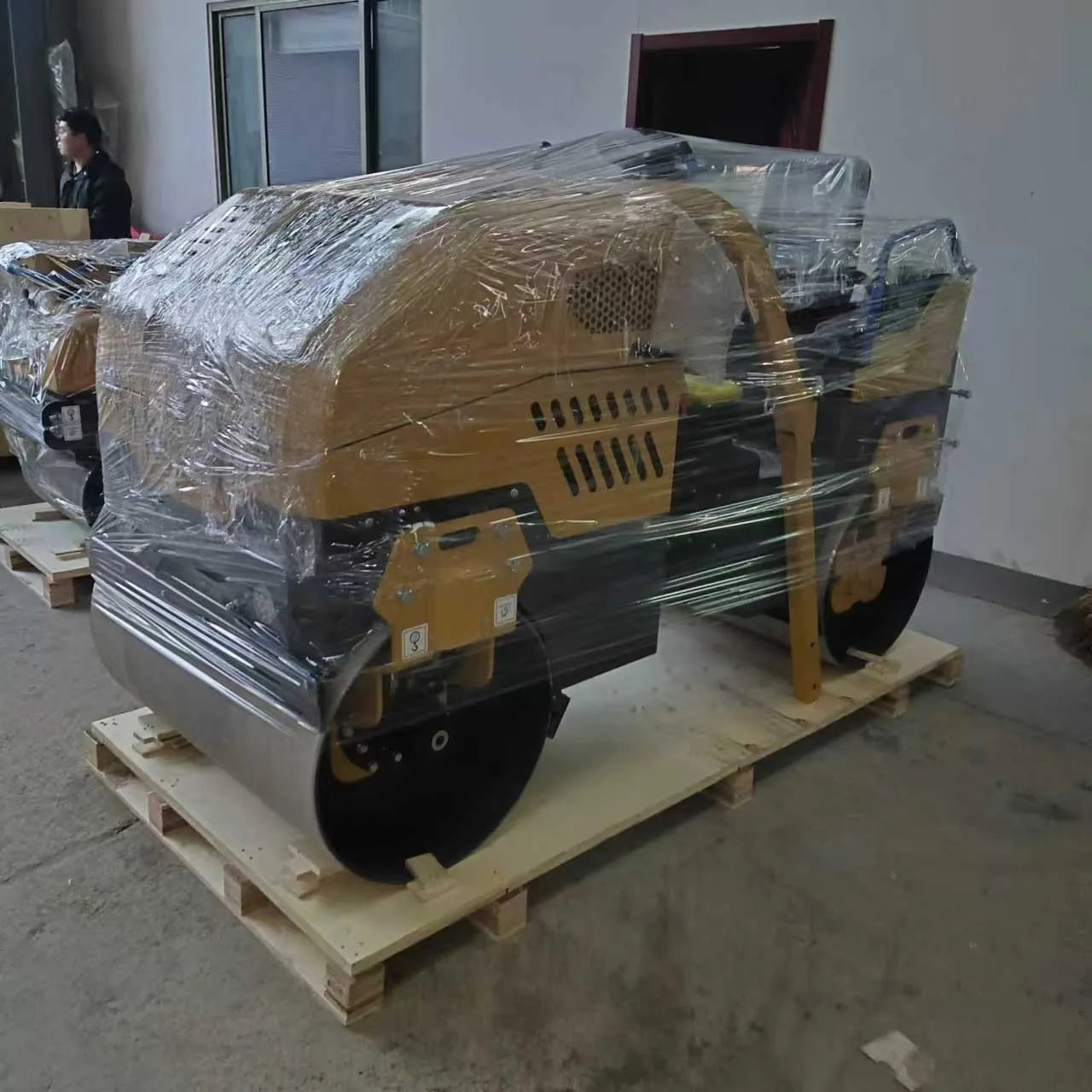

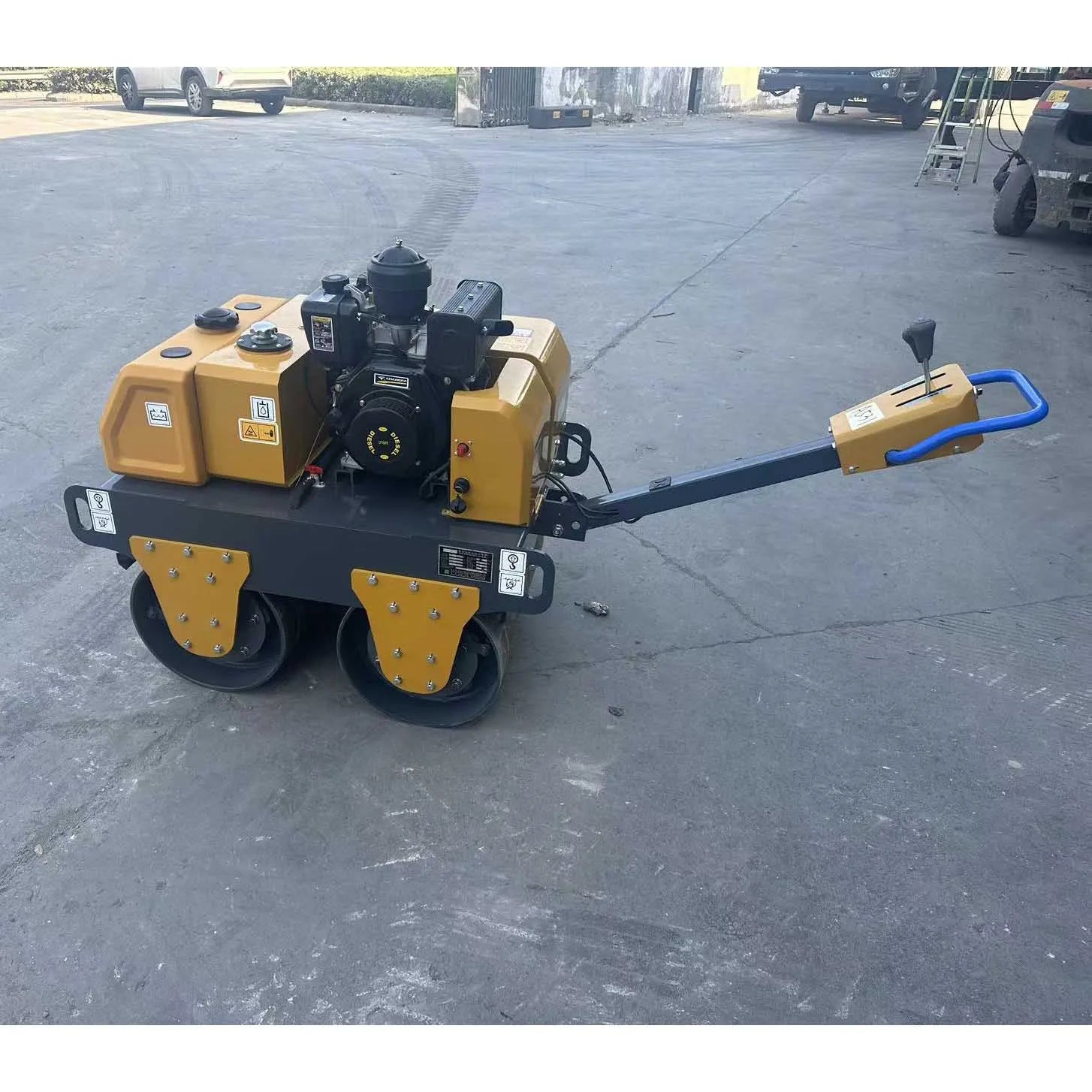

High Frequency 75Hz Vibratory Roller XMR050 XMR060 with Electromagnetic Clutch and Gravity Sprinkler

Regular price $9,005.99
Sale price $9,005.99 Regular price $0.99
Unit price
Compare Ask a question

Ask a Question

* Required fields

Size guide Share
High Frequency 75Hz Vibratory Roller XMR050 XMR060 with Electromagnetic Clutch and Gravity Sprinkler

High Frequency 75Hz Vibratory Roller XMR050 XMR060 with Electromagnetic Clutch and Gravity Sprinkler

Product description
Shipping & Return

SPECIFICATIONS

Amplitude: 20mm

Brand Name: Top brand

Core Components: Pressure Vessel,Motor,Other,Bearing,Gear,PLC,Pump,Engine,Gearbox

Dimension(L*W*H): 2450*880*1100mm

Driving mode: Hydraulic drive

Drum: Double Drum Roller

Drum diameter: 426mm

Electrical system: 12V

Engine Brand: Changfa

Exciting Force: 20 kN

Exciting force: 20kN

Fuel tank: 3.5L

Grade Ability: 30%

Hydraulic Pump Brand: Top brand

Hydraulic Valve Brand: Top brand

Hydraulic oil tank: 16L

Machinery Test Report: Provided

Make: Top brand

Model Number: XM060

Operating weight: 550kg

Place of Origin: China

Power(W): 4.4kw

Power/Speed: 4.4/3600kW/rpm

Travel Speed: 0~4km/h

Type: Vibratory Roller

UNIQUE SELLING POINT: Low Maintenance Cost

Vibration frequency: 75Hz

Video outgoing-inspection: Provided

Warranty: 1 Year

Water tank: 16L

Product Description

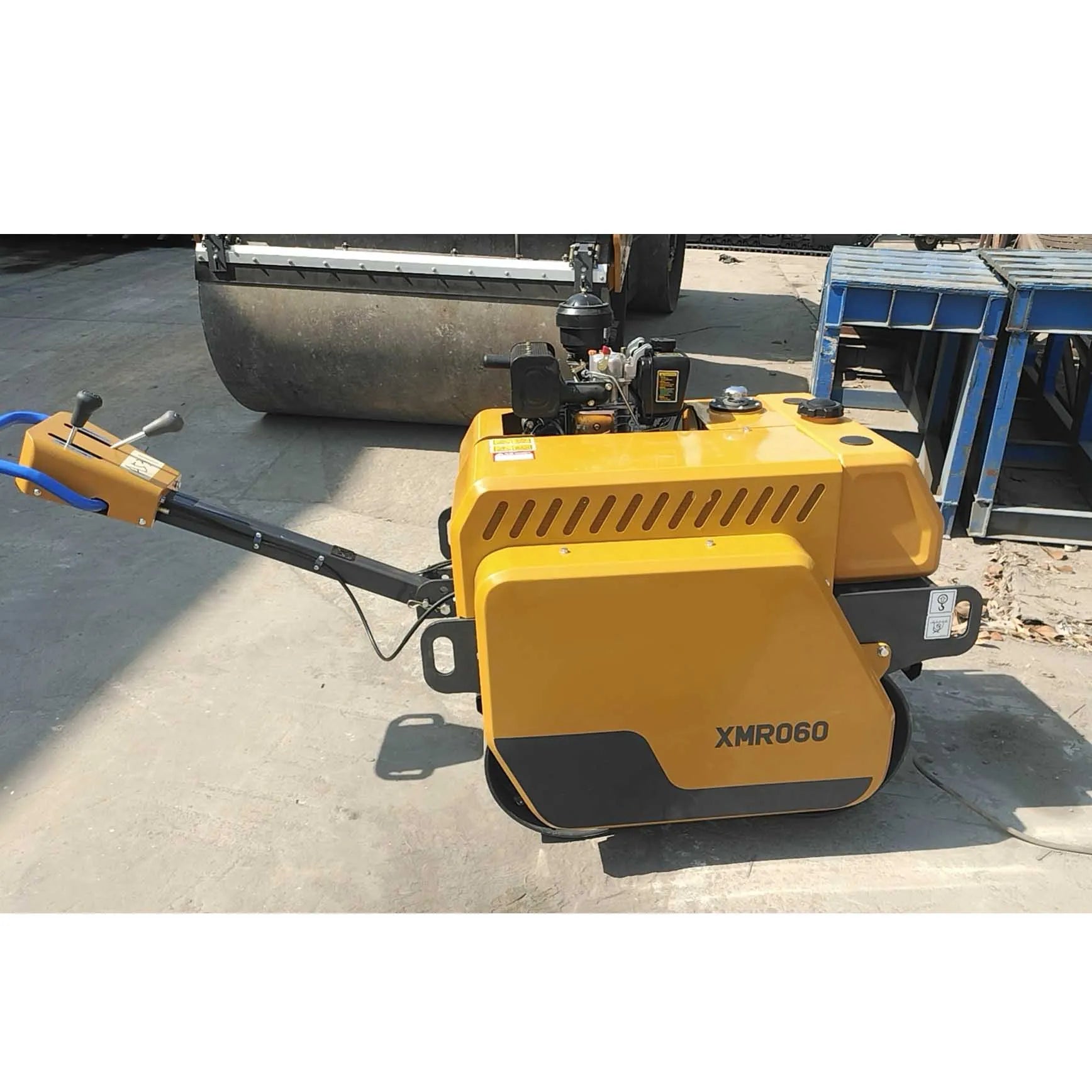

The XMR050/XMR060 Vibratory Roller is a compact and efficient solution for compaction in narrow spaces. Featuring a 75Hz high-frequency vibration and 20kN exciting force, it ensures deep, uniform compaction. Powered by a Changfa diesel engine with electric/recoil start, it offers bidirectional hydraulic drive (0-4 km/h) for smooth operation. Its short width design enhances edge compaction, while the gravity sprinkler and two-way scraper prevent material adhesion. Ideal for small construction sites, it combines portability, durability, and superior performance.

Key Features:
* 75Hz vibration & 20kN force for high efficiency

* Hydraulic drive & pivot steering for easy control

* Electromagnetic clutch for smooth operation

* Gravity sprinkler & scraper for clean surfaces

* Compact design for narrow spaces

Perfect for road repair, landscaping, and confined-area compaction.
Specification
Category
Item
Unit
XMR050
XMR060
Drive Performance
Operating weight
kg
530
550
Drive speed
km/h
0-4
0-4
Gradeability
%
30
30
Vibration Performance
Vibration frequency
Hz
75
75
Amplitude
mm
0.5
0.5
Exciting force
kN
20
20
Drum width
mm
600
700
Engine
Driving mode
Hydraulic drive
Hydraulic drive
Electrical system
V
12
12
Brand and type
Changfa CF178FE
CF180FE
Power/Speed
kW/rpm
4/3600
4.4/3600
Capacity
Fuel tank
L
3.5
3.5
Hydraulic oil tank
L
16
16
Water tank
L
16
16
Overall dimensions
mm
2450×780×1100
2450×880×1100
