Electric Steel Spider Lift Hydraulic Lift 12M 16M Popular Stylehydraulic Trailed Towable Spider Aerial Boom Lift For America
Regular price
$31,174.99
Sale price
$31,174.99
Regular price
$0.99
Unit price
Electric Steel Spider Lift Hydraulic Lift 12M 16M Popular Stylehydraulic Trailed Towable Spider Aerial Boom Lift For America
Product description
Shipping & Return
SPECIFICATIONS
Brand Name: DH
Core Components: PLC,Motor,Gear
Dimension(L*W*H): 1.75*0.95m
Hoisting Speed: 0.5m/s
Loder Weight: 200kg=400 lbs
Machinery Test Report: Provided
Max Lifting Height: 12 M=39.3 Feet
Maximum Horizontal Reach: 5m/16.4Ft
Maximum Platform Height: 11.40m/37.4Ft
Maximum Working Height: 13.44m/44.1Ft
Place of Origin: Henan, China
Power Type: Electric
Rated Loading Capacity(kg): 200kg=400 lbs
Rated Platform Capacity: 200kg/440 Lb
UNIQUE SELLING POINT: High load Moment
Usage: Upper and lower limiters
Video outgoing-inspection: Provided
Warranty: 1 Year
Weight (KG): 2200 kg

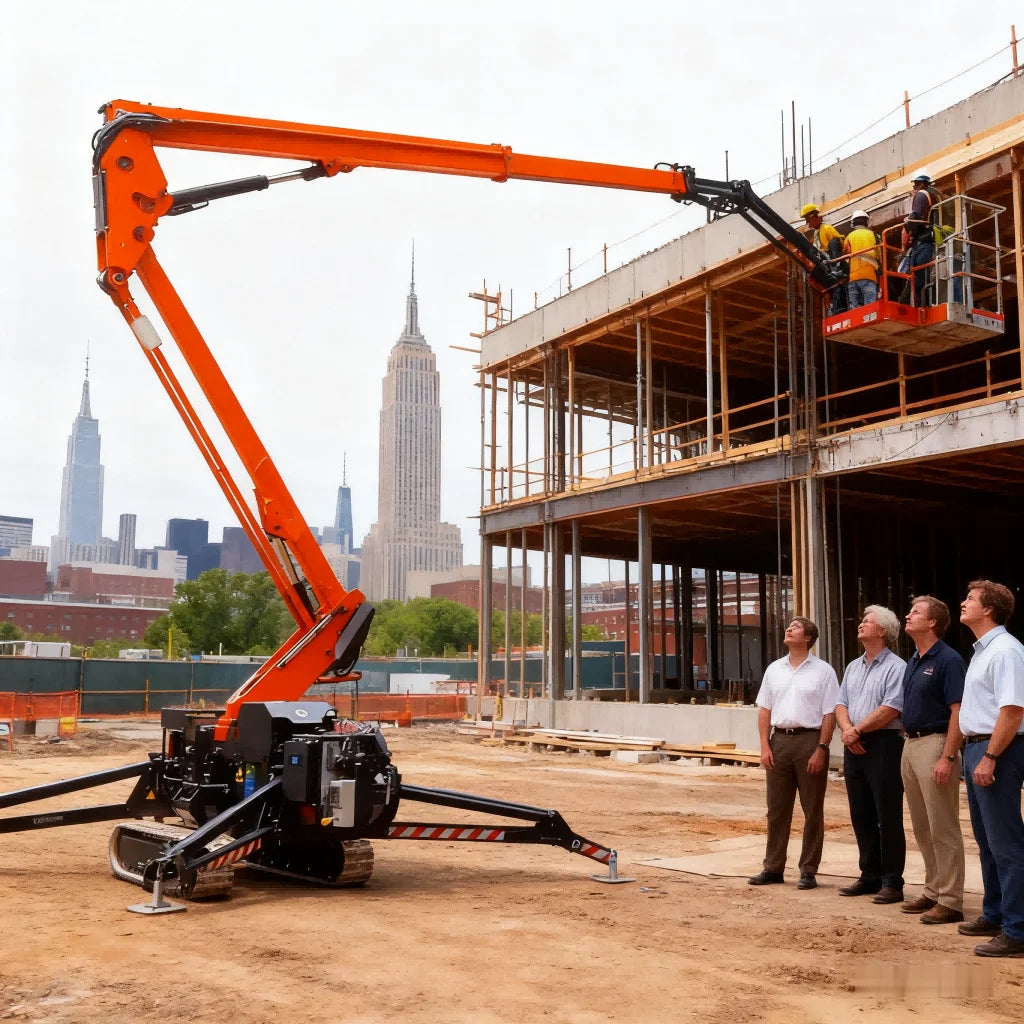

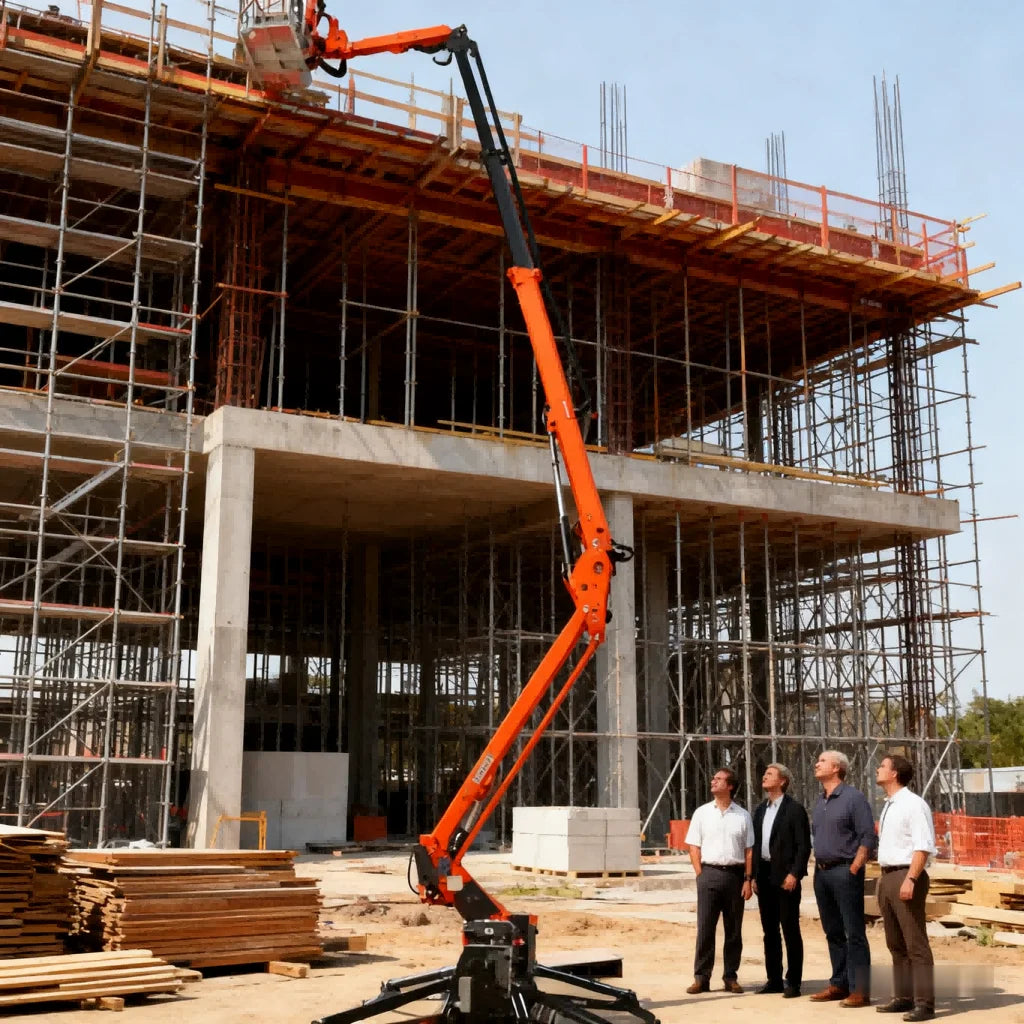

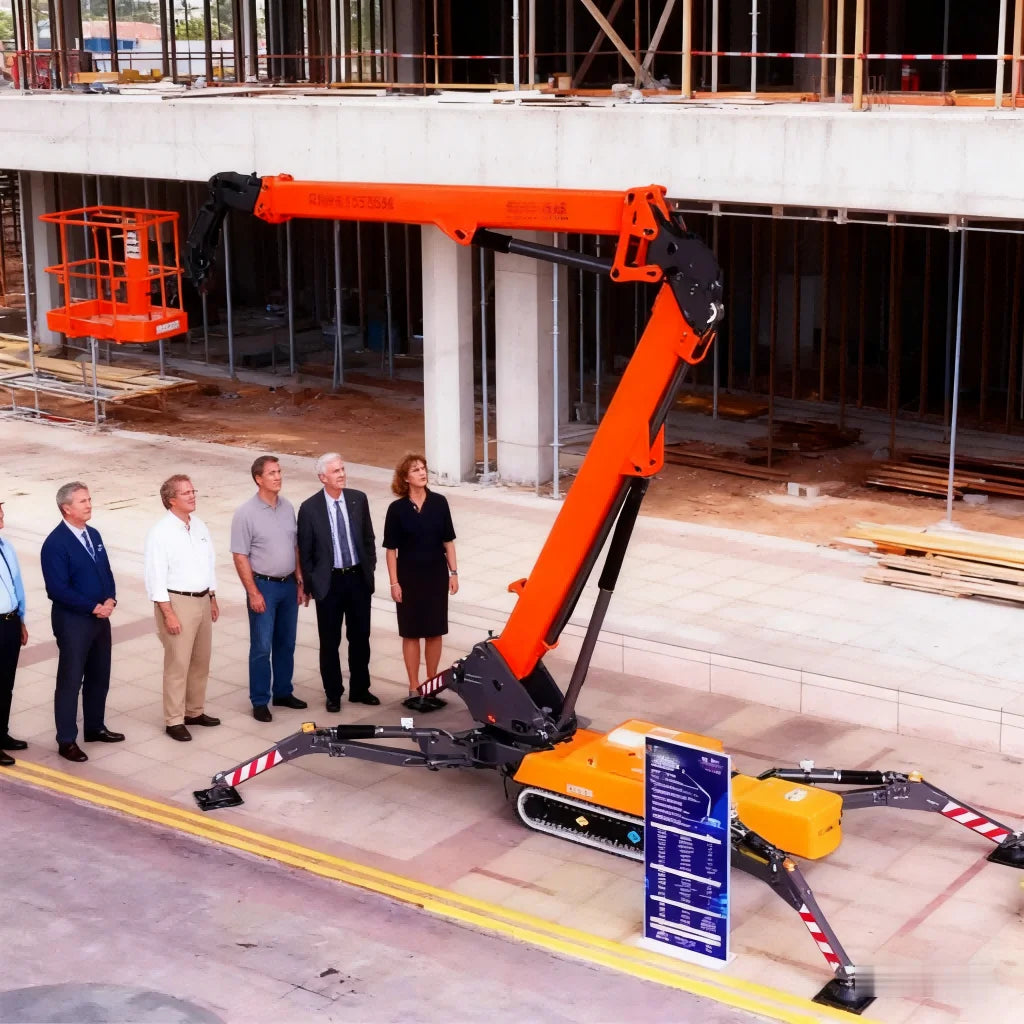

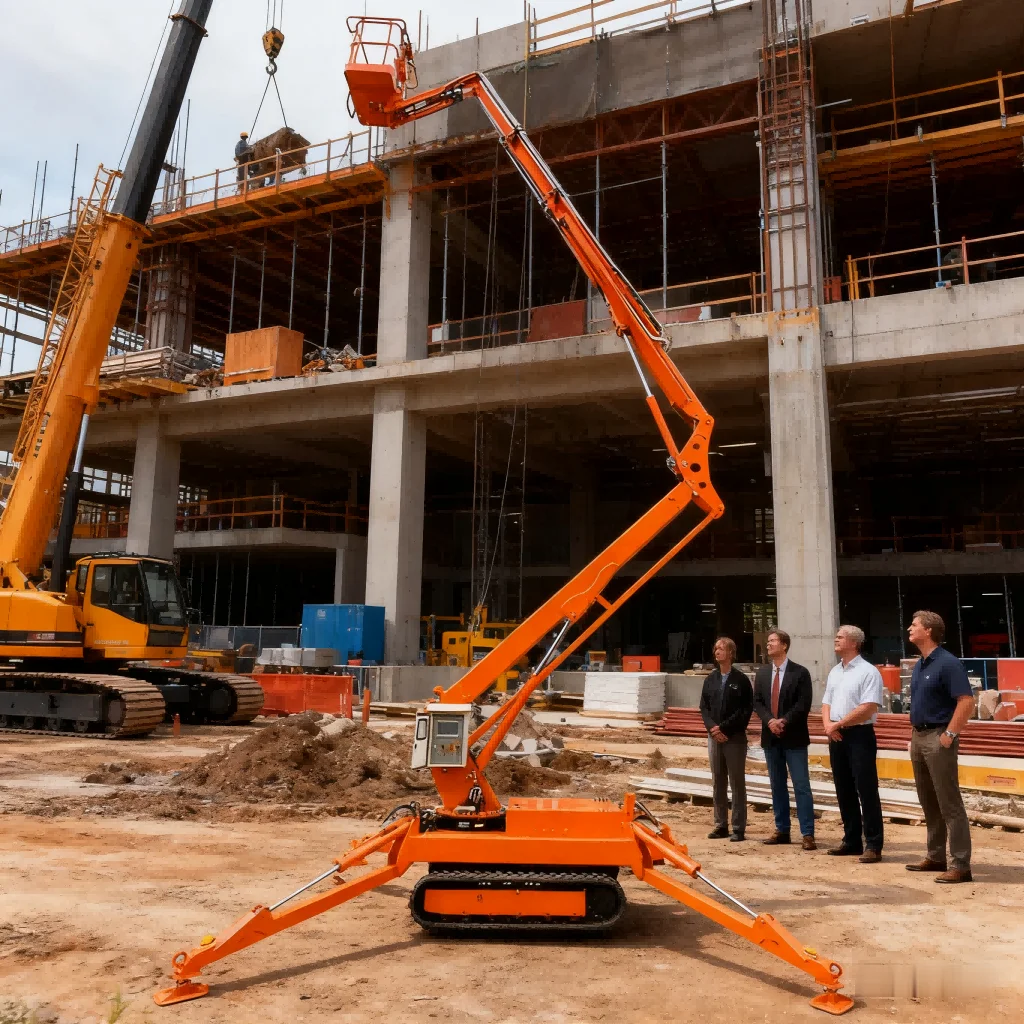

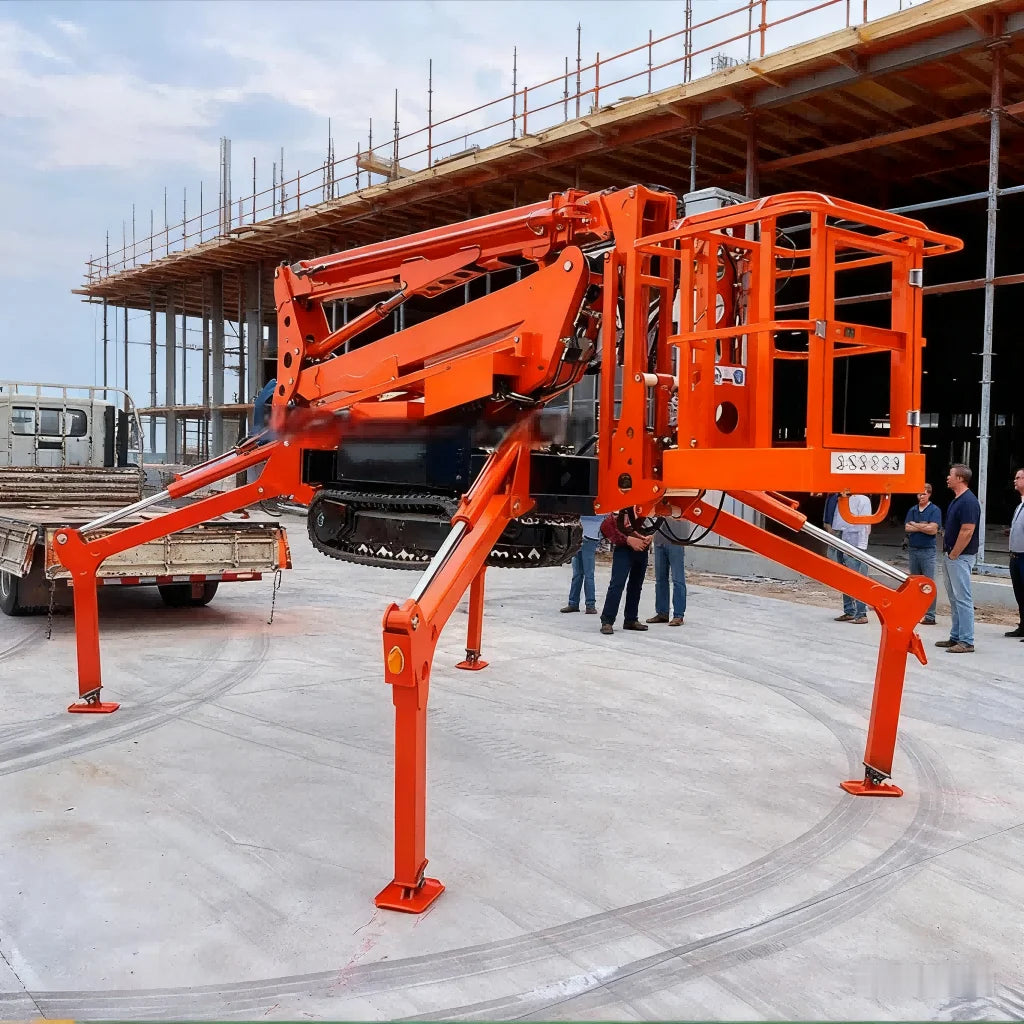

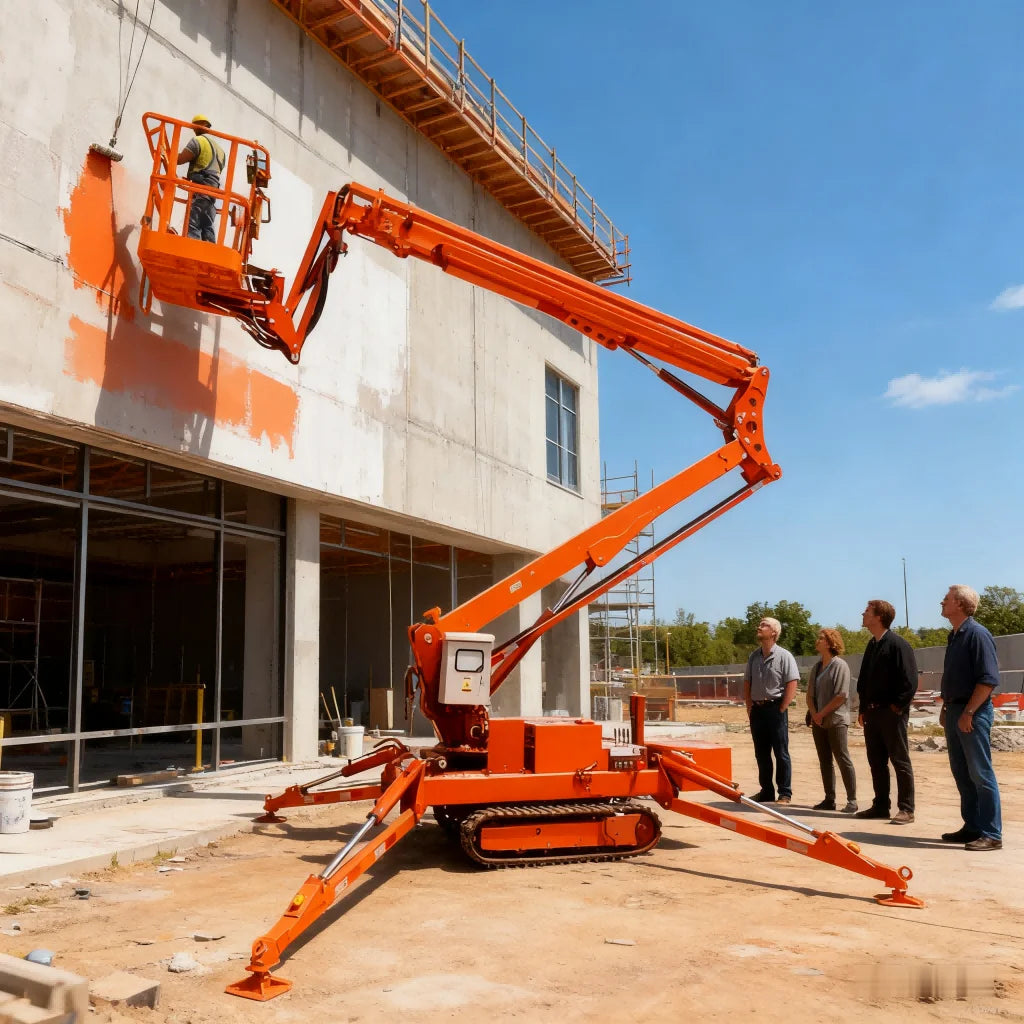

crawler-mounted spider boom aerial work platforms
DH crawler-mounted spider boom aerial work platforms are available in a variety of models, with platform heights ranging from 8 to 30 meters. These spider booms are equipped with sturdy rubber tracks, allowing workers to easily traverse a variety of terrains, especially uneven surfaces, soft grass, or muddy ground. Their superior traversal capabilities and versatile workstation capabilities make these spider booms an indispensable addition to the DH aerial work platform family.
Electric spider boom lifts are environmentally friendly with a standard battery power that doesn’t produce emissions. The machine has a 48V/230Ah or 48V/300Ah LFP battery with long endurance. You can also choose an optional gasoline engine as power plus generator to prolong the working time of the boom lift machine. So don’t worry about the downtime.

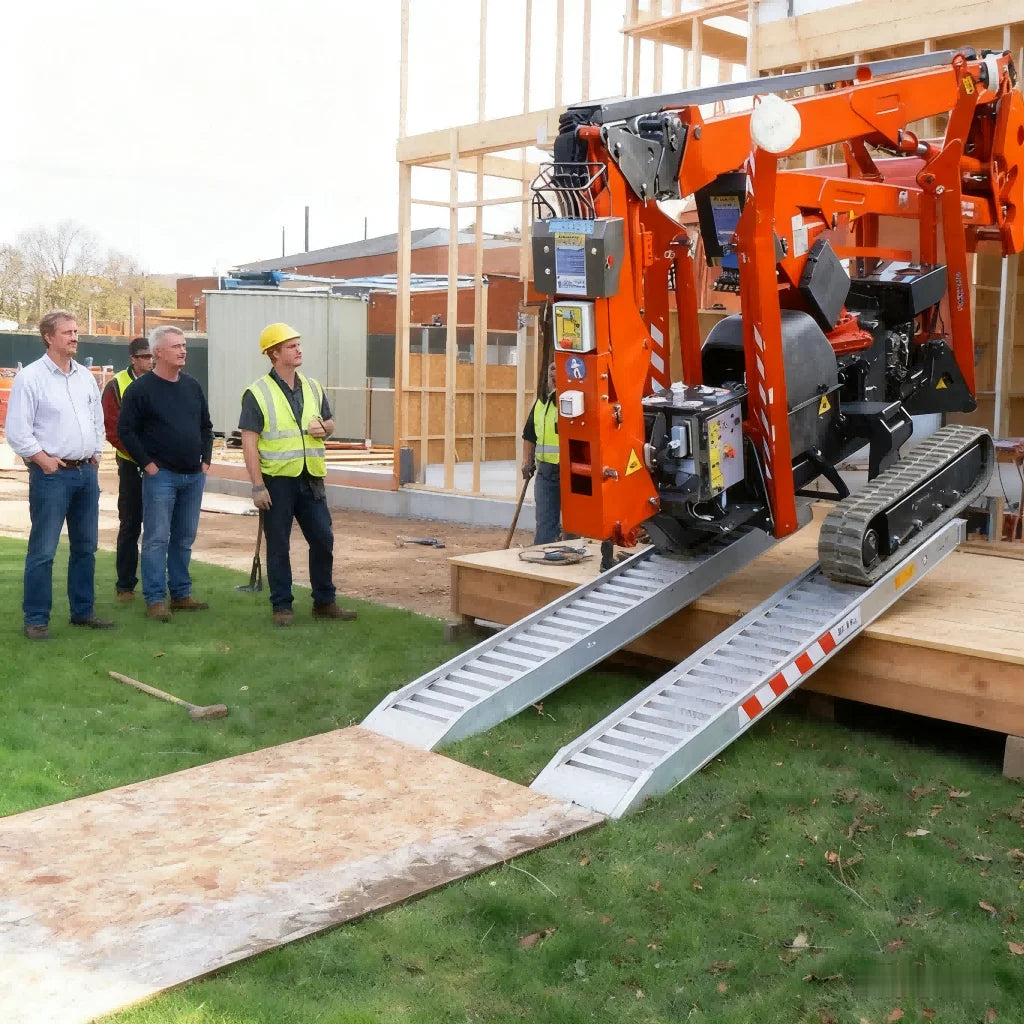

Additionally, the narrow chassis structure of the machine allows for access through gates, yards, standard doorways and public buildings. This makes a crawler boom lift ideal for various jobs both indoors and outdoors. aerial boom lifts are engineered to help users finish high and difficult jobs safely and efficiently. Contact our teams now to learn about how our equipment can fit your business.
Specification
Model |
DHCB12 |
DHCB14 |
DHCB16 |
DHCB19 |
Maximum Platform Height |
11.40m/37.4Ft |
14.0m/45.9Ft |
16.0m/52.5Ft |
19.0m/62.3Ft |
Maximum Working Height |
13.44m/44.1Ft |
16.0m/52.5Ft |
18.0m/59.1Ft |
21.0m/68.9Ft |
Maximum Horizontal Reach |
5m/16.4Ft |
7.2m/23.6Ft |
7.4m/24.3Ft |
9.5m/31.2Ft |
Rated Platform Capacity |
200kg/440 Lb |
200kg/440.0Lb |
200kg/440.0Lb |
200kg/440.0Lb |
Stowed Length (with bucket removed) |
4.13m/13.6Ft |
5.77m/18.9Ft |
5.6m/18.4Ft |
5.8m/19.0Ft |
Stowed Width (with bucket removed) |
0.87m/2.9Ft |
0.94m/3.1Ft |
0.94m/3.1Ft |
1.25m/4.1Ft |
Stowed Height |
1.97m/6.5Ft |
1.97m/6.5Ft |
1.97m/6.5Ft |
1.97m/6.5Ft |
Bucket Rotation |
180° |
180° |
180° |
180° |
Jim Rotation Range |
120° |
120° |
90° |
90° |
Platform Dimensions (L x W x H) |
0.8×0.7×1.1m |
0.9×0.8×1.1m |
0.9×0.8×1.1m |
1.2×0.8×1.1m |
Rotation range |
360°(non-continuous) |
360°(non-continuous) |
360°(non-continuous) |
360°(non-continuous) |
Gross weight |
1800kg |
2300kg |
2400kg |
3300Kg |
Maximum gradeability |
30% |
30% |
30% |
30% |
Working grade |
18° |
18° |
20% |
20% |
Driving speed |
0 - 1.5km/h |
0 - 1.5km/h |
0 - 1.5km/h |
0 - 2.0km/h |
Handling method |
Wireless + wired remote control |
Wireless + wired remote control |
Wireless + wired remote control |
Wireless + wired remote control |
Control method |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Powertrain (standard) |
Gasoline engine (Beriton) + 220V/50HZ mains electricity |
Gasoline engine (Beriton) + 220V/51HZ mains electricity |
Gasoline engine (Beriton) + 220V/52HZ mains electricity |
Gasoline engine (Beriton) + 220V/53HZ mains electricity |
Model |
DHCB22 |
DHCB24 |
DHCB26 |
DHCB28 |
DHCB30 |
Maximum Platform Height |
22.0m/72.2Ft |
23.7m/77.8Ft |
26.0m/85.3Ft |
28.0m/91.9Ft |
30.0m/98.4Ft |
Maximum Working Height |
24.0m/78.7Ft |
25.7m/84.3Ft |
28.0m/91.9Ft |
30.0m/98.4Ft |
32.0m/105.0Ft |
Maximum Horizontal Reach |
10.2m/33.5Ft |
12.6m/41.3Ft |
14.5m/47.6Ft |
14.5m/47.6Ft |
13.5m/44.3Ft |
Rated Platform Capacity |
200kg/440.0Lb |
200kg/440.0Lb |
200kg/440.0Lb |
200kg/440.0Lb |
200kg/440.0Lb |
Stowed Length (with bucket removed) |
5.4m/17.7Ft |
6.65m/21.8Ft |
6.55m/21.5Ft |
6.8m/22.3Ft |
7.06m/23.2Ft |
Stowed Width (with bucket removed) |
1.4m/4.6Ft |
1.24m/4.1Ft |
1.24m/4.1Ft |
1.2m/3.9Ft |
1.40m/4.6Ft |
Stowed Height |
1.97m/6.5Ft |
1.97m/6.5Ft |
1.97m/6.5Ft |
1.97m/6.5Ft |
1.97m/6.5Ft |
Bucket Rotation |
180° |
180° |
180° |
180° |
180° |
Jim Rotation Range |
120° |
120° |
90° |
90° |
90° |
Platform Dimensions (L x W x H) |
1.4×0.7×1.1m |
1.2×0.7×1.1m |
1.2×0.7×1.1m |
1.2×0.7×1.1m |
1.2×0.8×1.1m |
Rotation range |
360°(non-continuous) |
360°(non-continuous) |
360°(non-continuous) |
360°(non-continuous) |
360°(non-continuous) |
Gross weight |
3450kg |
4980kg |
4700kg |
5000kg |
7300kg |
Maximum gradeability |
30% |
30% |
30% |
30% |
30% |
Working grade |
20% |
20% |
30% |
30% |
30% |
Driving speed |
0 - 1.5km/h |
0 - 1.5km/h |
0 - 1.5km/h |
2.0km/h |
1.5km/h |
Handling method |
Wireless + wired remote control |
Wireless + wired remote control |
Wireless + wired remote control |
Wireless + wired remote control |
Wireless + wired remote control |
Control method |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Electro-hydraulic proportional gradient control |
Powertrain (standard) |
Diesel engine (Kubota) + 220V/50HZ mains electricity |
Diesel engine (Kubota) + 220V/50HZ mains electricity |
Diesel engine (Kubota) + 220V/50HZ mains electricity |
Diesel engine (Kubota) + 220V/50HZ mains electricity |
Diesel engine 18kw + 380V/7.5kw |
Our Services for you ❤
1.Whole process guidance With more than 15 years of service experience, we will spare no effort to provide support in selecting equipment, customizing production lines, improving supply chain, and post-optimization etc.
2.Provide a full set of construction method and equipment training Provide design and construction solutions in terms of cost budget / progress improvement / quality control / safety management.
3.After-sales service system Fully track the service system, focus on customer needs, first-class speed, skills, attitude, and provide support for customer
4.Support customization Relying on our powerful flexible production line, we can give you the right to fully choose the mold,drive method, accessories upgrade, shell material, appearance color and Logo etc.
5.Extensive spare parts service The spare parts warehouse of more than 50,000 square meters can meet the timely replacement and supplement of any wearing parts.
6.Support sea, land and air transportation We can ship products to every corner of the world. If you need, we also support a series of tedious tasks such as customs clearance and tail end delivery.
Company Profile 💪
Henan DH Machinery Co., Ltd., located in Zhengzhou city, Henan, China, gains its rapid development as a reputable machinery manufacturer. We develop from a small company with only 6 people to a company with over 100 people thanks to the trust of our customers and innovation of ourselves. We always insist that only quality can make us successful, and only innovation creates wider development direction for us.
Thanks to complete after-sale services and guaranteed quality of the machines, we have won a good reputation in our customers domestic and abroad. Up to now, we have exported our machinery to many countries around the world, such as Russia, America, South Africa, Pakistan, Guinea, Canada, Lebanon, Zambia, Ethiopia, etc.
The development principle of DH machinery company is "Quality First, Reputation First, Be Innovative, Be Excellent". Guided by this principle, staff in company and factory dedicate to manufacture top quality products to meet the needs of customers. From the technical design to the procurement of raw materials, and from the precision processing and manufacturing to the strict inspection of quality, all machines in DH meets the requirements of ISO9001.
We rely on top quality,Competitive priceand good service to offer metallurgy,coal,hydroelectric,railway,highway,mine etc,we quicklyOccupied the Market,Achieved remarkable results.Insist on"offer excellent service for customerscreate development chance for employees"as operation principle and take"keep forging aheadenjoy great success"as enterprise spirit,we sincerely welcome friends from home and abroad tovisit us for business,Let us create great undertaking and brilliant together!
FAQ ❤ 🙂
7*24 hours
Consultation and after-sales consultation hotline
Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 2 year warranty, during this time all accessories.broken can be changed for a new one.And we provide videos for machine install and operation.
Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q7.Do you provide wear parts for transacted clients?
Ans.: Yes, and will prefer provid ing accessories to clients.Shipping cost is based on weight. Just add products to your cart and use the Shipping Calculator to see the shipping price.
We want you to be 100% satisfied with your purchase. Items can be returned or exchanged within 30 days of delivery.
