SPECIFICATIONS

Chamber material: SUS304 stainless steel (316L as option)

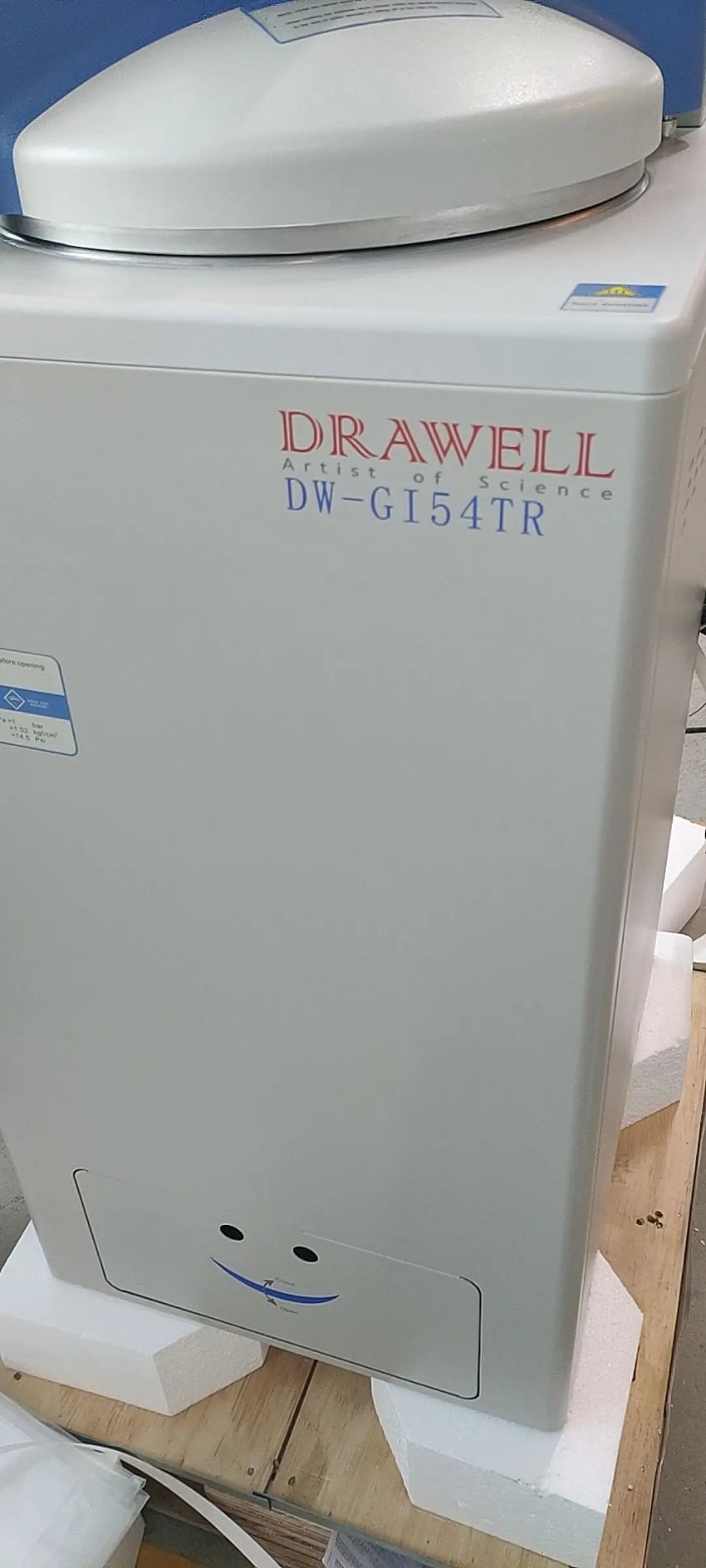

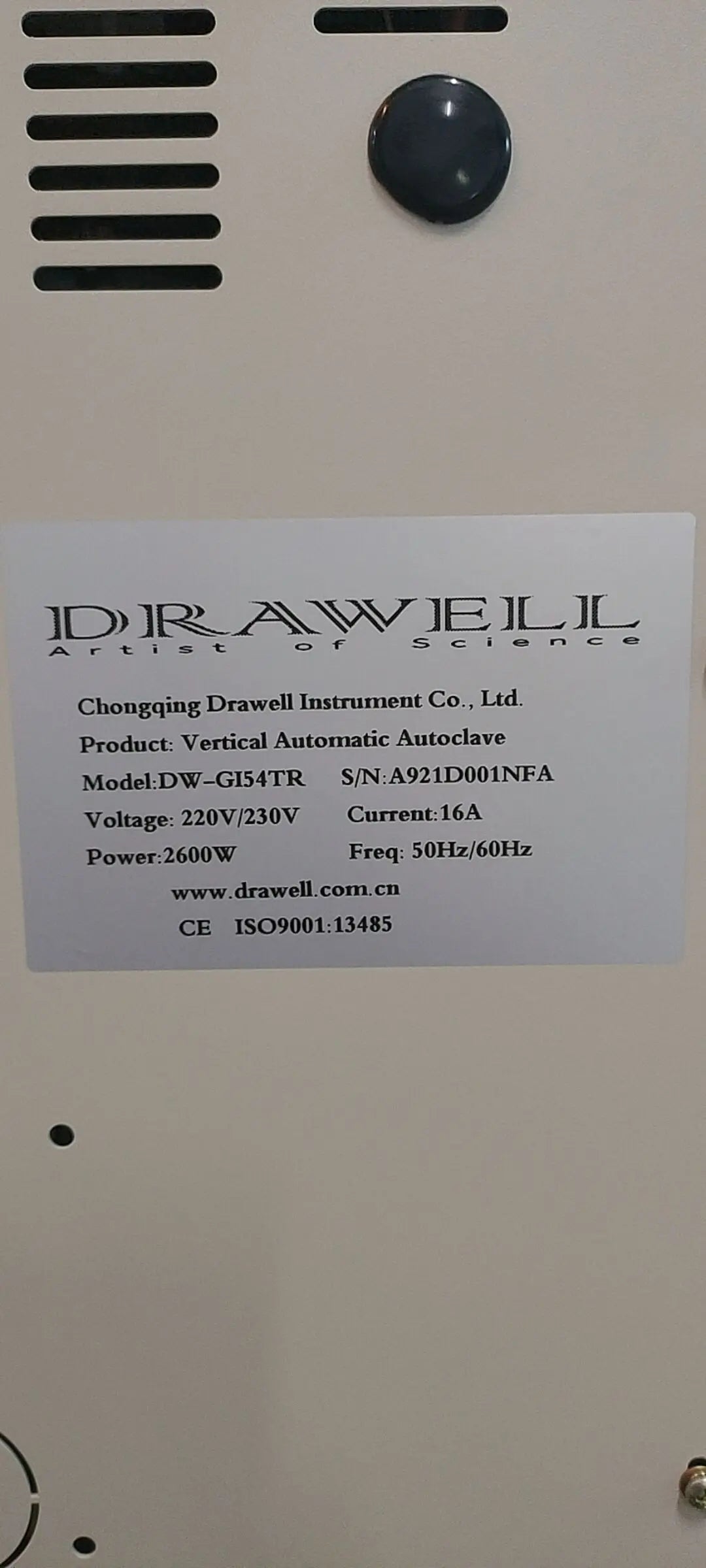

Model Number: DW-GI54TR

Name: Drawell Smart Autoclave with Fully Automatic Drying for Research

Power requirement: 220V±10% 16A 50HZ/60HZ

Rated power(W): 2300

Sterilization temp.range: 105℃~135℃

Sterilization time range: 1~6000 min

Temperature diTPlay accuracy: 0.1℃

Volume: 54L

Working environment: 5℃~40℃ Relative humidity ≤85%

brand name: Drawell

capacity: 54L

customized support: OEM,ODM,OBM

material: Stainless steel

model number: DW-GI54TR

place of origin: Chongqing, China

size: 53*52*94cm

warranty: 1 Year

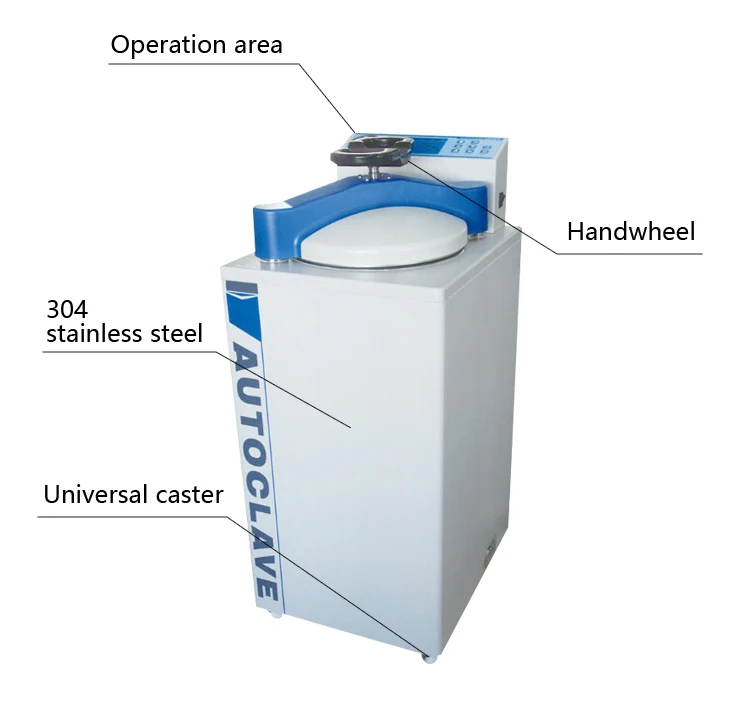

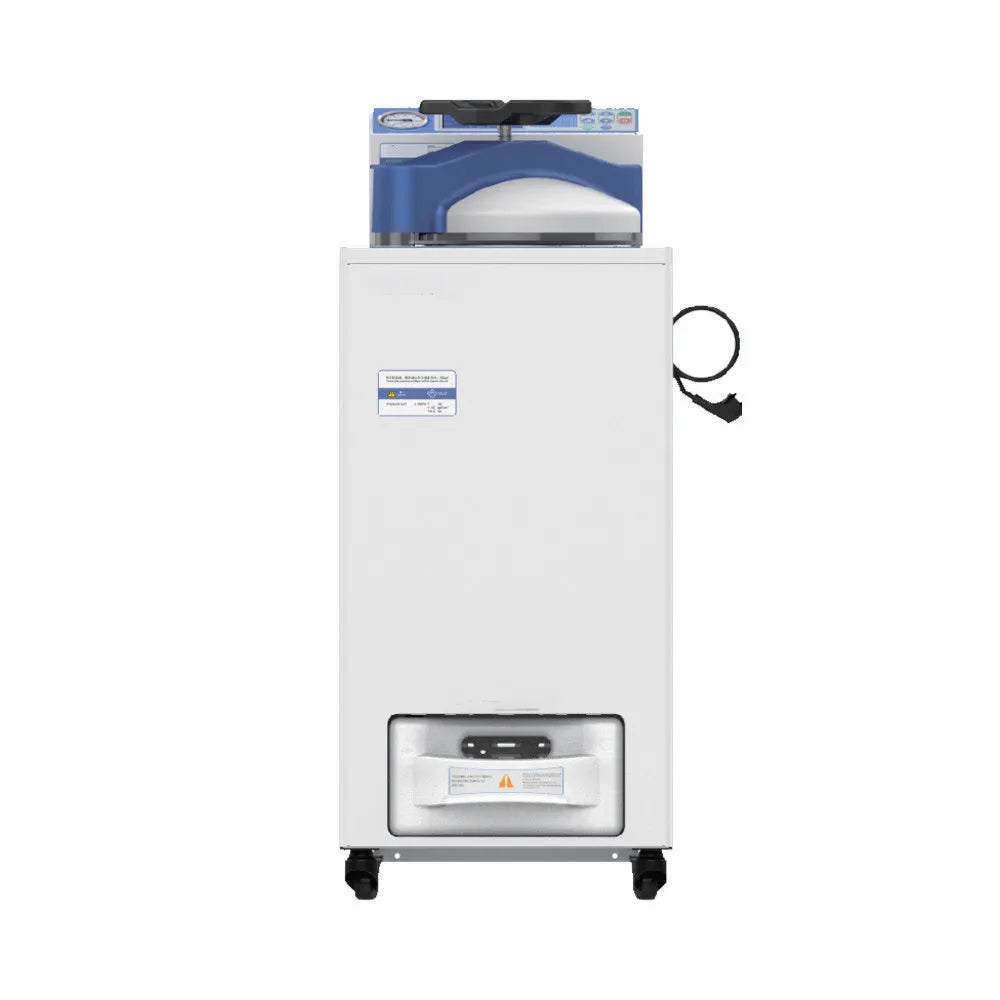

Drawell Smart Autoclave with Fully Automatic Drying for Research and Biotechnology Labs

Full-automatic;

Status flow chart to show the process; LCD Display

GI T SERIES Autoclave

Type T: Semi-automatic, whole process shown by indicator Type TW: Fully-automatic, whole process shown by flow chart Type TR: Fully-automatic, drying function based on Type TW

Products Description

Capacity(L)	29
Dimension(LxWxH)(mm)	460x542x976
Chamber dimension (Dia*H)(mm)	Φ320x378
Rated power(W)	2300
Sus304 basket size(pcs)	(Φ298x260)x1
Power requirement	220V±10% 16A 50HZ/60HZ
Temperature diTPlay accuracy	0.1℃
Working environment	5℃~40℃ Relative humidity ≤85%
Chamber material	SUS304 stainless steel (316L as option)
Sterilization temp.range	105℃~135℃
Sterilization time range	1~6000 min
Melting temp. range	60℃~115℃
Melting time	1~6000 min
Warming temp.	45℃~79℃
Warming time	1~9999 min
Memory function	60 program saved in system,999 cyeles saved by USB
Appointment timer range	Auto start up appointment)0～15 days
Exhaust TPeed control	Fully automatic internal discharging with 6 levels choice
Sterilization mode	Liquid,liquid with warming,solid,wrapped instrument,fabric,rubber,fast,waste,agar,self-defined Drying(TR、TP only)、Vacuum leak test(TP only)、BD test(TP only)
Drying(TR、TP only)	Drying time:1~300min Drying temp.:80~160℃
Controller	"SMART III" smart microcomputer controller
Cooling way	Fast cooling fan

Certifications

Company Profile

Drawell International Technology Limited is a leading company of manufacturing and selling laboratory equipment and scientific instruments, founded in year 1999 in China, then has become an joint venture company after being invested by US company since 2014. DRAWELL is specialized in laboratory equipment and medical instruments: Face Mask, Stirrer, PCR, Spectrophotometer, Refratometer, Chromatography, Centrifuge, Incubator, Balance, Raman, AAS, FTIR, XRF and etc. They are widely used in food QC, educational research, environmental science, chemical industry and other areas. Meanwhile, we are committed to explore the different markets by attending the exhibitions oversea including Arablab, PICCTON, Analytica Russia, Lab Africa, Analytica Germany , Analytica Latin America etc. Now DRAWELL already has established business relationships with customers from more than 50 countries, and has enjoyed the good reputation through reliable quality, reasonable price and professional service .

Exhibition

Logistics & payment

FAQ

Q1. Are you factory or trading company? We are a factory. Q2. What's the MOQ ? (1). Normally,MOQ is 1 piece. But if the items are in stock,there is no MOQ.The quantity is according to the clients requires. (2). If there is no stock,the general MOQ are in big difference due to the different products. But the quantity still can be negotiated. Q3. What is your principle for the samples ? We do not provide free sample. Q4.Which payment can be acceptable ? We could accept the payment by L/C, T/T, Paypal, Western Union,etc. Q5. How about your delivery time? Generally, it will take 7 to 15 working days after receiving your advance payment.Depend on the quantity. Q6. Certificate & Quality. CE and ISO certified for most products. Good quality firstly to avoid any defective products, Protective packaging to avoid destroy during delivery. Q7.Language. Pure English operation panel, display , manuals ; installation & operation videos will be provided to you as a guidance Q8.Service We could provide Online instruction; Real-time support by video-call or voice-chat,During warranty time, we can send product accessories when you need for free;Technical guidance is free and ready forever. Q9.Training Your technicians can come to our factory for training , Drawell engineers can go your place for local support( installation , training, debugging, maintenance);Products can be customized according to your requirements; OEM service is available with customers' brand.
