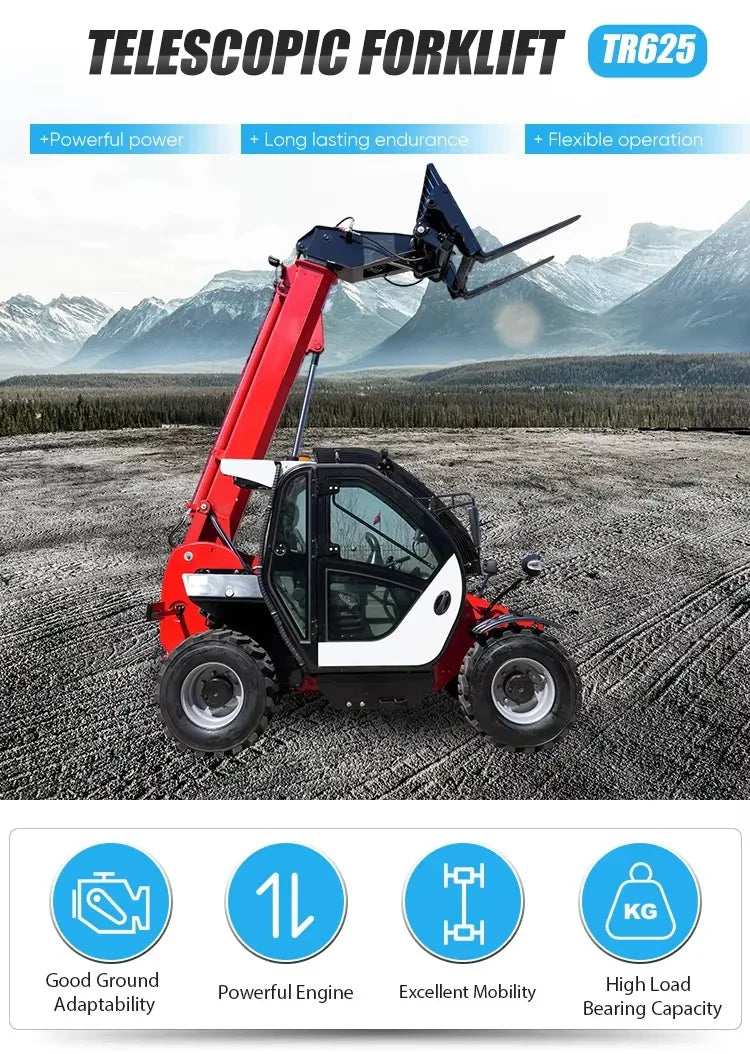

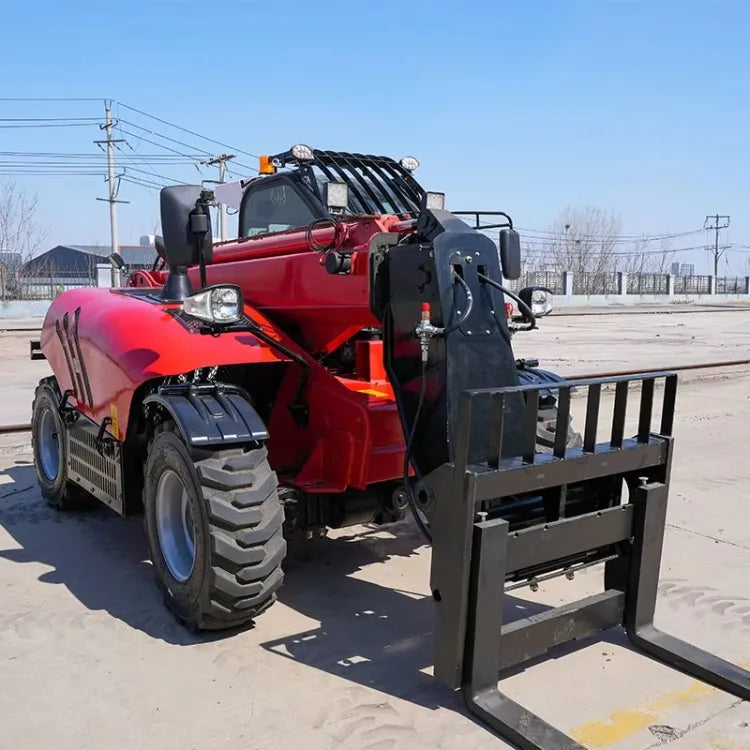

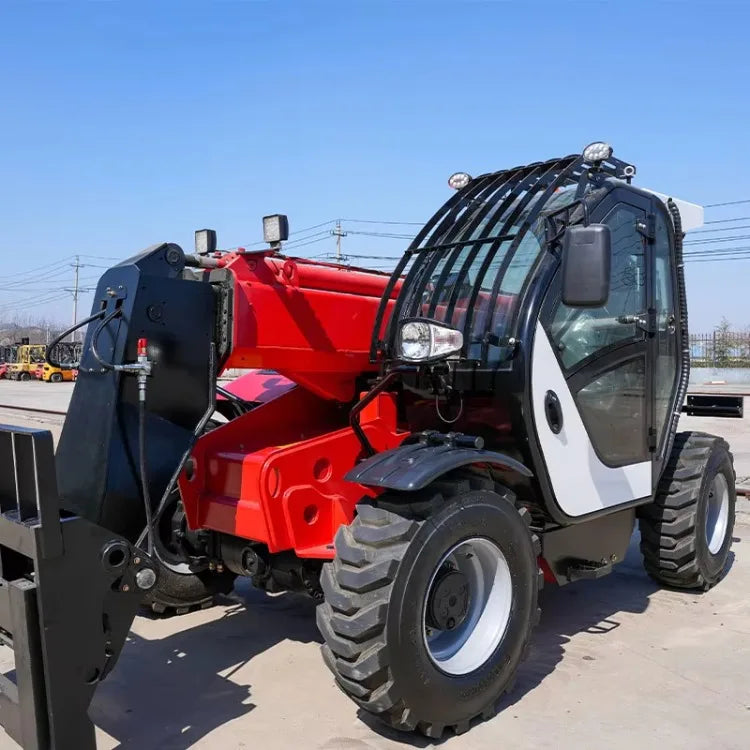

TR625 Compact Telescopic Handler — 2,500kg Capacity, 5.9m Lift Height
A high-performance compact telehandler built for construction, agriculture, and warehouse material handling. The TR625 features a closed hydraulic system, 4-wheel drive, multiple steering modes, and a telescopic arm reaching 5,900mm lift height with 3,300mm forward reach. Adaptable to indoor and outdoor terrain including rough construction sites. CE certified and fully customizable.
Note: Listed price is a reference/deposit price. Final pricing depends on your configuration and destination port. Ships by sea. Contact us for a formal quote.
Key Features
- 2,500kg max load capacity; 2,000kg at full height; 800kg at full reach
- 5,900mm max lift height; 3,300mm max forward reach
- Closed hydraulic system with 4-wheel drive
- Multiple steering modes for excellent maneuverability

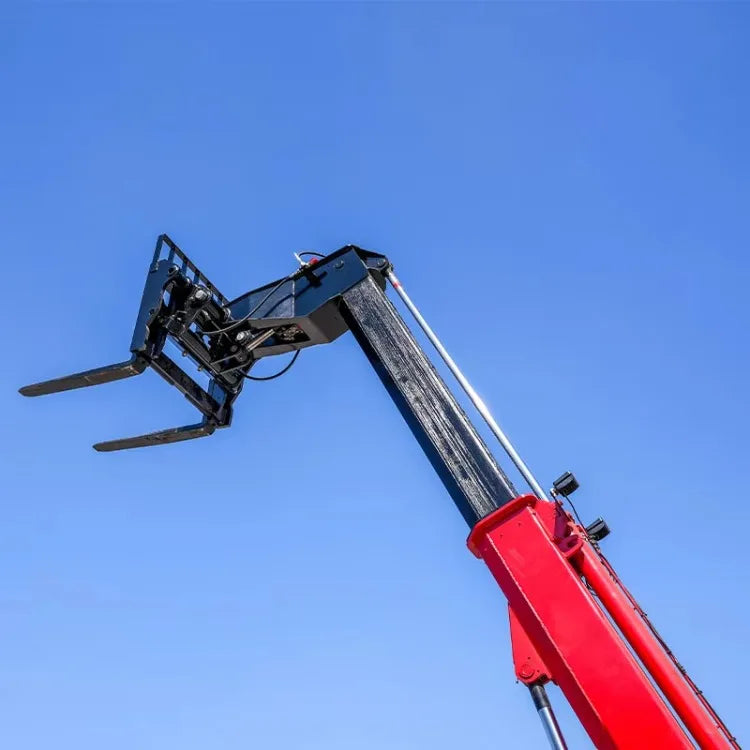

- Telescopic arm — extends and retracts for varied heights and distances
- Stabilizers and advanced control systems for stability at extended reach
- Suitable for indoor flooring, outdoor pavement, and rough terrain
- CE certified; 1-year warranty
Specifications
- Model: TR625
- Max Load: 2,500 kg
- Max Lift Height: 5,900 mm
- Max Forward Reach: 3,300 mm
- Engine: Yunnei YN27GBZ — 58kW
- Drive: 4-Wheel Drive
- Tyres: 14-17.5 Tubeless

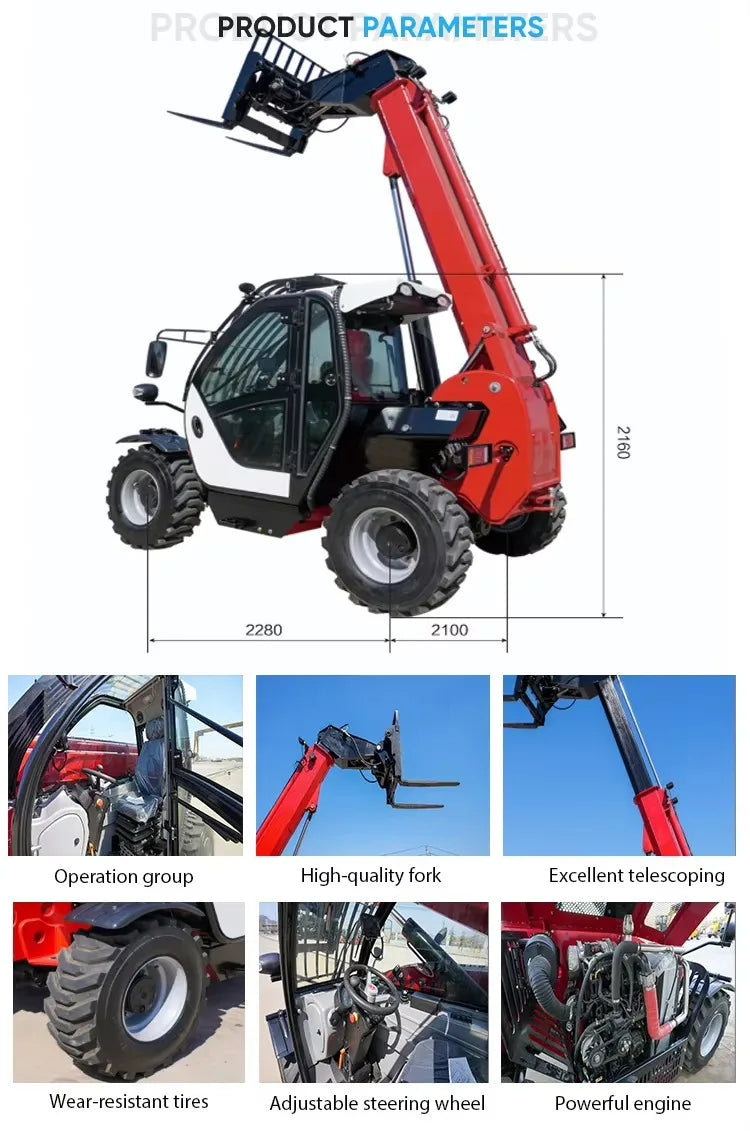

- Overall Length: 5,410 mm
- Overall Width: 2,100 mm
- Overall Height: 2,160 mm
- Wheelbase: 2,280 mm
- Ground Clearance: 380 mm
- Hydraulic Tank: 115 L
- Diesel Tank: 63 L
- Pallet Fork Length: 1,220 mm
