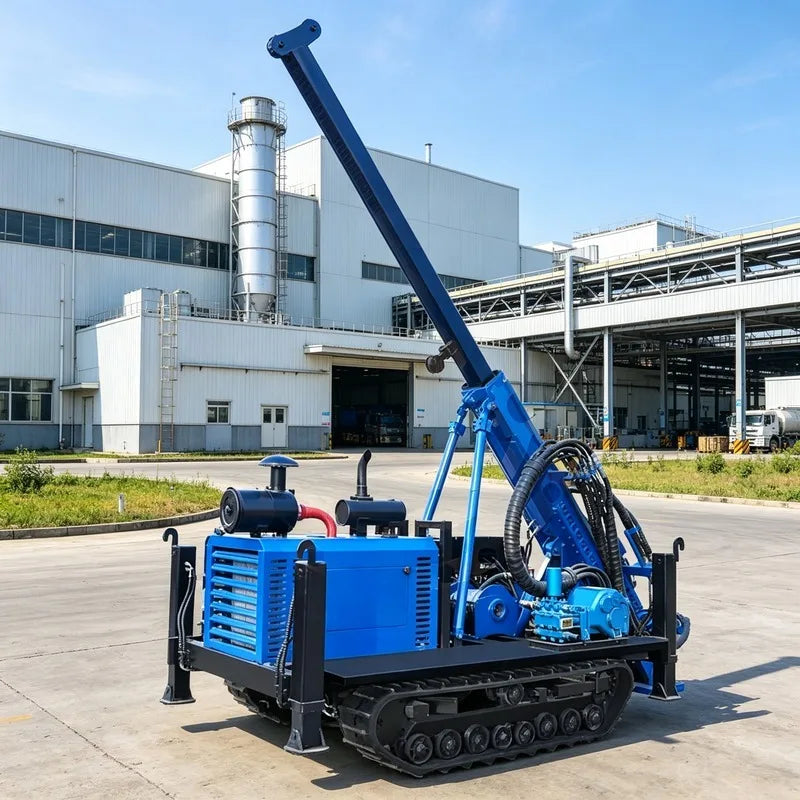

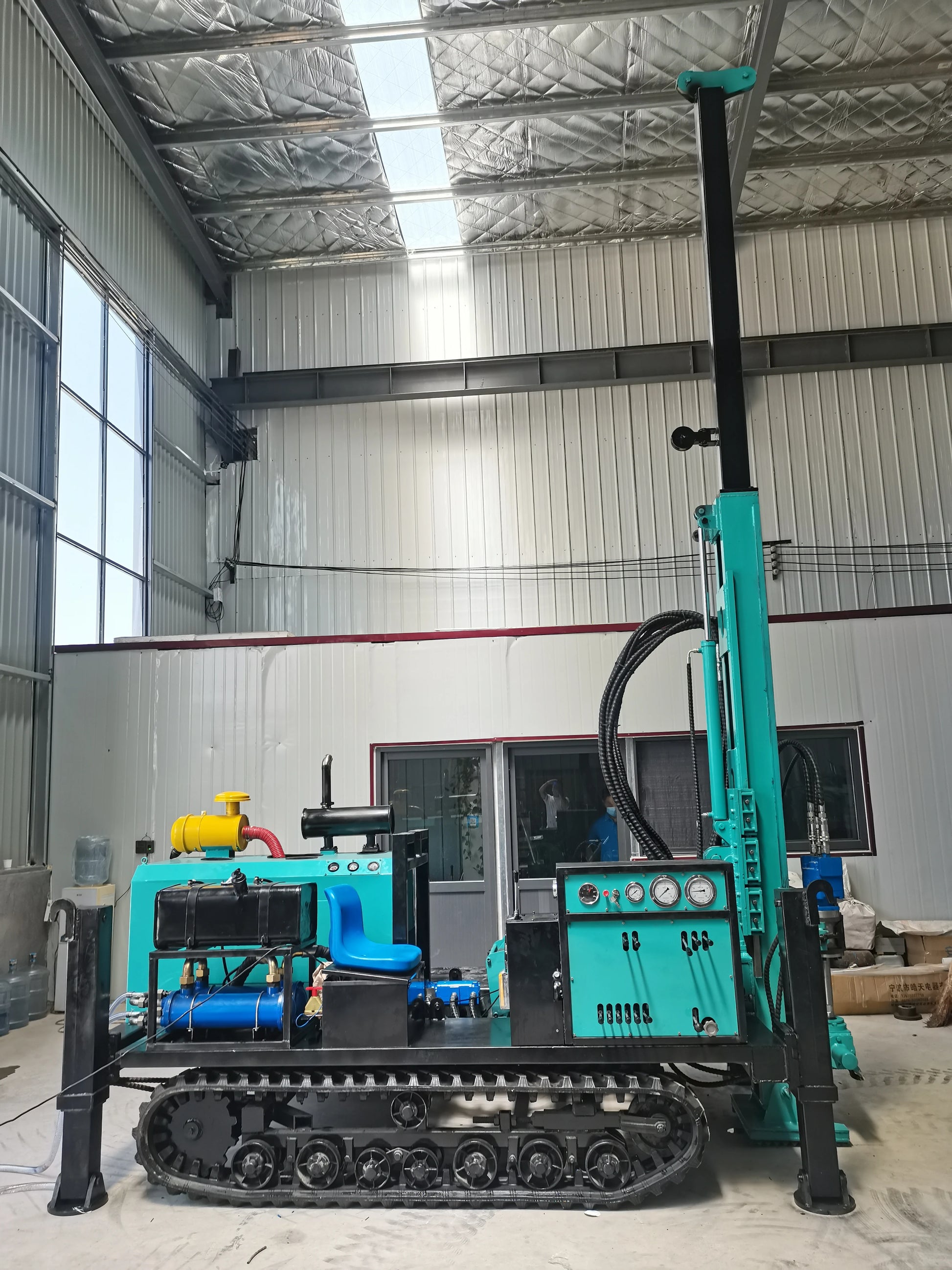

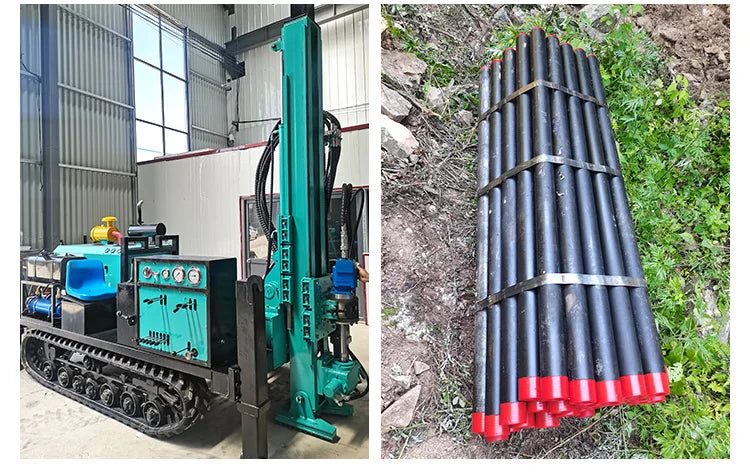

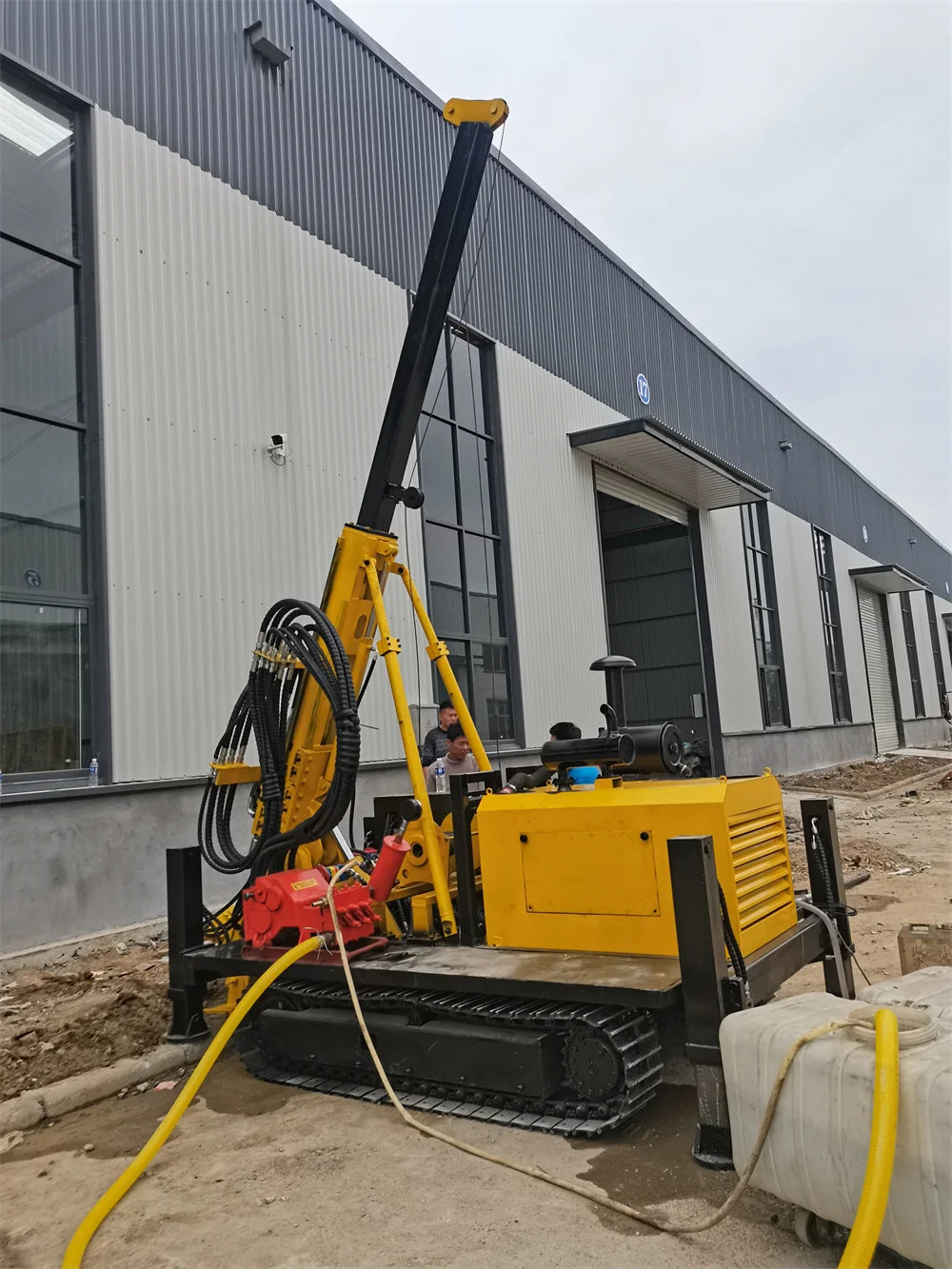

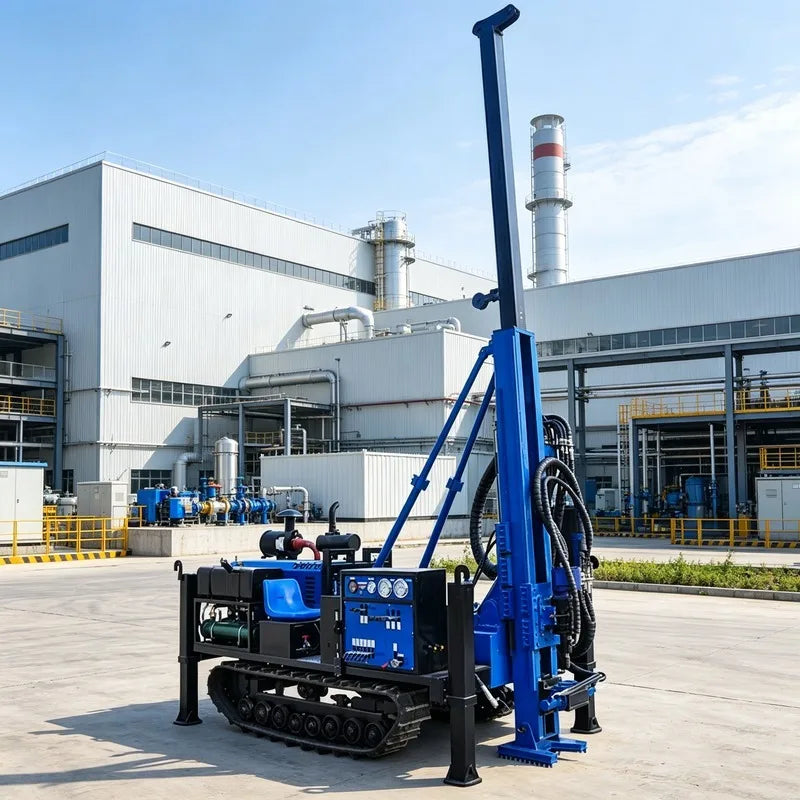

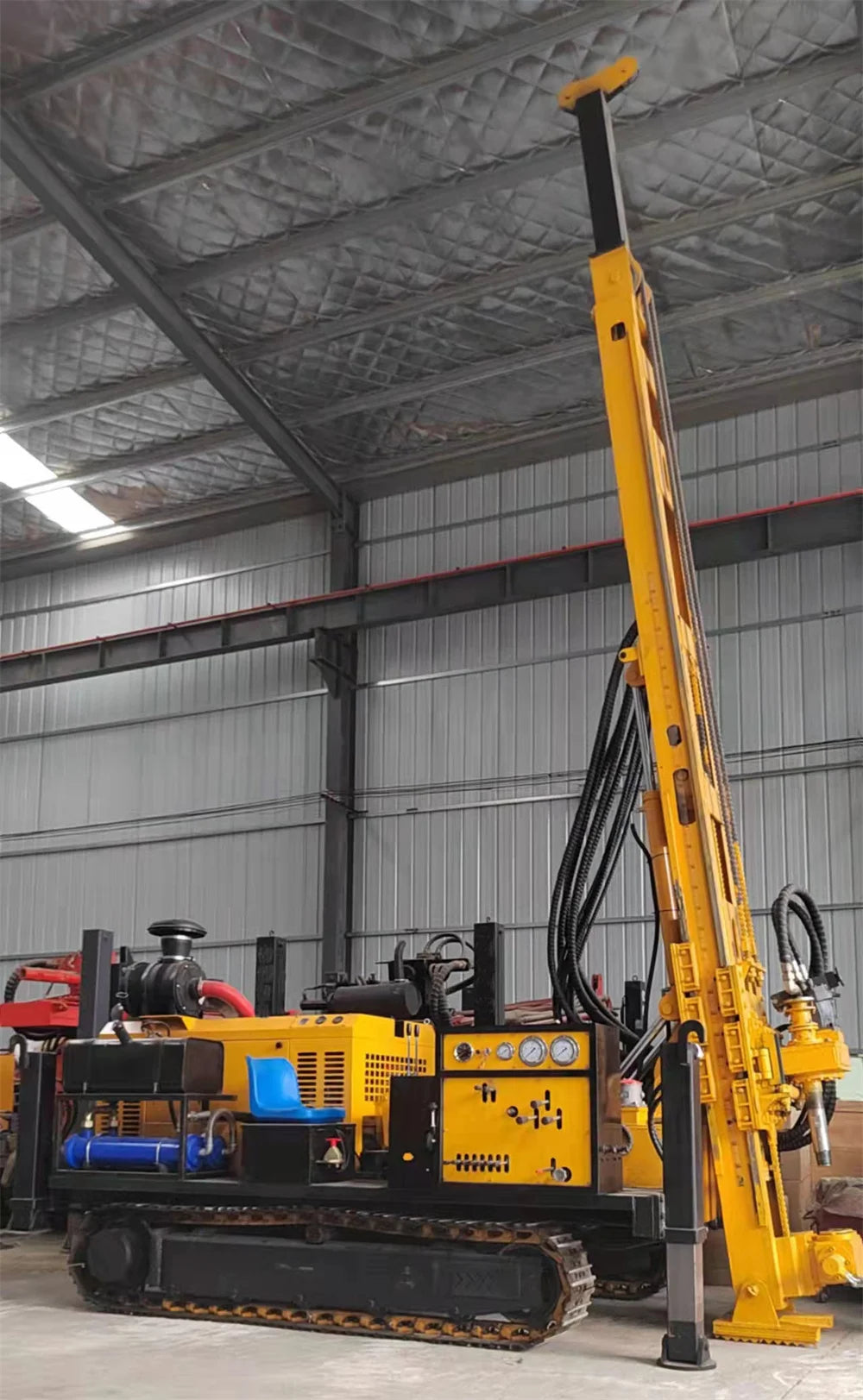

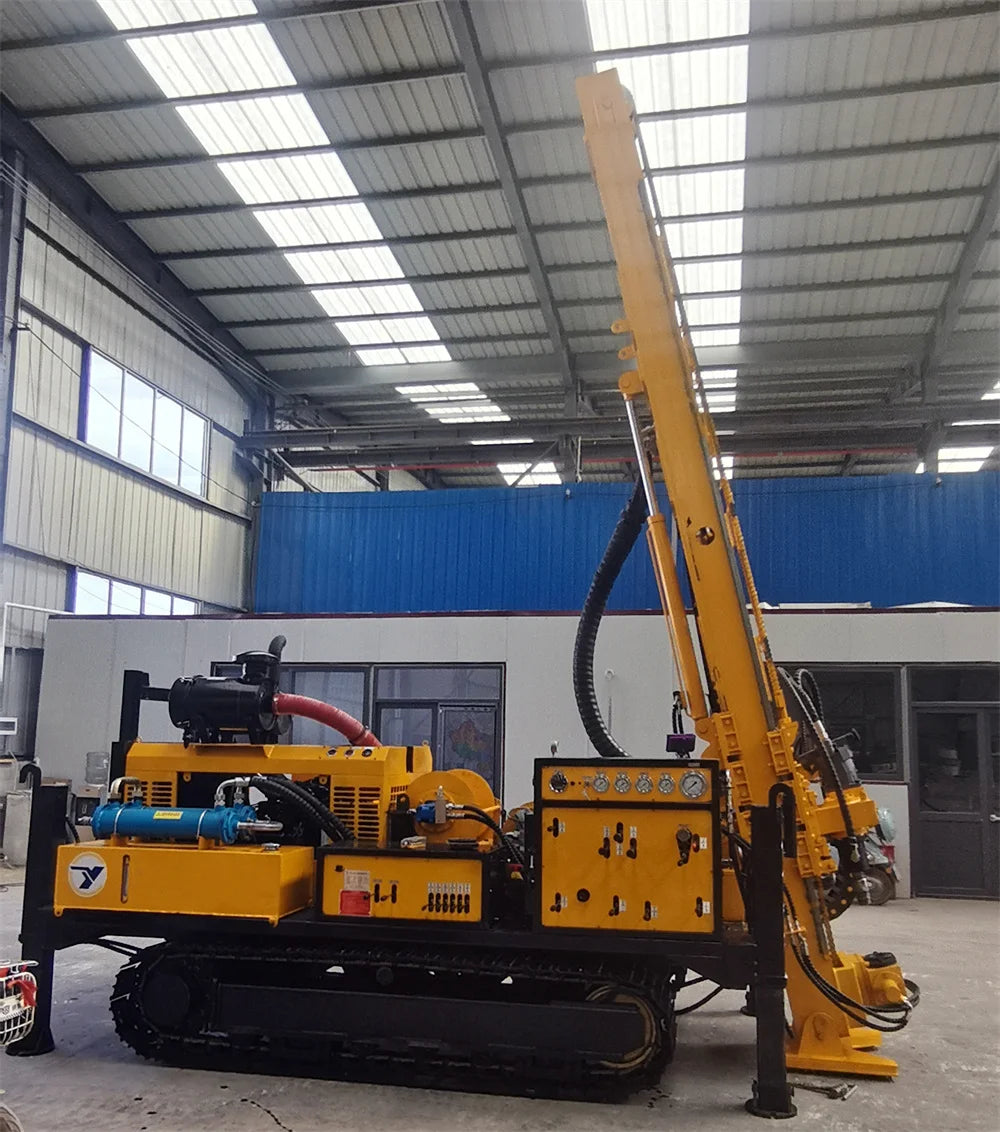

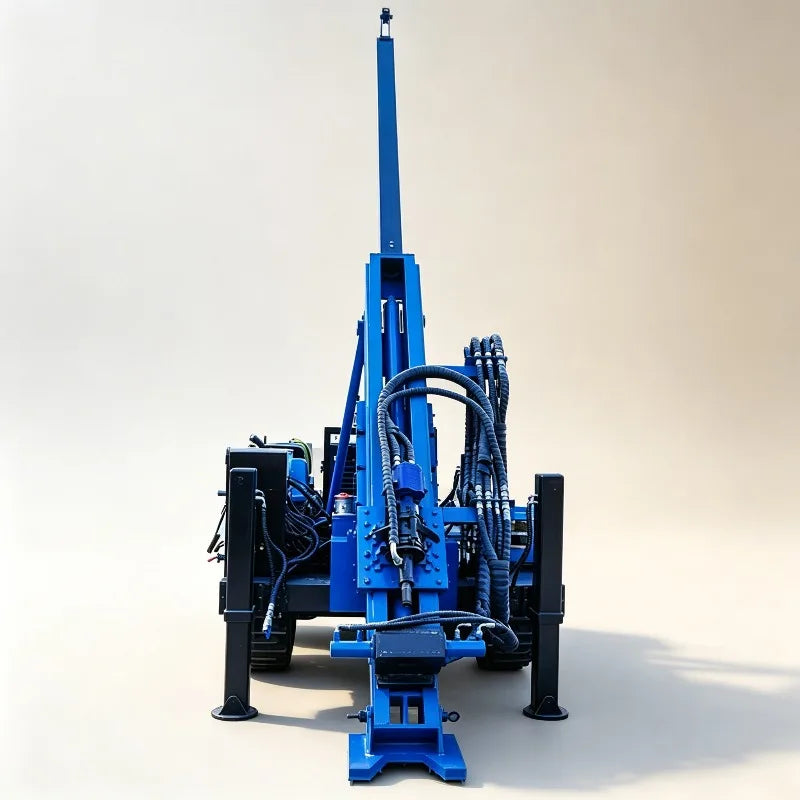

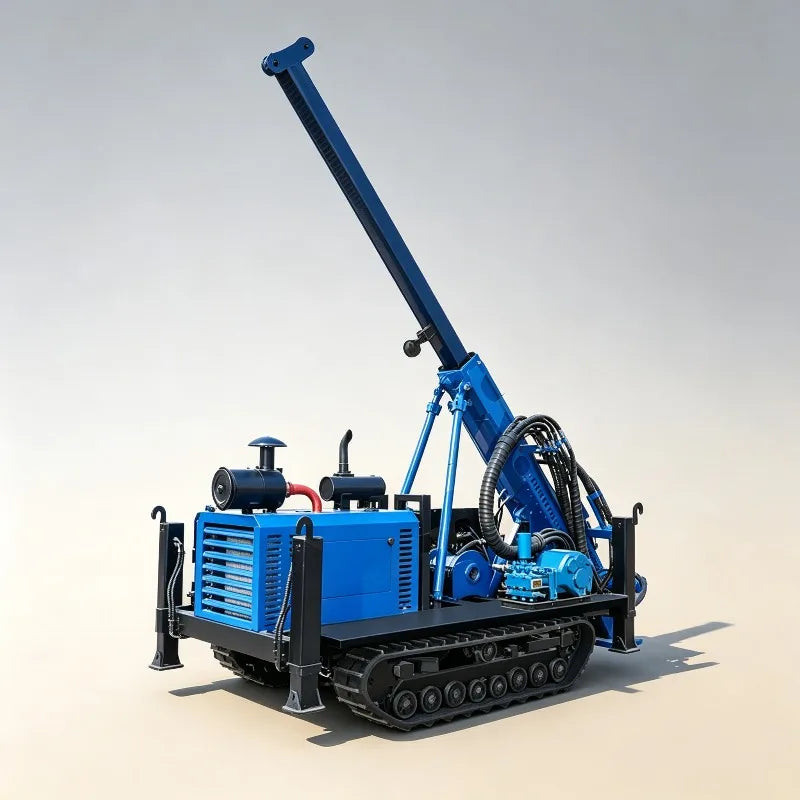

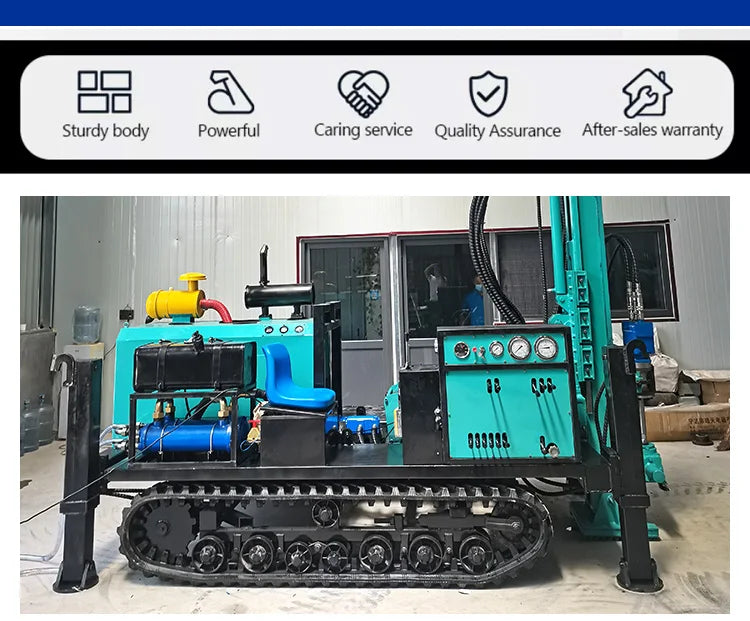

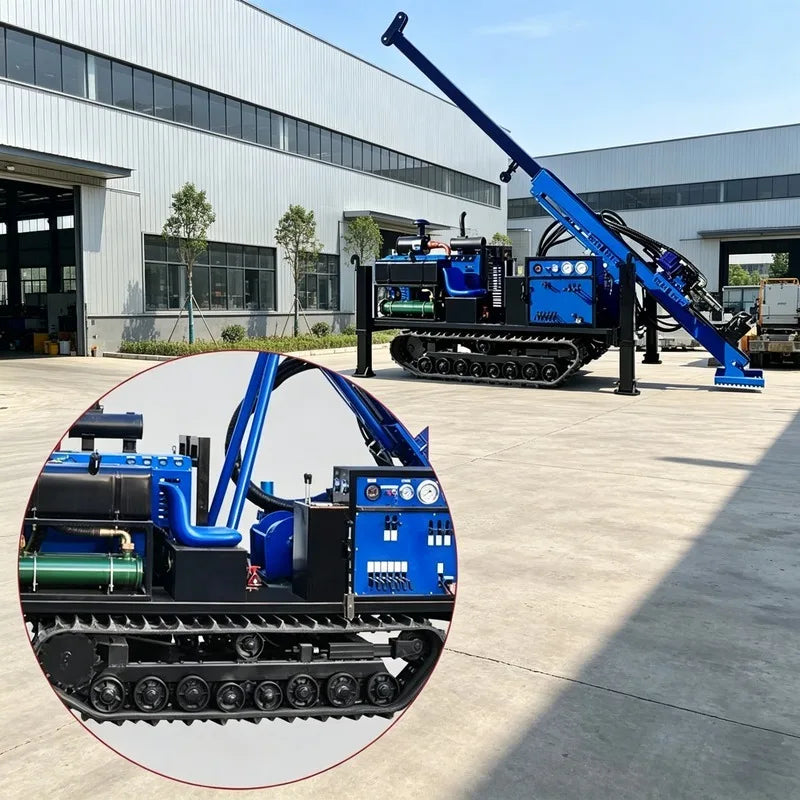

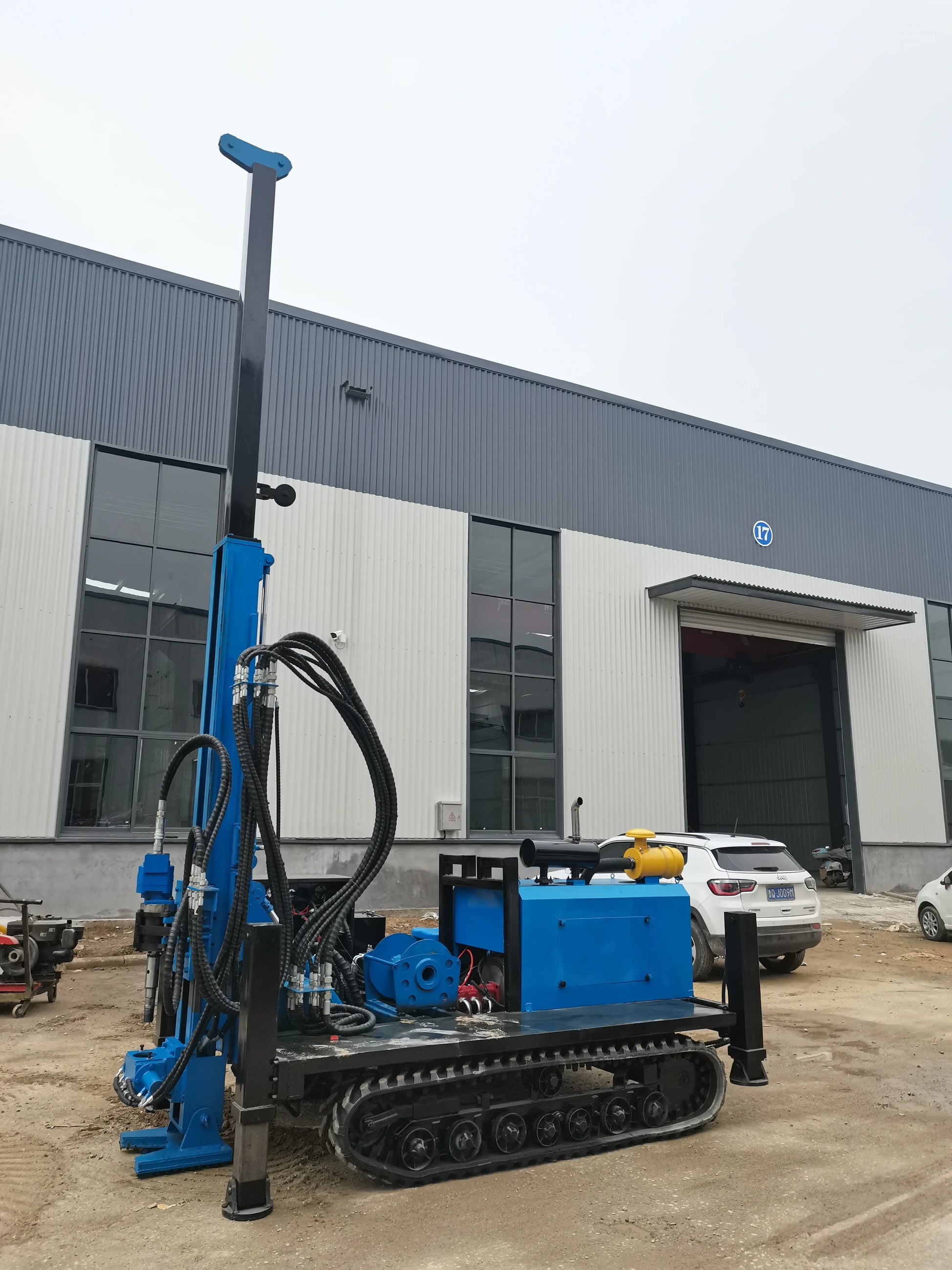

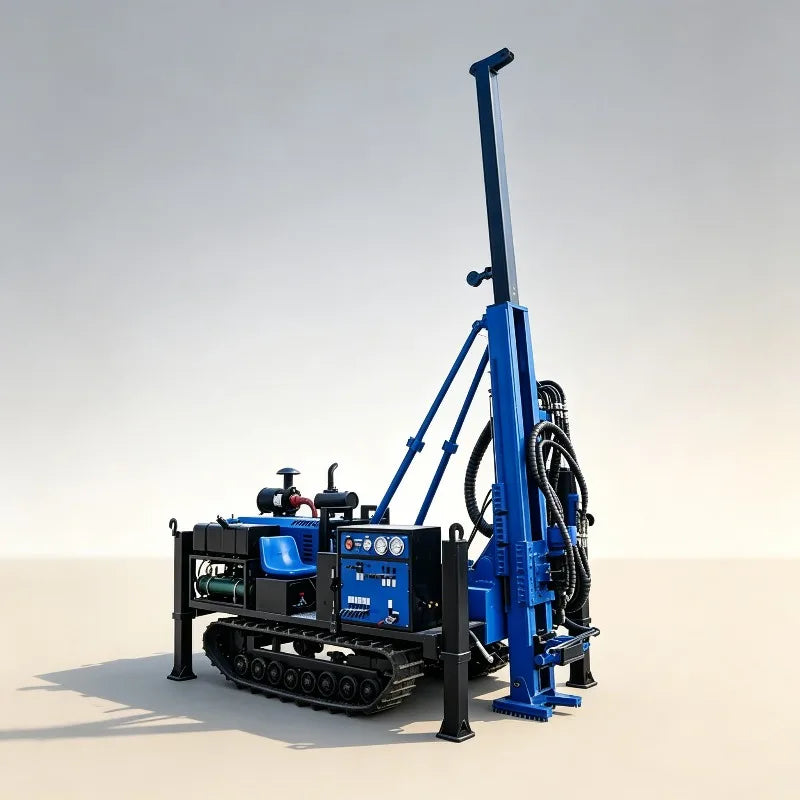

YGX Series Full Hydraulic Core Drilling Rig — Crawler Mounted, Mining & Geological Exploration
Professional-grade geological exploration equipment built for high-efficiency rock coring and sampling across diverse and challenging terrains. The YGX series covers drilling depths from 180m to 1,100m across four models, powered by Yuchai or Cummins diesel engines (78–154kW) with a fully hydraulic system delivering up to 3,500 N·m torque. Crawler-mounted with manual and remote control for easy operation on complex terrain.
Note: Listed price is a reference/deposit price. Final pricing depends on your model selection, configuration, and destination. Ships by sea. Contact us for a formal quote.
Key Features

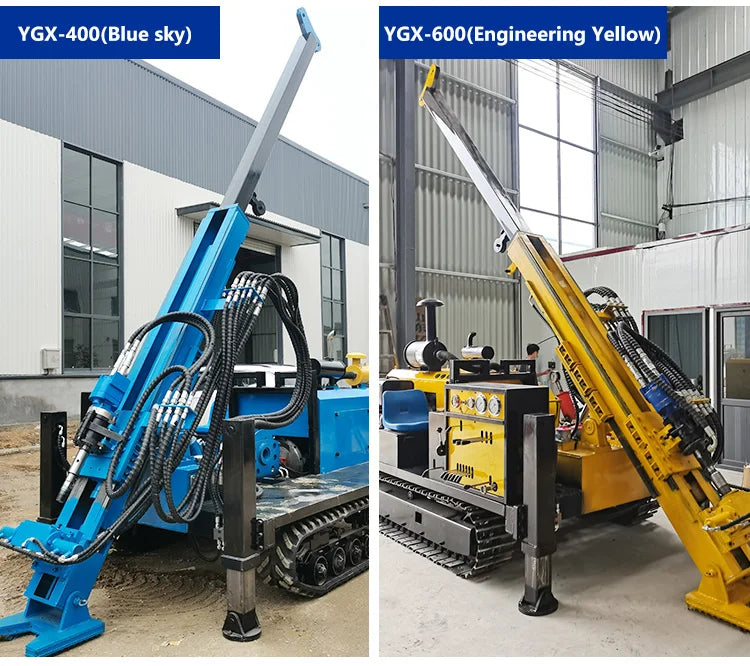

- 4 models: YGX-400, YGX-600, YGX-800, YGX-1000 — drilling depths 180m to 1,100m

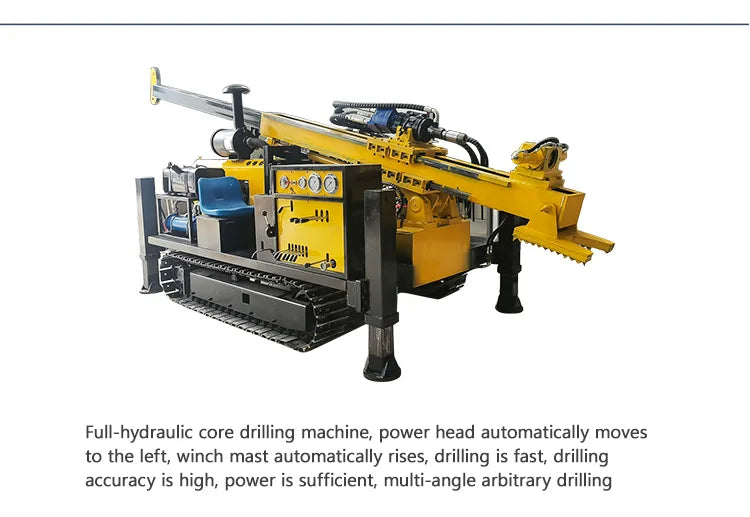

- Fully hydraulic system — 21–28 MPa rated pressure, up to 3,500 N·m torque, 1,300 RPM
- Yuchai or Cummins diesel engine — 78kW to 154kW
- HTW / NTW / BTW caliber compatibility
- 0–90° arbitrary drilling angle — touchdown integrated tower
- Crawler chassis with manual + remote control operation
- 45° climbing ability for complex terrain
- Air + water cooling for stable high-temperature operation
- Lifting force: 12T to 30T (model dependent)
- CE certified; factory inspection report provided
Model Overview

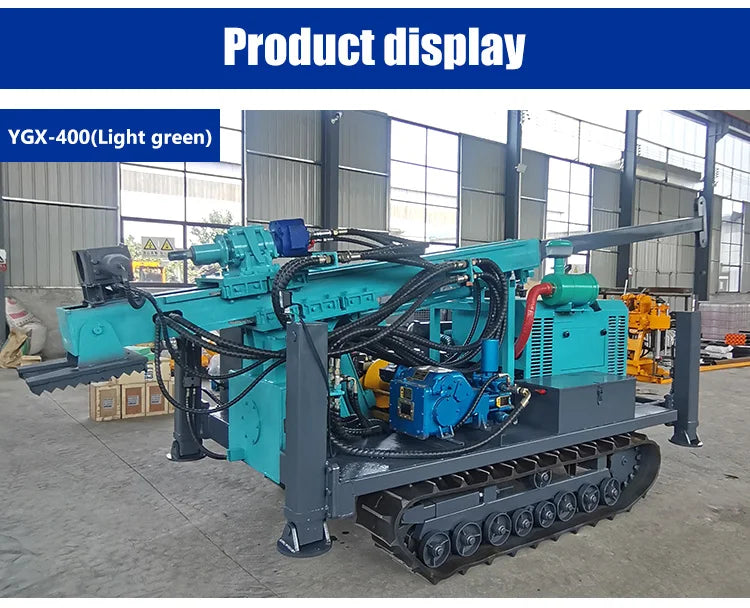

- YGX-400: Up to 400m depth

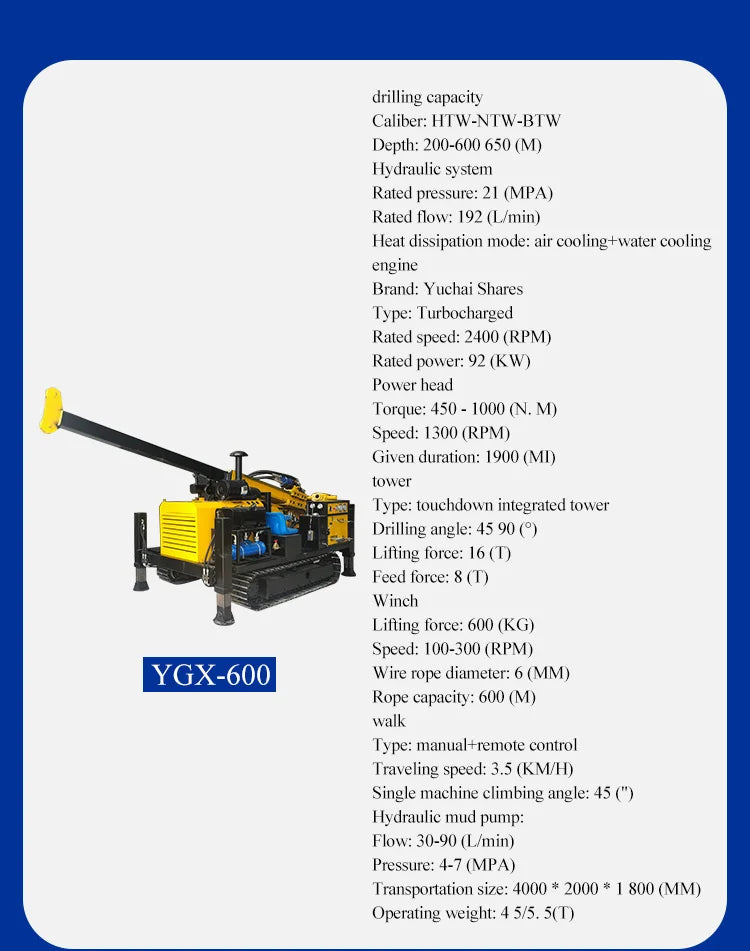

- YGX-600: Up to 600m depth

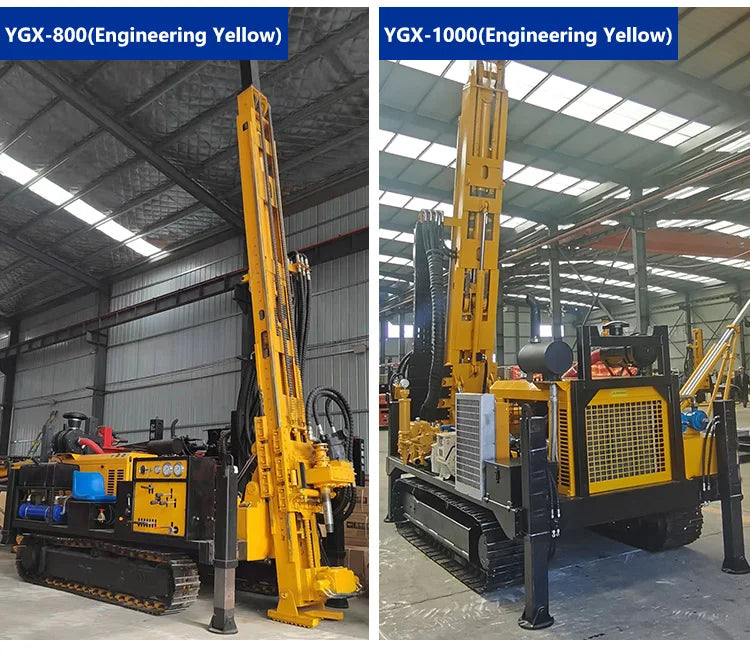

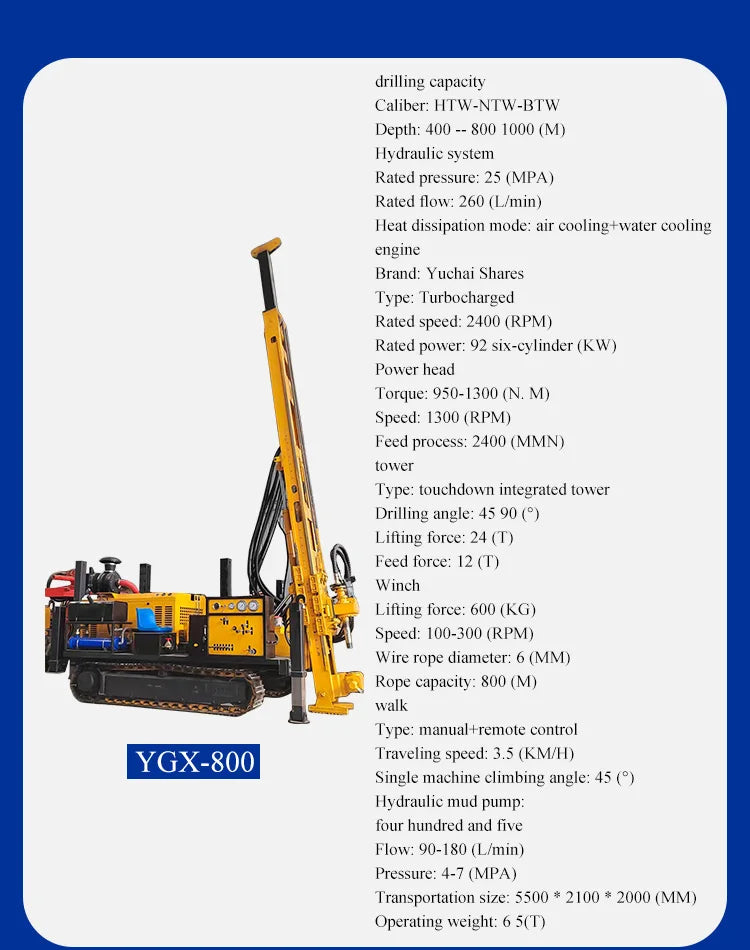

- YGX-800: Up to 800m depth

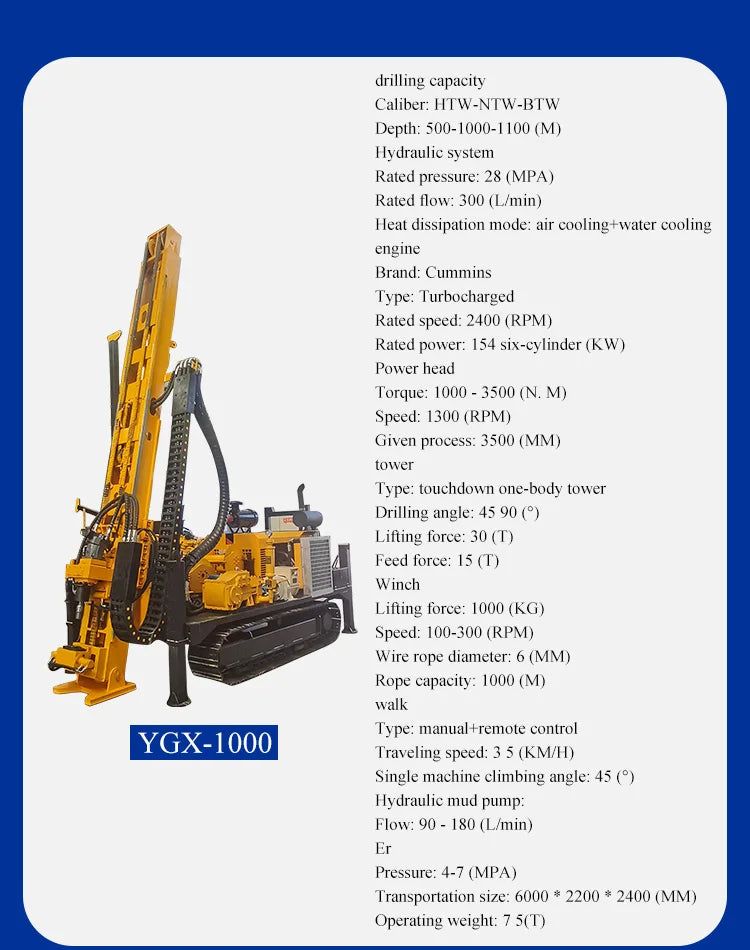

- YGX-1000: Up to 1,000m+ depth
Applications
- Mineral exploration and mining
- Geological prospecting
- Geotechnical investigation

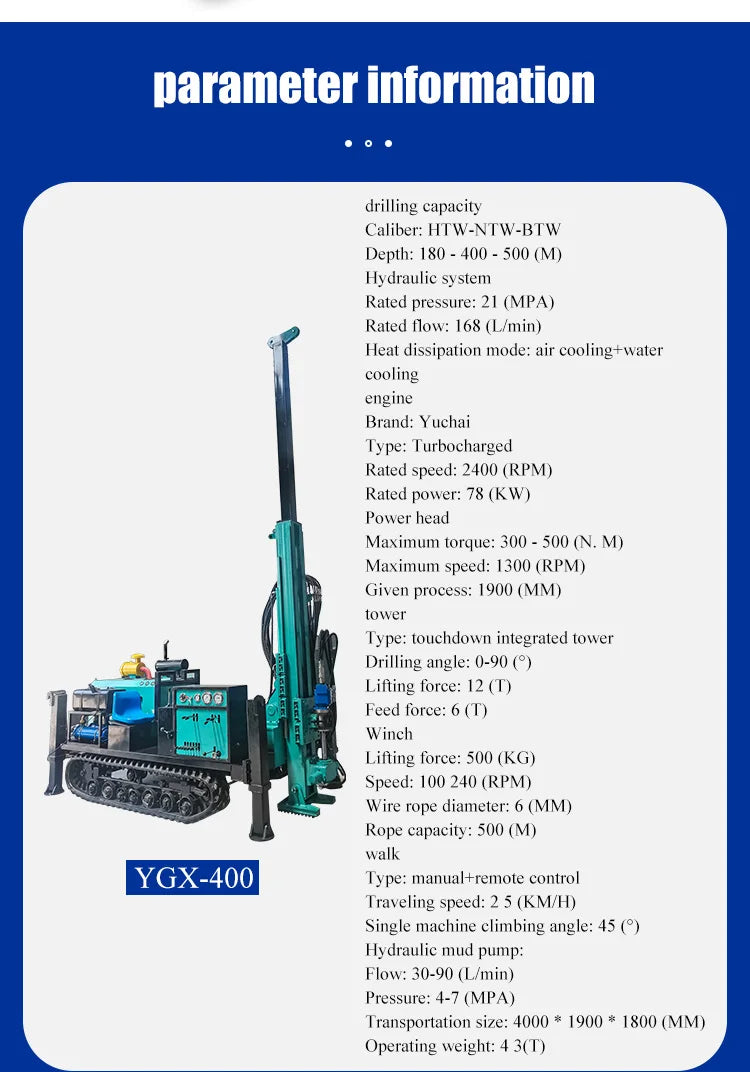

Specifications
- Drilling Depth: 180m – 1,100m (model dependent)
- Engine: Yuchai or Cummins Diesel, 78–154kW
- Hydraulic Pressure: 21–28 MPa
- Max Torque: 3,500 N·m
- Max Speed: 1,300 RPM
- Lifting Force: 12T – 30T
- Chassis: Rubber Crawler
- Certification: CE
