YG Truck-Mounted Water Well Drilling Rig — Up to 500m Depth, 42–115kW

YG Truck-Mounted Water Well Drilling Rig — Up to 500m, Impact & Rotary

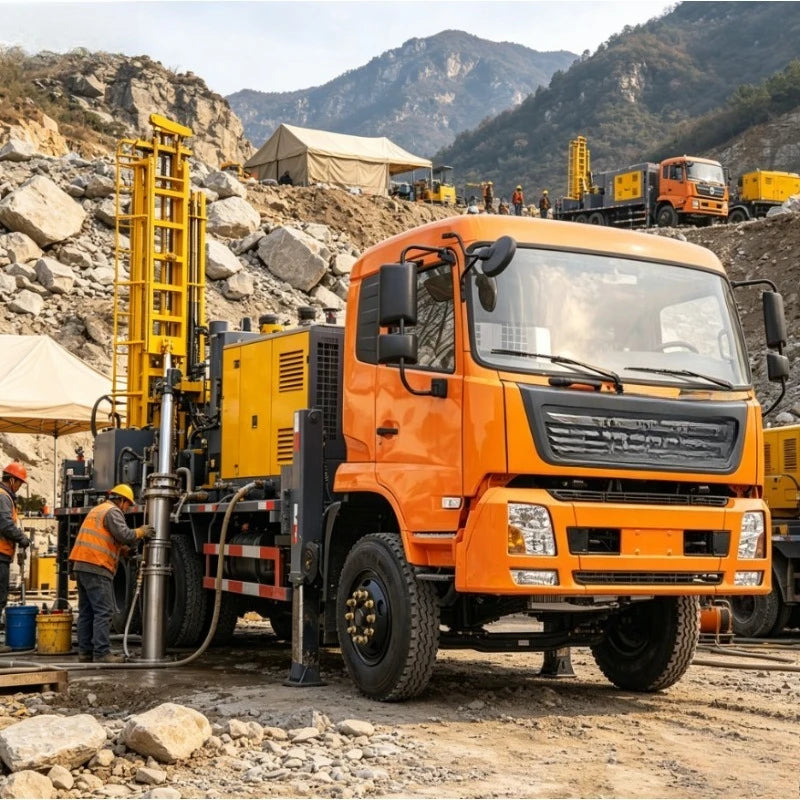

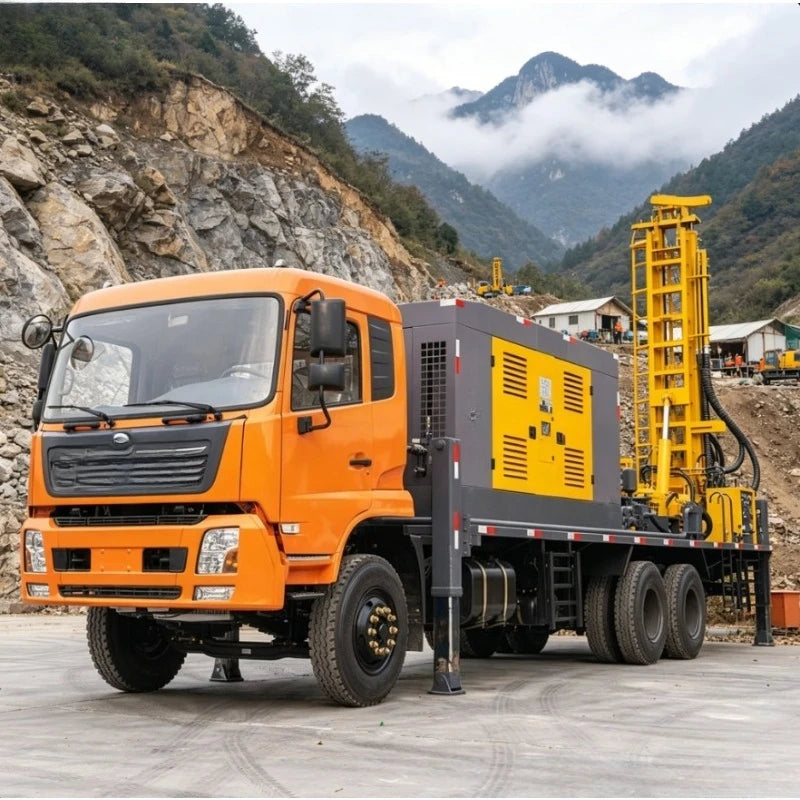

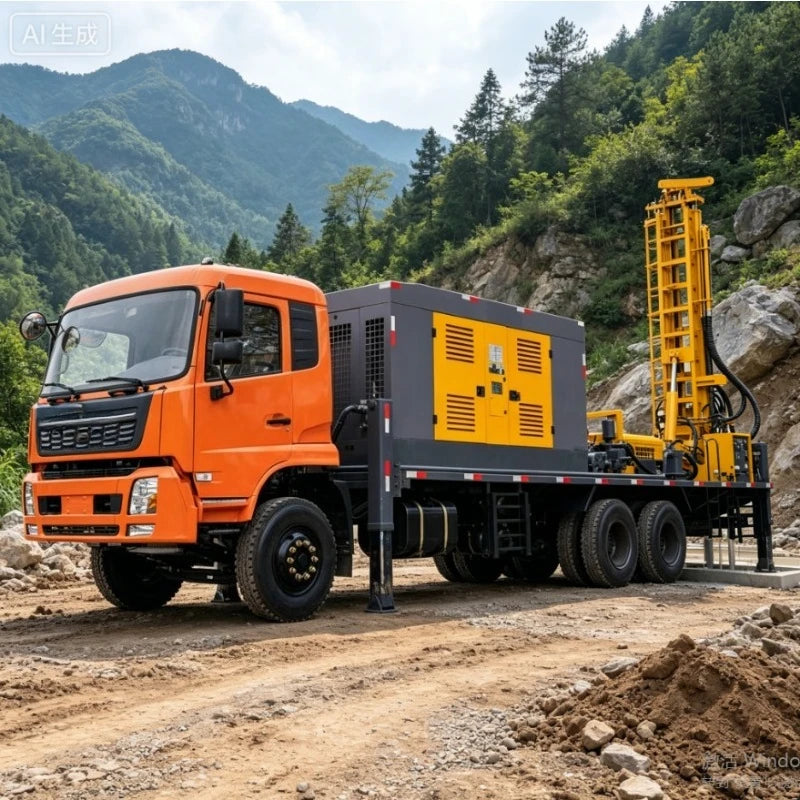

A heavy-duty truck-mounted water well drilling rig by YG, available in multiple power configurations (42kW to 115kW). Capable of drilling up to 500m depth with a 140–300mm borehole diameter. Suitable for water well, agricultural irrigation, and borehole projects across diverse geological conditions including rock. Yuchai diesel engine standard. 1-year warranty with machinery test report and video inspection provided. Ships by sea. Contact us for configuration and pricing before ordering.

Note: Listed price is a reference/deposit price. Final pricing depends on configuration and destination. Contact us for a formal quote before ordering.

Key Features

• Up to 500m drilling depth
• 140–300mm borehole diameter
• Impact and rotary drill types
• Yuchai diesel engine (42kW, 60kW, 76kW, 92kW, 105kW, 115kW options)
• Air consumption: 17–33m³/min
• Drill pipe: Ø76/89/102mm × 3m sections

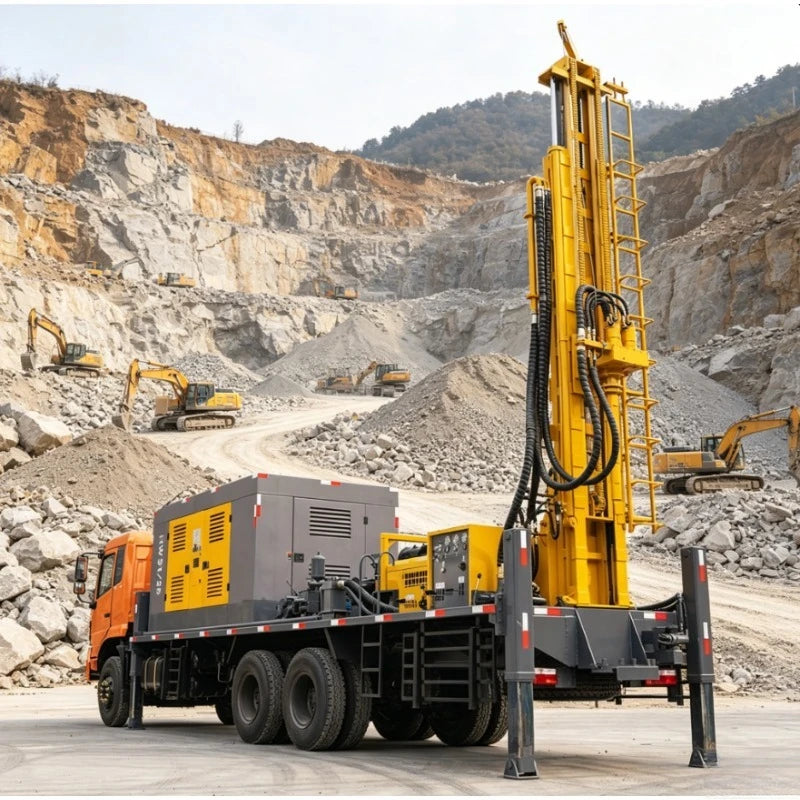

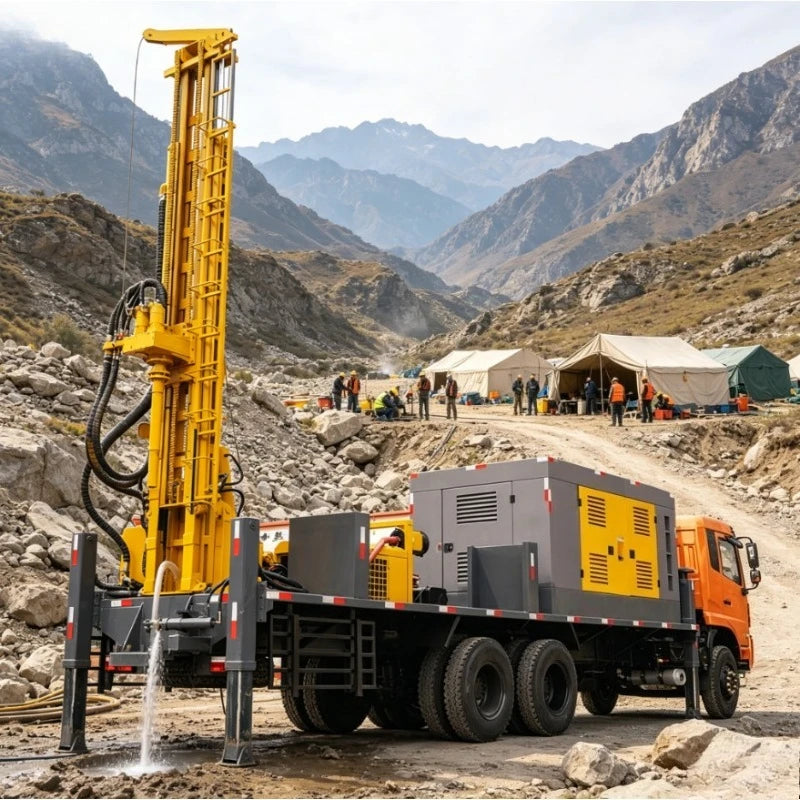

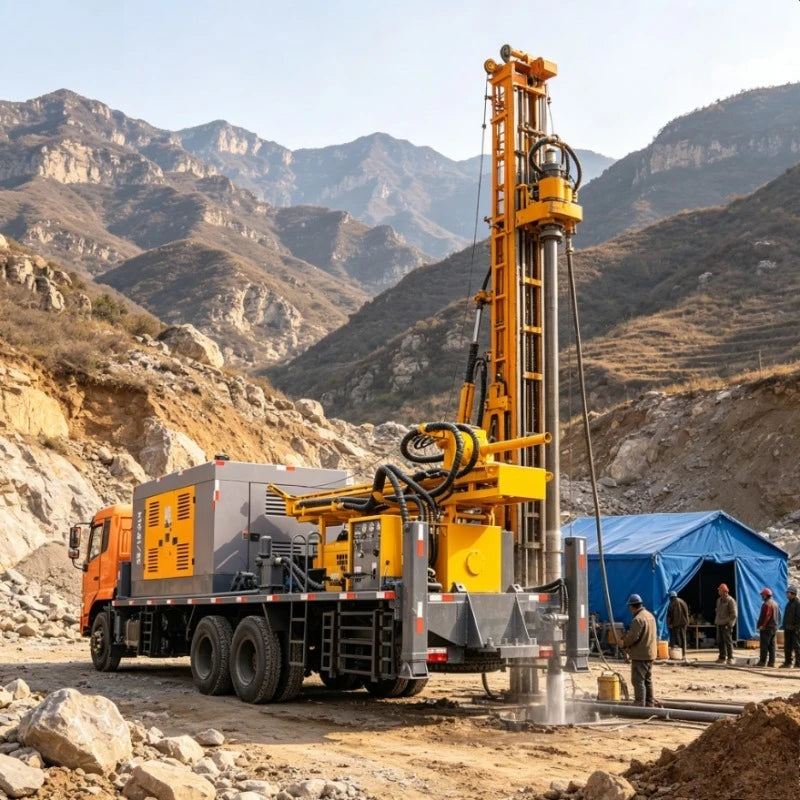

• Wheeled (truck-mounted) for easy site-to-site mobility
• 1-year warranty; machinery test report provided
• Customizable color and configuration

Specifications

• Brand: YG
• Type: Truck-Mounted, Impact/Rotary Drill
• Max Drilling Depth: 500m
• Drilling Diameter: 140–300mm
• Engine: Yuchai Diesel
• Power Options: 42kW / 60kW / 76kW / 92kW / 105kW / 115kW
• Air Consumption: 17–33 m³/min
• Drill Pipe: Ø76 / Ø89 / ×102mm, 3m sections
• Machine Weight: 8,000kg
• Dimensions (L×W×H): 8,500 x 2,550 x 6,200mm
• Mobility: Wheeled (truck-mounted)
• Warranty: 1 year
• Origin: Henan, China
