china Cheap 20ft 40ft 60 Ft 70ft 80ft prefab 2 3 bedrooms Shipping Homes Expandable tiny mobile Folding Foldable Container House
Regular price
$355.99
Sale price
$355.99
Regular price
$0.99
Unit price
china Cheap 20ft 40ft 60 Ft 70ft 80ft prefab 2 3 bedrooms Shipping Homes Expandable tiny mobile Folding Foldable Container House
Product description
Shipping & Return
SPECIFICATIONS
After-sale Service: Free Spare Parts
Application: Office,Dormitory | Student accommodation | sleepout | Office and Administrati
Brand Name: DINGRONG
Color: White or customized
Design Style: Modern
Door: steel security door
Feature: Breathable
Material: Steel
Model Number: container house
Place of Origin: Shandong, China
Product Type: container house
Shape: Square
Thickness: Standard
Type: steel
Use: Other
Warranty: 1 Year
bathroom and kitchen: can be added according to request
floor: MGO board
frame: galvanized steel+powder coating
roof: steel sandwich panel
size: 20ft 40ft 60 Ft 70ft 80ft
wall: steel sandwich panel
window: pvc sliding window

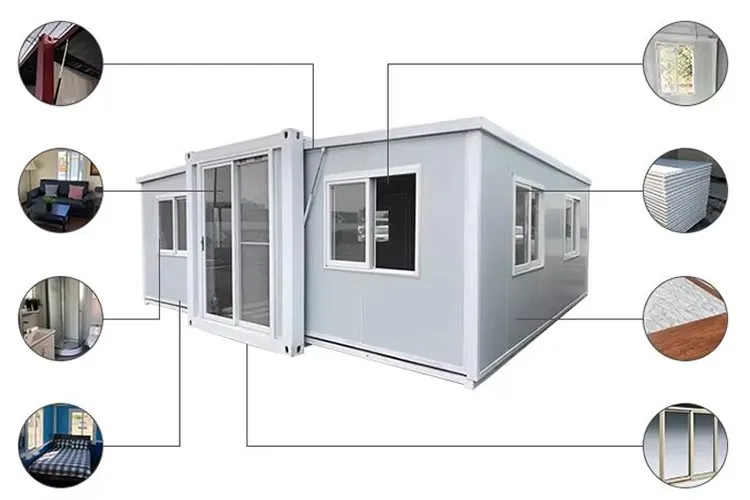

Product Description
Container Engineering ReportTechnical conditions
1.1 General Technical Condition
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site
category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal
earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
1.2 Materials
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
(1)Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
(2)Roof board
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
2.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site
category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal
earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
1.2 Materials
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
(1)Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
(2)Roof board
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
2.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
ITEM |
SPECIFICATION |
Option size |
openable size 11860mm*6062mm*2480mm Closed size: 11860mm*2250mm*2480mm) |
Main material |
Galvanized steel structure with sandwich panel wall and doors, windows, etc. |
Weight |
3500kg for 20ft |
Color |
White, blue, gray,brown, or customized |
Wall |
75mm thickness sandwich panel |
Roof |
steel sheet+75mm thickness sanwich panel |
door |
aluminum glass door or steel security door |
Window |
Pvc or aluminum window |

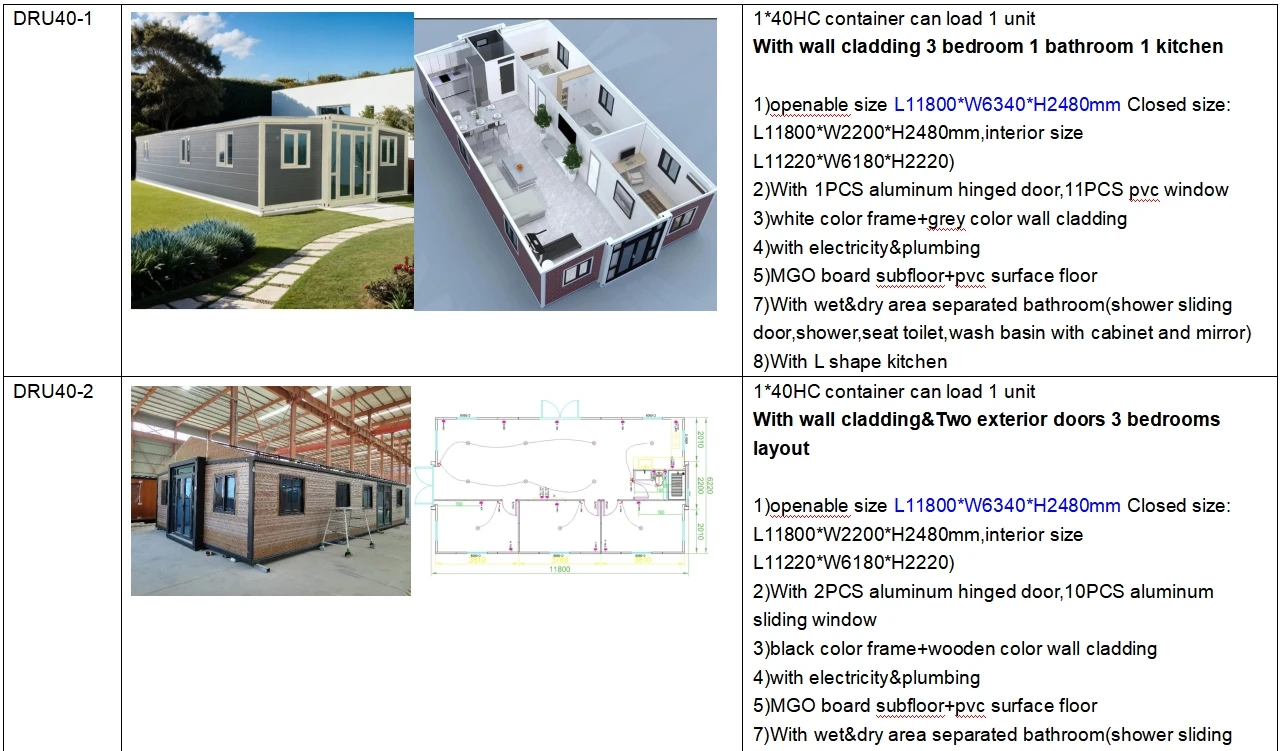

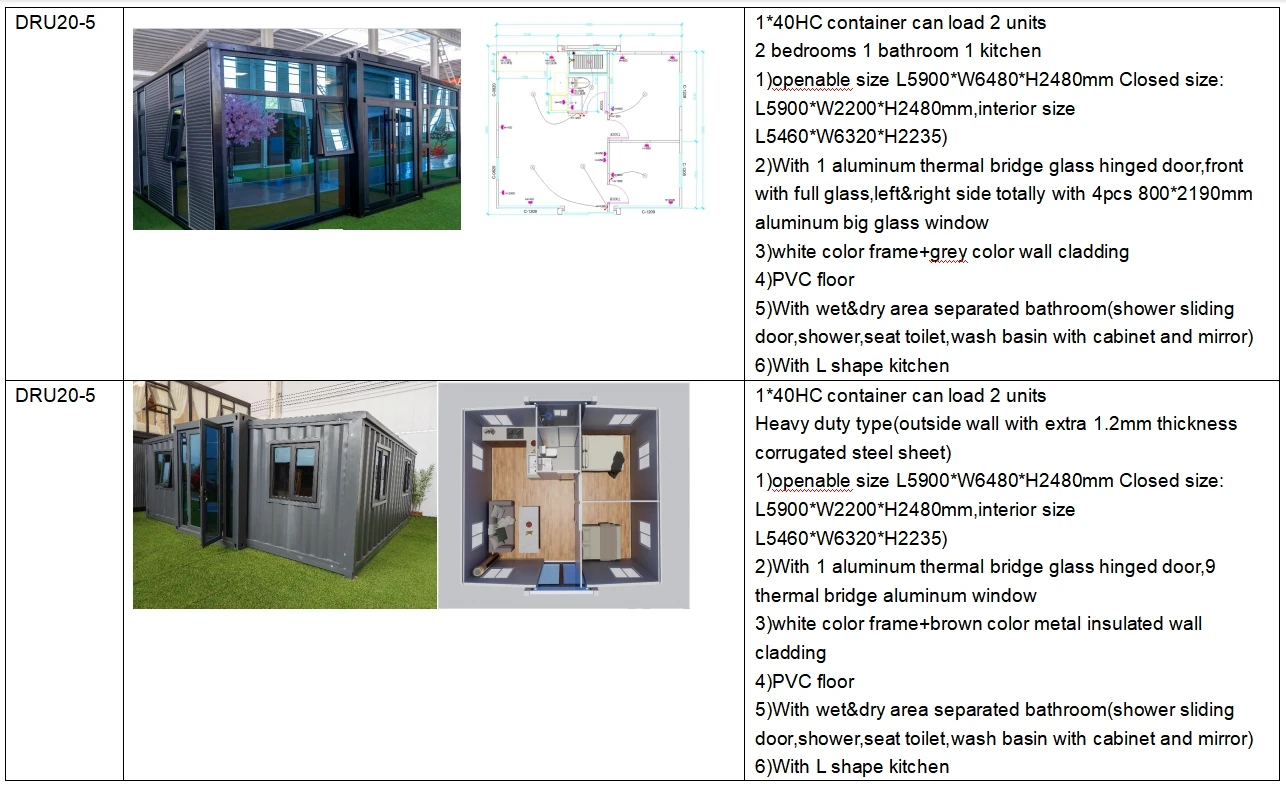

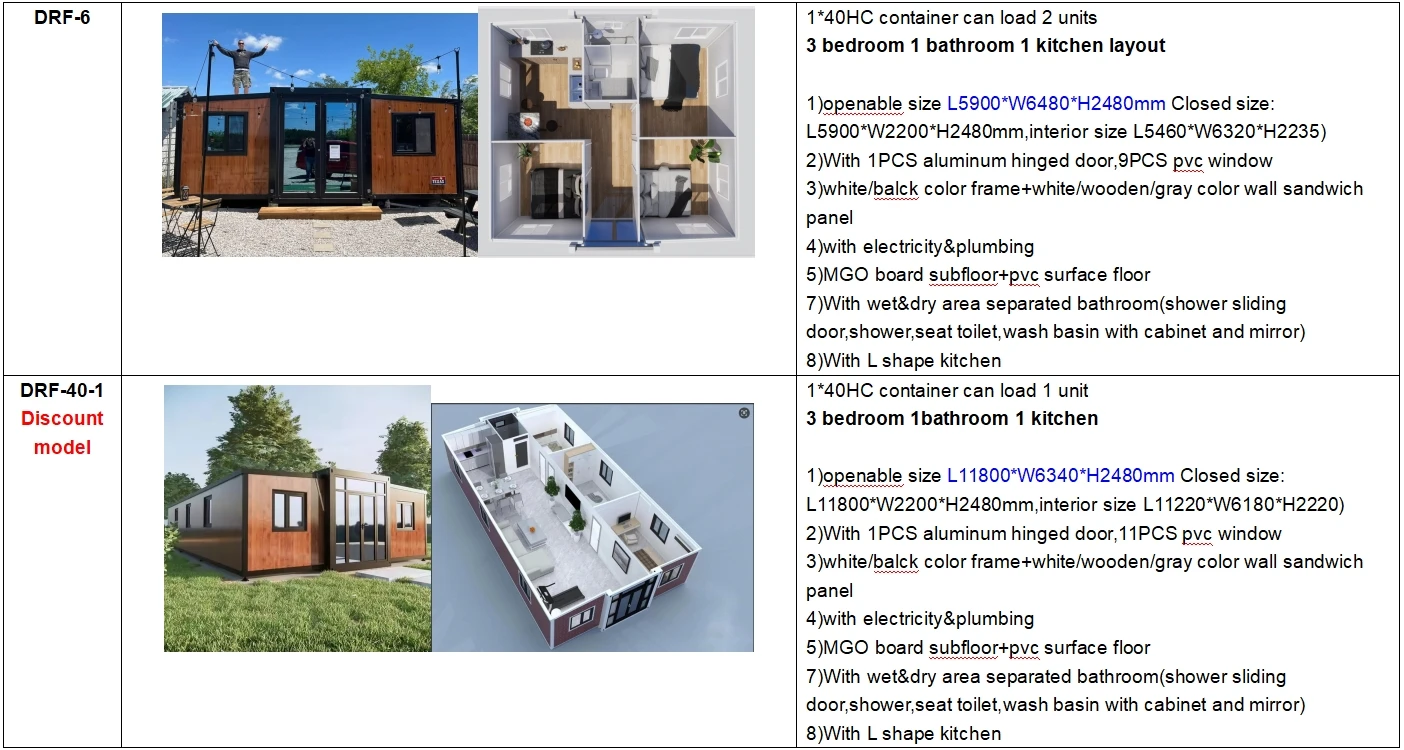

Our Models

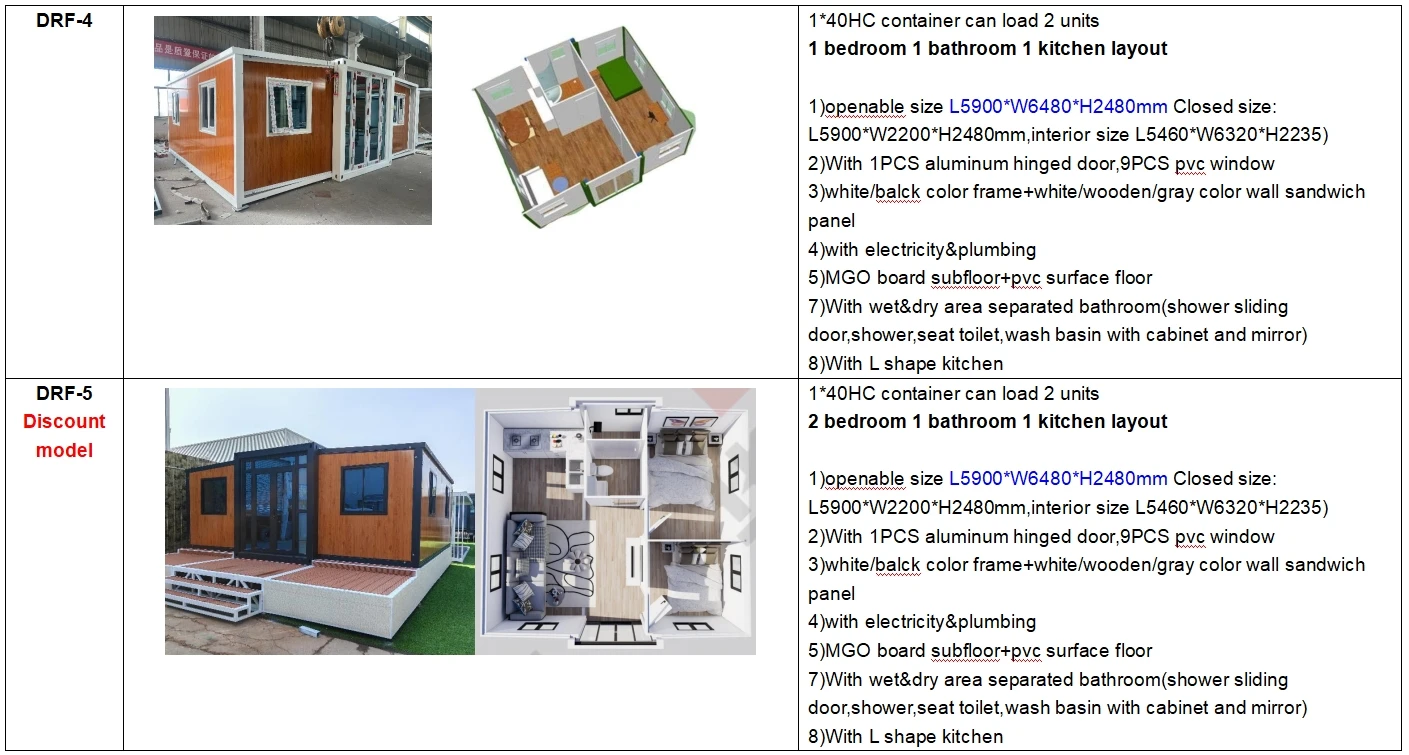

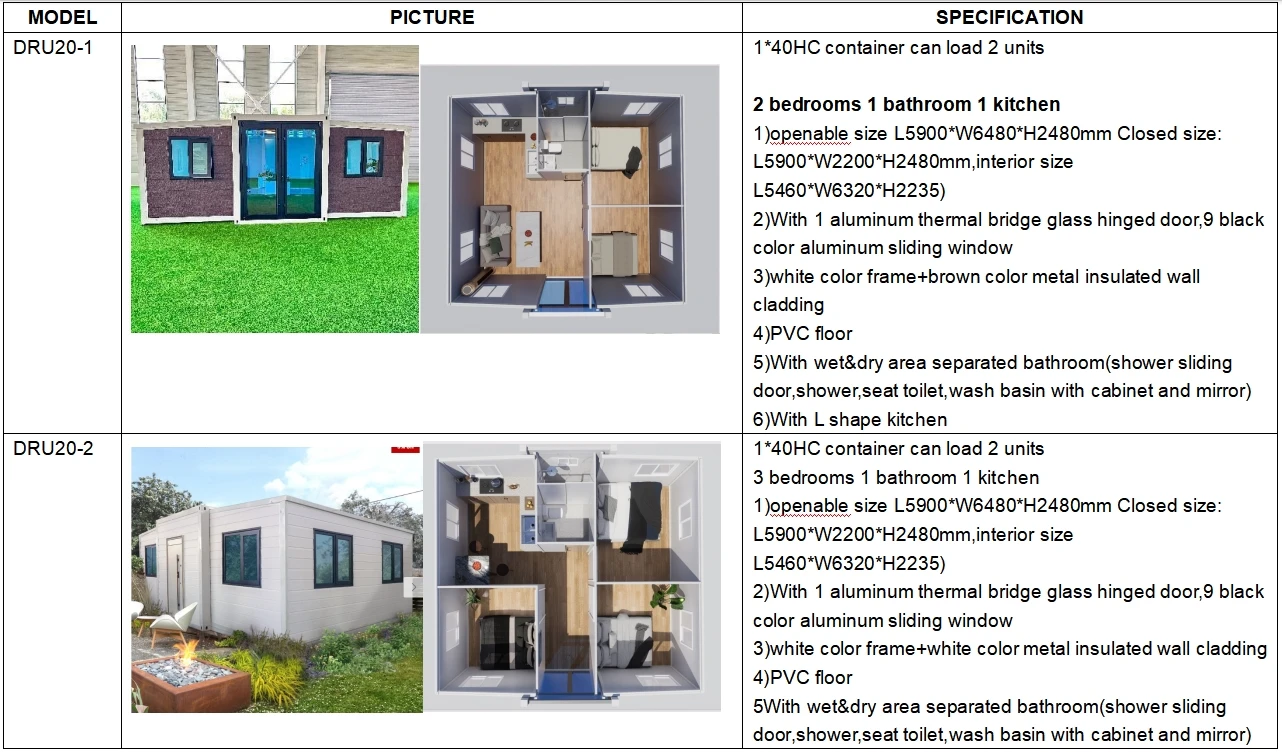

Common standard models
just standard sandwich panel without any wall cladding

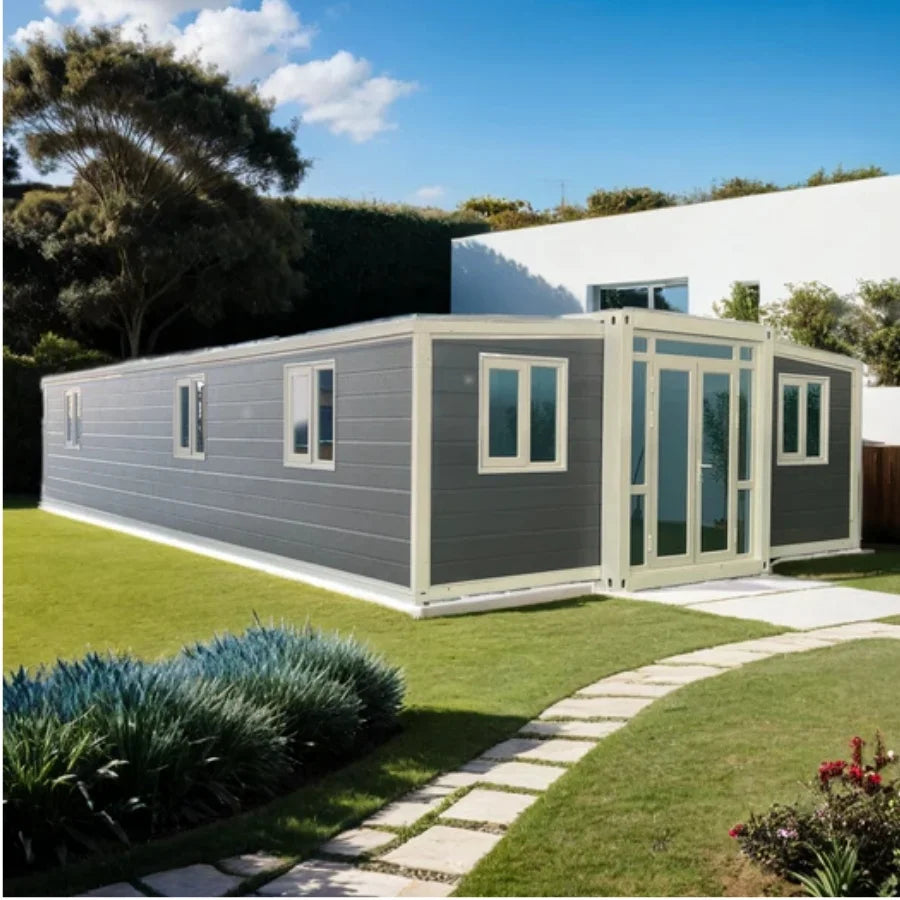

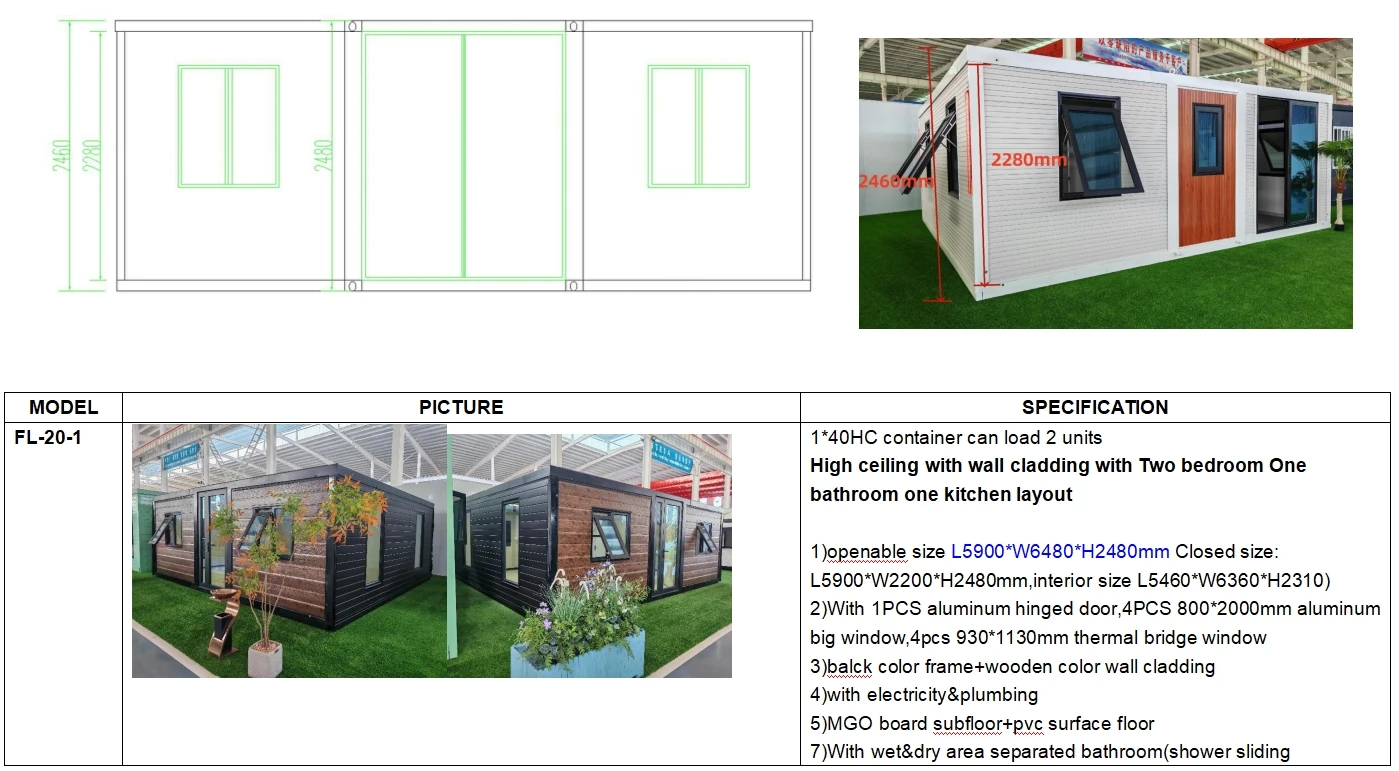

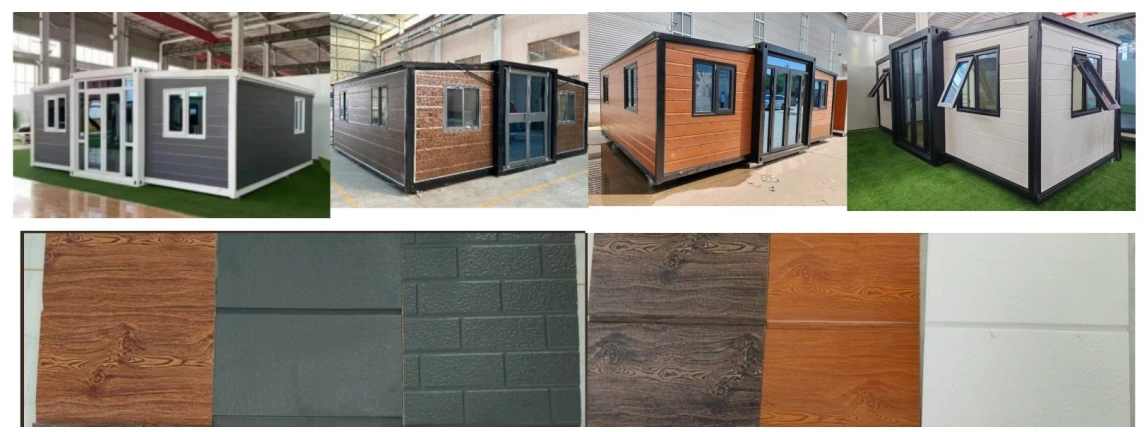

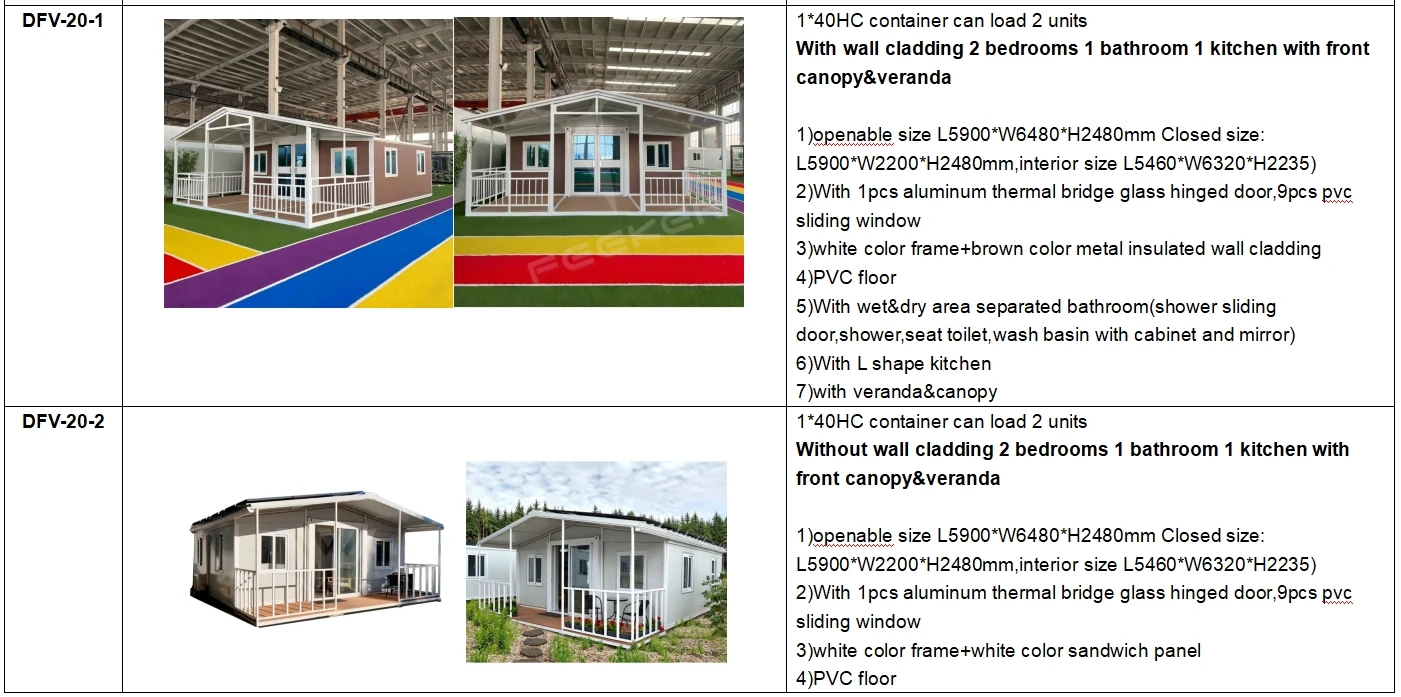

MODELS WITH WALL CLADDING AND GLASS WALL
we can add metal insulated wall cladding on outside wall to make it look modern

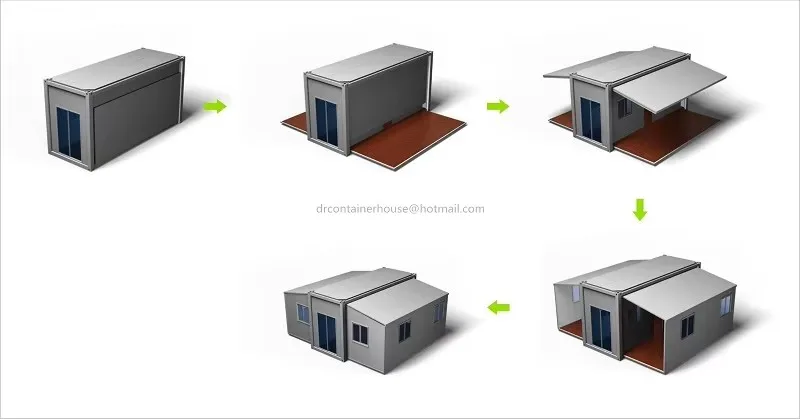

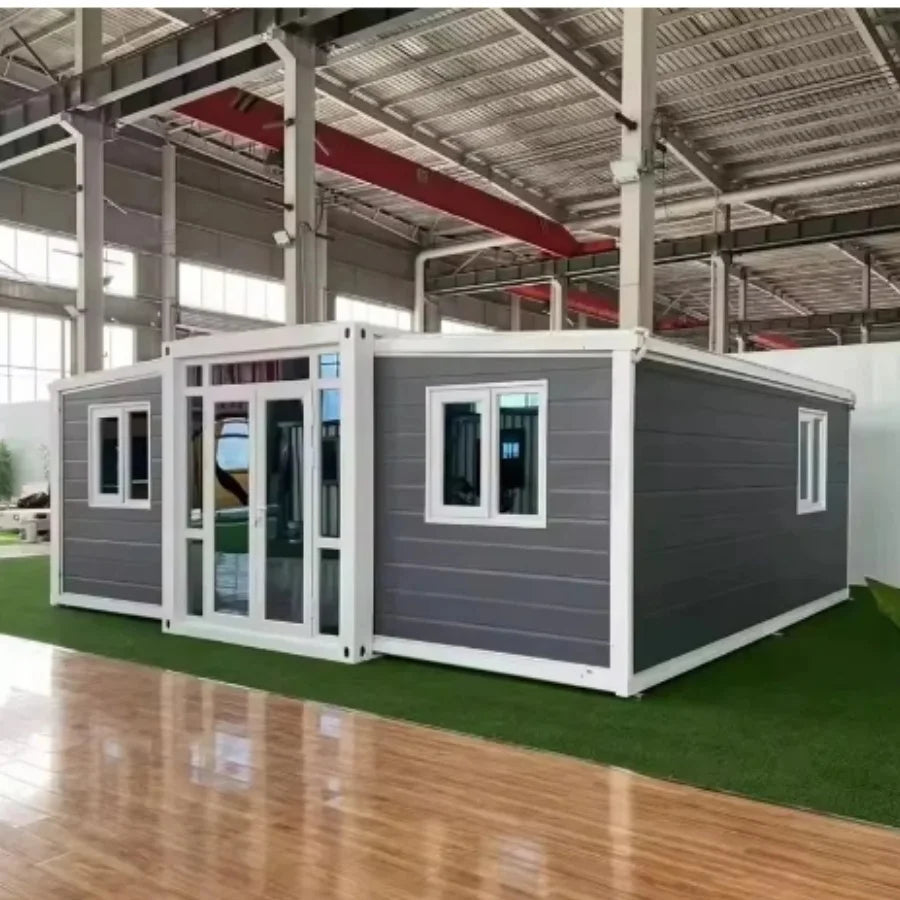

Flat roof expandable container house
this design can make higher ceiling height for two sides,and it can be stacked 2 levels

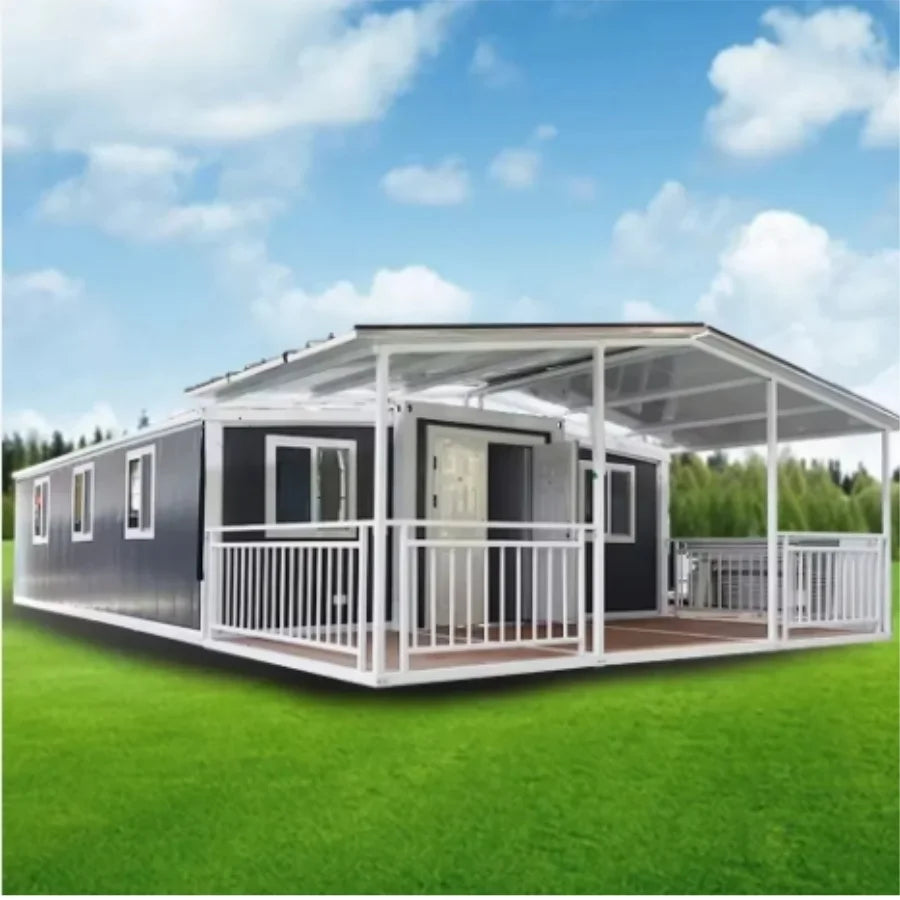

Models with veranda,canopy

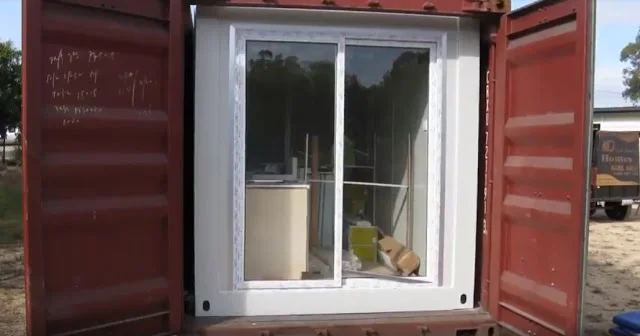

Packing & Delivery
package for full container(FCL) order.
we will wrape the expandable container house by plastic steel then push it inside the shipping container

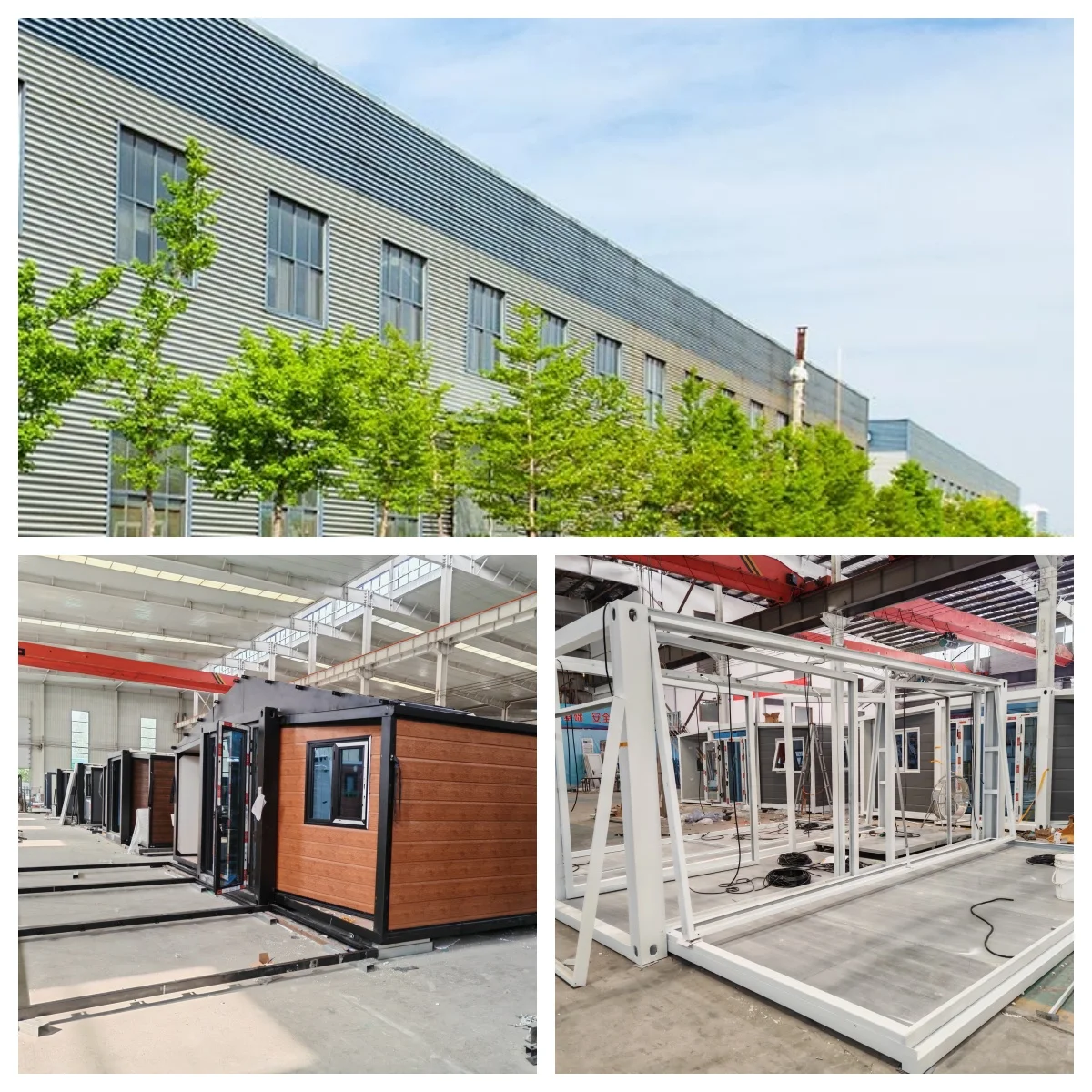

Company Profile
LAIZHOU DINGRONG STEEL STRUCTURE CO.,LTD.
Laizhou Dingrong Steel Structure Co., Ltd. is located in Laizhou city, Shandong province, China, which is specialized in
developing and manufacturing all sorts of modular shipping container homes since established. It has cultivated a group of
high-quality professional technicians and an on-site installation team, providing all-dimensional services for global customers
with an enterprising and pragmatic attitude. From the container house project conception, design, manufacture, construction to
installation, we will do the best of our ability to provide the most scientific, reasonable, and effective modern container house
solution for our customers.
We have the most advanced manufacturing facilities of the container house, our self-developed products including flat pack
container house, collapsible container house, folding container house, expandable container house, pitched roof collapsible
container house, etc. DINGRONG is committed to providing first-class quality and efficient pre-sale and after-sale services, which
has taken good reputations from our customers around the world, such as Australia, New Zealand, USA, Canada, Chile, UK, Thailand,
South Sudan, South Africa, Germany, United Arab Emirates, Saudi Arabia, Iraq, Maldives, Vietnam, Philippines, Malaysia and Peru,
Papua New Guinea, etc. Our container houses are 100% for export, so we are with a rich experience for the regulations of container
house solutions in different countries.
developing and manufacturing all sorts of modular shipping container homes since established. It has cultivated a group of
high-quality professional technicians and an on-site installation team, providing all-dimensional services for global customers
with an enterprising and pragmatic attitude. From the container house project conception, design, manufacture, construction to
installation, we will do the best of our ability to provide the most scientific, reasonable, and effective modern container house
solution for our customers.
We have the most advanced manufacturing facilities of the container house, our self-developed products including flat pack
container house, collapsible container house, folding container house, expandable container house, pitched roof collapsible
container house, etc. DINGRONG is committed to providing first-class quality and efficient pre-sale and after-sale services, which
has taken good reputations from our customers around the world, such as Australia, New Zealand, USA, Canada, Chile, UK, Thailand,
South Sudan, South Africa, Germany, United Arab Emirates, Saudi Arabia, Iraq, Maldives, Vietnam, Philippines, Malaysia and Peru,
Papua New Guinea, etc. Our container houses are 100% for export, so we are with a rich experience for the regulations of container
house solutions in different countries.
PROJECT CASES

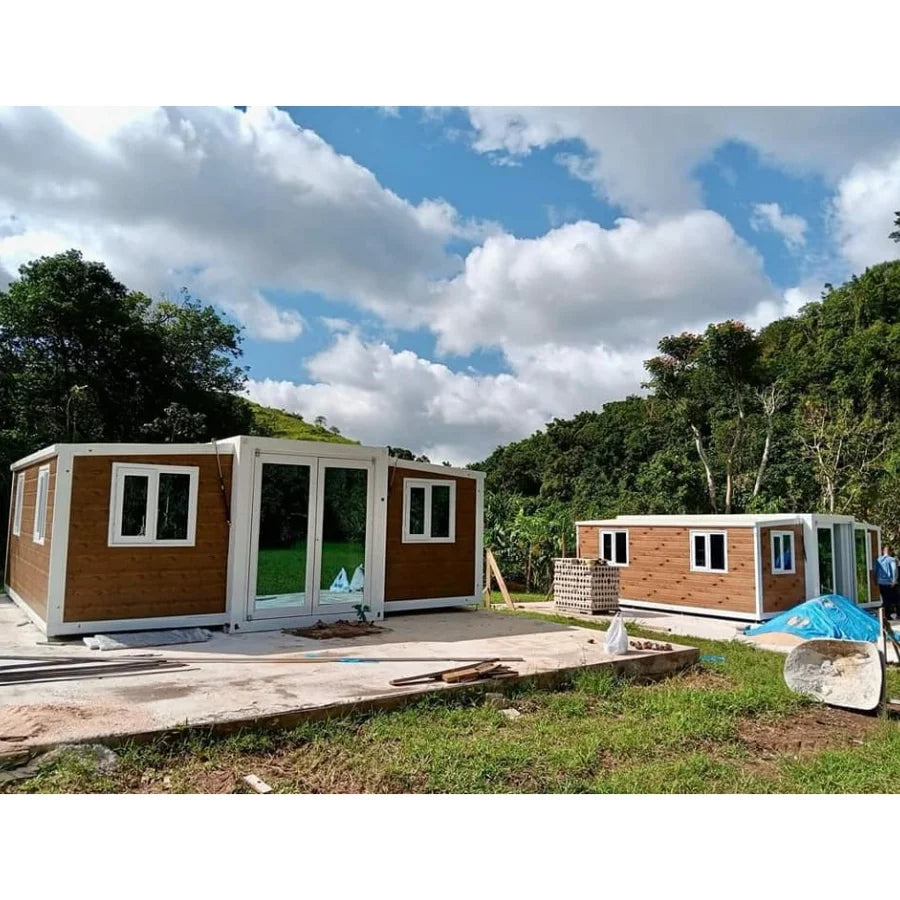

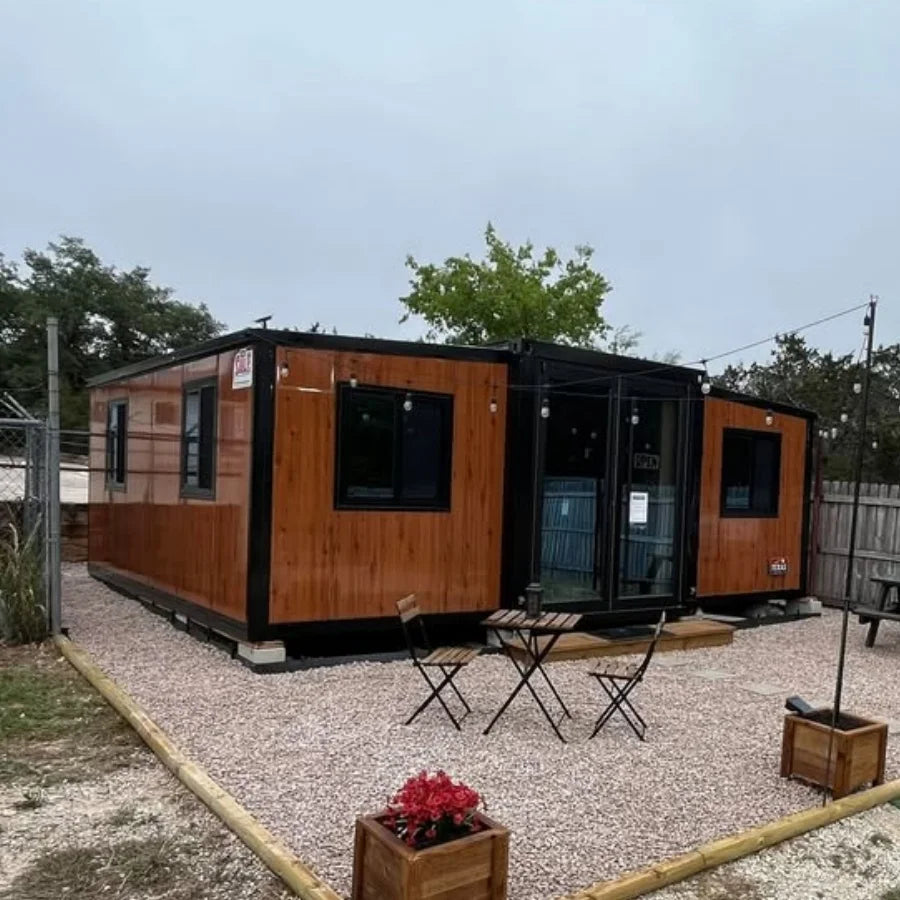

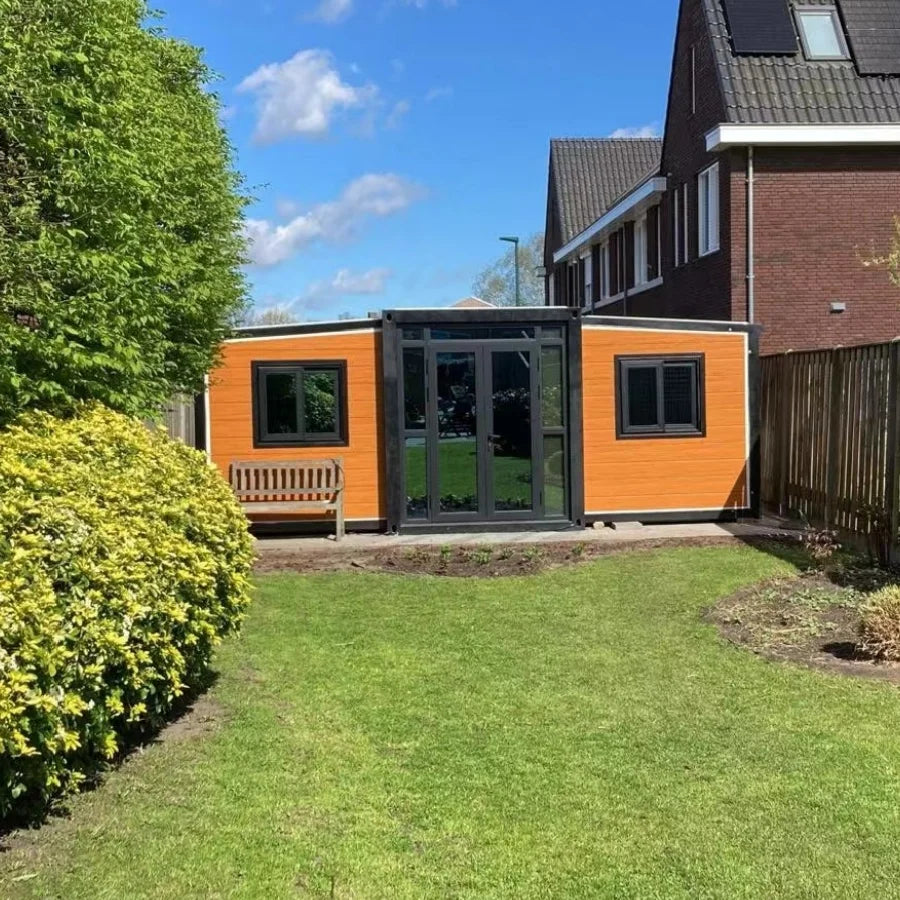

CUSTOMER PHOTOS
FAQ
1. who are we?
We are based in Shandong, China, start from 2017,sell to Oceania(27.00%),Western Europe(11.00%),Southeast Asia(10.00%),North America(8.00%),South America(8.00%),Central America(8.00%),Africa(8.00%),Southern Europe(6.00%),Eastern Asia(3.00%),Mid East(3.00%),Eastern Europe(2.00%),Domestic Market(2.00%),Northern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flat Pack Container House/Collapsible Container House/Folding Container House/Expandable Container House/Pitched Roof Collapsible Container House
4. why should you buy from us not from other suppliers?
covering an production area of 130,000 square meter,with more than 110 senior engineer in head office. They use software: Auto CAD,PKPM, 3D3S, Tekla Structures(Xsteel)V12.0.etc.provide design,manufacture,installation one-stop service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
We are based in Shandong, China, start from 2017,sell to Oceania(27.00%),Western Europe(11.00%),Southeast Asia(10.00%),North America(8.00%),South America(8.00%),Central America(8.00%),Africa(8.00%),Southern Europe(6.00%),Eastern Asia(3.00%),Mid East(3.00%),Eastern Europe(2.00%),Domestic Market(2.00%),Northern Europe(1.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Flat Pack Container House/Collapsible Container House/Folding Container House/Expandable Container House/Pitched Roof Collapsible Container House
4. why should you buy from us not from other suppliers?
covering an production area of 130,000 square meter,with more than 110 senior engineer in head office. They use software: Auto CAD,PKPM, 3D3S, Tekla Structures(Xsteel)V12.0.etc.provide design,manufacture,installation one-stop service.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
