SPECIFICATIONS

After-sale Service: Other,Onsite Inspection,Free Spare Parts,Onsite Installation

Application: Shop,Carport,tool shed,guard house,storage house,Hotel

Application 2: Container Shelter

Brand Name: 5

Color: Customized Color

Design Style: Modern

Installation: Engineers Guidance

Material: Steel

Model Number: T1 T2 T3 T4

Place of Origin: Anhui, China

Product Type: Container Houses

Product name: Metal Carport

Project Solution Capability: Graphic

Sail Material: Car Parking Frame Garage

Size: Customized Size

Solar Battery Type: Lithium Battery

Style: High-quality

Usage: Construction

Use: Warehouse

Warranty: 4 Years

Window: Aluminum Alloy Window

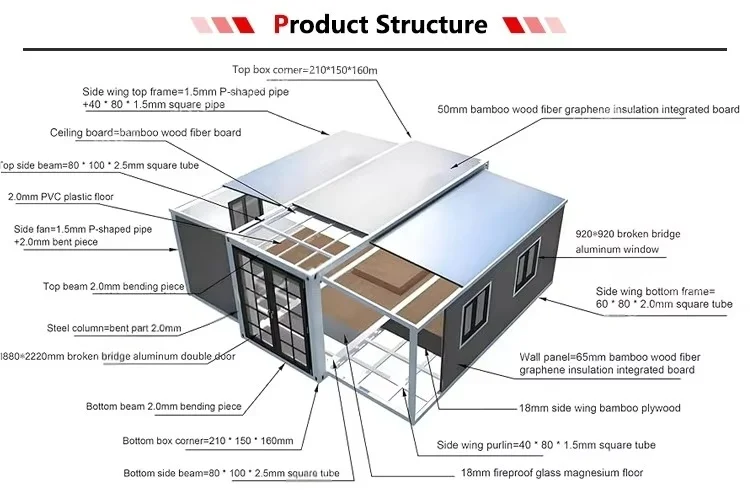

构件部分 Component parts	材料名称 Name of material	规格型号 Specification（mm）	备注 Note
基本尺寸 Basic dimension	外部尺寸 Outer dimensions	5900*2480*2510
		内部尺寸 Inside dimensions	5740*2360*2390
		折叠尺寸 Folded Size	5900*2480*360
底部框架 Bottom frame	Q235方管 Q235 square tube	60*140*1.3
		Q235方管 Q235 square tube	60*80*1.3
		Q235方管 Q235 square tube	40*40*1.2
顶部框架 Top frame	Q235方管 Q235 square tube	40*80*1.3	异型方管 Shaped square tube
		Q235方管 Q235 square tube	60*60*1.3
		Q235方管 Q235 square tube	40*40*1.2
		Q235方管 Q235 square tube	20*20*1.2
3m/6m侧立面（异 型钢） 3m/6m side elevation (profiled steel)	Q235方管 Q235 square tube	50*70*1.2	异型方管 Shaped square tube
板材 Sheets	地板 Floor	2855*1177*15	防火玻镁板 Fireproof glass-magnesium board
		防水顶板 Waterproof roof	2520*1000*0.35	压型彩钢板 Pressure moulded colour steel plate
		吊顶板 Suspended ceiling plate	2340*1000*0.25	压型彩钢板 Pressure moulded colour steel plate

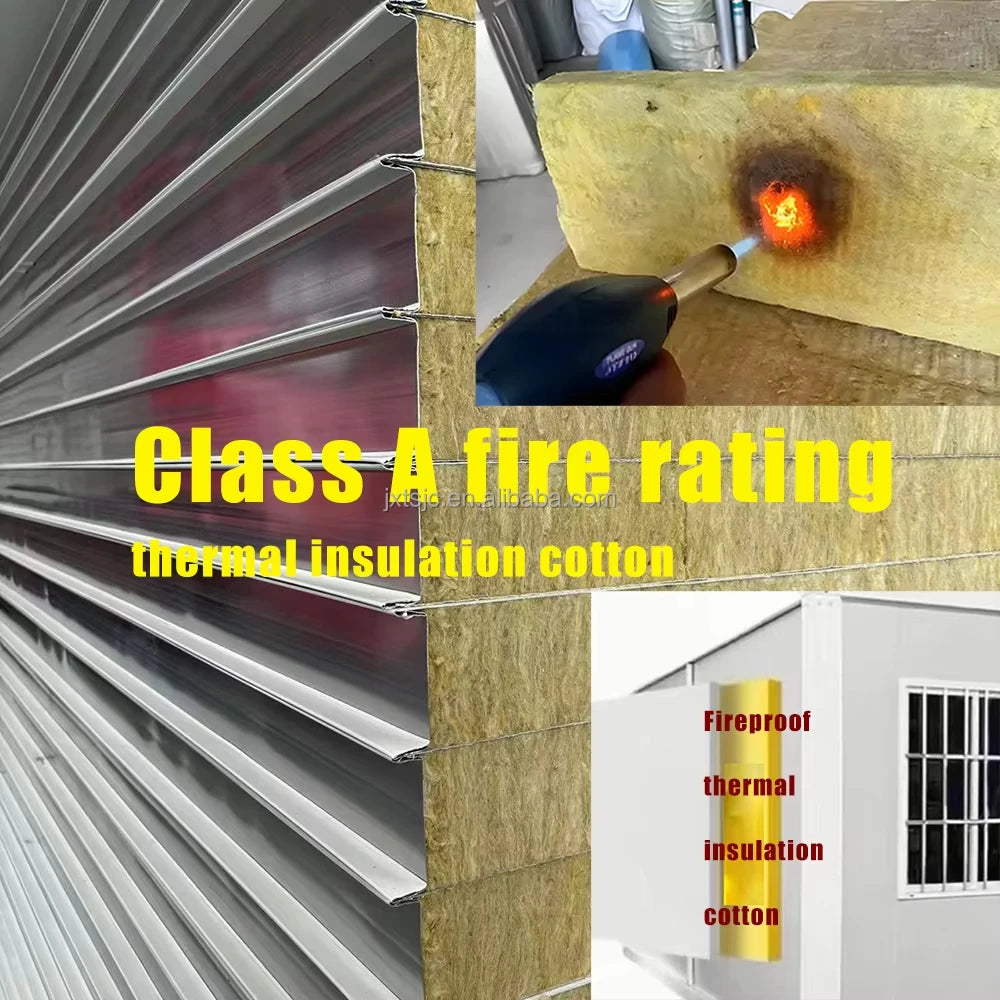

		彩钢板 Colour steel plate	1150*65/50*0.25	50mm/65mm厚EPS复合板/岩棉板 50mm/65mm thick EPS composite panel/rock wool panel
		EPS	12kg/m³	保温防火 Insulation and fireproof
		玄武棉 Basalt cotton	60kg/m³	保温防火棉 Insulation and fireproof cotton
配件 Accessory	防盗门 Entrance door (for apartment)	970*1970	钢制门 Steel door
	塑钢窗 Moulded window	970*970	单玻、纱窗、护栏 Single-glazed, screened windows, guardrails
电路 Eletrical equipment	电器布线 ，严格按照防潮规范安装。根据电路工程规范连接电路 ，室内 ：进线4²国标软铜线插座 进线2.5² Electrical wiring, installed in strict accordance with the norms of moisture protection. Connect circuits according to circuit engineering specifications, indoor: incoming 4² national standard soft copper wire socket incoming 2.5²
电灯控制开关 Light control switch	3个插座 ，面板开关一个 3 sockets, one panel switch
灯 Light	灯座一个 ，节能灯一个 One lamp holder, one energy-saving lamp
断路器 Interrupter	高分段小型断路器 ，配漏电开关 High sectional miniature circuit breakers with earth leakage switches

1. A: Do you offer on-site installation services? B: We provide very detailed installation diagrams and videos for each project. For large projects, we will arrange installation workers and on-site supervisors. The cost of on-site services needs to be negotiated with the client.

2. A: How long is your delivery time? B: Usually, the goods will be delivered within 15 days after receiving the deposit. For large orders, the delivery time needs to be negotiated.

3. A: How do you control the quality of your products? B. Design quality: Anticipate potential problems and provide high-quality design solutions. b. Raw material quality: Select qualified raw materials. c. Production quality: Precise manufacturing processes, experienced workers, and strict quality inspections.

4. A: What designs do you have for different climates (how do your products adapt to different climates)? B: High wind areas: Enhance the wind resistance of the internal structure. Cold areas: Increase the thickness of the walls or use good insulation materials to improve the structural compressive strength. High corrosion areas: Use corrosion-resistant materials or apply anti-corrosion coatings.
