SPECIFICATIONS

After-sales Service Provided: Video Technical Support

Air volume: 1300 cubic meter/min

Blade Diameter: 2m

Blade Material: Aluminum and magnesium alloy

Control Method: Touch

Effective area: 300㎡

Fan Diameter: 2M

G.W.: 193kg

Long distance: 40m

Max rotating speed: 300RPM

Mounting: Free Standing

No. of fan blades: 6

Noise: 39db

Noise Level: 39db

Number of blade: 6PCS

Protection: IP55

Voltage: 220 V,380 V,110 V

blade material: Aluminum Alloy

brand name: TOPFAN

core components: Motor

customized support: OEM,ODM

model number: TOPMF-200

place of origin: Fujian, China

speed: 300RPM

warranty: 3 Years

Product Description

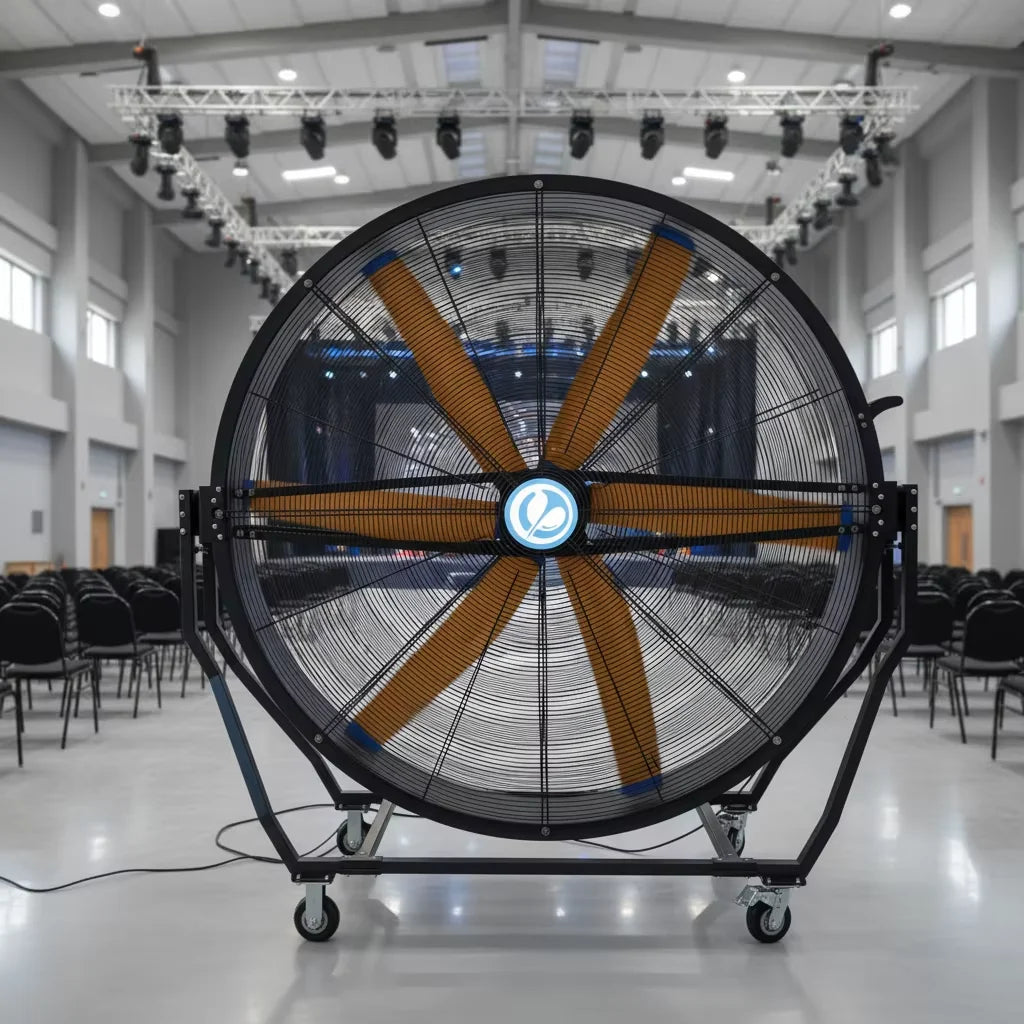

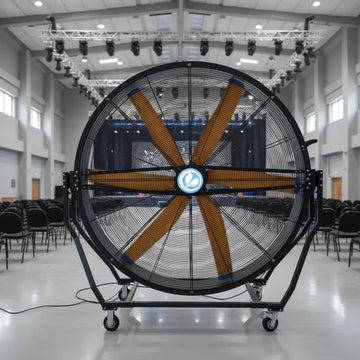

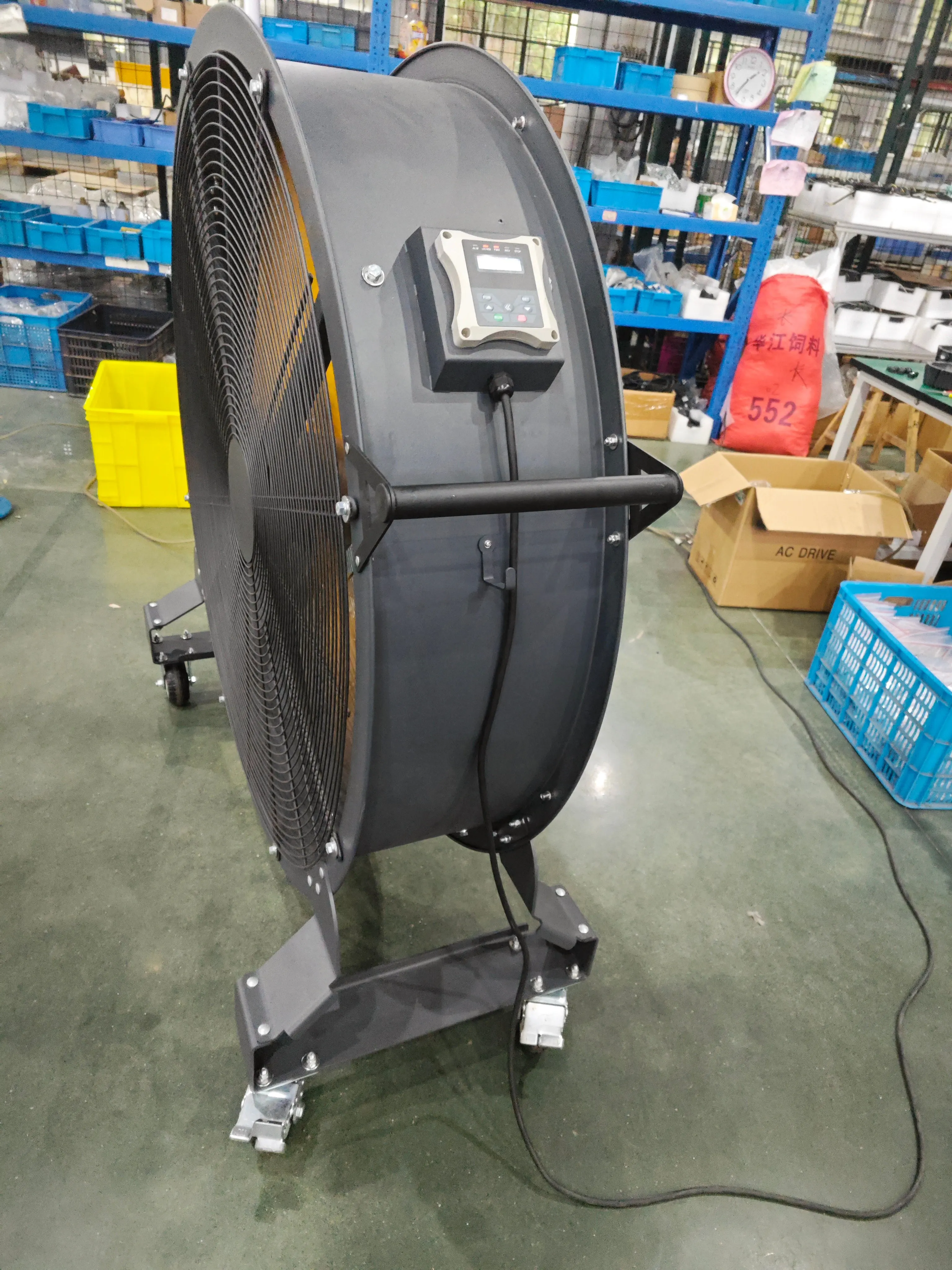

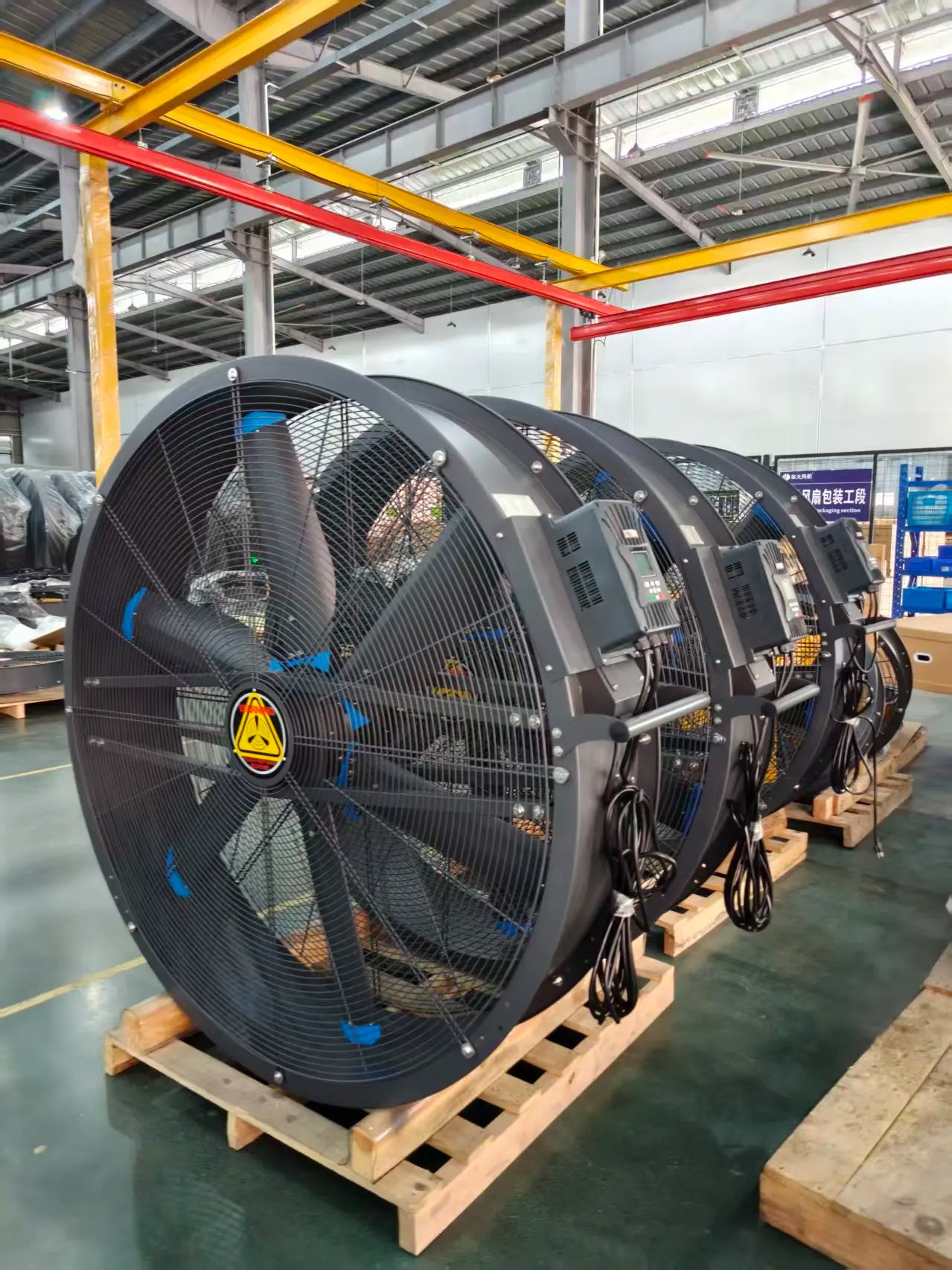

Large movable fan with low noise,small volume,light weight and beautiful appearance

The PM VFD movable fan is a new product specially developedfor improving the comfort of working environment.Self-designed variablefrequency speed control,high efficiency and energy saving permanent magnetexternal rotor motor drive.It has the advantages of low noise,small volume,light weight,compact structure and beautiful appearance.

FAQ

Q: Do your products have certification certificates?

A: Yes, we can provide products with CE, ROHS, and EMC certifications and so on.

Q: How is the performance of your products?
A: Our products feature high airflow, energy-saving frequency conversion, and low noise.

Q: How long is the delivery time?
A: Normally 7-10 working days.

Q: How long is the warranty?
A: We offer 3 years warranty to guarantee the quality. Most importantly, its service life is above 20 years.

Q: Can you provide customization services?
A: We offer ODM and OEM customization services.

Q: What after-sales services do you provide?
A: We provide a 3-year warranty, along with free spare parts and online technical support.

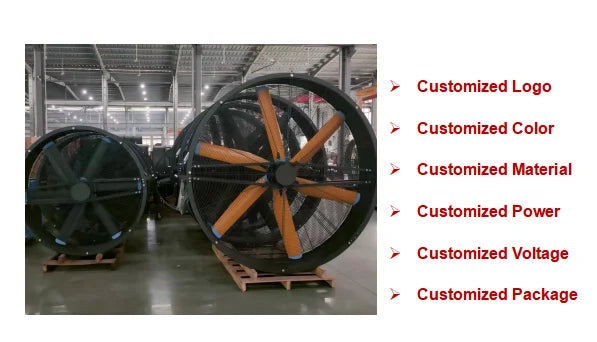

Customized Logo Customized Material

Customized Color Customized Package

Model	Diameter(mm)	Power(w)	Voltage(v)	Rotating speed(rpm)	Airflow(m³/h)	Coverage area(㎡）	Noise(dB)
TOPMF-30	30	180	220	≤650	36000	150	39
TOPMF-60	60	250	220	≤600	42000	200	39
TOPMF-90	90	370	220	≤560	48000	300	39
TOPMF-120	120	550	220	≤520	54000	350	39
TOPMF-150	150	750	220	≤480	60000	450	39
TOPMF-180	180	1100	220	≤420	66000	600	39
TOPMF-210	210	1500	220	≤380	80000	800	39

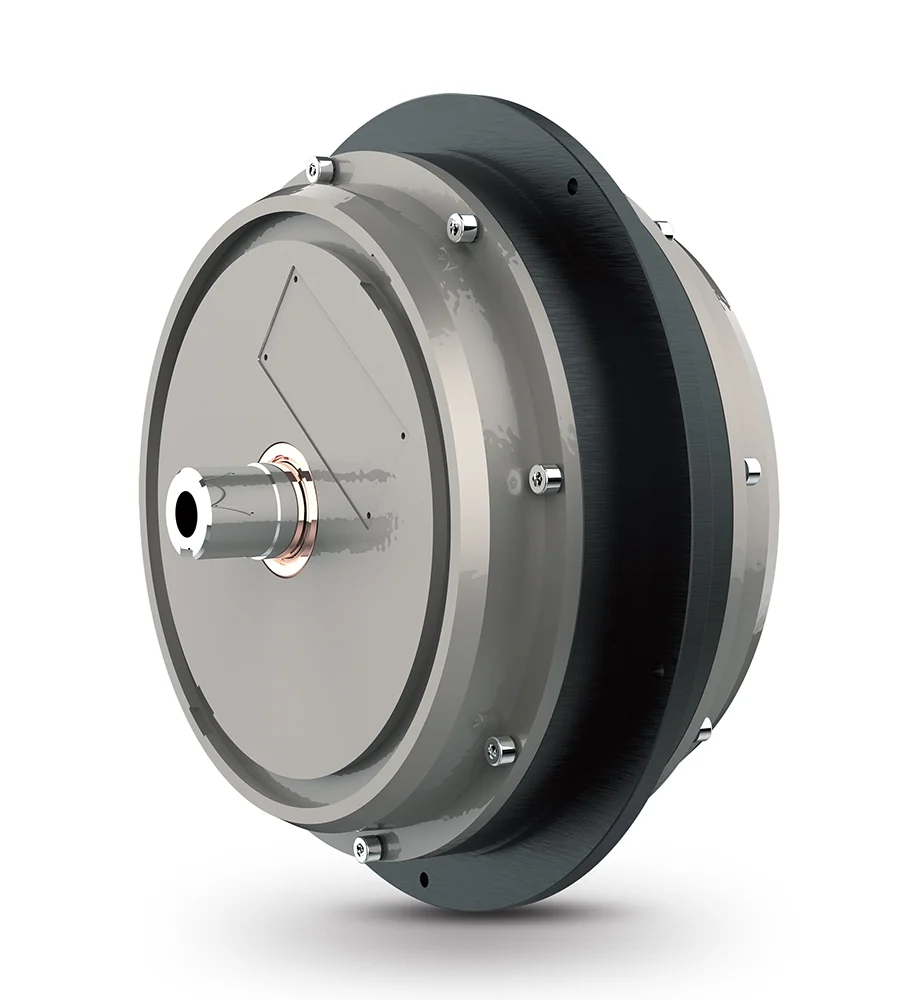

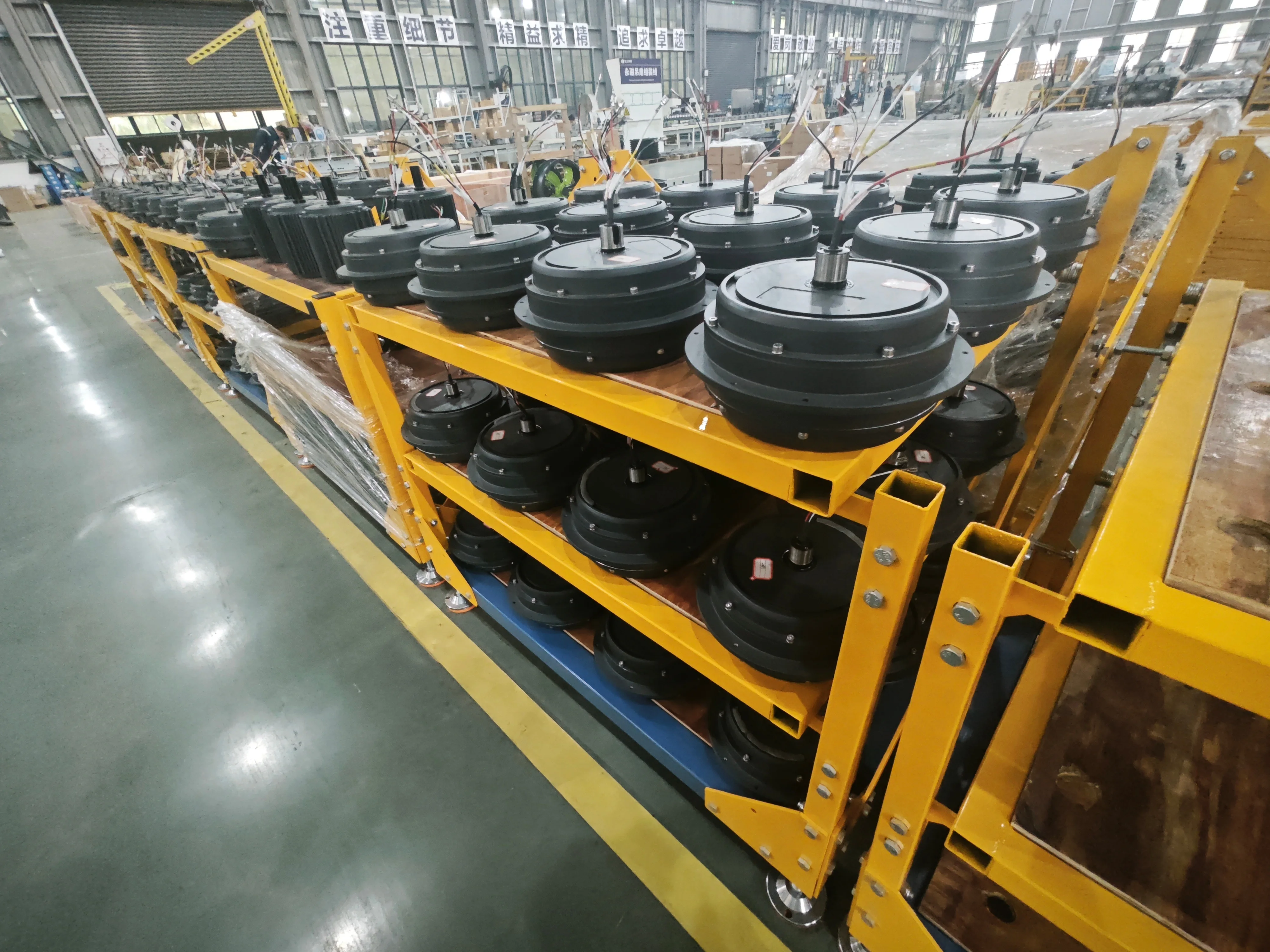

PERMANENT MAGNET SYNCHRONOUS MOTOR

* Without rotor losses
* High efficiency and precision • Large power factor
* Improve grid operating environment. • Frequency modulation width (0~200HZ)
* Small size and light weight • Saving energy and high efficient

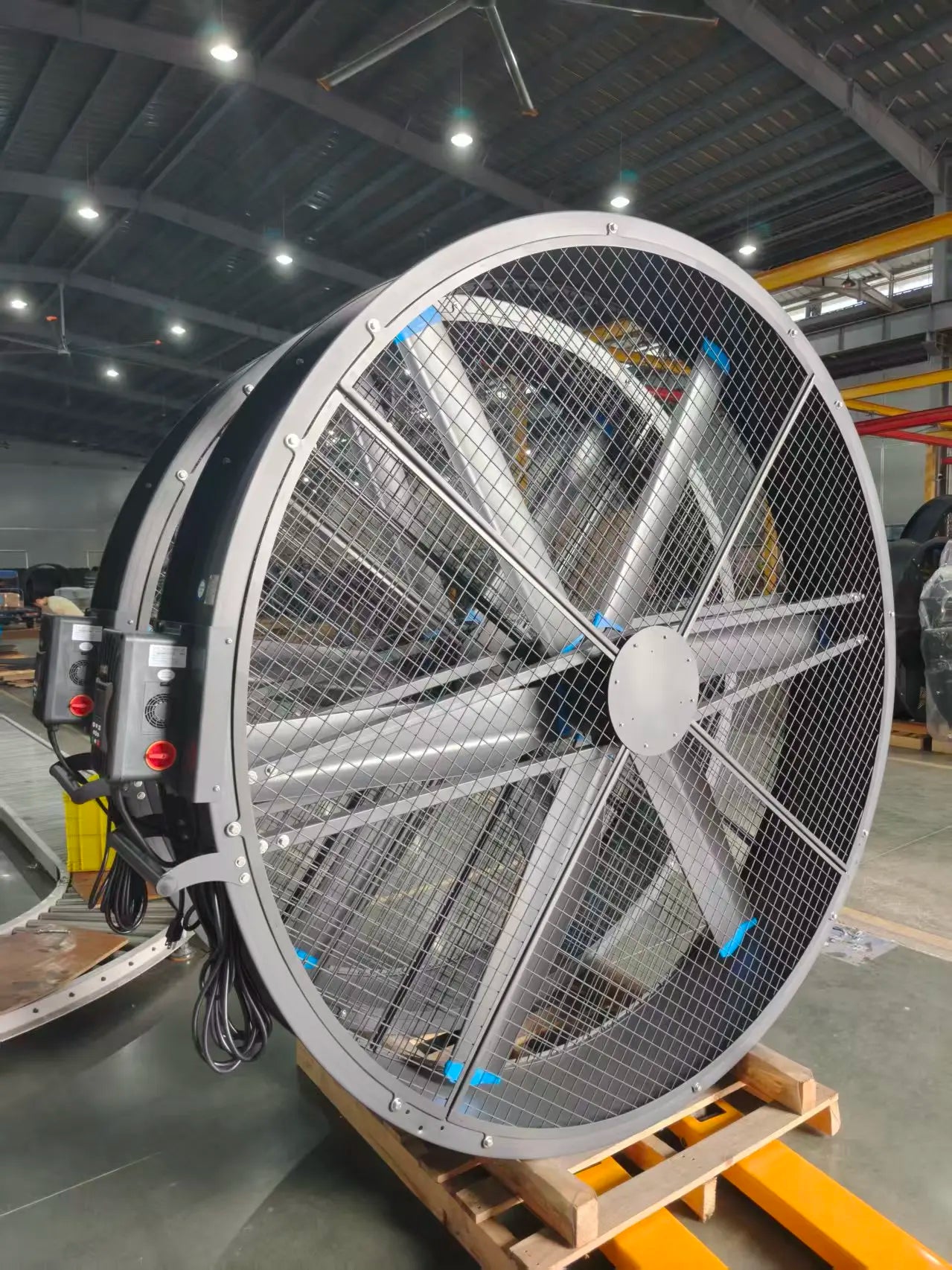

STREAMLINED FAN BLADE

It is made of aluminum and magnesium alloy extruded and stretched, and has the advantages of high strength, good
toughness, light weight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.

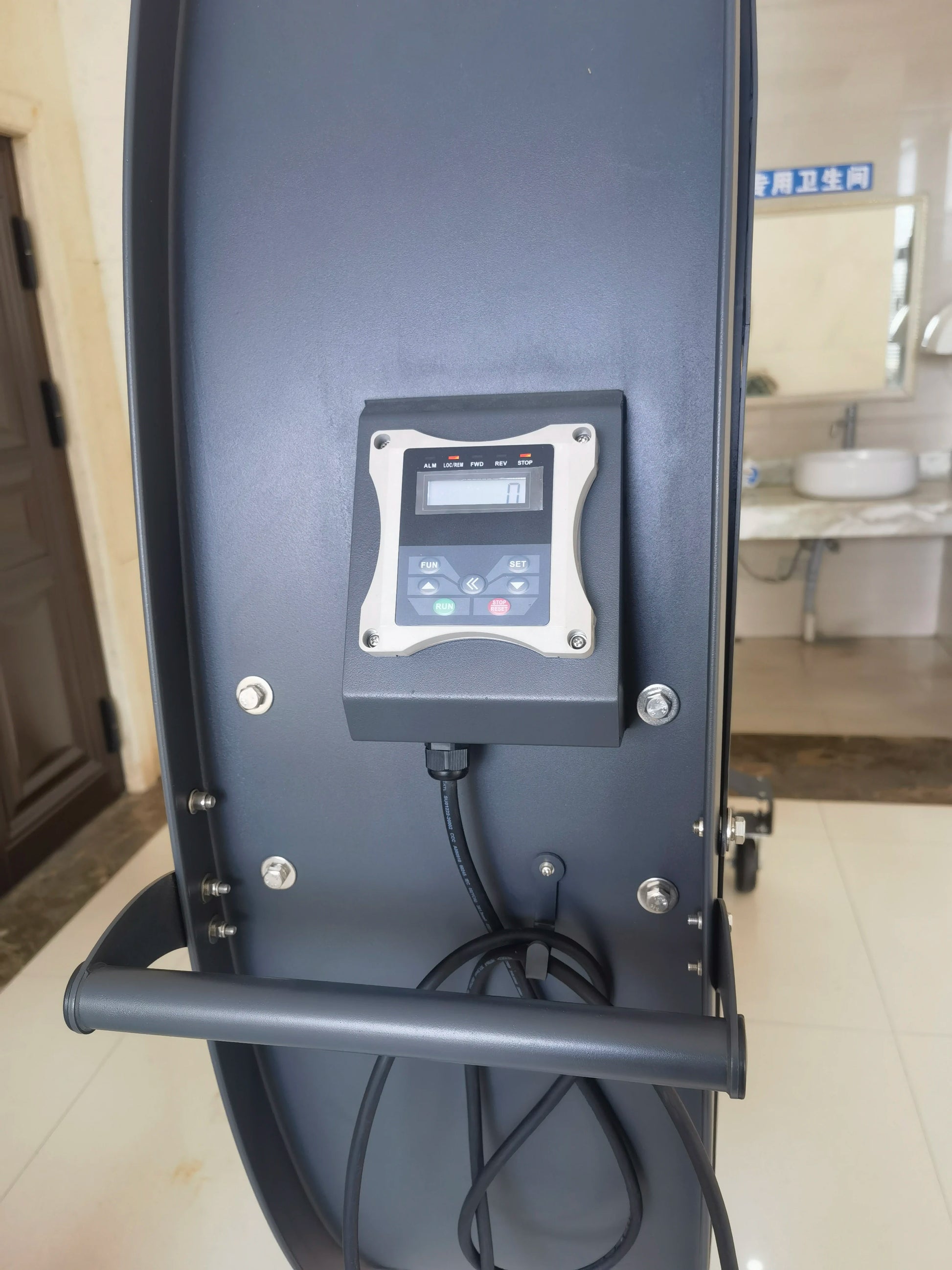

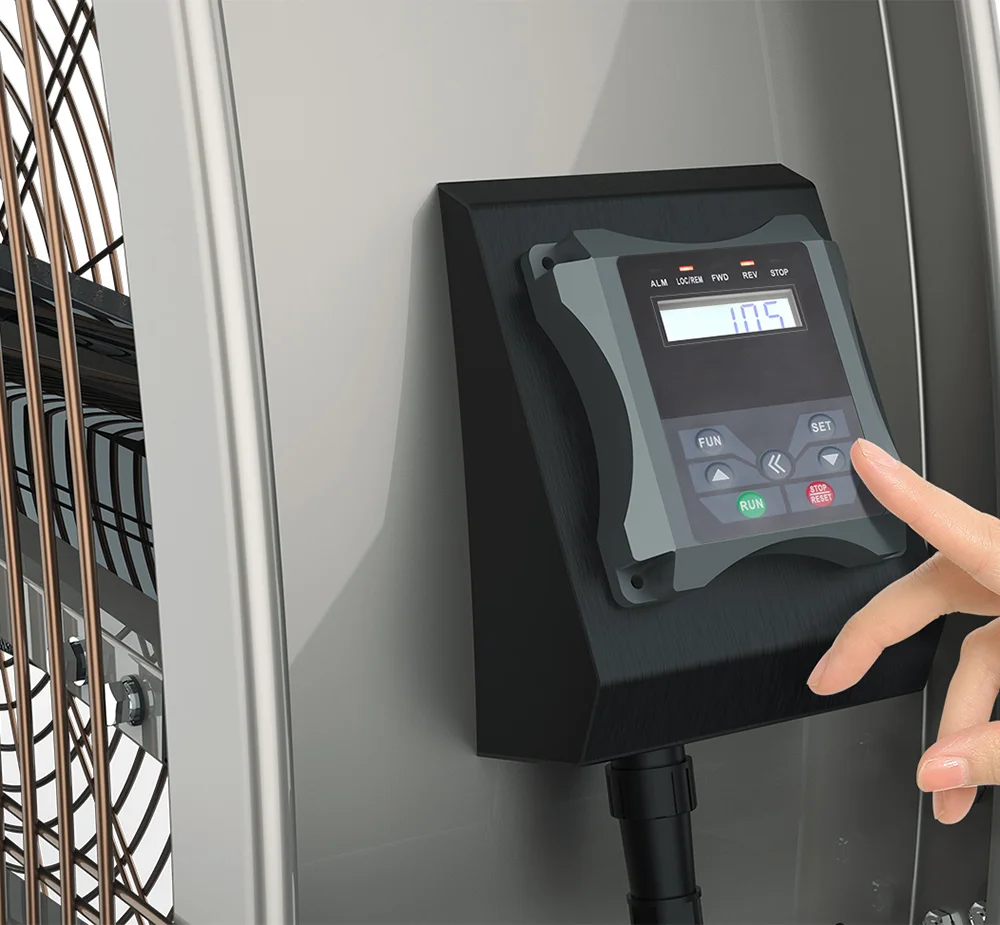

SMART CONTROL SYSTEM

*The system is no position vector control, anti-electromagnetic interference, anti - radiation, small size, light weight, beautiful appearance.

*System function is simple, 4 buttons easy to operation (start, stop, speedup, slow down). *System with overvoltage, undervoltage, voltage loss regulation, current,lack of phase, overload, collision, overheating, lightning, abnormalprotection.

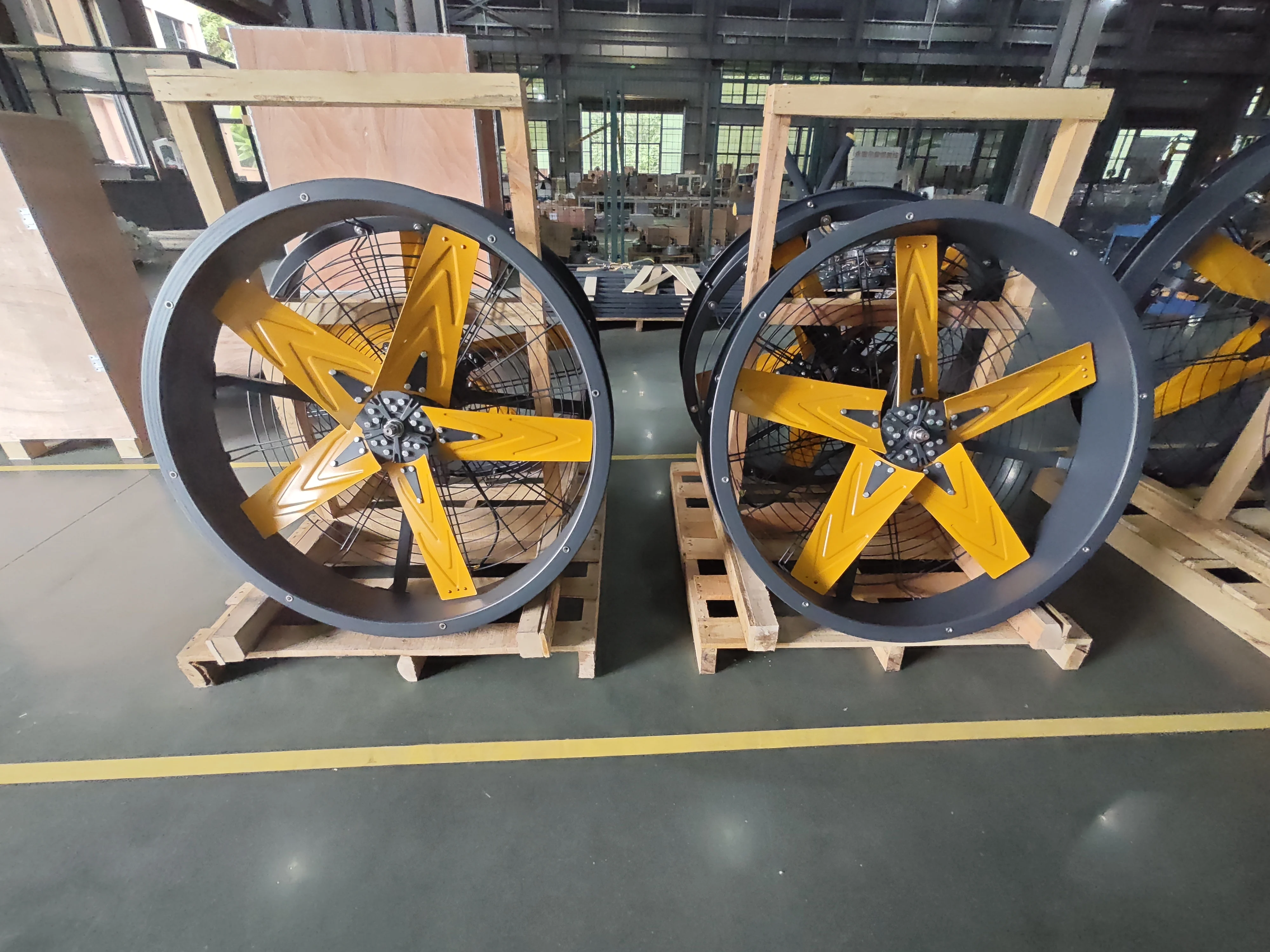

Package and Delivery

We use export-standard plywood packaging to ensure safe transportation.

Company Introduction

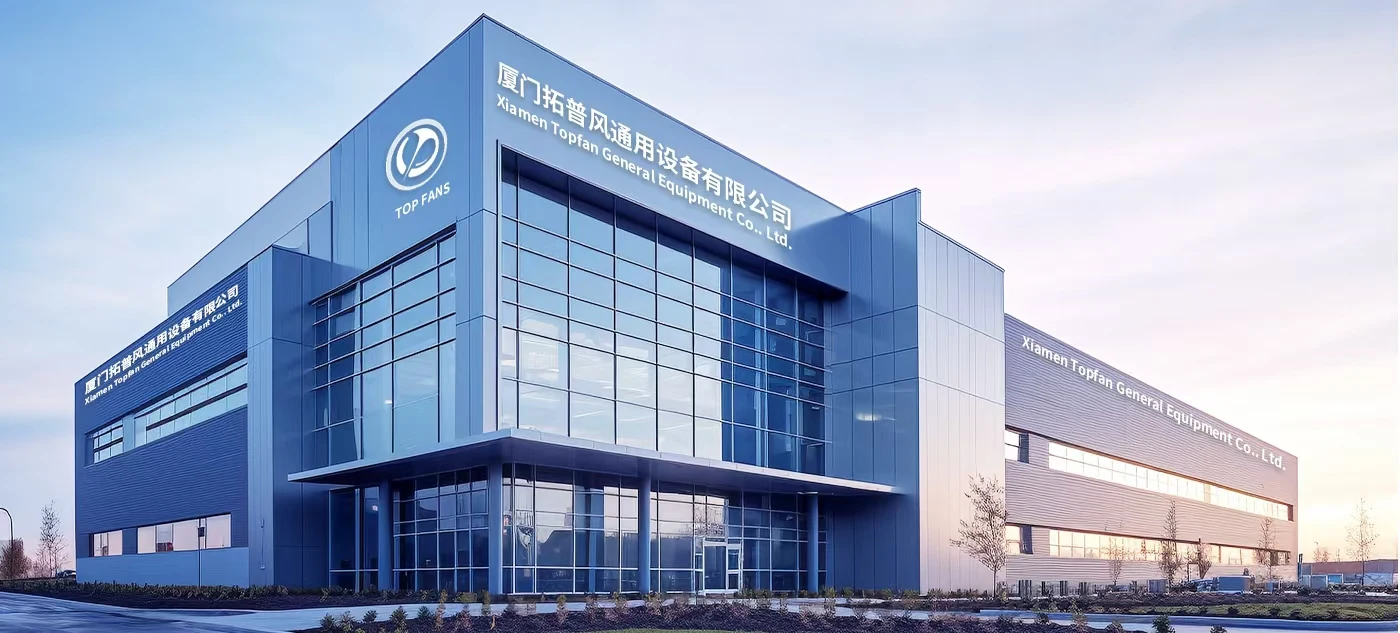

Xiamen Topfan General Equipment Co., Ltd. is an innovative enterprise in the field of industrial ventilation equipment, founded by Mr. Pengyongdao, who has profound knowledge in the electromechanical industry. The company's self-owned brand "Topfan" specializes in industrial ceiling fans, permanent magnet variable industrial ceiling fans, and external rotor fans, which are renowned for their energy saving, environmental friendliness, and safety. Its products are widely used in factories, warehouses, shopping, and gymnasiums, providing efficient and energy-saving ventilation solutions for large spaces. With advanced technology and market insights, Topfan is committed to becoming a leading brand in industry and promoting the development of ventilation technology.
