SPECIFICATIONS

Application: Steel Structure warehouse

Application Fields: Steel Structural Fabrication Construction

Brand Name: HOPE

Delivery Time: 8 ~ 14 days

Door: Sliding Door

Drawing design: CAD

Grade: Q235/Q345B

Main frame: Solid H-shape Steel Beam

Main structure: Customzation Size

Material: Q235B/Q345B Low Carbon Steel

Place of Origin: Shandong, China

Processing Service: Bending,Welding,Decoiling,Cutting,Punching

Purlin: C.Z Shape Steel Channel

Roofing: Sandwich Panel. Single Steel Sheet

Standard: GB

Tolerance: ±1%

Type: Light

Usage: Workshop Warehouse Construction Office

Window: Aluminum Alloy Window

Prodcut Display

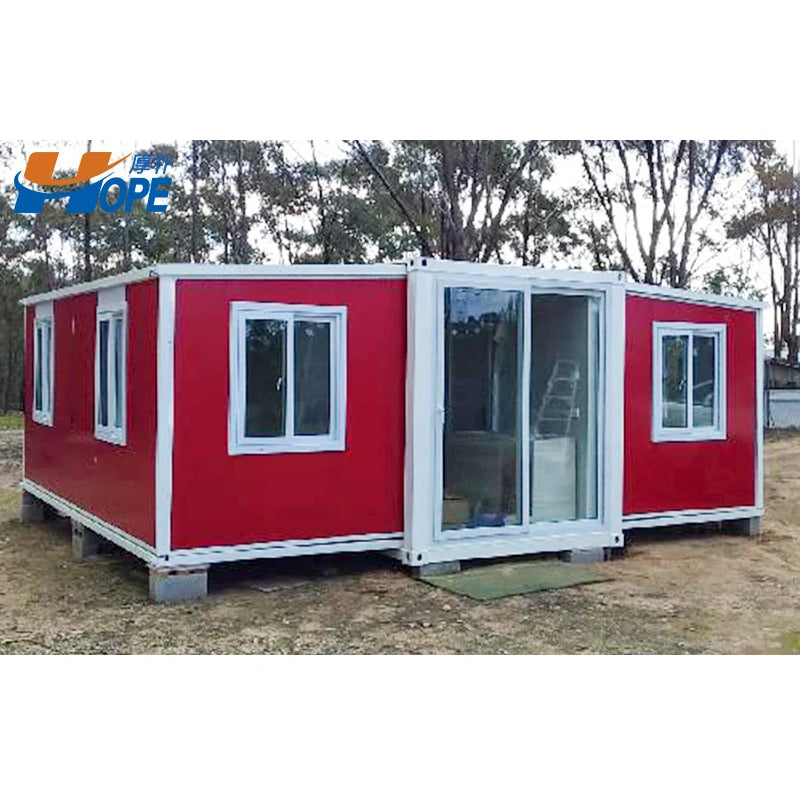

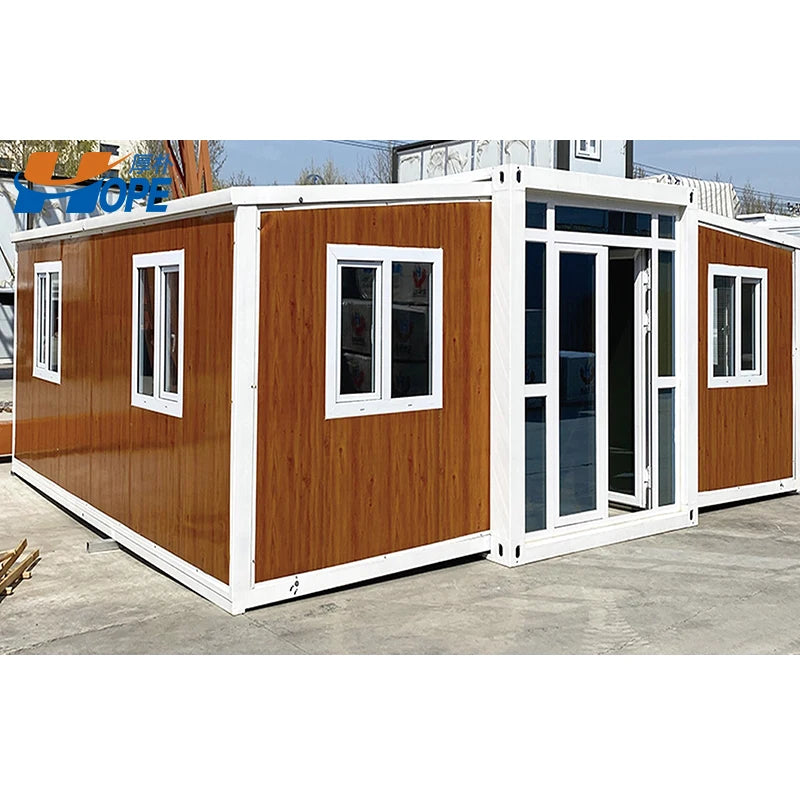

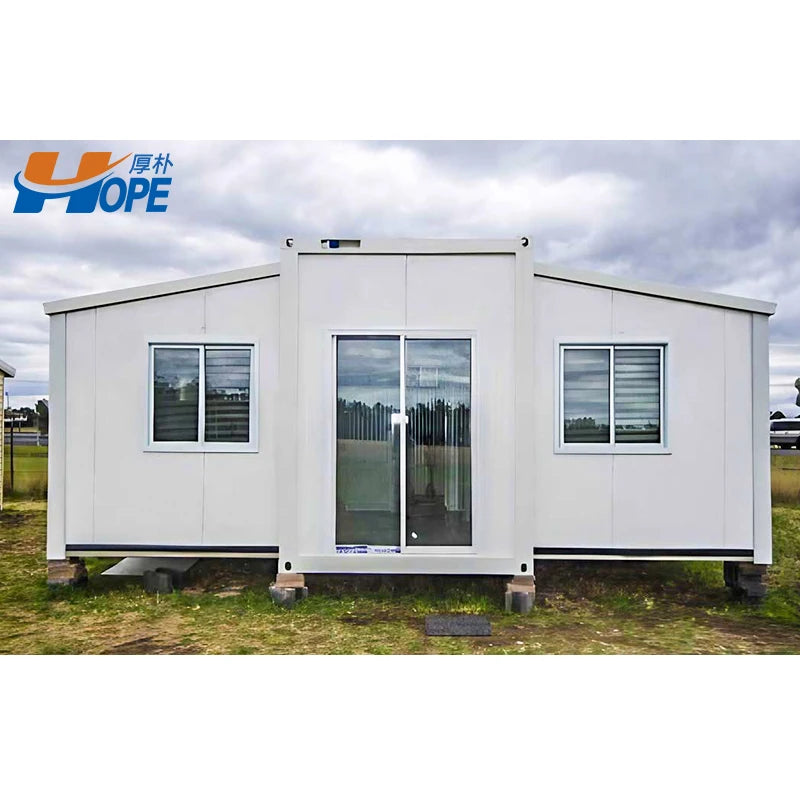

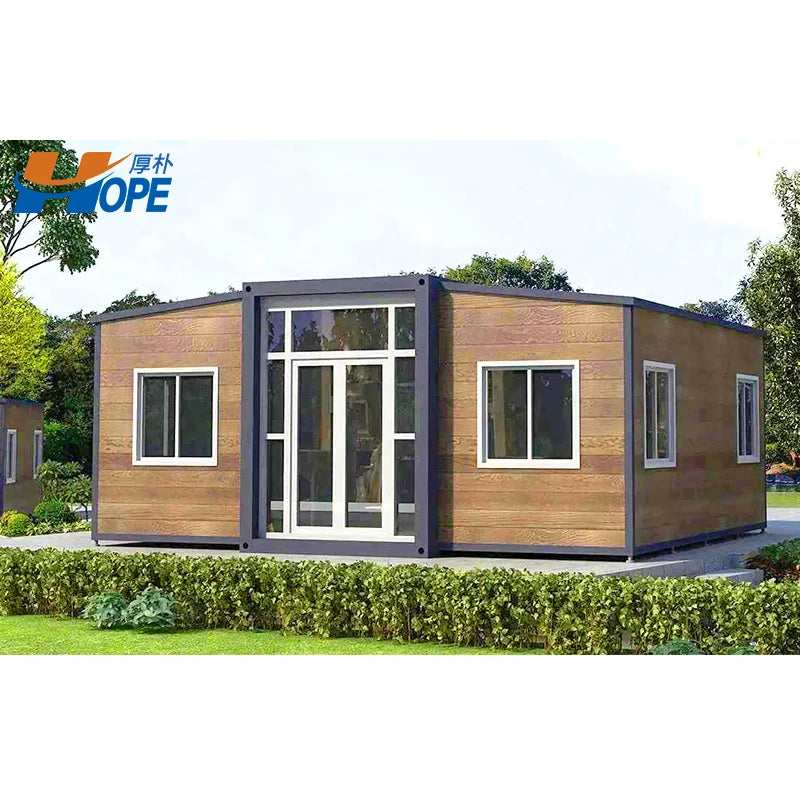

Expandable Container House (Double-wing container house)

The exit is a 20 foot expansion room, with a width of 6410mm, a length of 5900mm, and a height of 2480mm. The interior can be used as various functional areas, including bedrooms, living rooms, and bath-rooms Kitchen, etc.

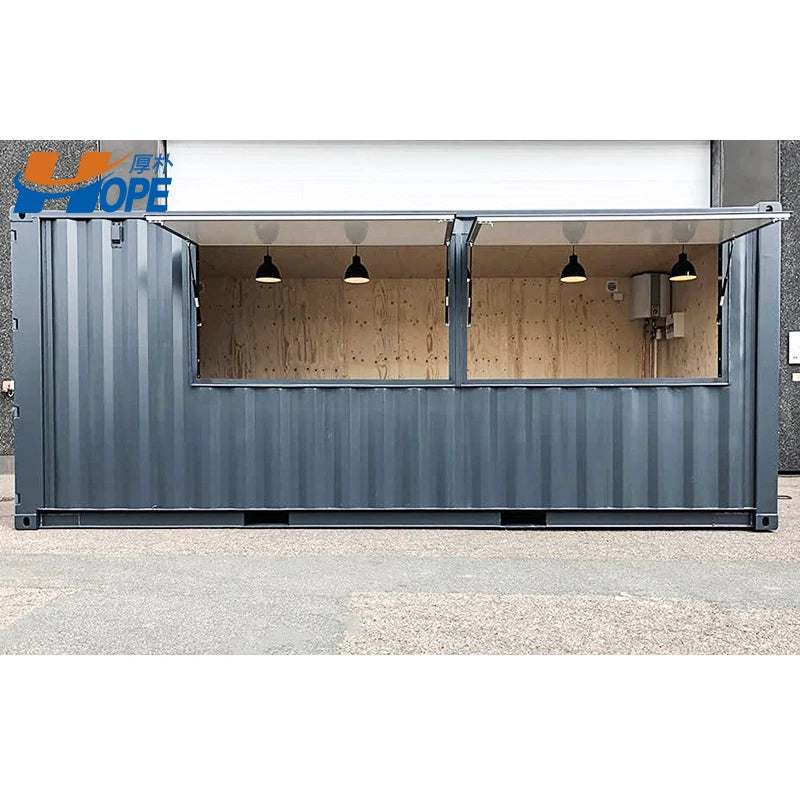

Mobile Container Shop

Mobile Container Shop: $pecification: customized; Material: light steel structure.Mobile Container Shop: is a modular component which can be constructed by combinations of stacking.splicing and misalignment of boxes. Various shapes will bring greatvisual impact to the appearance.

Folding Box Room

Folding box room: specification: 5950mm*2950mm*2650mm; Material: Rock wool. The box house is based on a standard stee chassis and can derive many combination spaces.Such asmeeting rooms, dormitories, kitchens, bathrooms, etc. The standard width is 2950mm, height 2650mm ength 5950mm, and other sizes can also be customized.

Folding Packing Box Room

Folding packing box room: specification: 5800mm*2460mm*2510mm; Material: Rock wool. The box house is based on a standard steel chassis and can derive many combination spaces.Such asmeeting rooms, dormitories, kitchens, bathrooms, etc. The standard width is 2950mm, height 2650mm. length 5950mm, and other sizes can also be customized.

Characteristic	Waterproof	99.9999%	Fireproof	Grade A
		Wind Resistance	90~110Km/hour	Seismic Resistance	Grade 10
		Sound Resistance	>=30dB	Lifetime	More than 30 years
		Roof Live Load	1.0 kN/m2	Floor Live Load	2.5kN/m2
Details	Roof	External roofing	t50mm fireproof EPS sandwich panel
				Internal ceiling	t0.25mm Type-193 ceiling plate
		Wall board (Color Optional:white,wooden stripe color,black,gray)	Intermediate roof insulation	A layer of 50mm fireproof eps sandwich board and glass silk wool (Side top 50mm eps sandwich board) 14KG/m³ density eps
				Side walls, front and rear wall panels	t75mm fireproof EPS sandwich panel
				The internal partition	t75mm fireproof EPS sandwich panel
		Floor	In the middle of the floor	Fire resistant cement fiber board 15mm
				both sides of the floor	Bamboo board

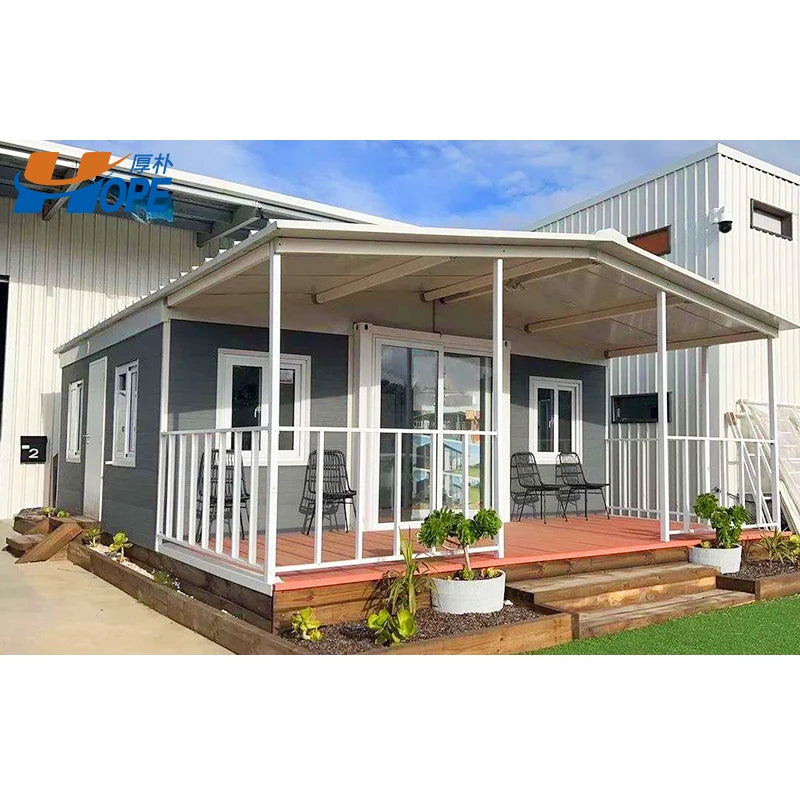

Some Style Options (Customizable On Request)

Contact Us

HOPE TECHNOLOGY(SHANDONG) CO., LTD

Established in 2009, HOPE TECHNOLOGY(SHANDONG) CO., LTD is dedicated to designing and manufacturing steel structure buildings(warehouse，garage，hangar，Livestock，workshop)and prefab house. After entering the international market for more than ten years, our products have been sold to North America, Asia, Africa, Europe, South America, Oceania.and sales amount continues to increase. Up to this year, the sales amount has reached to 2 billion with annual export volume of more than 20,000 tons steel and 50,000 square meters prefab house.With good products and services, we have been unanimously recognized by customers so to grab a larger market share. At present, our production workshop covers an area of more than 40,000 square meters, with 8 designers, 16 technicians, more than 150 senior production technicians. Our company will provide regular training for them.And we also have a very strict seven systems, which are mainly divided into supply system, production management system, quality control system, packaging system, storage system, prefactory inspection system, and after-sales system. The improvement of the system is to ensure our production capacity and production the high quality and after-sales service are completed to better serve customers.

Steel Structure fixed packing, loading, transportation, unloading the matters needing attention:

(1) The lifting large there must be a person responsible for the use of fixture, suitable, strictly abide by the
rules of lifting, to prevent the occurrence of vibration, impact, deformation or damage, fall in the hoisting process.
(2) At the time of loading, there must be a special supervision, check car number and packing, the car pile
up securely, and to increase the necessary binding component loosening, prevent the loss.

(3) Remained stable in the transport process, the vehicle at the time of shipment, on the long, wide, high object transport, must
be trained pilots, escort personnel responsible for, and mark is arranged on a vehicle.

(4) No rough handling, loading and unloading personnel handling, weight, size should be familiar with the components, and check
the horse sling, rigging, prevent accidents.

(5) The member to the construction site, timely organization of unloading, stacking area.

(6) The crawler crane carrying member, should pay attention to the surrounding terrain, air condition, prevent the crawler crane
overturning and component collision.

FAQ

Steel Frame Construction Pole Barn Prefabricated Warehouse Metal Building Steel Structure Shed Workshop

Q1: How long does it take to get my building? A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for
delivery(depending on complexity)

Q2: What are the benefits of steel construction?
A: 1-Durable and with long lifespan.
2-Short construction period than concrete and wooden building.
3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.

Q3: Why choose JU HE?
A: At JU HE, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and
operated business, unmatched in customer service. We have more than 10 years of metal building experience. We are also very
reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value
your business.

Q4: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to
confirm. And then offer you a quotation.

Q5: Do you offer designing service for us?
A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X
steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.

Q6: Do you provide samples?
A: Yes, we could offer the sample for free but do not pay for the cost of transportation.

Q7: What is your terms of payment ?
A: L/C, T/T, and Western Union.

Q8: How about your quality control?
A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing
to accept any other the third inspection part to control.

Q9: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the
construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages
will be provided by buyers.
